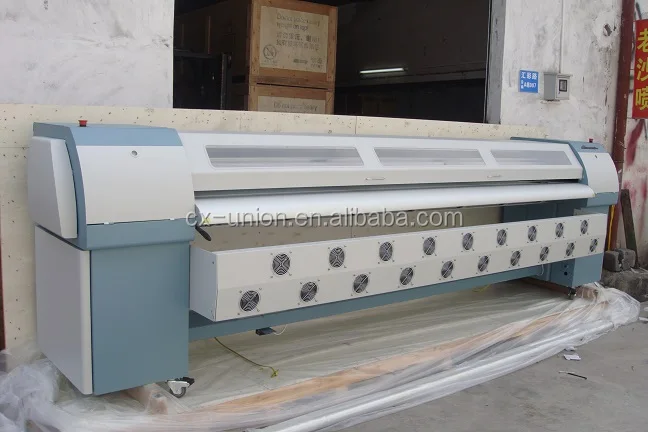

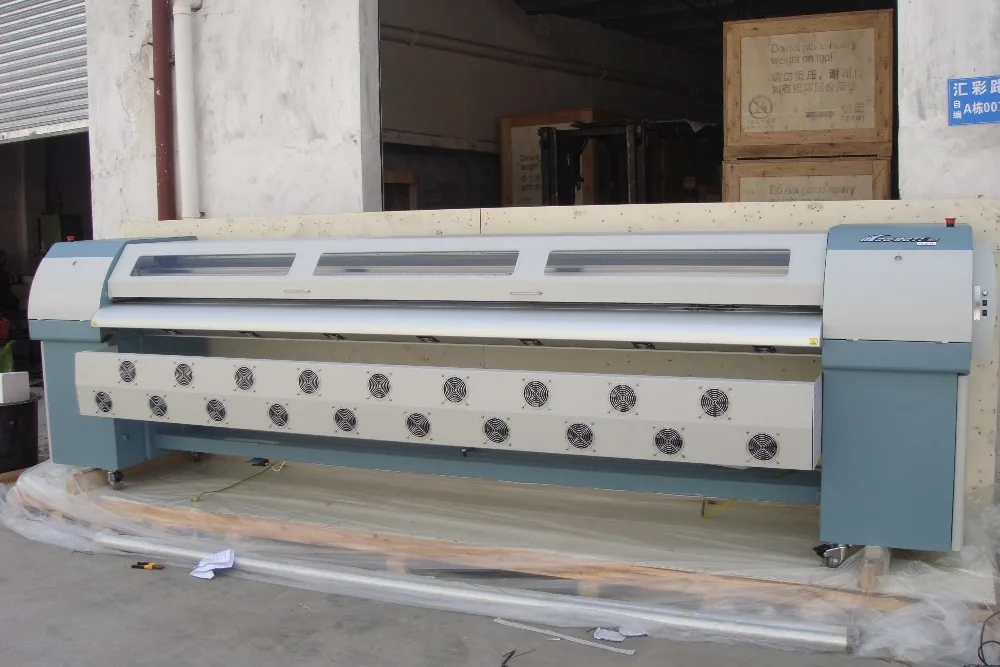

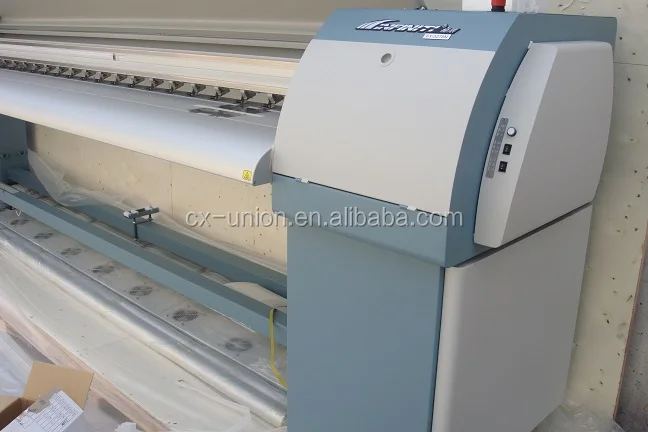

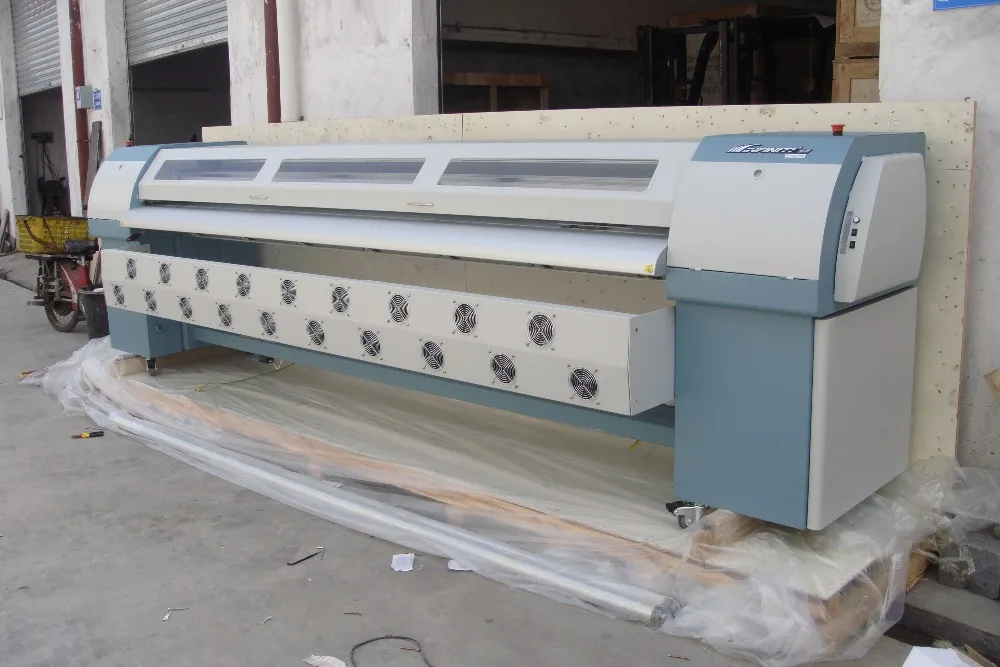

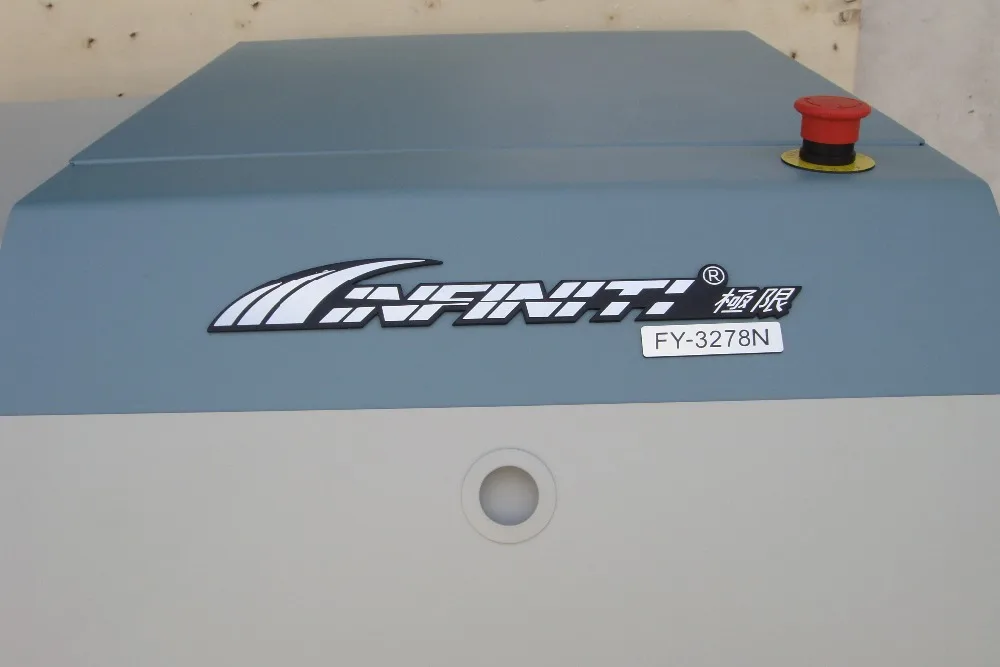

fy union Challenger/Infiniti FY 3278N pana flex digital eco solvent photo industrial printing machine
- Category: >>>
- Supplier: Guangzhou Caixu Digital Technology Co. Ltd.
Share on (60448589853):
Product Overview
Description
Product Description
Specification:
Digital solvent inkjet printer,Challenger 3.2mFY-3278N to sale
1.Large format solvent printer (FY-3278N) , 8printerhead,510 nozzles per printhead.
2.Eight SPT 510/35pl printhead, four color printing with two heads each color, max print resolution,360*720dpi
3.Three intelligent heater:
Preheating prepares ther media for better absorption of ink.
Platform heating increases the brightness of print.
Front heating helps the dying and increases the outdoor durability of the print.

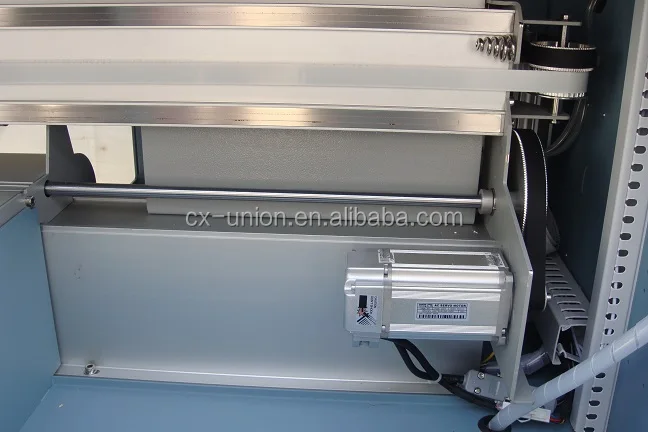

4.Import Motor and Driver from America,With higher quality and longer life.
5.44 pairs of reinforced pich rollers are specially designed to optimize precision of media feeding.
6.100% single color black is used on printing black text to avoid mixture of color.
7.The adjustment of bi-direction, step and carriage moving speed can be modified during printing.
8.The function of skipping white space is added to increase productivity.
9.Well designed alloy aluminum girder is installed to decrease the noise during printing. Achieve
the perfect quiet working environment.
10.Edge feather function can blur the pass line and feather pass edge.
Model | FY-3278N | ||
Printhead | Drop on demand Piezo Head(SPT510-50PL) | ||
Mumber of Printhead | 4 or 8 Heads | ||
Maximun Print Width | 3,200mm(125.98inch) | ||
Print Speed | 157m2/hr Draft 2Pass | ||
| 109m2/hr Standard 3Pass | ||
| 91m2/hr Quality 3Pass | ||
| 46m2/hr Compensation 3Pass | ||
|
| ||
Media | Max.width | 3,300mm(129.92'inch) | |
| Max.Weight | Roll media:80kg | |
| Type | Frontlit,Backlit,Vinyl,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper... | |
| Thickness | 4.5mm(Max.) | |
Heating System | 3 way intelligent heater | ||
Auto Media Feeding& Take-up System | Equipped | ||
Ink | Type | Solvent C,M,Y,K ink. | |
| Capacity | 1L or 5L per Color Main Tank | |

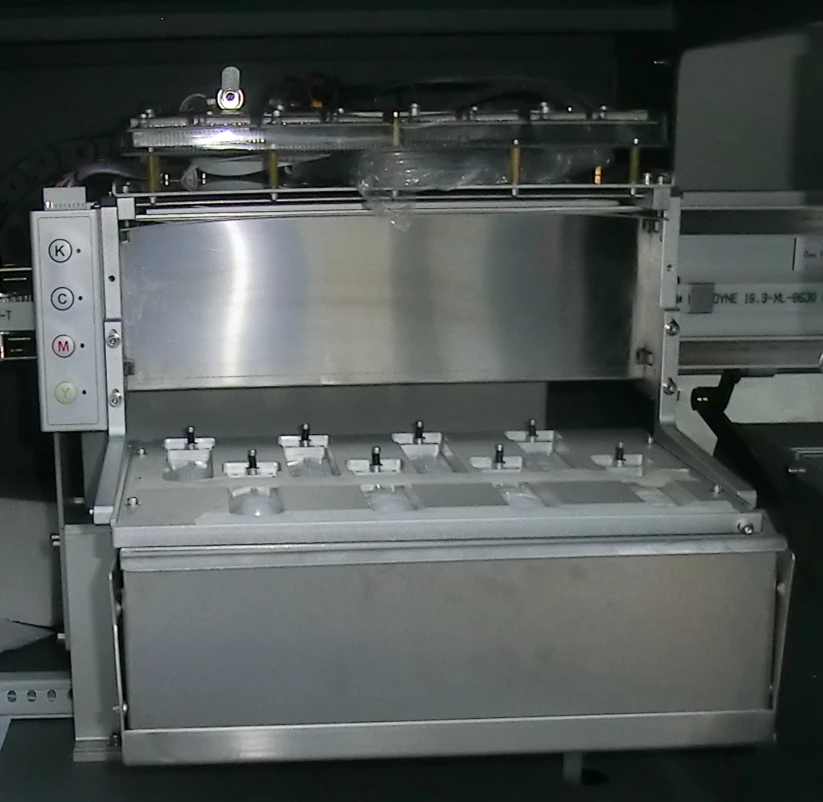

Auto Cleaning System | Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System | ||
Print Interface | USB 2.0 | ||
Power Specification | AC 220V/230V 50Hz/60Hz 2300W | ||
Operational Environment | Temperature20°C-28°C Humidity40%-60% | ||
Compatible RIP Software | Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maintop | ||
Dimension & Weight | Machine | L4,630mm X W860mm X H1,340mm 680kg | |
Package | L4,650mm X W970mm X H1,550mm 780kg | ||

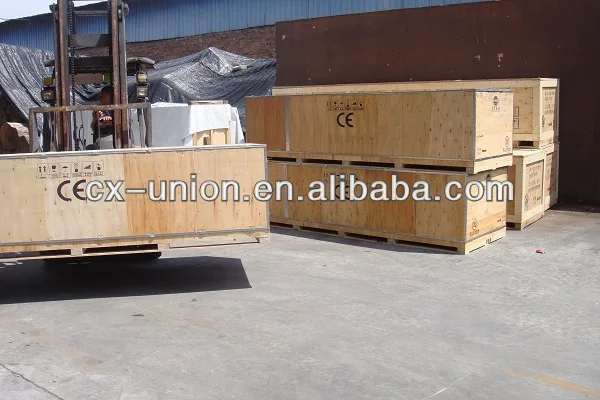

The printer package in a wood box which is being protected .
We sure the printer have been check by us before send to you .and choose the best one for you.
Machine always be packed in the safe wooden box to against damagad .
What is more , we will give you the traking unmber after the machine send out .
You can check the machine by the internet .It will be more clear and convenience.

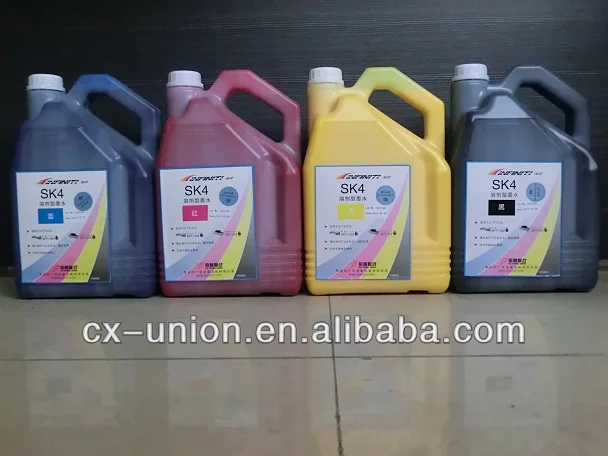

This printer using SK4 original ink.
Technical Support :
1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .
2. All kinds of original spare parts for the machine to ensure your machine running smoothly .
What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .
This month our company has discount for the machine . And the shipping cost will be 30% off. Please feel feel to contact us .
Contacting information :
Name : Mandy wen Sales manager
Tel: 0086 020 32053500
Cellphone and whatsapp : +0086 15989224480
Skype: mandywen76
Hope to receive your massage !
