3296 Вт cermet триммер 10k линейный потенциометр
- Category: Potentiometers old >>>
- Supplier: Tong Yue Xin Commercial And Trading Co. Ltd. (Chengdu)
Share on (60448602399):
Product Overview
Description
3296W cermet trimmer 10k linear potentiometer

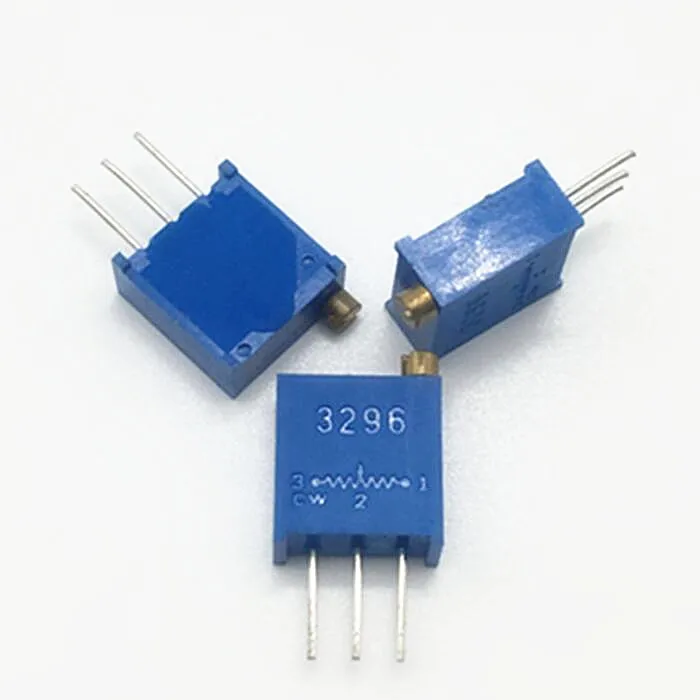

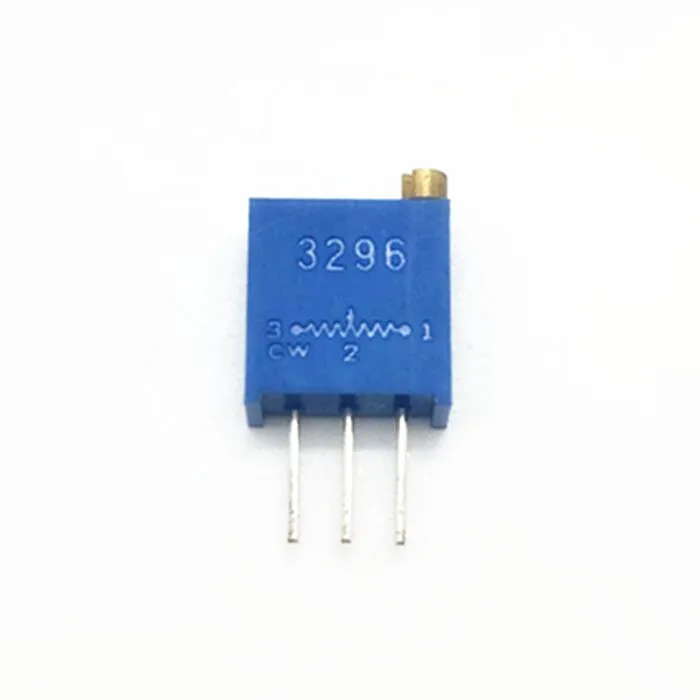

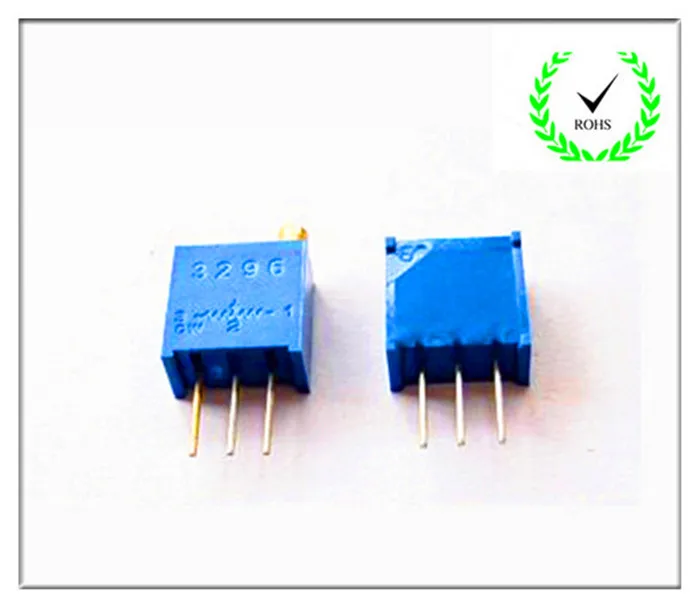

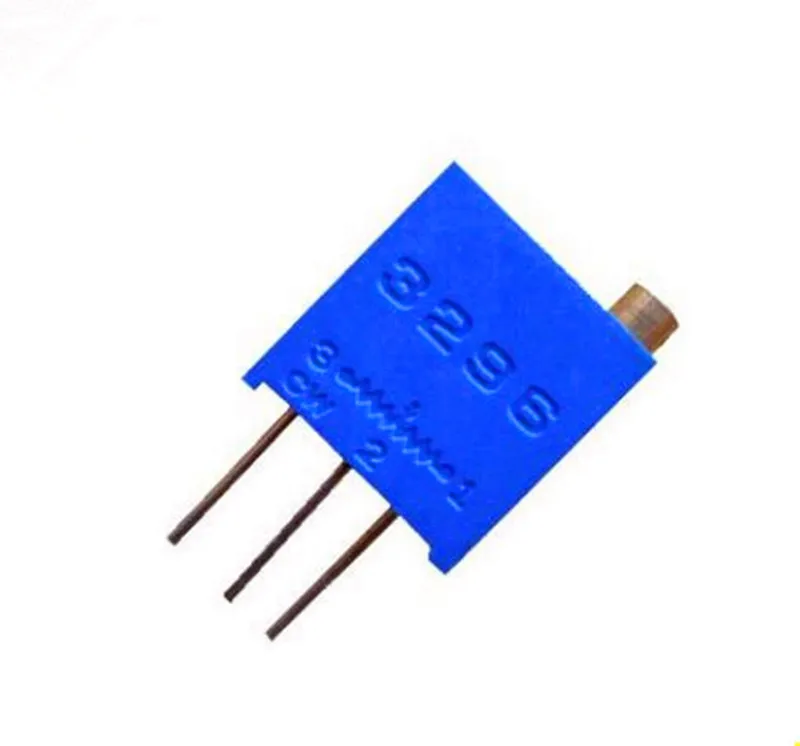

1.3296W Pictures:
| ||||||
2.3296W dimensions:
| ||||||
| 3.3296W data sheet: | ||||||
| Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance | ±10% | |||||
| Terminal resistance | ≤±1%R or 2Ω | |||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω | |||||
| Insulation resistance | ≥ 1GΩ (100V AC) | |||||
| Withstand voltage | 640V (DC or AC peak value) | |||||
| Effective electrical travel | ≥70% of mechanical travel | |||||
Characteristics | Rated power | 0.5W ( 70°C) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±250×10-6/°C | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R | |||||
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω), nsulation Resistance≥100MΩ | |||||
| Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | |||||
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ | |||||
| Physical Characteristics | Total mechanical travel | 28±2 lap | ||||
| Starting torque | ≤35mN.m | |||||
| Standard package | 50 pcs /tube(3296W,3296Y) | |||||
| 40 pcs /tube(3296X,3296Z,3296P) | ||||||
4.3296W Packaging: 50PCS/Tub,15000Pcs/carton.Special packaging is available .
| ||||||
5.3296W Buying Guides:
| ||||||
6.Shipping & payment: 1).Send by DHL,FEDEX,UPS,TNT,EMS,Sea transportation.
| ||||||
7.Our main products: | ||||||
 | ||||||
7.Factory Information:
| ||||||
 | ||||||
8.Our certificates:
| ||||||
9.For more information: Att:Aimee
Skype:aimee.jiang122
QQ:228156427
Pone/Whattsapp:+0086-18030517459 | ||||||
Looking forward to your inquiry..........
