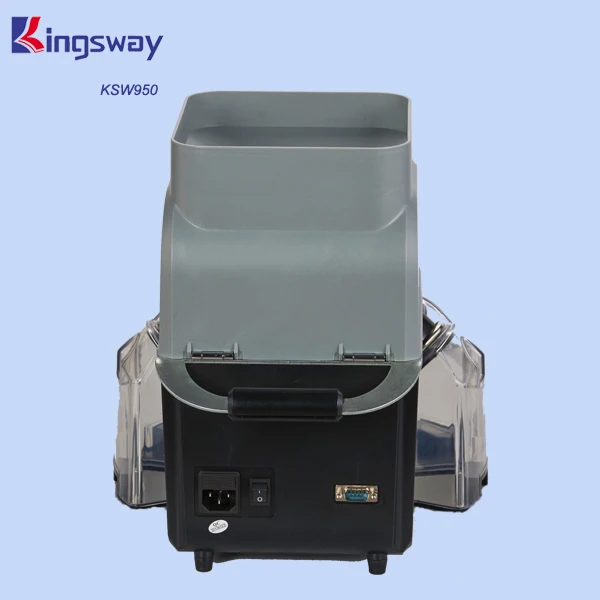

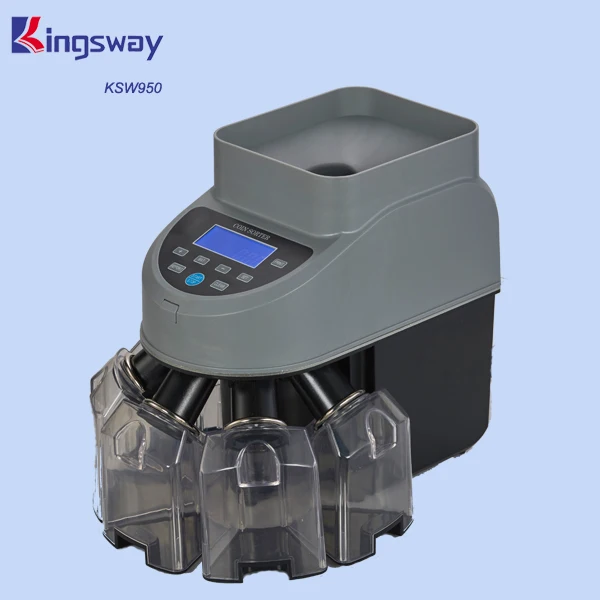

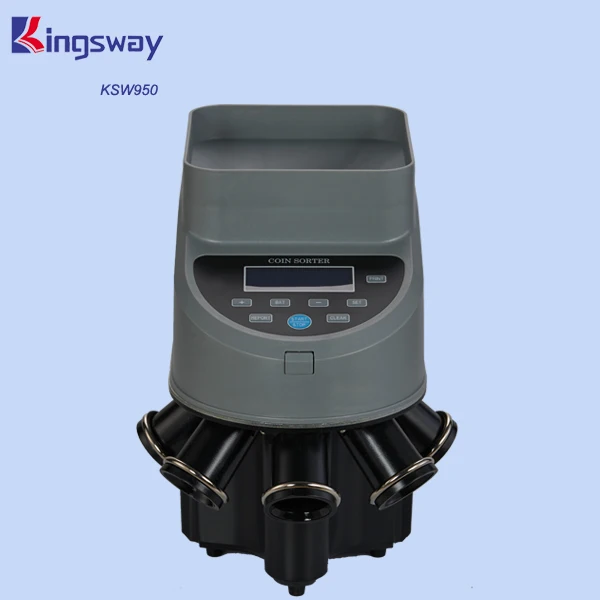

New Coin Sorter Model KSW950.

Product Overview

Description

 New Coin Sorter Model KSW950.









Count and sort mixed five coins into the different drawers/bags.







Count and sum the total value of all denomination.







Count and sum the total quantity of each denomination.







Each denomination can be set an expected batch (from 0 to 999).





Batch function it can be batched with the different denomination at the same time.







It is suitable for banks, shops, pubs, clubs,charities,post offices,vending operators, amusement operators, casinos, fund raising events,retail stores, restaurants and other companies that need reliable currency counters & coin counters for high volume money counting situations.









Technical detail:





Ambient temperature: Normal temperature(20℃~35℃)



Ambient Humidity :30-80%



Hopper capacity :500-1000units



Each denomination display :3 digits(small)



Value or quantity display: 7 digits(big)



Power source: 90 ~240ACV/50Hz-60Hz



Power consumption :<80W



Dimensions: 415*194*330mm



Net weight: 6.8kg



Sorting speed :1200(16mm),1000(20mm)pcs/min







Warranty:



One year!



Warning Points:



1.When it jam or does not working well, stop the machine, unplug the machine, press clasp, open the face cover, loose the screws, pull out the Glue gear circle, and take out the jammed coins. And then install the machine.



2.Clean the counting sensor termly every day !!!

A. press clasp, open the face cover, loose the screws, pull out the Glue gear circle.

B. clean the glass and the white color sensors of counting sensor group every day.

C. Install the machine.





3.When machine shows E1 after power on, it means the counting sensor problem

A. Do as point 2 procedure to clean the counting sensor.

B. If it does not work well after doing this, need to replace counting sensor.





4.When machine shows E2 after power on, it means the test sensor problem

A. need to replace the test sensor.



















For more detail information,welcome to contact us,thank you!
