CE Certified Vacuum Pressure Impregnating Machine VPI for motor stator rotor





Extend the life and operation of your motor -- Choose a motor that utilizes vacuum pressure impregnation to protect and maintain void-free electrical windings.











1. What is VPI (Vacuum Pressure Impregnation)?

Vacuum Pressure Impregnation (VPI) is a process that uses vacuum and pressure to seal porous materials with varnish or resin. The process is used primarily for high-voltage motors and generators to fill gaps in materials to create a void free insulation in various devices.

Industrial electromechanical equipment is designed for durability to provide reliable function and increased longevity, but age, temperature, and environmental factors can degrade porous metals over time. The process of impregnation seals porous materials with varnish or resin, improving the function and longevity of equipment.





2. The Benefits of VPI

• Modifications or custom-assembly to meet specific need


• Properly sized Impregnator and Storage Tank lowers operating costs by reducing costly resin inventories, Chiller load requirements, Inert gas consumption, and improving cycle times


• Quality and cost control over manufacturing and assembly


• Eliminates delays, re-work, costly mistakes arising from the use of several subcontractors


• Deeper resin penetration


• Void-free insulation that minimizes corona, improves heat transfer and provides greater bond strength


• Protects against moisture, dirt and corrosive chemicals


• Results in longer life for the motor rewinds, boosting the shop's reputation for quality work



3. Technical parameters of vacuum impregnation machine



Model	YC-VPI-800	YC-VPI-1000	YC-VPI-1200	YC-VPI-1400	YC-VPI-1600	YC-VPI-1800
VPI Tank size(mm) (diameter * height)	Φ800*800	Φ1000*1000	Φ1200*1200	Φ1400*1400	Φ1600*1600	Φ1800*1800
Heating Power (Kw)	12	15	21	27	33	40.5
Vacuum Degree (Mpa)	-0.098
Pressure (Mpa)	Custom design
Fan Power(Kw)	0.75		1.5	3
Vacuum pump power (Kw)	1.5		3		5.5	7.5
Dimensions(L*W) mm	3600*1800	3700*1800	4200*2200	4500*2200	In bulk 16m²	In bulk 18m²
Weight (T)	2	2.5	2.8	3.2	4.5	6



Note: above is the standard type of our VPI equipment. We can custom design to customers’ requirements.





4. General process of VPI



YICHENG specializes in vacuum pressure impregnation equipment manufacturing, which is more effective than traditional dip-and-bake methods and is better suited to high voltage motors and generators. Our basic vacuum pressure impregnation motor repair process comprises several steps.

• Pre-heating:Workpieces are placed in an oven and get heating up to allow  moisture to evaporate. This helps the resin better penetrate the material.


• Dry Vacuuming: Workpieces are removed from the oven and place it into a vacuum chamber, which removes air and any remaining moisture.


• Filling: The impregnation chamber is filled with resin, coating the part and filling in all the gaps and pores in workpiece.


• Wet Vacuuming: Vacuum levels are reduced and hold it for a set period of time.


• Pressure: Increase pressure within the chamber using air compressor. This allows for even deeper penetration of the resin.


• Draining: Vent the pressure, drain the chamber of excess resin, and remove the workpiece.


• Curing: Finally, the equipment is placed into an oven to cure the resin.



5. Application of VPI

VPI systems are used by the electrical industry in the processing of coil windings, transformer components, power cables, fiberglass laminations, cores, paper products and other items.

Impregnation has been in commercial use for over 60 years and continues to be the preferred method for ensuring pressure tight components in fail safe applications.  The aerospace, automotive, food processing and oil and gas industry use vacuum impregnation to improve the quality of their base castings, conserve resources and reduce scrap.

• Motors & motor coils


• Dynamo/alternators


• Transformers


• Pumps


• Fans


• Household appliances


• Rotors


• Stator coils

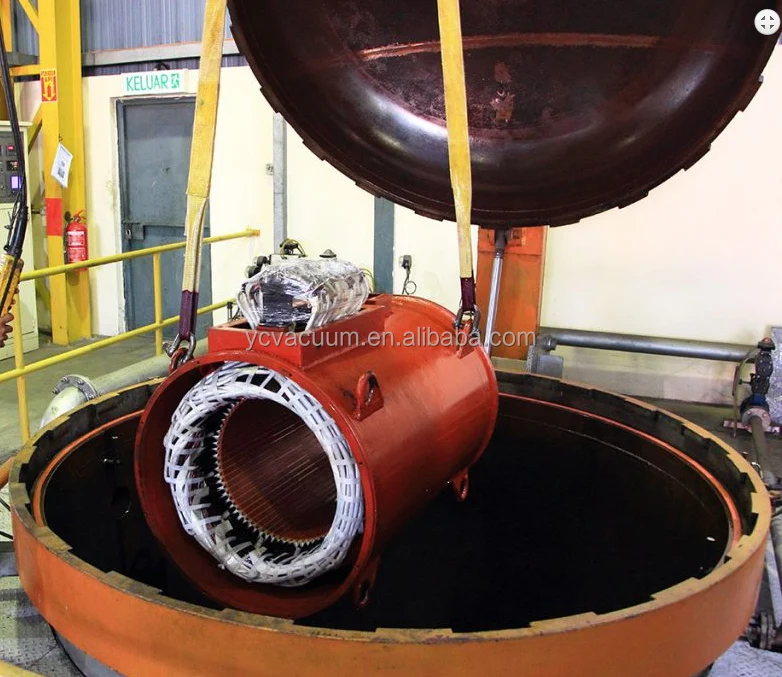

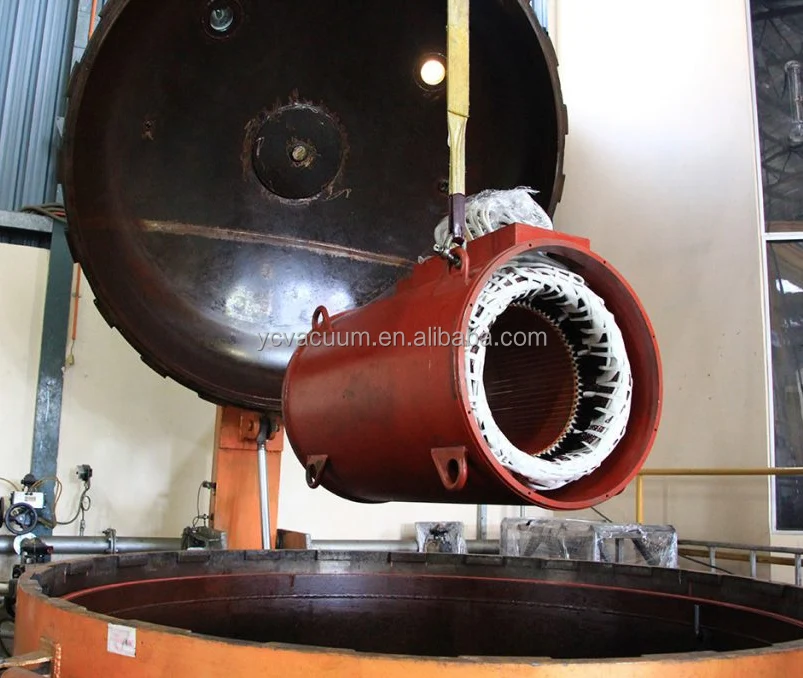

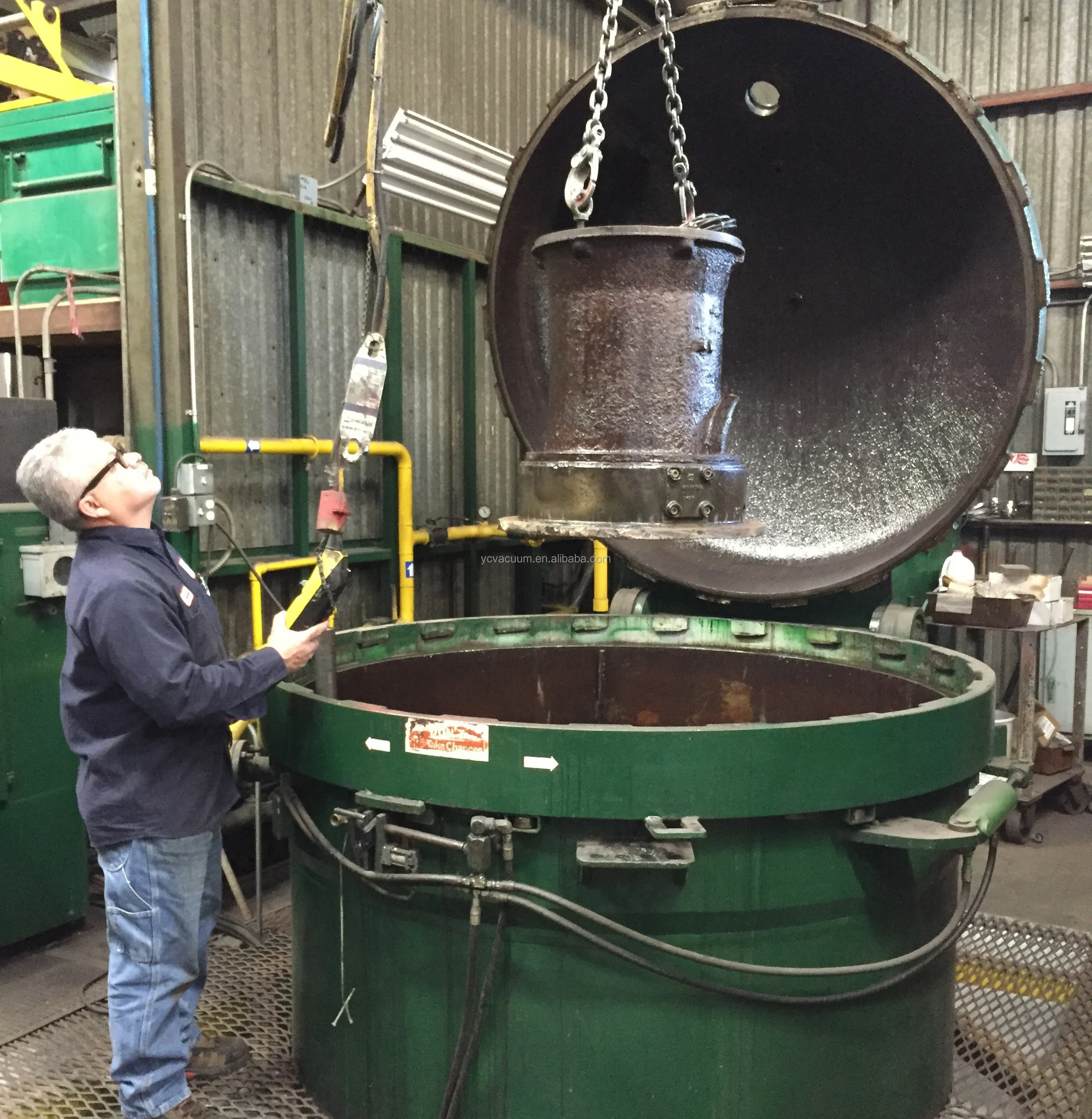

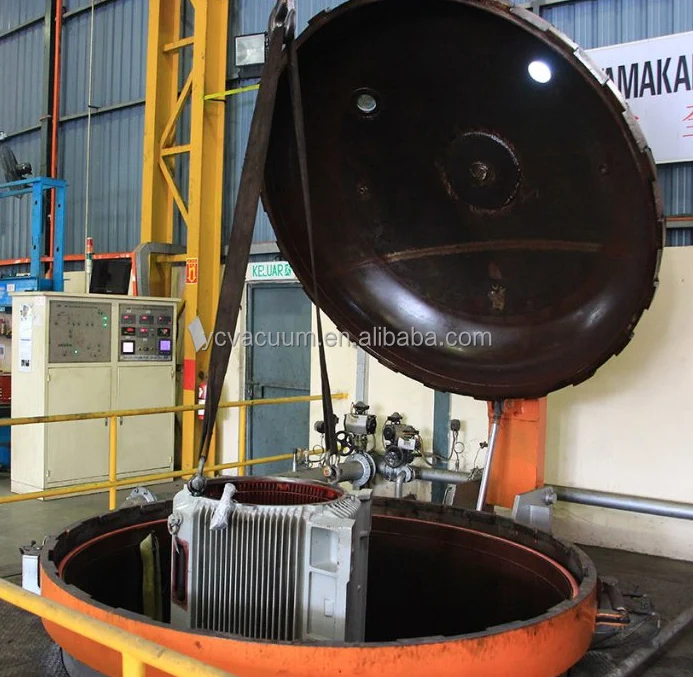

6. Machine pictures
