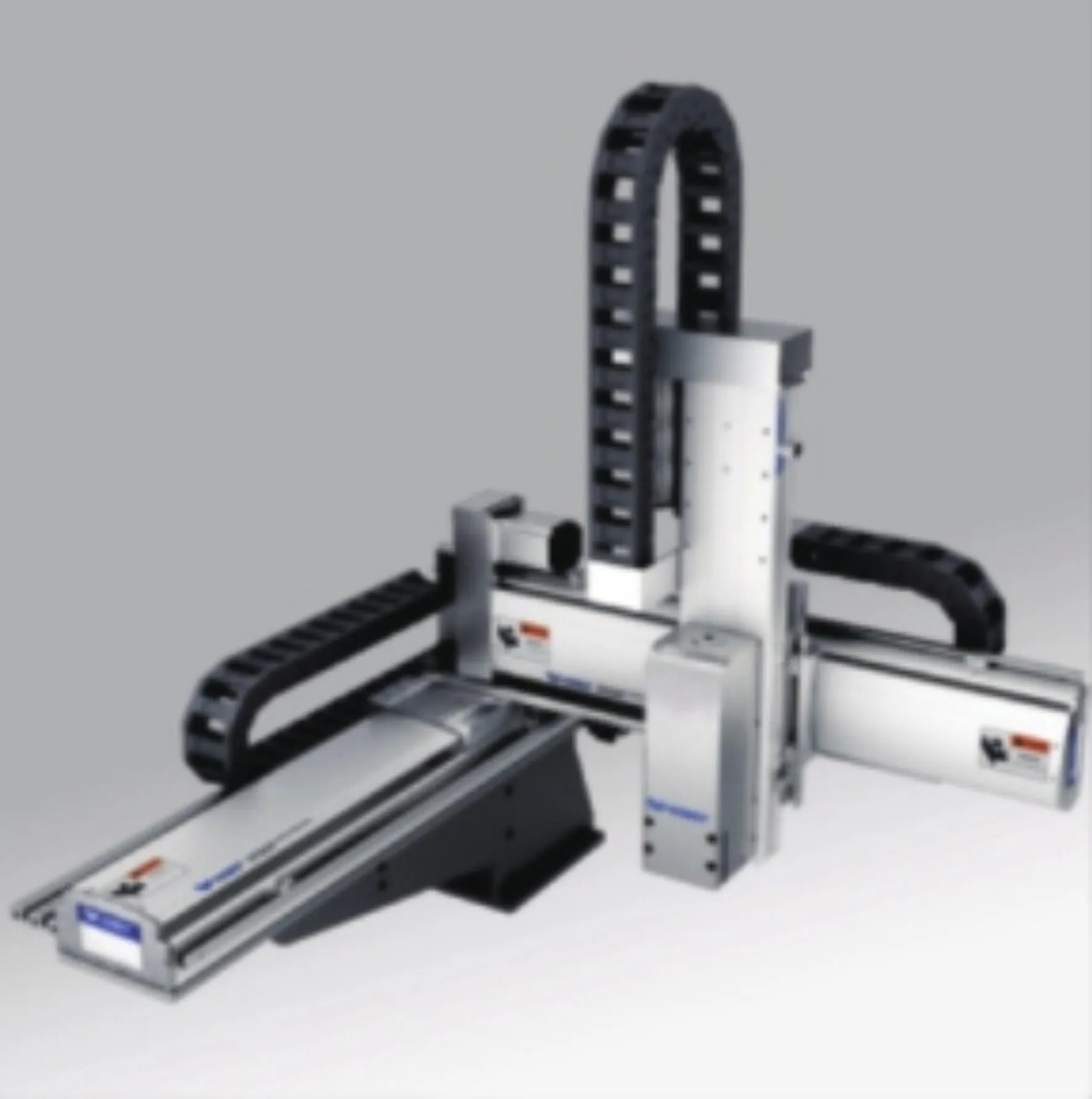

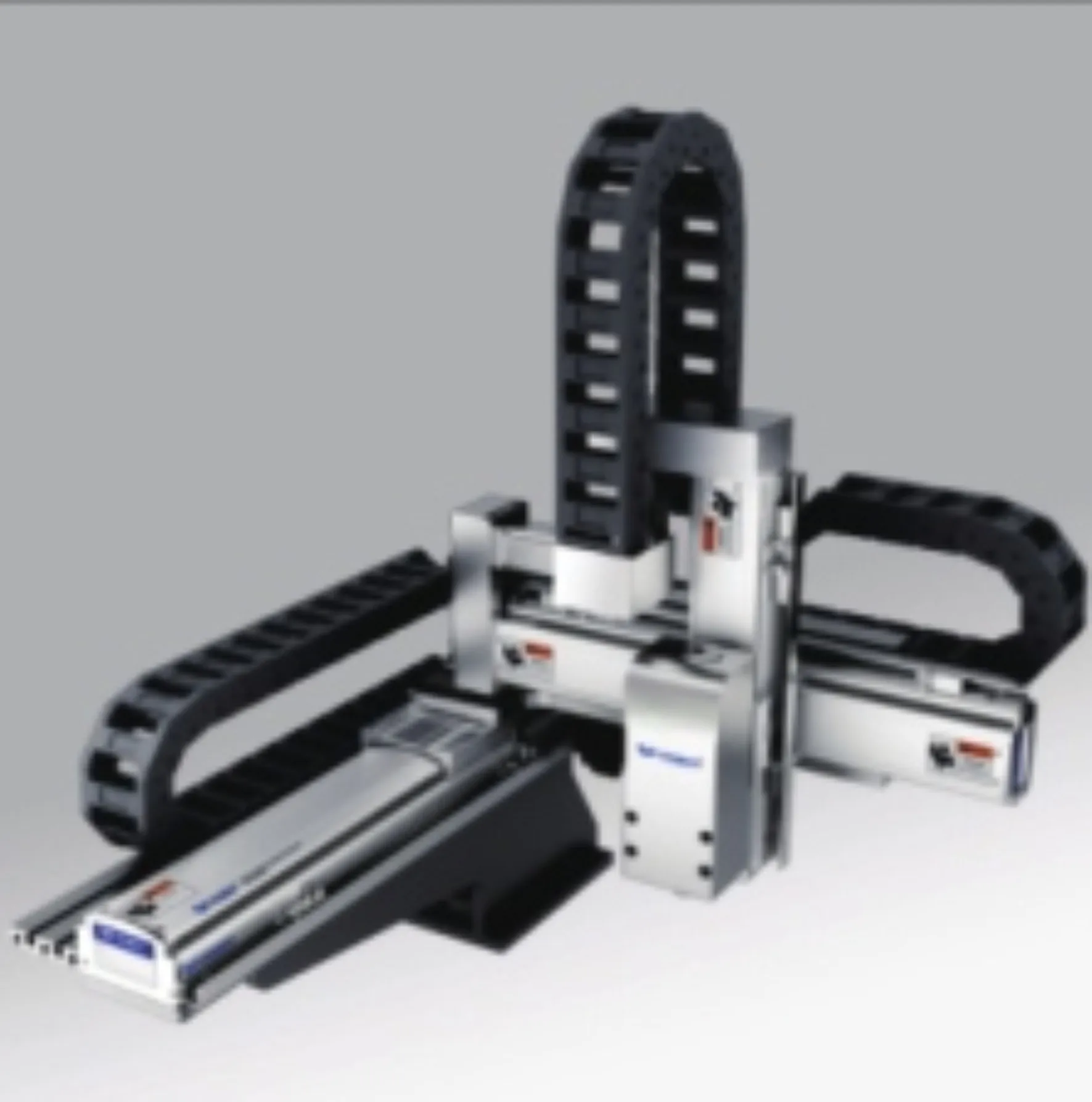

W robot industrial automatic cartesian robots

Product Overview

Description







         Shenzhen w-robot Industrial Robot Co.,Ltd found in 2013,creat the self brand "W-ROBOT",engaged in linear actouator R&D,manufacturing and service,with the unique appearance design and quality,W-robot Robot Cartesian manipulator gains high attantions from the industry,Awarded The national Top Ten Brand of Robot arm in 2013.





W-robot Lobby

Office area





Company Facilites

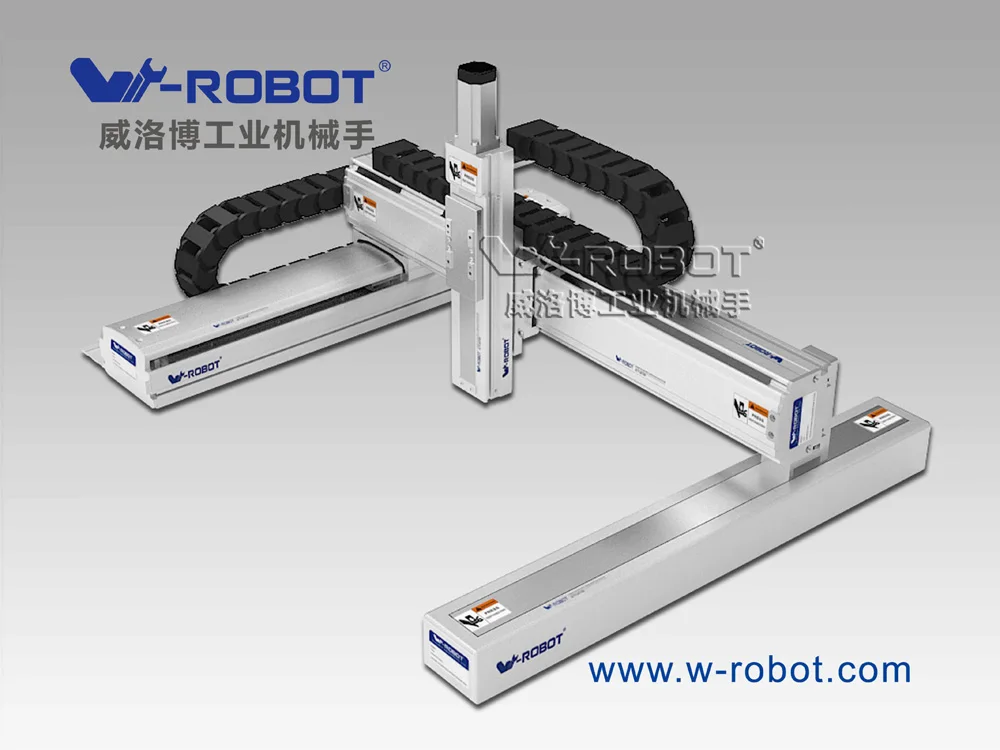

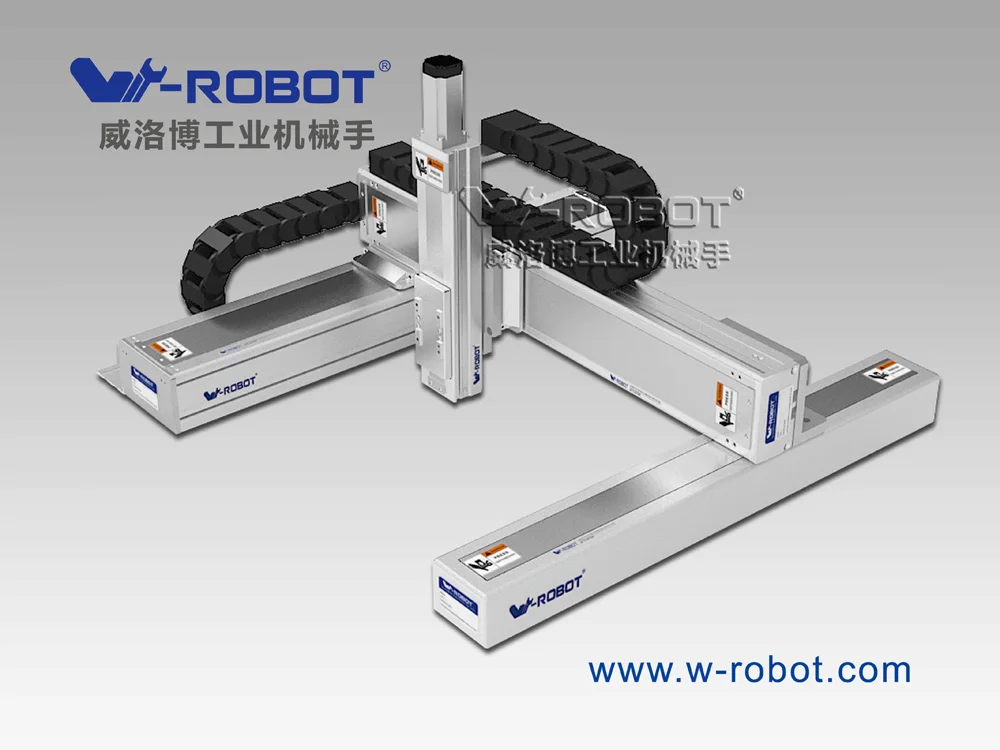

Fully closed Gantry type three axis Cartesican robots



Specifications:



1.Stroke: 500*500*300*

2.Max speed: 500mm/s

3.Repeatability: ±0.005mm

4.Payloading: 6kg

5.Application: 3D Printing for the experiment in school

6.Gantry Type three axis







Guide for model selection:



Semi-enclosed type



X1: PF12-L20-S300-BC-P40-C4

X2: EBF8-S300

Y:   PF12-L20-S300-BC-P20-C4

Z:   PT6-L10-S300-BC-P10B-C4





X1

 Robot arm X-Axis: PF12-L20-S300-BC-P40-C4
Drive way: Ball screw
Positioning accuracy:±0.005mm
Ball screw pitch: 20mm
Max.speed: 1000mm
Max. Load: (H)43kg (v) 10kg
Stroke:300mm



X2



Assistant-axis
EBF8-S300
(Only one rail in the housing)



Y



Robot arm Y-Axis: PF12-L20-S300-BC-P20-C4
Drive way: Ball screw
Positioning accuracy:±0.005mm
Ball screw pitch: 20mm
Max.speed: 1000mm
Max. Load: (H)43kg (v) 10kg
Stroke:300mm



Z

Robot arm Z-Axis: PT6-L10-S300-BC-P10B-C4
Drive way: Ball screw
Positioning accuracy:±0.005mm
Ball crew pitch: 10mm
Max.speed: 500mm
Max. Load: (H) 15kg (V)5kg
Stroke 300mm
