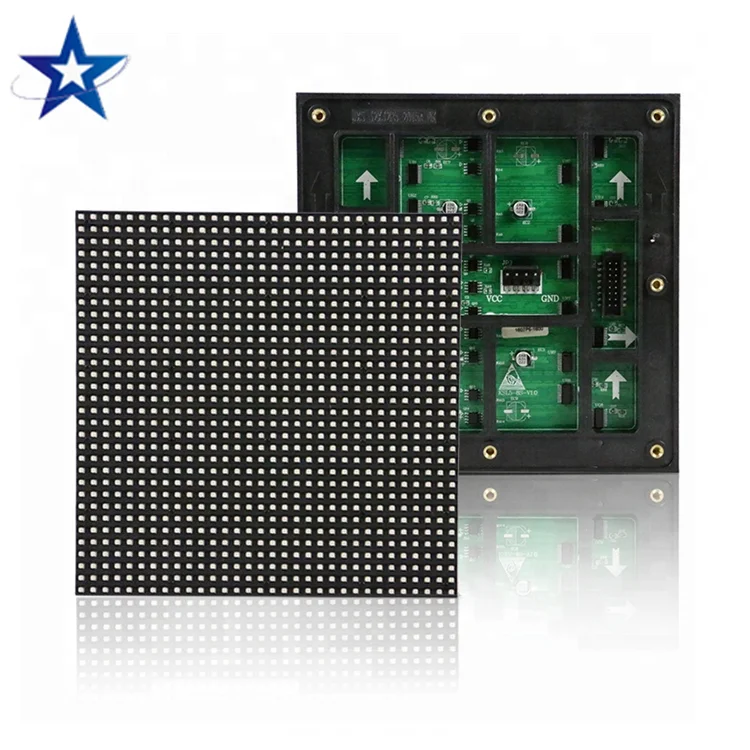

Wholesale p5 outdoor full color 32 x 32 led module , p5 led display module price, video led
- Category: >>>
- Supplier: Shenzhen LJX Display Technology Co. Ltd.
Share on (60448894627):
Product Overview
Description
P5 OUTDOOR LED DISPLAY MODULE TECHNICAL SPECIFICATIONS
| Unit Module | Item | Parameter |
| Module number | LJX-P5-8S | |

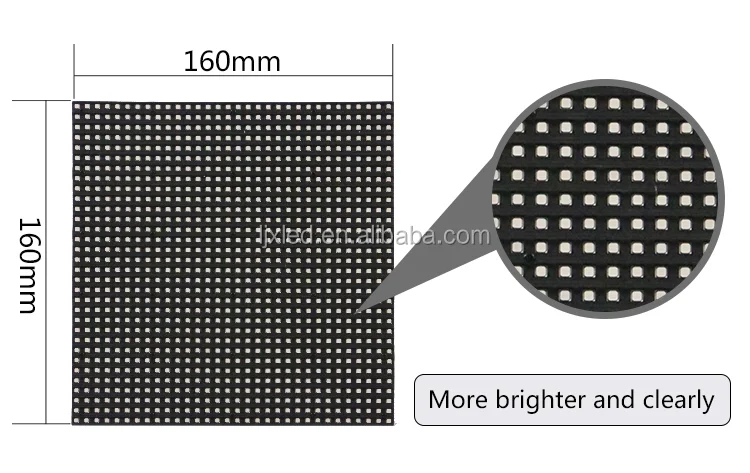

| Moule size | 160mm x 160mm | |
| Pixel pitch | 5mm | |
| Pixel density | 40000dots/sqm | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2727/2525 | |
| Pixel resolution | 32 x 32 dots | |
| Max power consumpion | 30w | |
| Module thickness | 14.85mm(without magent) | |
| 27.15mm(with magent) | ||
| Module weight | 0.5kg | |
| Driver method | constant drive | |
| Driver method | 1/8 scanning | |
| Port type | HUB75 | |
| Brightness | >7500cd/sqm | |
| Bracket | Size | 160mm x 160mm |

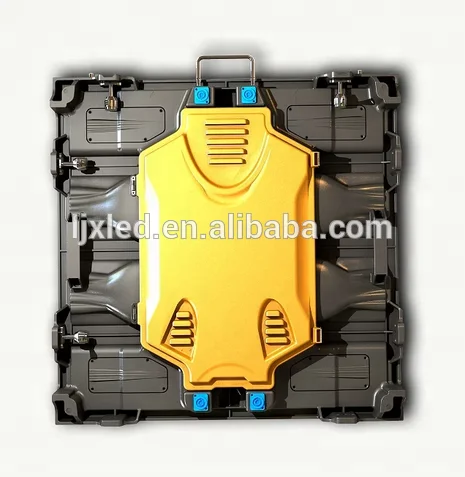

| Unit Cabinet | Cabinet size | 960mm x 960mm |
| Quantity of module | 36pcs | |
| Power supply | 5v/40A x 4pcs | |
| Thermal discharge | 2pcs cooling fans | |
| Pixel per cabinet | 192x 192 dots | |
| Best viewing distance | 20m-100m | |
| Best viewing angle | 160°(w)120°(H) | |
| Temperature | storage:-35℃-+85℃ | |
| working:-20℃- +50℃ | ||
| Thickness | 85mm | |
| Weight | 45kg | |
| Power | Working voltage | 220V±10% |
| Averange power consumption | 350W/sqm | |
| Max. power consumption | 700w/sqm | |
| Current | <20mA(single LED) | |
| Control system | CPU | Pentium 4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Driving device | Constant currentdriver IC | |
| Main technical parameter | Refresh frequency | >400HZ |
| Grey scale | 256levels of each color /16.7 colors | |
| Power switch | Auto matic switch |
Good after service
1.Two years warranty for the whole system except human factor and force majeure
2.One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
3.During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
4.As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.
Product Features
1. High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change .
3. Weatherproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
8. Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.
9. The maintenance of pixel and single led has been realized.
10. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.

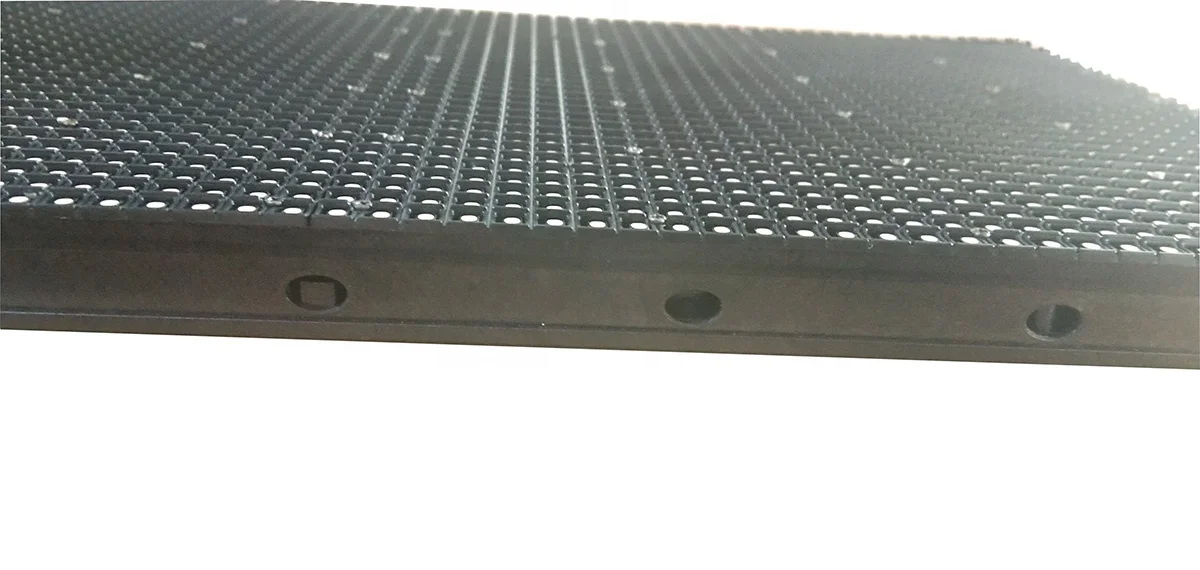

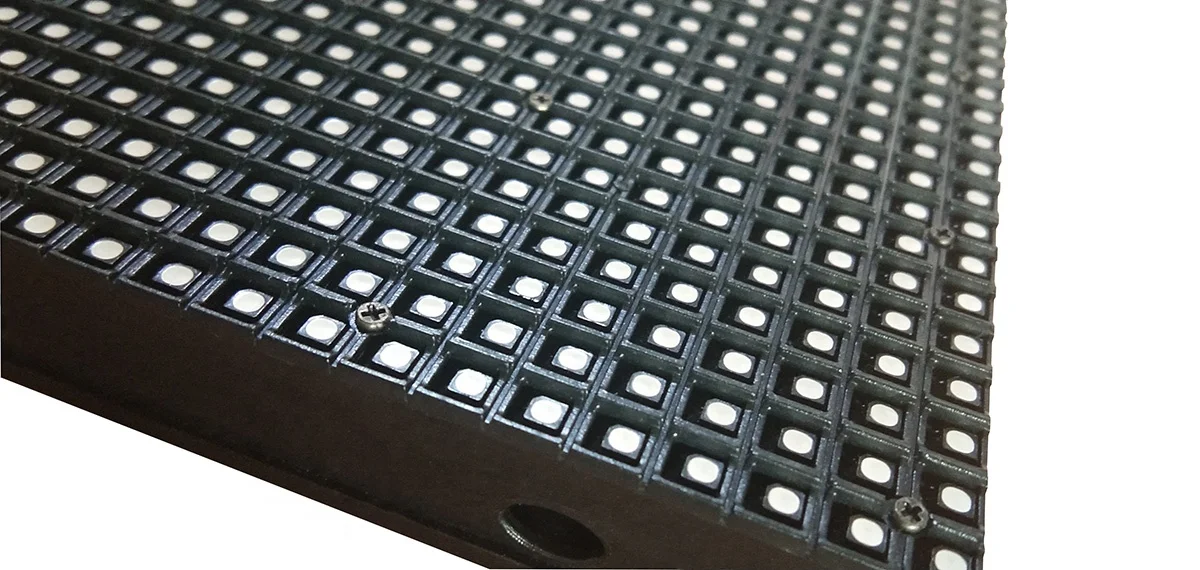

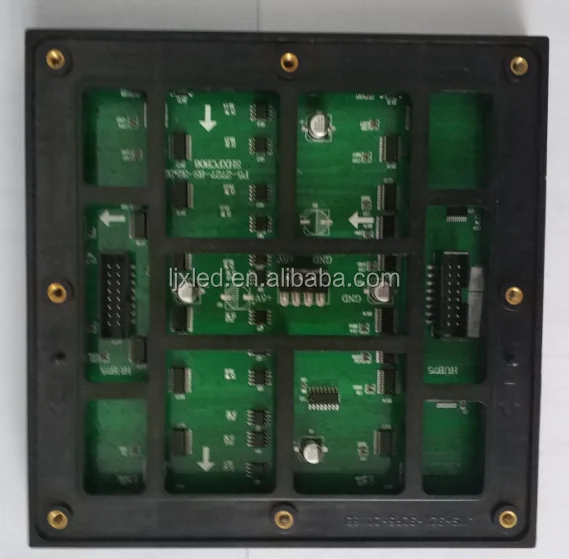

1.P5 outdoor led module(size 160mm x 160mm)

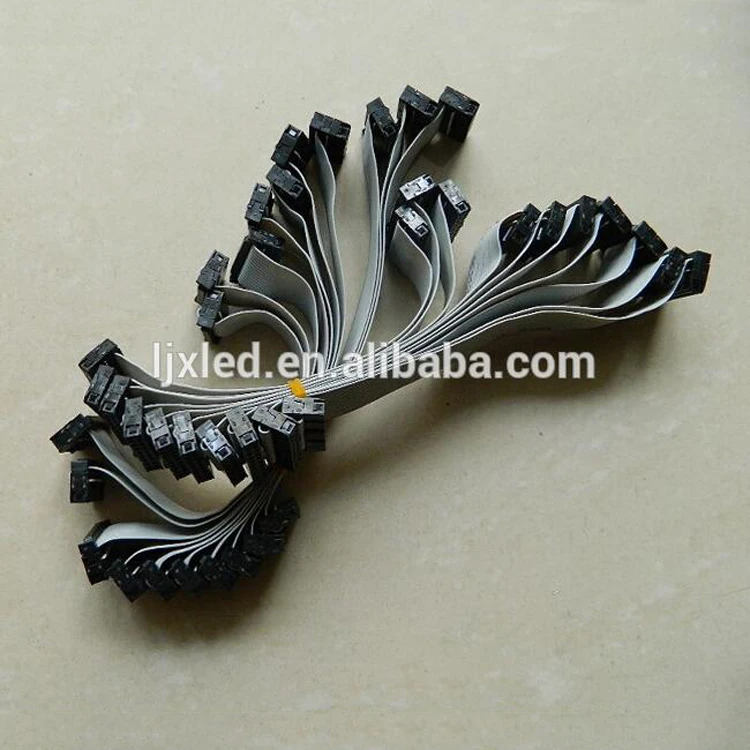

2.Accessories(Flat cable, power cable )

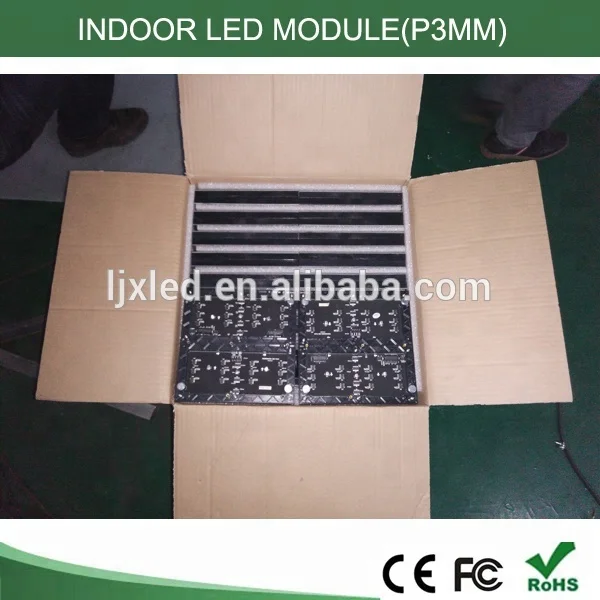

3.Package(carton with foam will be offered for free)

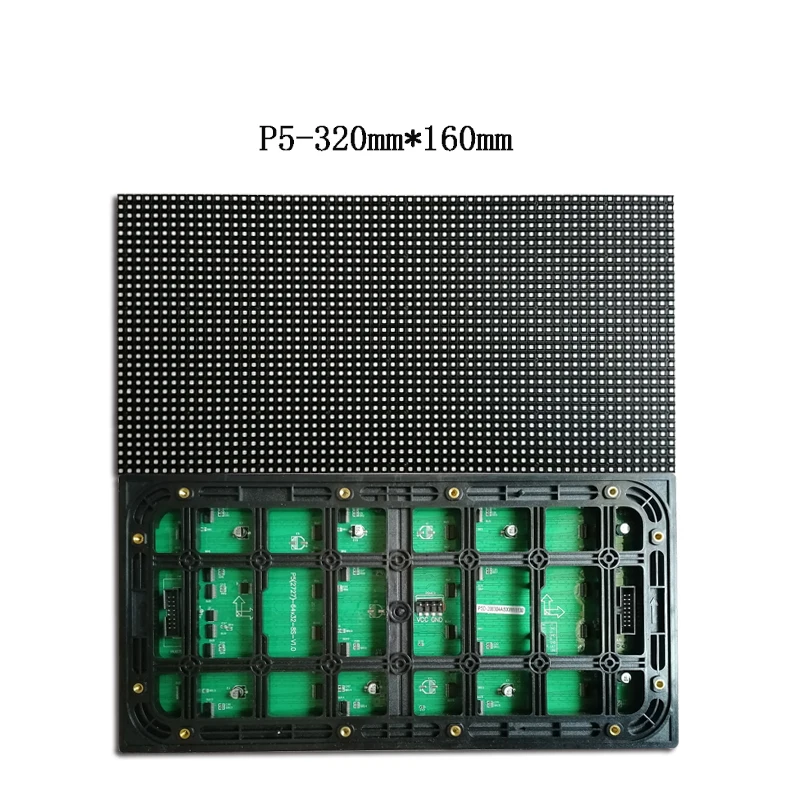

4. P5 Outdoor led module (size 320x160mm)
We also have p5 outdoor module , size 320x160mm , if you want , click here to get more information
5.Certifications(CE&ROHS&FC)

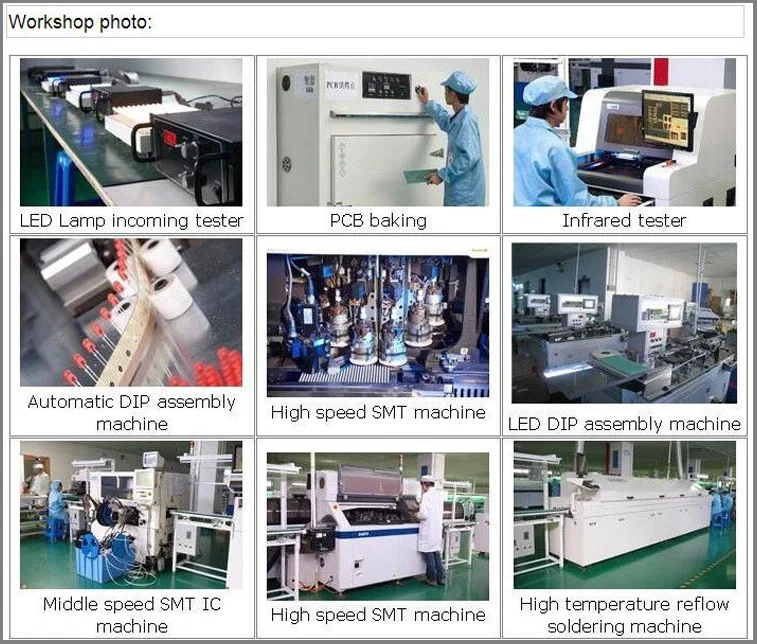

6.Working place

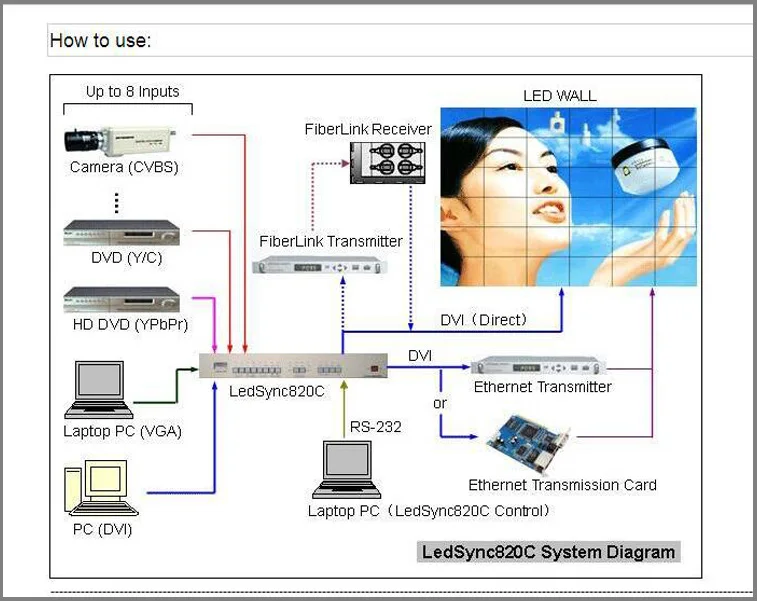

7.System(how to use it)

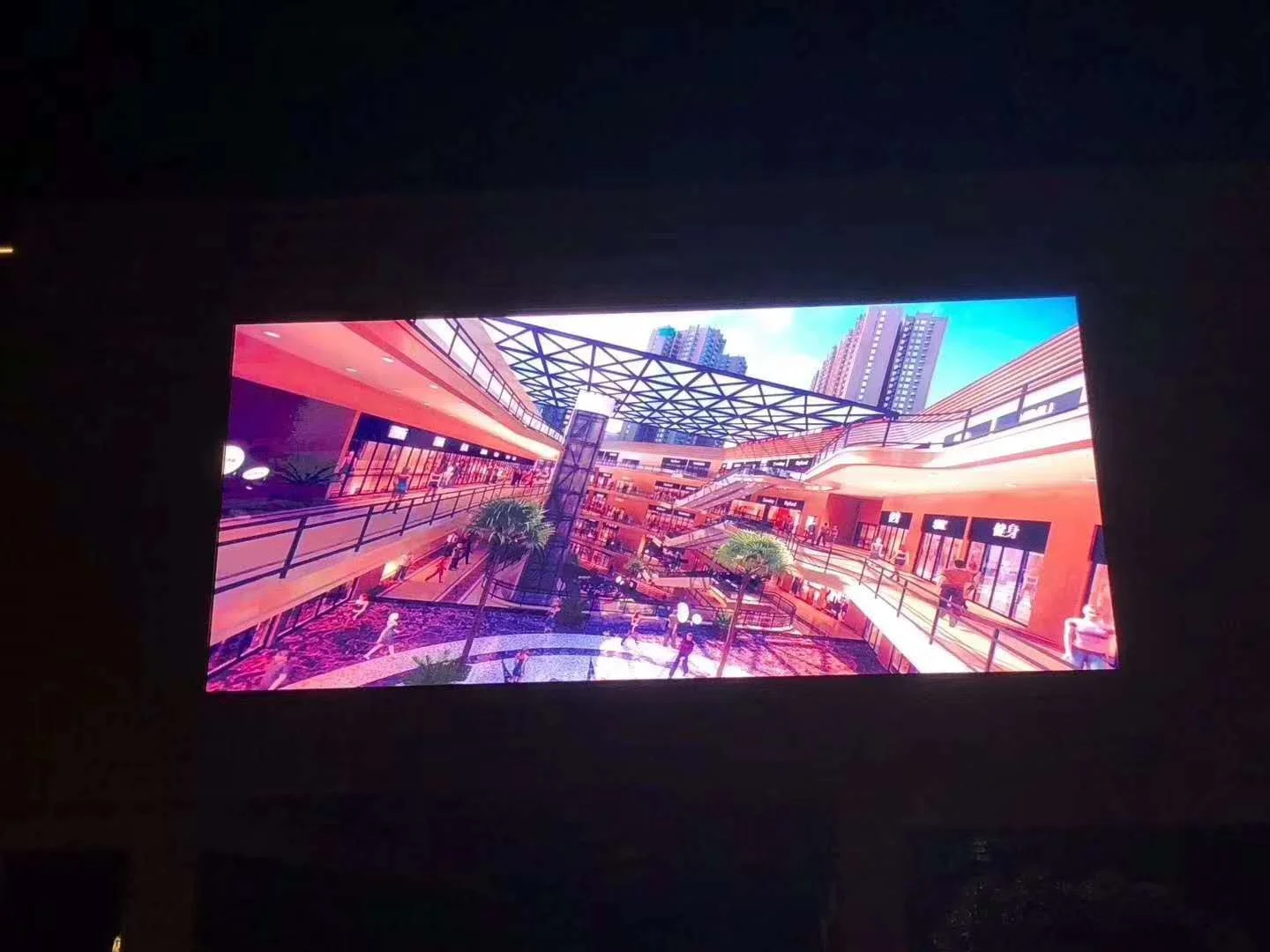

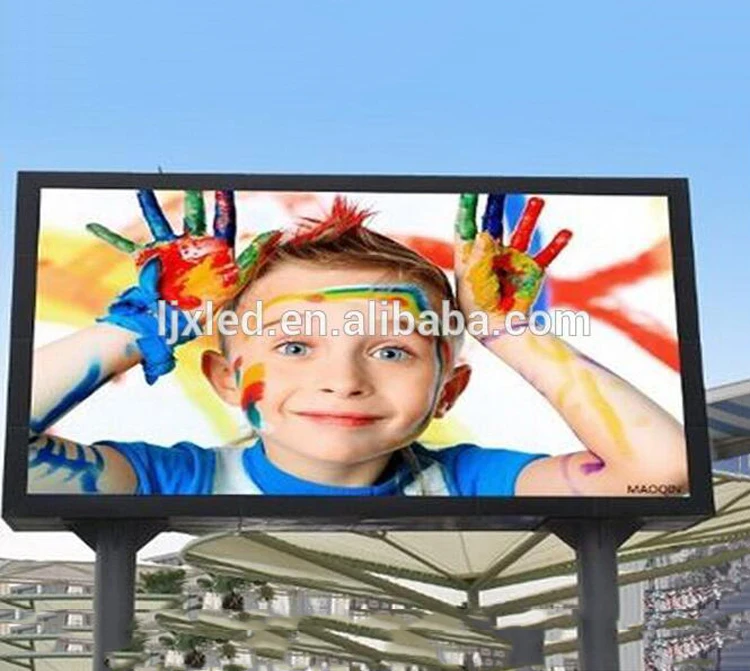

8.led display project
FAQ
Q1: What is the lead time?
A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.
Q2: Is it all right to make customers’own brand name?
A: That’s all right to make your own brand name.
Q3: Is it available for samples?
A:yes, of course. sample is free, and you may pay freight cost. that would be reasonable
Q4:Is there a middle man draining your profit?
A:Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality service.
Q5: What is the min.order ?
You can order any quantity you want .
Q6:The display could be customer made ?
Yes , of course , any type you want , please tell me , we can disign and discuss together
9.aging time of our led display
