Energy saving and efficient wood working paddy husk pellets making machine

Product Overview

Description

Specification

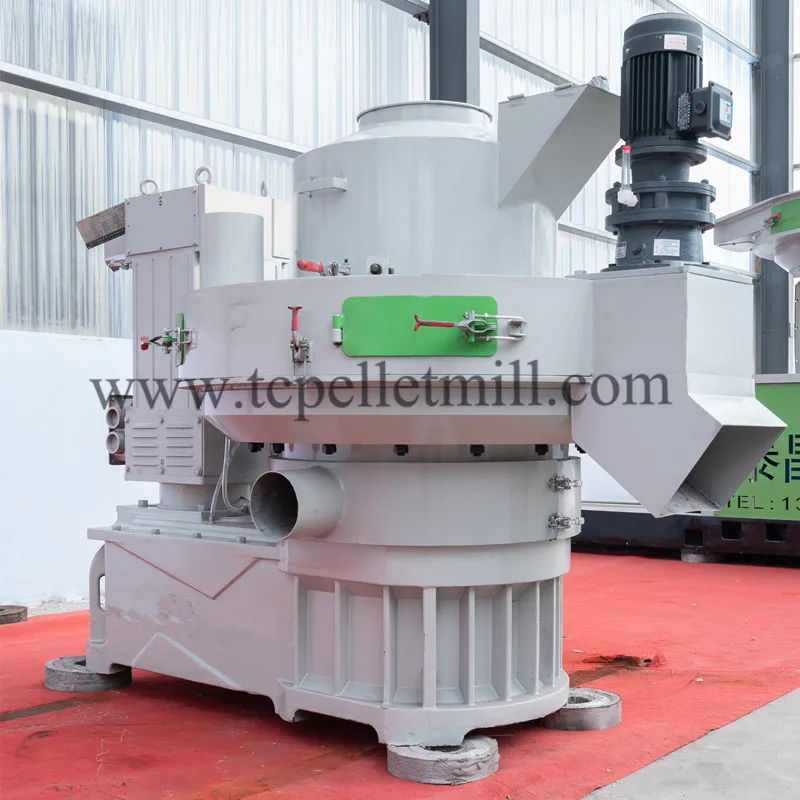

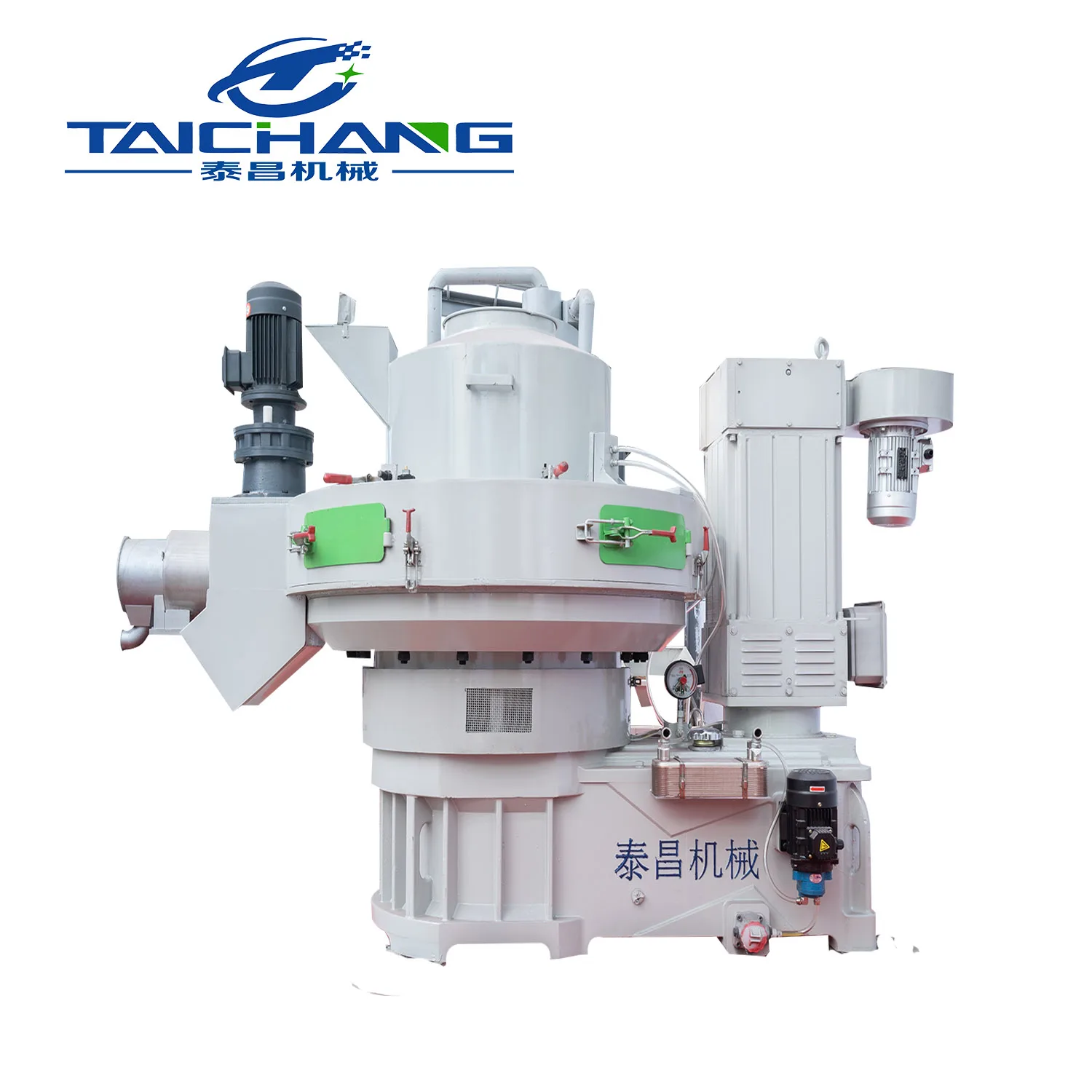

1.Name:vertical ring die pellet machine

2.Capacity:1-1.5t/h

3.Power:90kw

4.weight:4.5t

5.pellet diamater:6-12mm can be adjusted as your demand

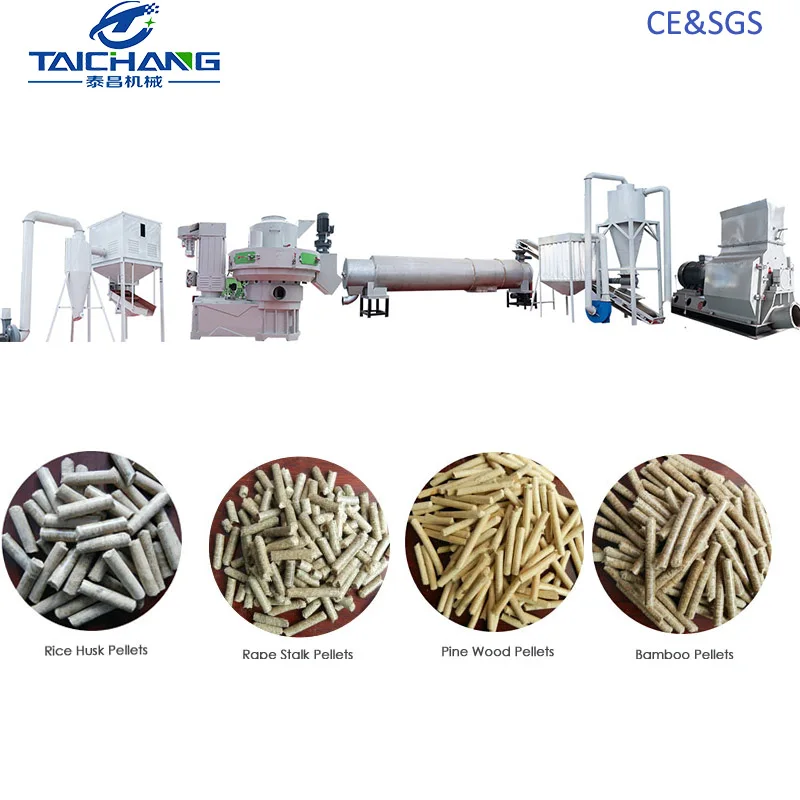

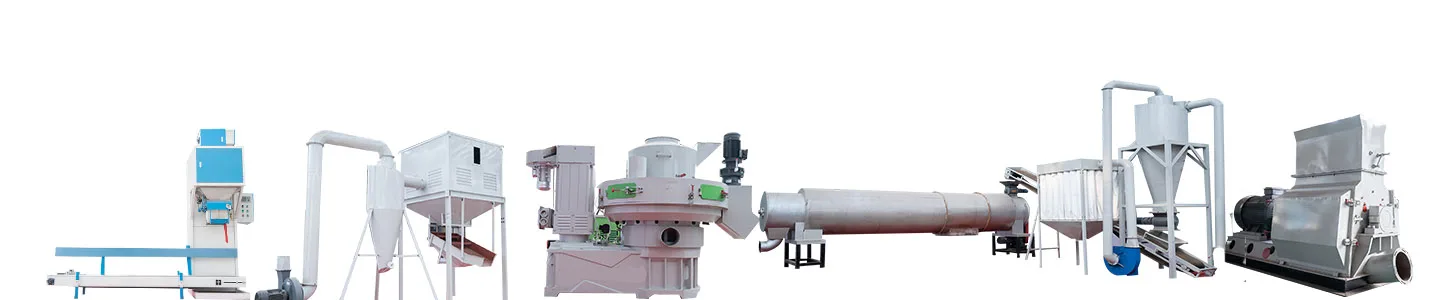

Complete Wood Pellet Production Line



 Parameter of pellet machine

Jinan Taichang Transmission Machinery  Co.,Ltd
Machine model:		LKJ series ring die pellet machine
USE: sawdust,straw,stalk,rice husk,palm,other waste PRESS: wood pellet,biomass fuels pellet, bioenergy fuels pellet		FOR:bioenergy fuels plant,power plant, wood processing plant,organic fertilizer plant, chemical plant etc.
Advantage:
1.Formation rate:98% High output and low investment
2.Double layer Die:Reduce the cost,increase the efficiency of pellet machine
3.Auto Lubricate system:high capacity and Low consumption Saving energy.
4.Hoisting equipment:Used for changing the die,save time and cost,convenience,easily
5.Pellet satisfy European standard and International Market requirement.

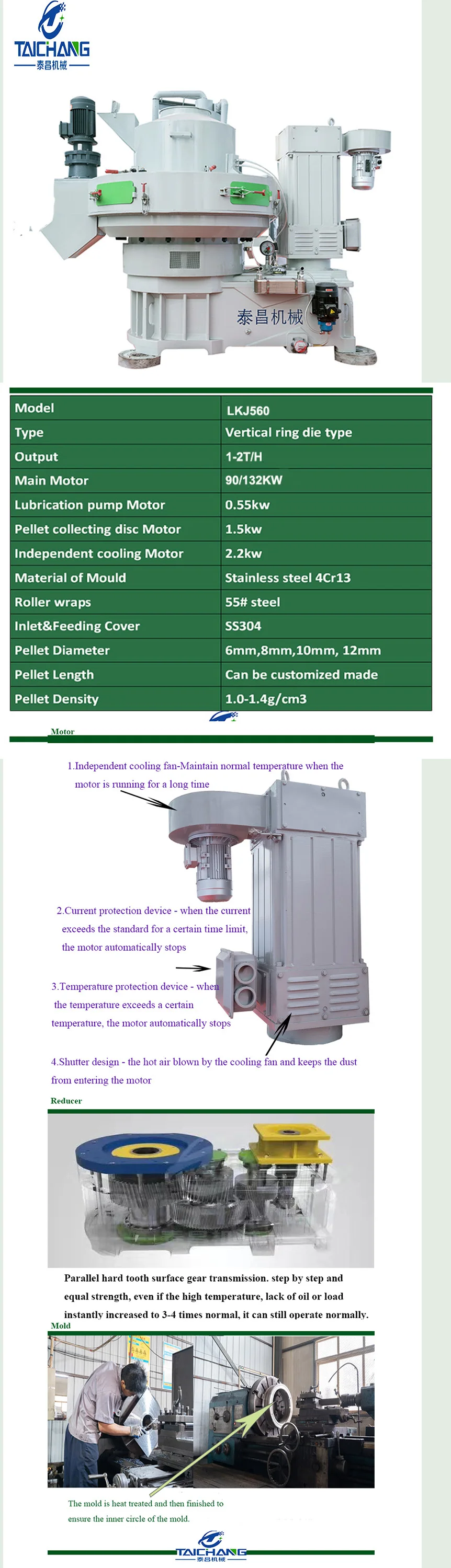

Model	Power(kw)	Diameter of pellet(mm)	Ouput(t/h)
LKJ560	90/132+1.5+1.5+0.55	6/8/10/12mm	1-2t/h
LKJ700	132/160+1.5+1.1+1.5+0.55+2.2	6/8/10/12mm	2-3t/h
LKJ850	185/220+3+0.55+0.55	6/8/10/12mm	3-3.5t/h

Working process of wood pellet mill:
1.The material is transferred to the conditioner by a screw feeder, then the conditioner can make

 different materials fully mixed.
2.The conditioner plays a key role in softening raw materials by utilizing water or steam.
3.After softening, the raw material is sent by a feeder to the pelletizing chamber. By spinning

rollers in the chamber force the material through the holes of the die, thus pellets are formed.
4.After pelletizing, the length of the pellet can be cut according to different user's request.

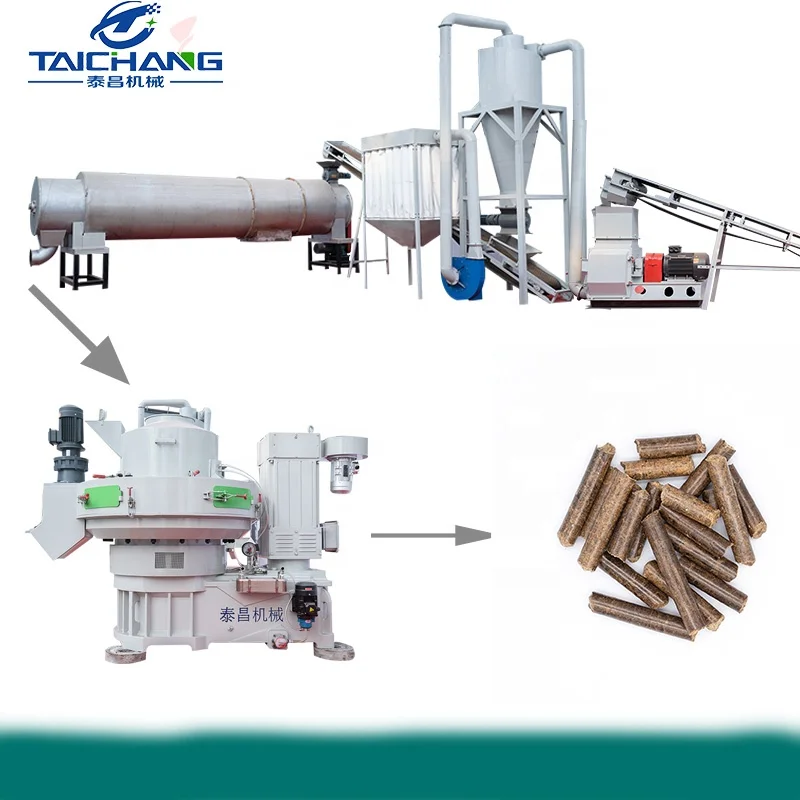

>Brief Introduction for Wood Pellet Production Line

1.Crushing process:
Wood crusher which can crushed the raw material into sawdust shape ,under 6mm , which is suitable for the dryer and pellet machine.It can crush straw,stalk,tree branches ,nutshell,wood shavings,wood waste board,leaves,palm fiber ,etc.
2.Drying process
Air flash wood dryer or drum wood dryer which can dry the material under the moisture of 8%,which is suitable for pellet forming.The dryer use hot air accompany with material and evaporated rapidly .

3.Wood pelleting machine:
Sawdust wood pellet mill machine convert the biomass material into pellet ,the length can be adjust.

4.Cooling process
You can use a cooling fan or cool it by nature about half or one hour.

5.Packing and bagger:
After cooling the semi-automatic quantative packing machine can pack the pellet into bag with quantative weight.Hot sale high quality wood pellet making machine , wood pelleting machine factory-outlet.



Our company

Shandong jinan TaiChang transmission machinery co., LTD. Is a set design, manufacture, production and installation of pellet production equipment, main products including biomass granule machine, the feed grain machine, organic fertilizer granules and sawdust biomass particles, such as grinding process, the drying process, granulation process, the process of feeding, the cooling process and packin process and our leading technology in the same industry. The company is located in the capital of shandong province, the main quthentication passed ISO9001 international quality system and the European Union CE quality quthentication.

Questions of Wood Pellet Machine

1.The material and its moisture content?

   Wood sawdust, Pinus Sylvestris,albizzia,eucalyptus,corn straw,peanut shell,palm,rubber wood,rice husk,stalk and so on;

   Before wood chips put into the hammer mill,moisture should be less than 30%,

   before wood sawdust put into the pellet machines,moisture should between 13%-17%,

   but it is not absolutely,customers should according to the material actual situation to confirm.

2.The capacity you want and how long time will the machine work every day?

   We have the capacity from 100kg to 30t/hour.

   We will according to the working time match related machines for you.

3.The working voltage and power in your local area?

   Generally the price what we quote based on 380v,50hz,3phase.

   but we can customize as your requirement.
