Dairy Milking Spares Plastic Vacuum Pump Oil Can

Product Overview

Description

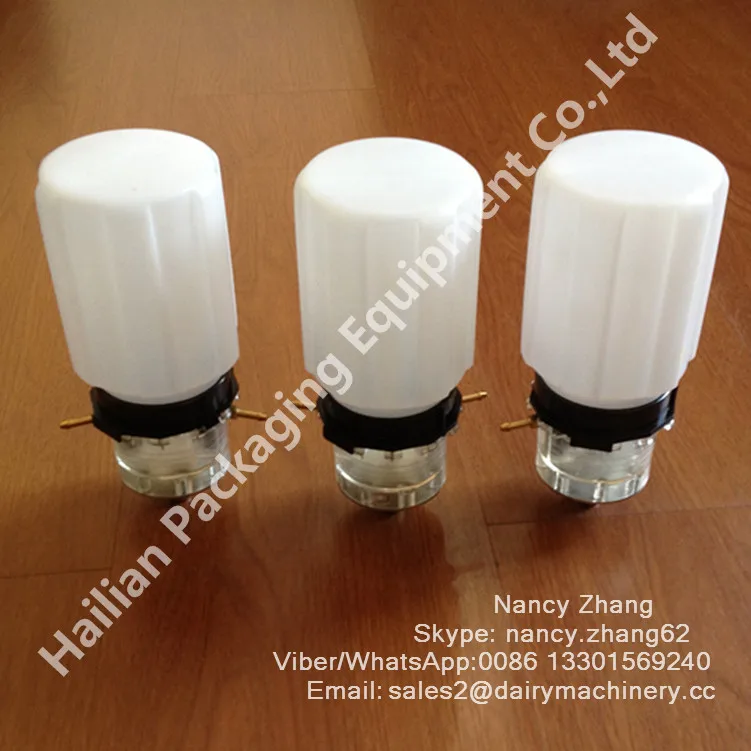

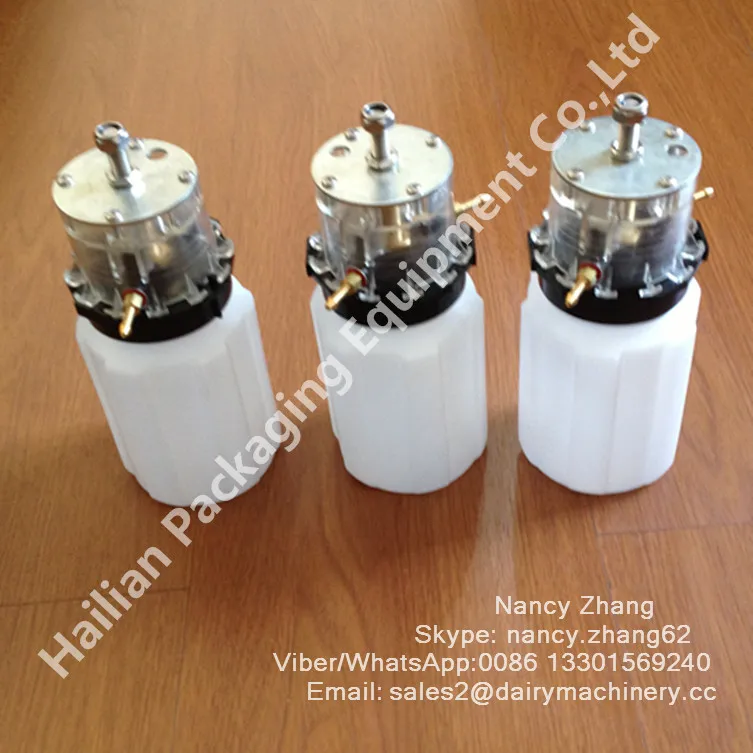

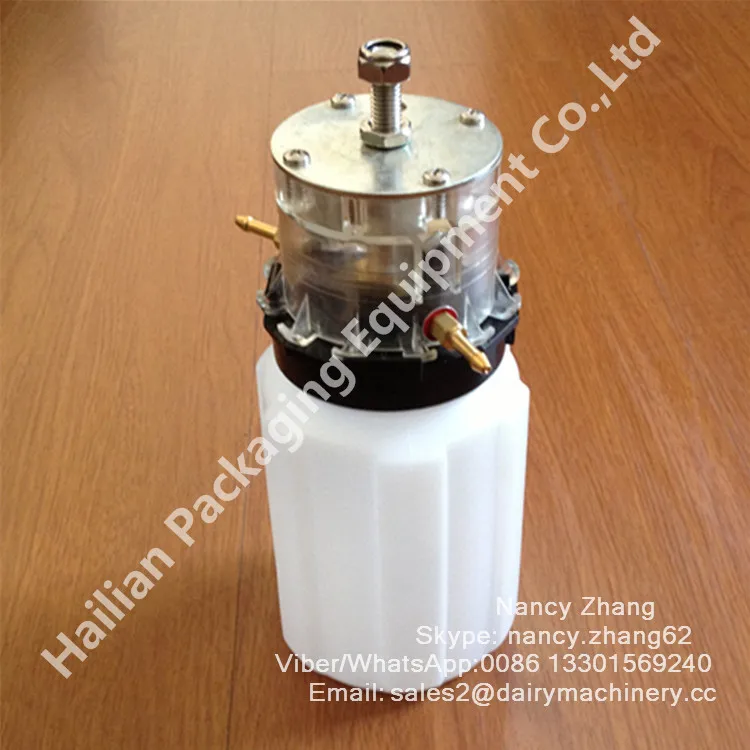

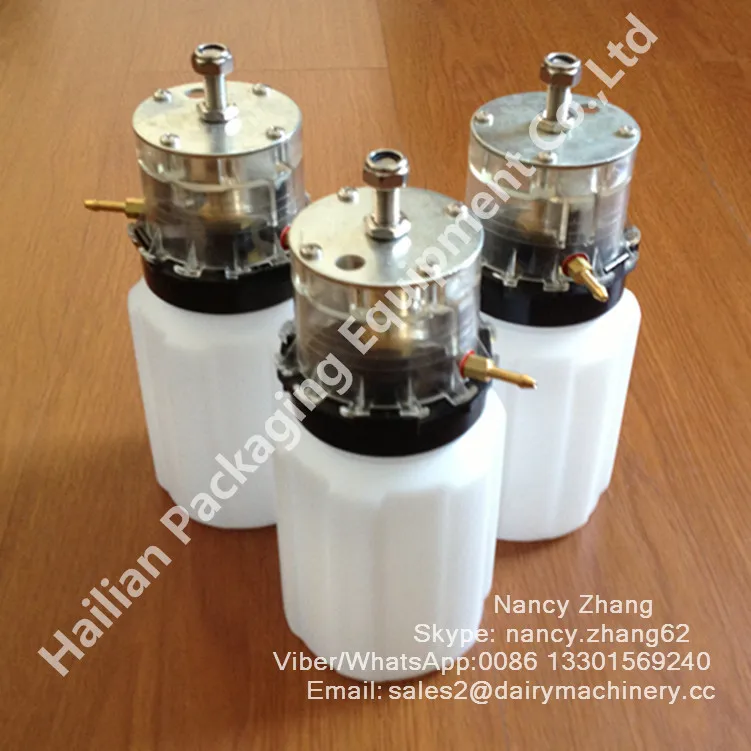

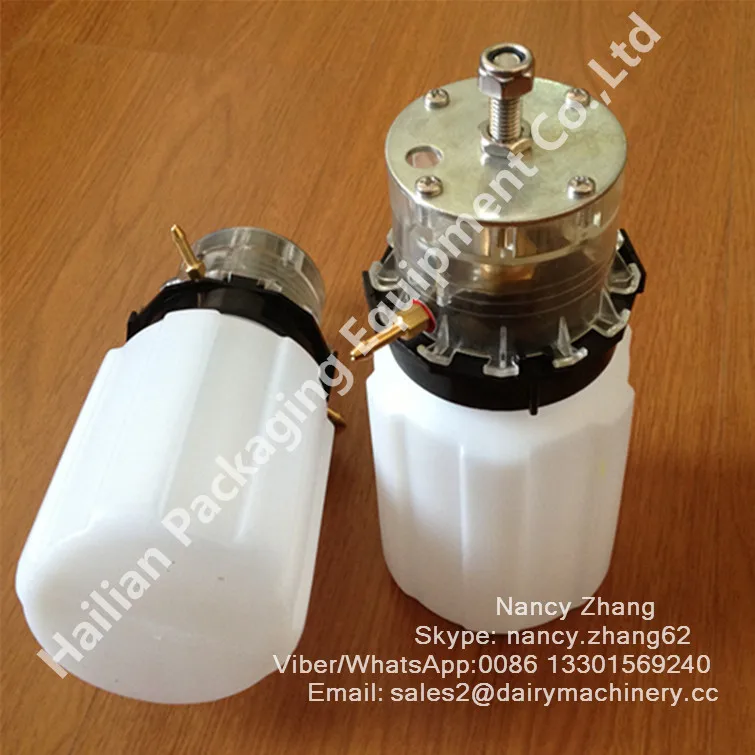

Dairy Milking Spares Plastic Vacuum Pump Oil Can

Quick Details:
Name: plastic vacuum pump oil can

Volume: 500ml

Material: plastic

Model: HL-V09 & HL-V09A

Function: loading vacuum pump oil which could lubricate vacuum pump rotary vane

 HL-V09 Model



Features for Vacuum Pump Rotary Vane:

- The fiber vane has a higher flexural strength, it is not easy to deformation and bending.

- It has smaller density than iron, so the centrifugal force is small, it will not wear casing wall.

- With high temperature resistance, it is suitable for 350 - 800 °C.

- With high hardness, on the premise of sufficient oil lubrication, the vacuum pump is very abrasion resistant and durable.

Description of Vacuum Pump:
The vacuum pump is the heart of the milking machine. Regular servicing helps preserve the vacuum reserve. Various capacity vacuum pump need different specification vacuum pump pallet. The heavy duty body of the rotary vane vacuum pump is constructed from chemical resistant cast iron, making it durable to any environmental working conditions.

The function of vacuum pump is to extract air from the milking machine system through the belt driven. Thismilking machine vacuum pump gives flexibility with speeds ranging from about 800-1500 r/min and a corresponding angel of pump capacities to suit different sizes of milking machines.

Specification of Vacuum Pump:

Capacity (L/min)	250	300	550	850	1500	2100
Pump Speed (r/min)	1440	1440	1440	1440	1440	1440
Vacuum Degree(Kpa)	50	50	50	50	50	50
Noise (Db(A))	≤50	≤50	≤60	≤70	≤70	≤70
Ultimate Vacuum(Mp)	≤90	≤90	≤90	≤90	≤90	≤90
Motor Power(kw)	1.1	1.1	2.2	3	4	5.5
Weight(kg)	13.5	14	31	36	57.5	69.5
Size(L×W×H) (mm)	230*220*220	230*220*220	280*270*220	300*220*220	430*230*230	390*290*290



Note: The above parameters for reference only!









One whole set vacuum pump set consists of vacuum pump, silencer (stainless steel muffer), oil can (oil pot), belt (pulley) and vacuum pump pallet and some rubber parts. Details as below picture:
