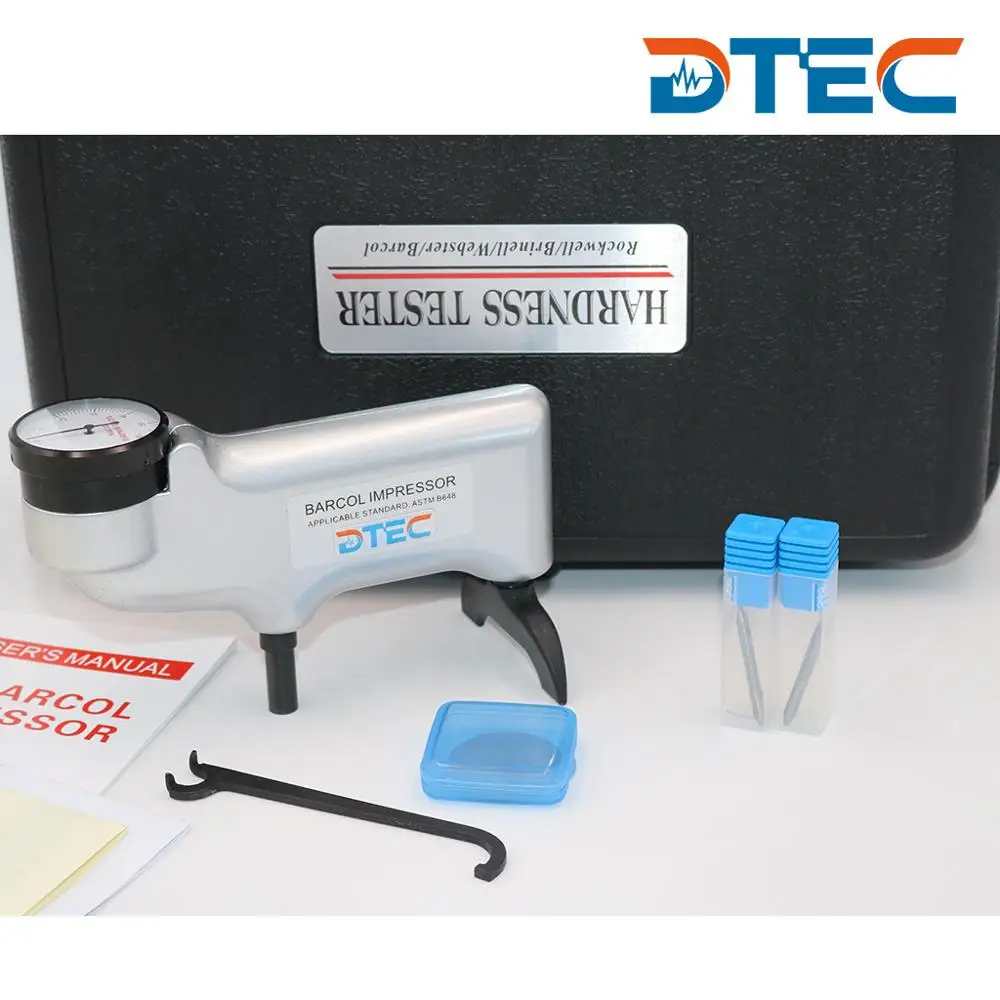

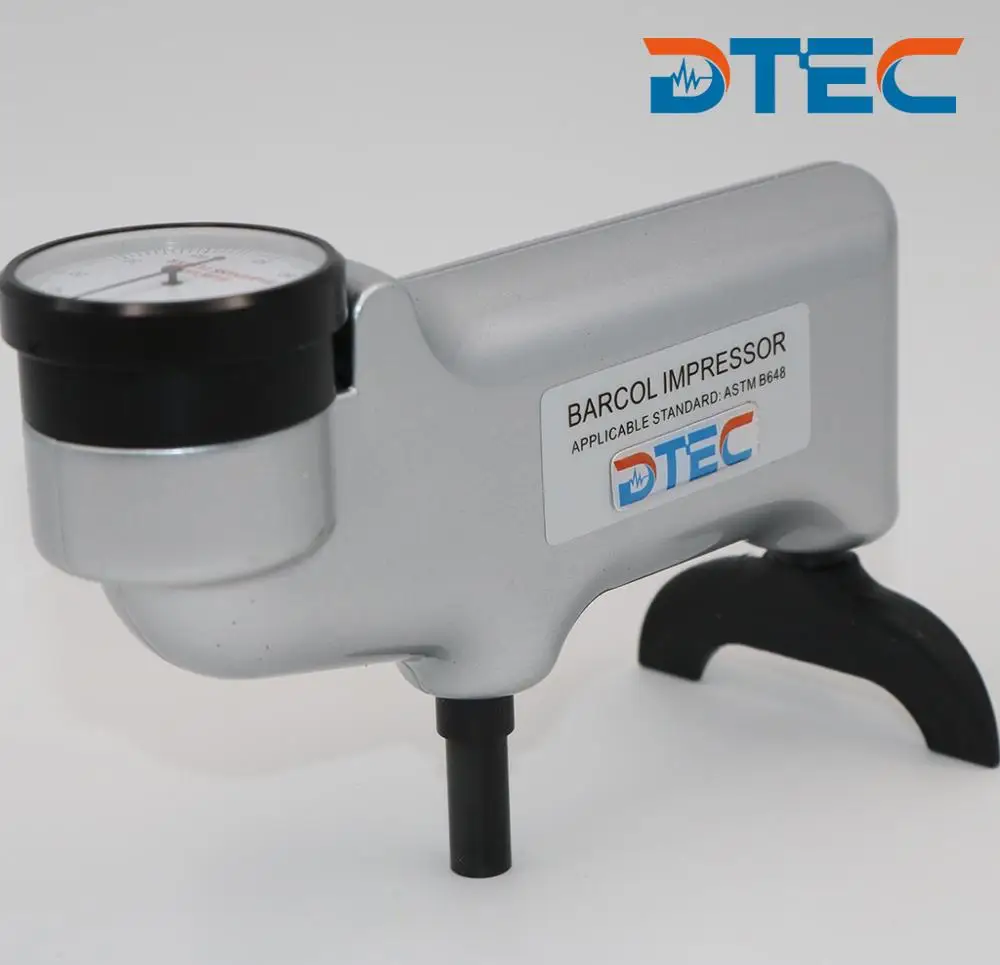

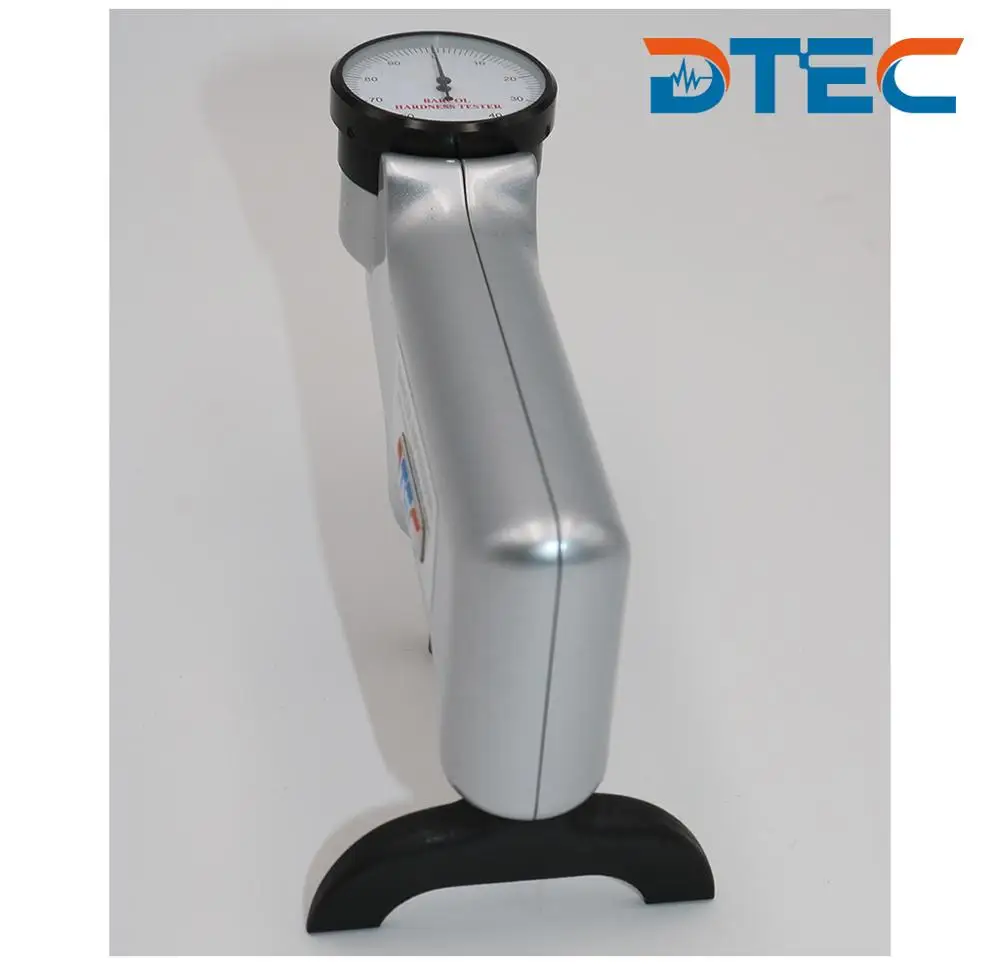

DTEC 934 1 Barcol Hardness Tester,aluminum alloy durometer 100 scales ASTM Certificate high quality

Similar to the Webster hardness tester, 934-1 Barcol Hardness Tester is a kind of hardness testing equipment that gets the material hardness through the depth caused by pressing the tester into the surface of the sample under the effect of a spring. The deeper it pressed, the bigger the reading is, and then the harder the material is.

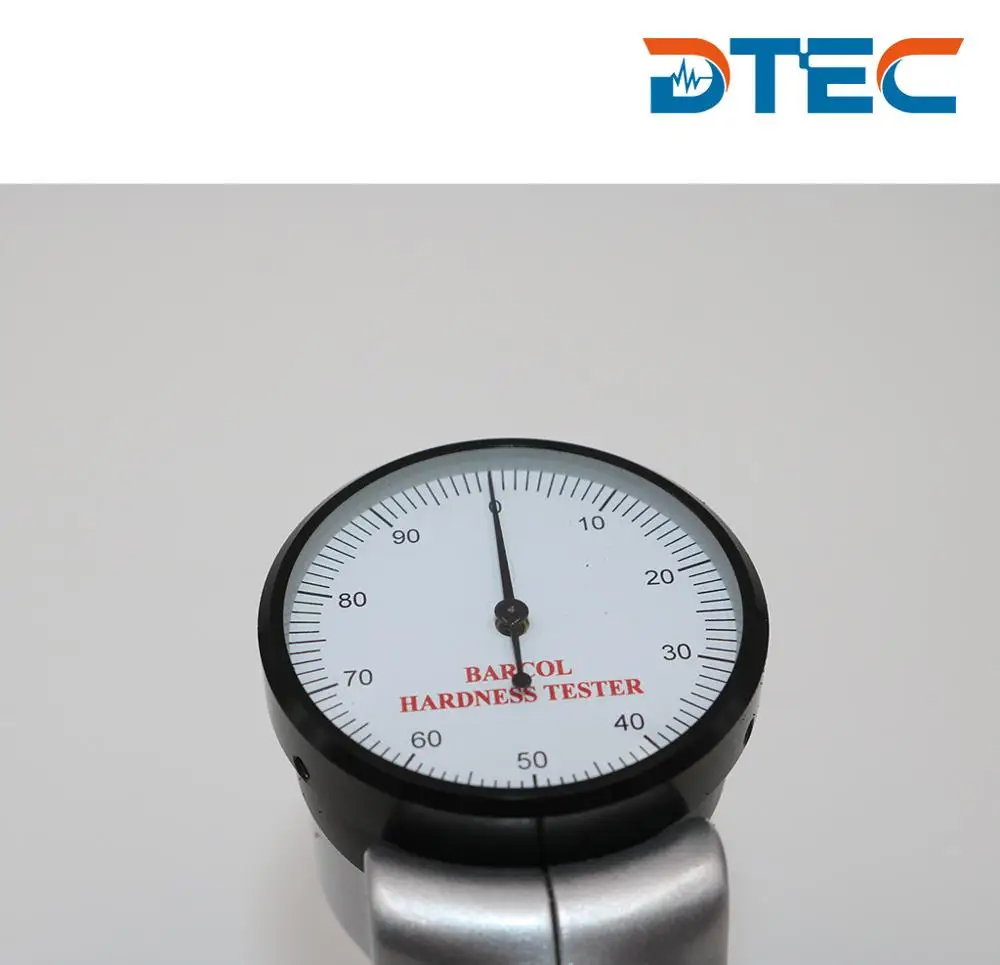

However, barcol hardness tester has 100 scales and its sensitivity is much higher than that of Webster type which has only 20 scales.

Barcol Hardness Tester is so small in side that it is light to carry and pretty easy operate. It doesn't need a support when it is in operation. Users can operate it with one hand from one way at any occasions.

Barcol hardness tester has a broad testing range; the material with minimum thickness of 0.8mm can be measured. Its effective measuring range is from 25 to 150HBW and the testing results can be converted into the hardness values of Merriam-Webster, Brinell, Rockwell, Vickers so that the result is easy to be proofed.

The 934-1 is used to test the hardness of aluminum and aluminum alloy and it is particularly suitable for replacing Webster hardness testing equipment, which cannot test the thick-walled aluminum extrusions.

• Easy for single hand operation, operating experience is not required;

• Wide valid testing range equivalent to Brinell hardness 25-150HBW,suitable for testing the hardness of all kinds of aluminum from very soft aluminum to very hard alloys;

• Wide using scopes: aluminum and aluminum alloys, copper and copper alloys, glass fiber reinforced plastics, rigid plastics, etc. The improved type can be used to test lead, tin and other soft metal, and flexible plastics, rubber, felt, leather, and so on;

• 100 scales, Barcol Hardness Tester is higher sensitivity than commonly used Webster hardness testers in aluminum alloy industry;

• Without trouble of moving or supporting from the specimens, it could finish the testing on one side of the specimens, which can be used to test extra large, extra thick specimens and assembly parts;

• Through conversion table, the test results can be easily converted to HB, HR, HV and HW;

• International qualified product, which meets the international standard of ASTM E648.

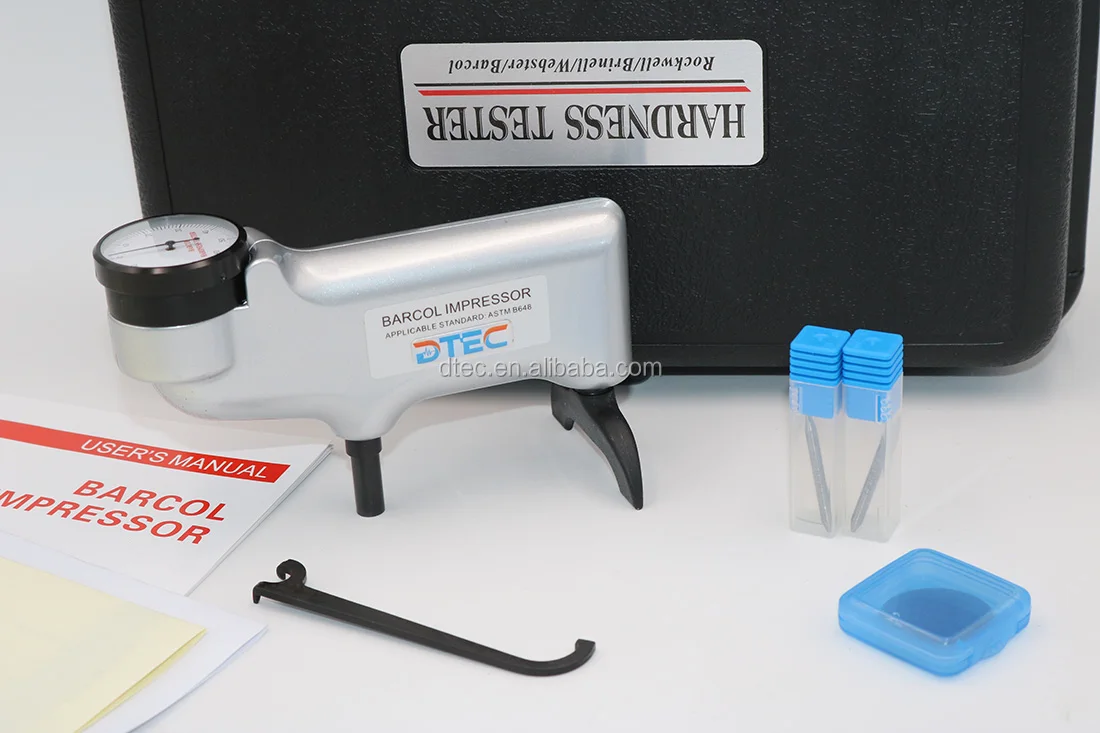

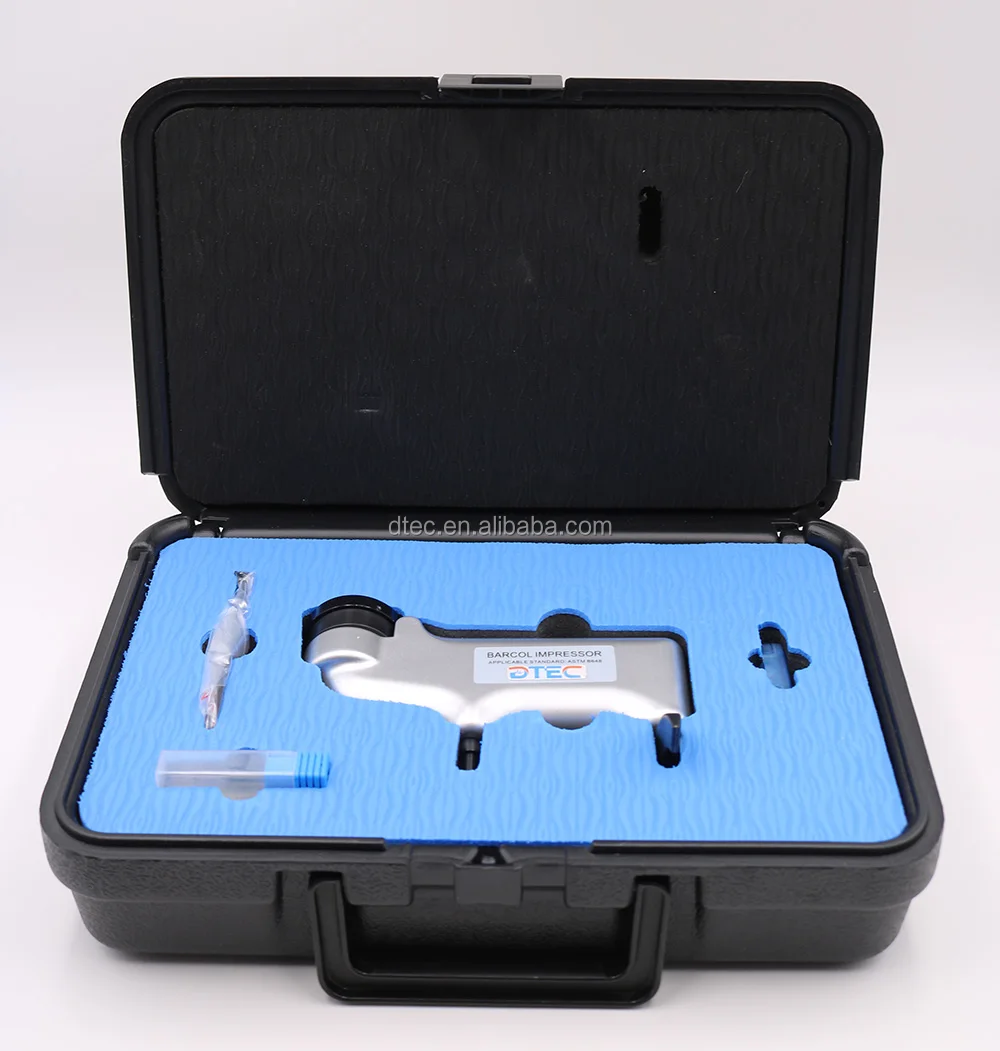

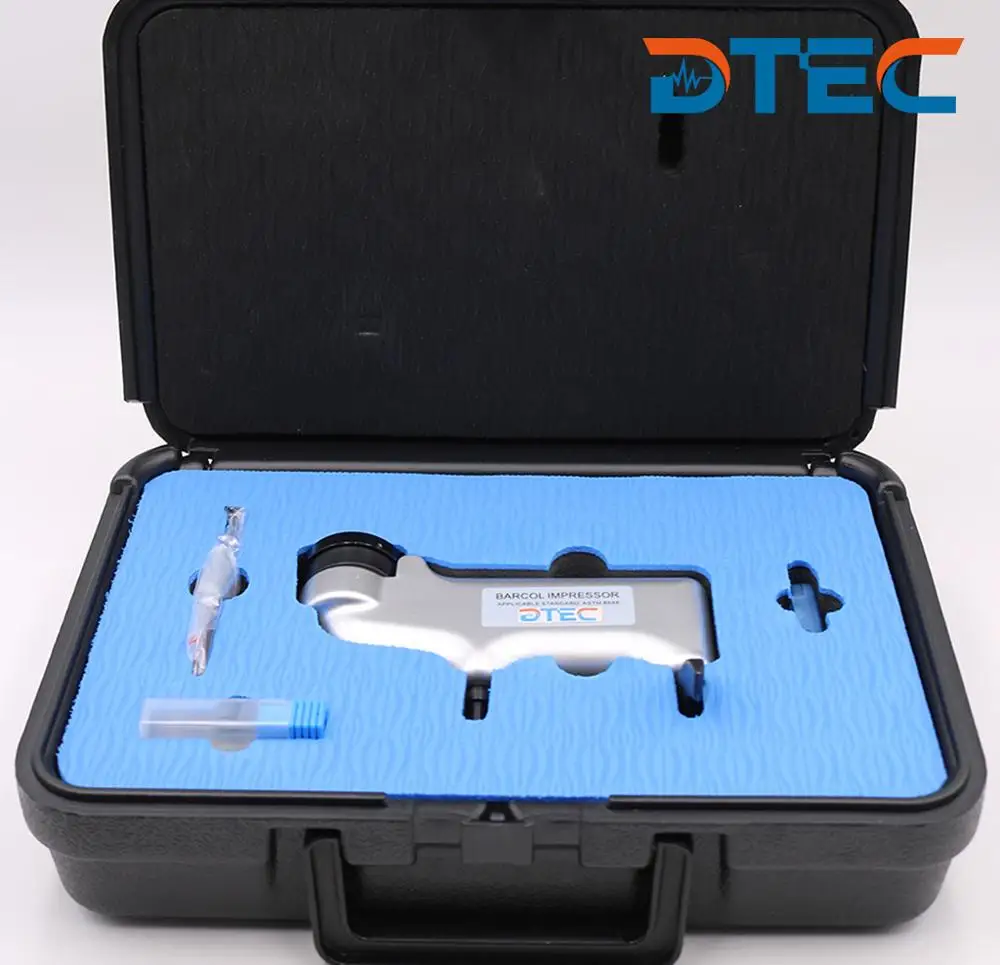

  Standard Packing List:

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
