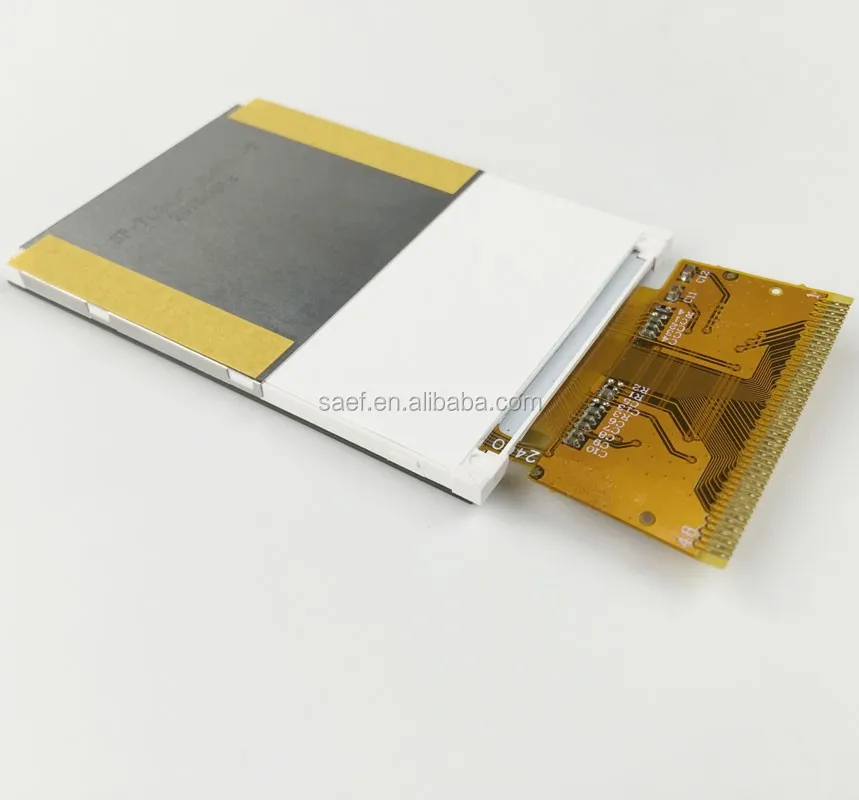

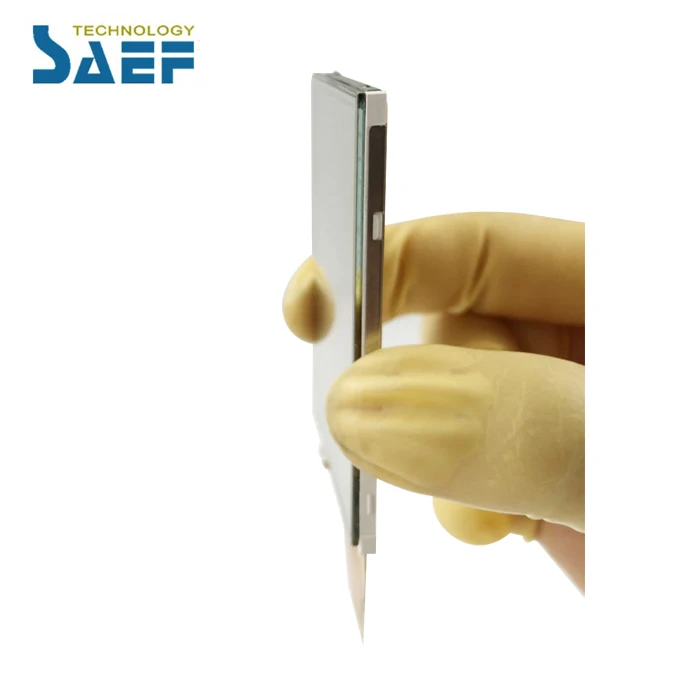

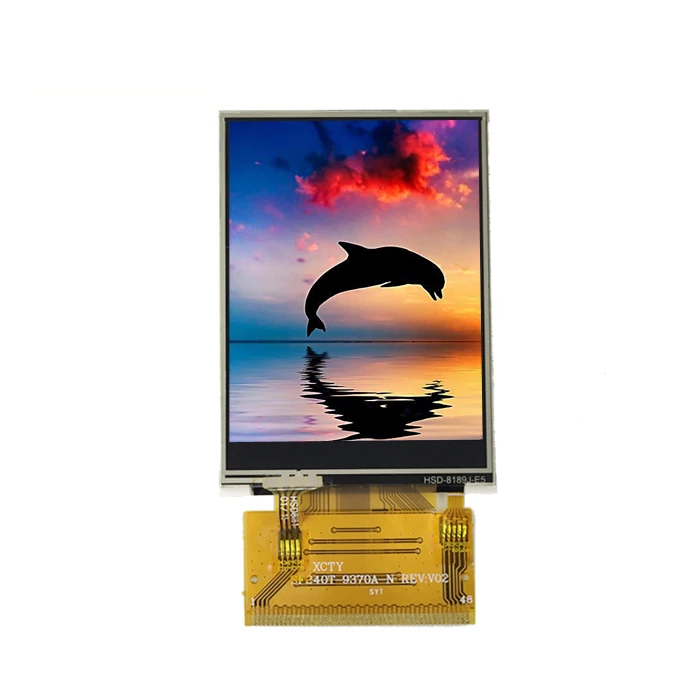

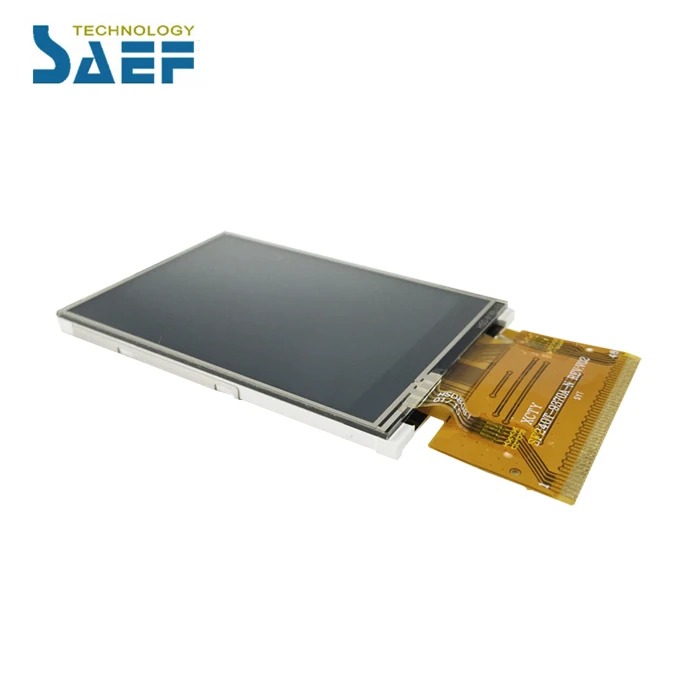

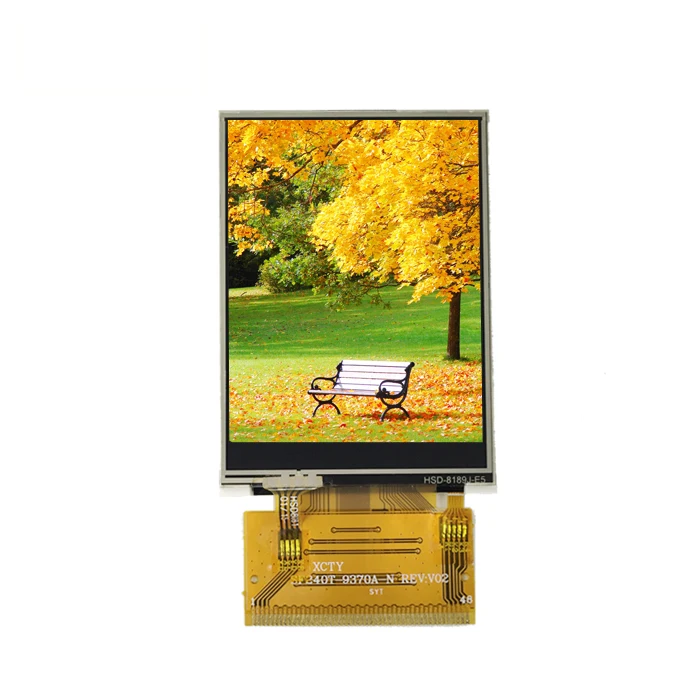

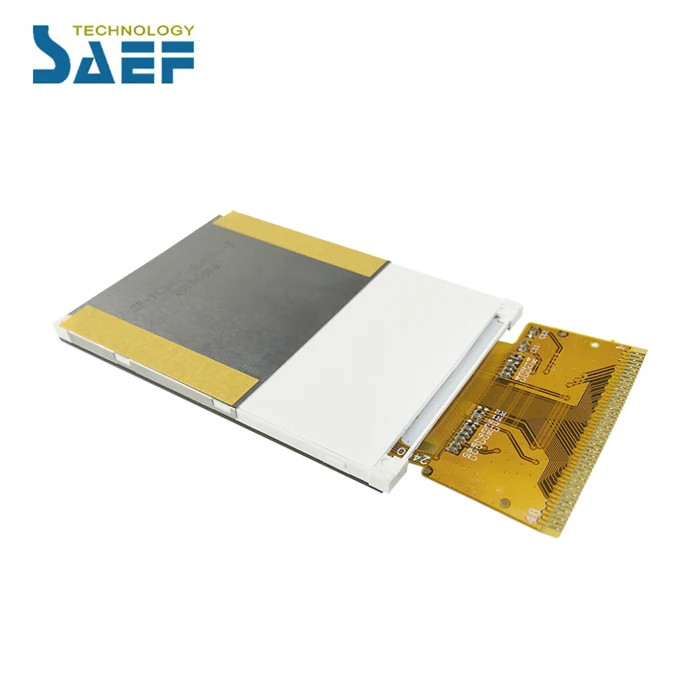

factory production small tft lcd monitor qvga 2.4 inch MPU/RGB interface lcd display ,2.4' tft lcd display

Share on (60449401059):


Price:$3.40 - $3.80

Quantity:


Product Overview

Description


Product Description
\t
Display Type
\t
 2.4 inch TFT lcd display
\t
Display mode
\t
Transmissive
\t
Resolution
\t
240x320
\t
Driver IC
\t
ILI9341
\t
Outline Dimensions
\t
42.72*60.26*3.4   mm
\t
Luminous Intensity for LCM
\t
180Cd/m2
\t
Interface Type
\t
MPU8/16/9/18bit/RGB
\t
Backlight
\t
White LED
\t
Operating voltage
\t
+2.6V~3.3V
\t
Viewing Angle
\t
12 O'clock
\t
Operating Temp
\t
-10°C~+60°C
\t
Storage Temp
\t
-20°C~+70°C
\t
Supply Voltage
\t
3.0~3.4V
\t
Supply Current
\t
60mA
\t
Uniformity for LCM
\t
80%
\t
Power dissipation
\t
288mW
Detailed Images
Applications
Company Strength

1> ISO9001 certificated, Factory Direct Supplied

2> RoHS Compliant, Lead Free, Reach Compliant

3> Competitive Price and Short Lead-time

4> Professional Team with Rich Experiences in Design/Mfg/Quality Control

5> Small MOQ Support & Fast Response to Customers

6> Long Product Life Time
