Product Overview
Description
Product Description
Main features
1. Intimately mix dry powder or small granules with good flowability in food, chemical and pharmaceutical industry
2. Mixing chamber volume: 180-2000L
3. GMP design
4. Agitator can be equipped to strengthen the mixing effect
5. Can work with vacuum conveyor to achieve automatic and dust-free feeding
Working principle

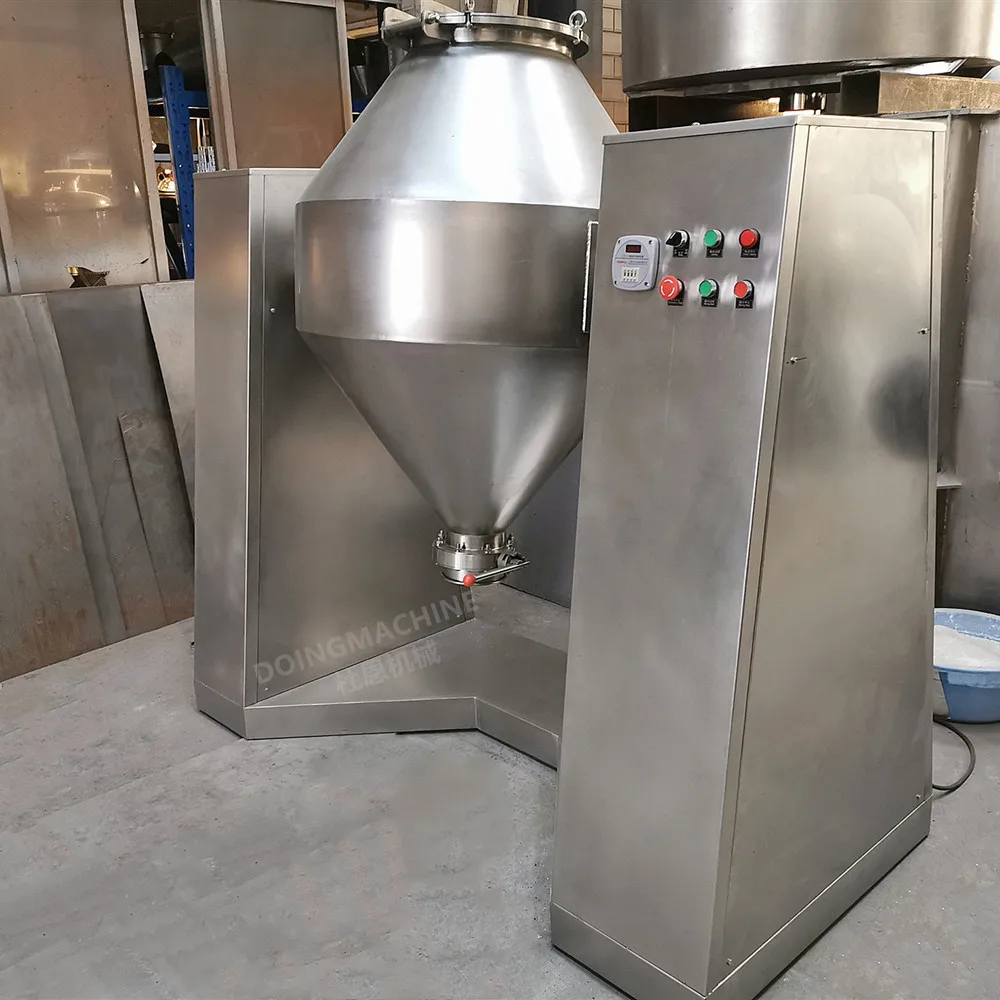

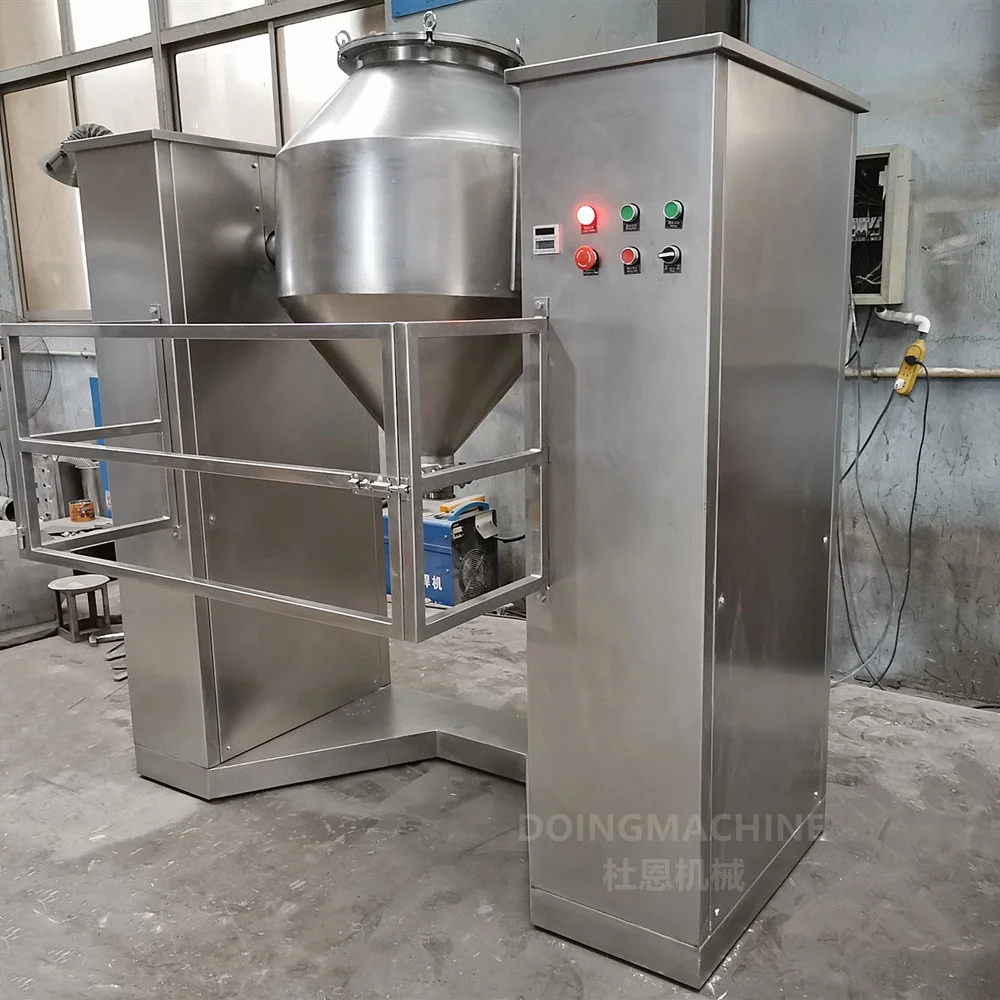

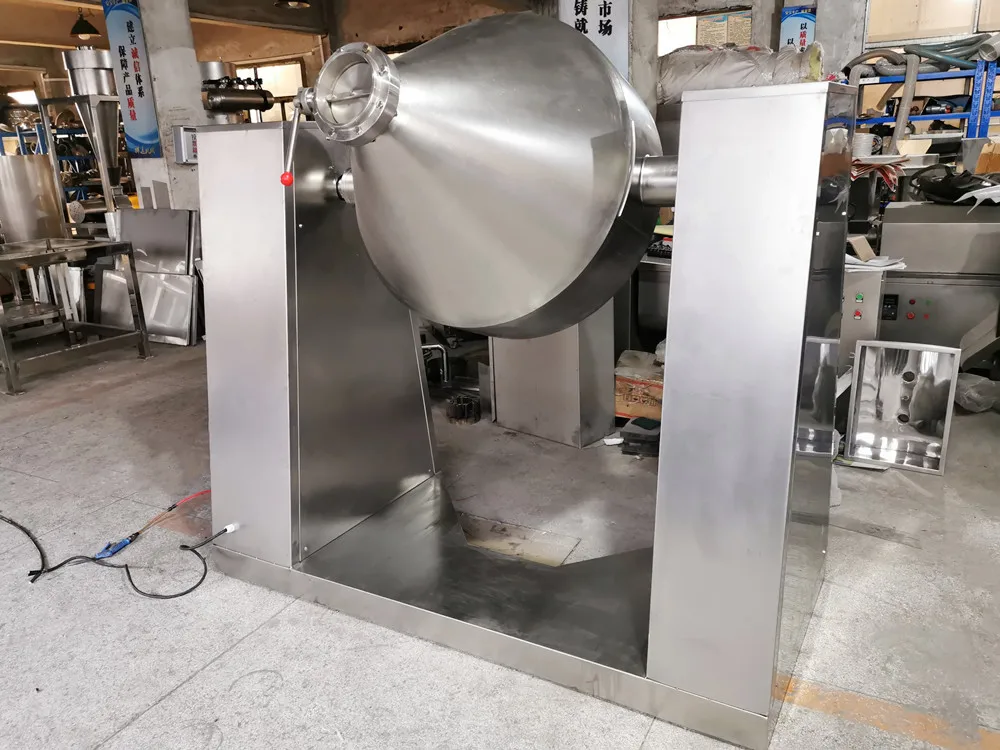

SZH series double cone mixer/blender is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing chamber via quick-open feed port manually or by vacuum conveyor. With the rotation of mixing chamber, materials is completely mixed with high degree of homogeneity. Normal cycle times are typically in the range of 10 minutes, however they can be less depending on the difficulty of mixing.
SZH series double cone mixer/blender is widely used in pharmaceutical, nutriceutical, chemical and food industries for mixing dry powder or small granules with good flowability. The solids being mixed can vary in bulk density and in percentage of the total mixture.
Technical advantages
1. Mirror polished of inner and outer shell to meet GMP standard.
2. No blind angle in mixing chamber, no accumulation of materials, high speed I-bar, efficient and short mixing time.
3. Mixing uniformity can reach 99%
4. Plate valve is equipped for discharging
5. Fully integrated motors and controls
6. Can work with vacuum feeding system to create dust-free working condition.
Main Technical Parameters
Model | SZH-180 | SZH-300 | SZH-500 | SZH-1000 | SZH-1500 | VHJ-2000 |
Volume L | 180 | 300 | 500 | 1000 | 1500 | 2000 |
Capacity kg/batch | 40 | 60 | 100 | 200 | 300 | 400 |
Mixing time Min | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
Rotation speed RPM | 12 | 12 | 12 | 12 | 10 | 10 |
Motor power KW | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 |
Dimension LxWxH M | 1.4X0.8X1.8 | 1.7X0.8X1.9 | 1.9X0.8X2 | 2.8x1.5x2.4 | 2.9x1.5x2.5 | 3.4x1.9x3.5 |
Totation height mm | 1850 | 1850 | 1950 | 2460 | 2540 | 3.650 |
Weight kg | 280 | 310 | 550 | 810 | 980 | 2150 |
Detailed Images

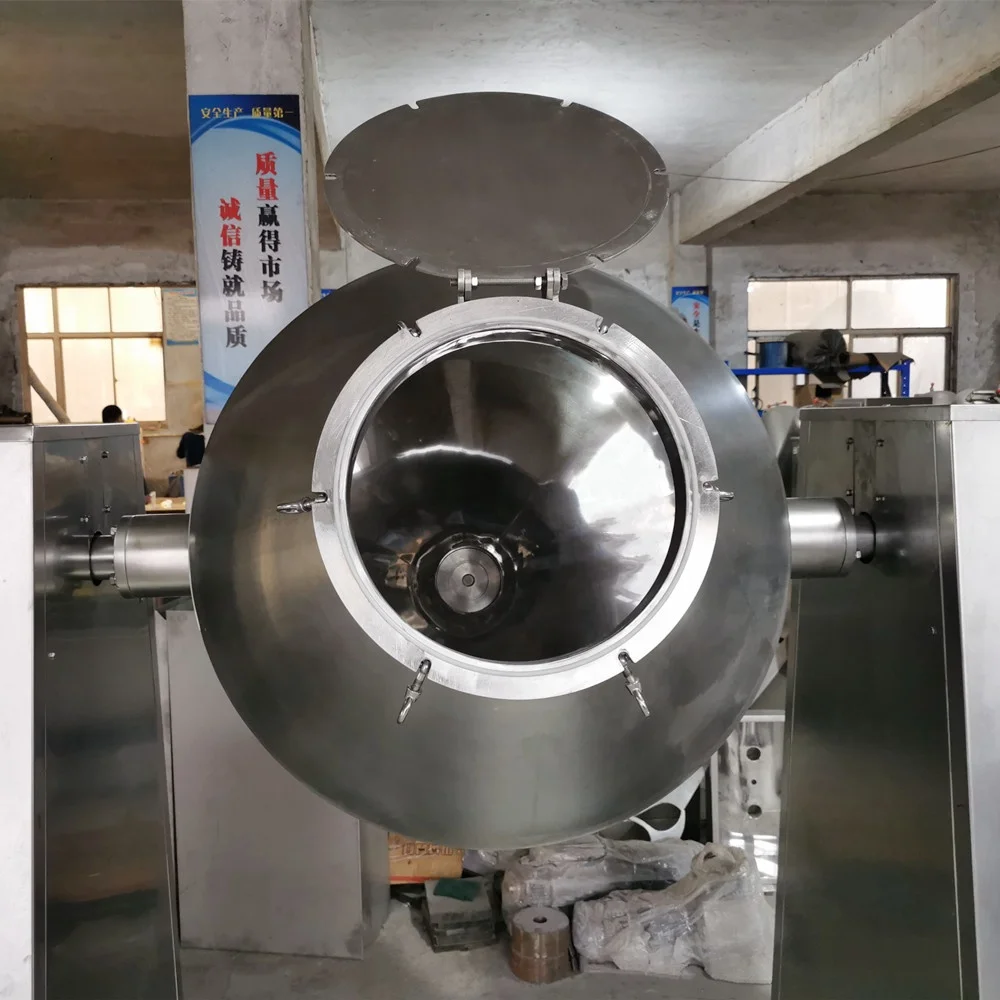

Feed port
Intensifier bar

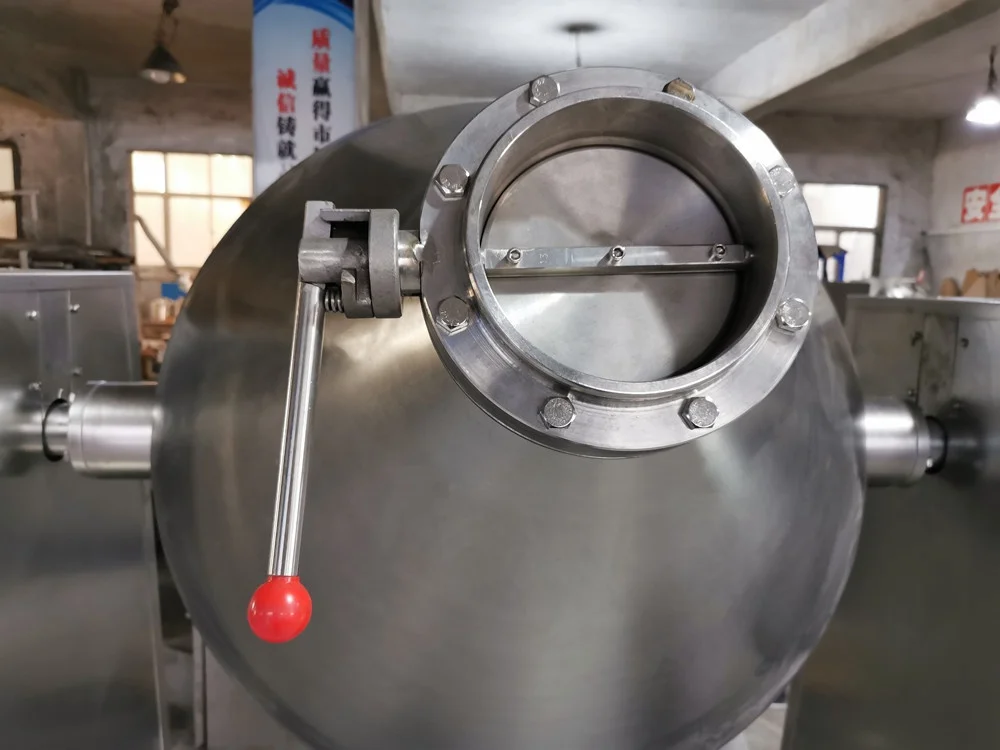

Discharge valve

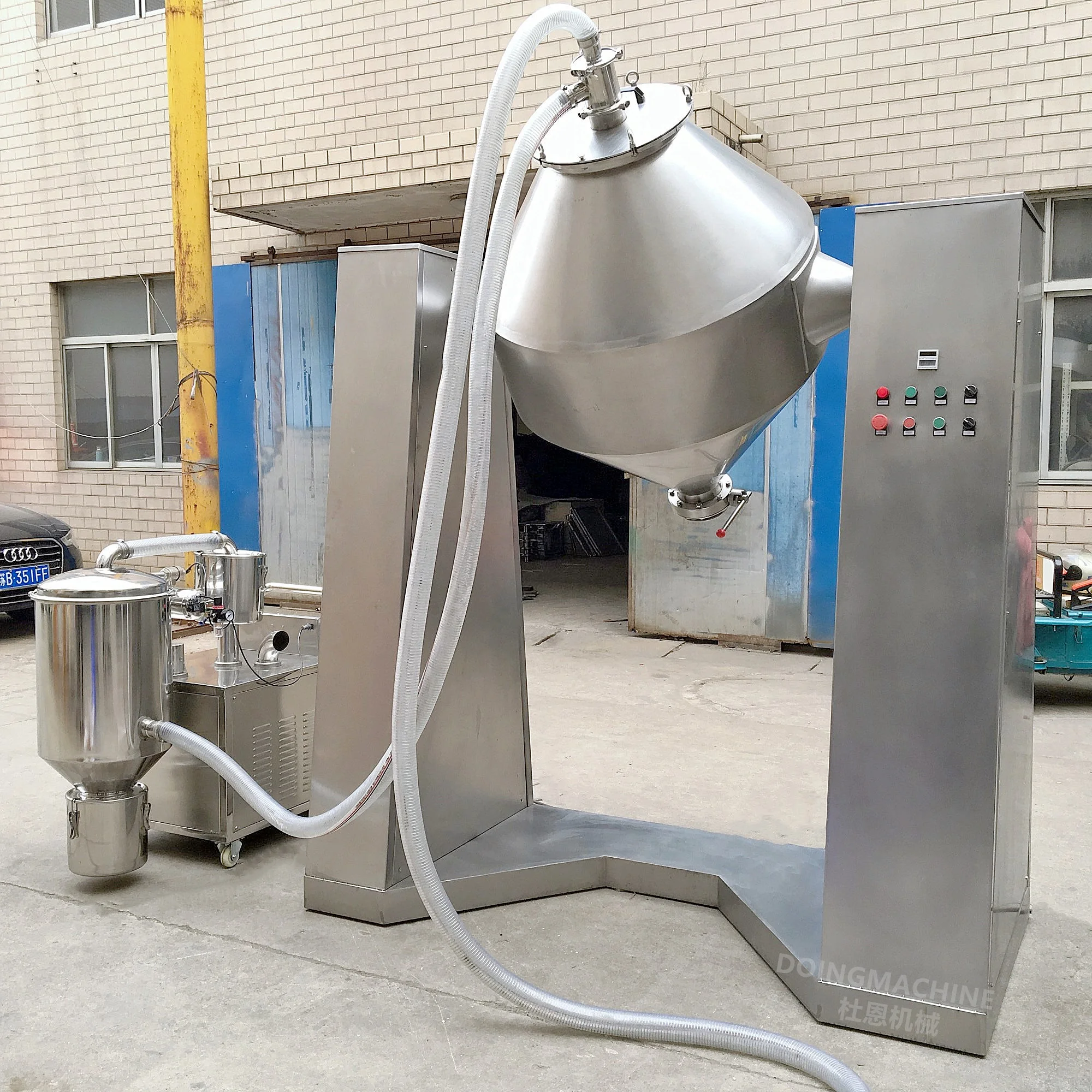

Working with vacuum conveyor
Typical Applications
Protein powder
Seasoning powder
Chemical powder
Packing & Delivery
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our double cone mixer can be customerized. To work out a detailed proposal or quotation, we have to know the following information:
1) Particle size of products to be mixed
2) Bulk density of products to be mixed
3) Mixing capacity
4) Construction material:SUS304 or SUS316L
Q: How the machine will be delivered ?
A: The mixer is packed in plywood box for shipping
