C6 household used mini metal lathe machine
- Category: >>>
- Supplier: Shanghai Zhong Jing Imp. & Exp. Corporation [Shanghai China]Shanghai
Share on (60449624398):
Product Overview
Description
Product Description

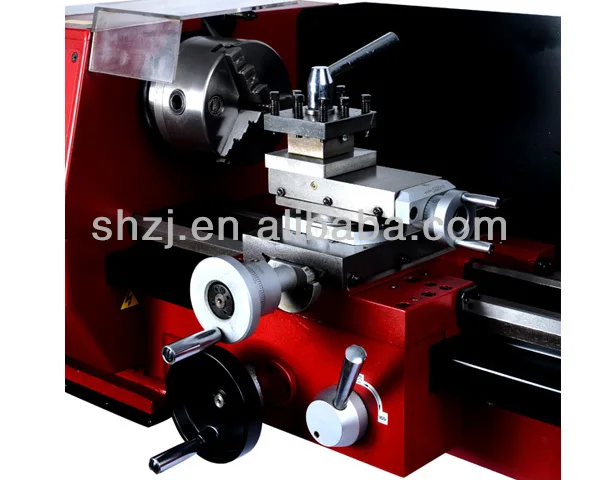

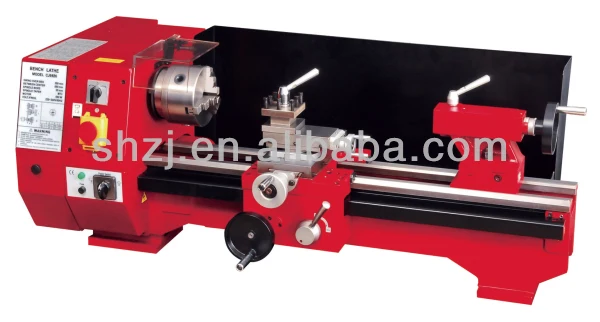

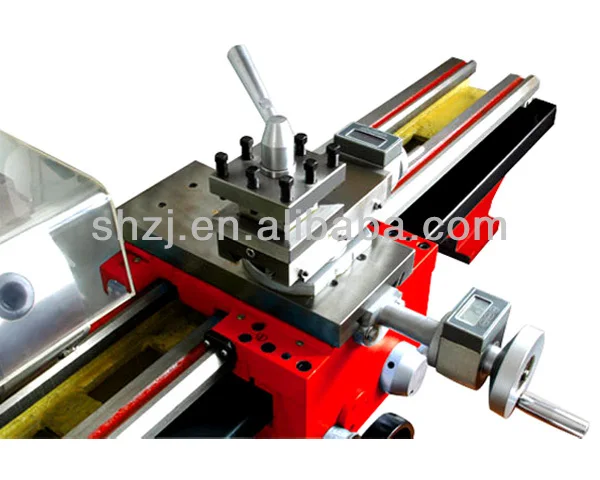

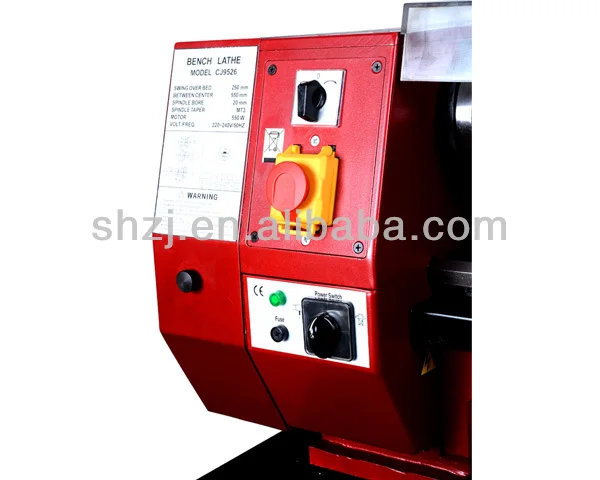

C6 Mini Metal Lathe Machine
Feature:
-Near silent running
- Integral splash guard
- Metric and Imperial thread cutting
- Full range of accessories available
- Converts to a multi-purpose machine with the milling attachme
- Medium capacity, high quality lathe suitable for workshop or school use
Specification:
Specification | C6 |
Swing over bed | 250 mm |
Distance between centers model 400 | 400 mm |
model 550 | 550 mm |
Hole through spindle | 20 mm |
Spindle taper | MT3 |
Tailstock taper | MT2 |
Cross slide travel | 110 mm |
Compound travel | 75 mm |
Range of threads Metric version | 0.4-3.0 mm(12 thread pitches) |
Imperial version | 10-44 TPI(8 thread pitches) |
Motor output power | 550W |
Spindle speed | 125-2000 rpm+10% (6steps) |
Overall dimension model 400 | 1040*600*450mm |
model 550 | 1140*600*450mm |
Packing size (L*W*H) model 400 | 1070*640*580mm |
model 550 | 1170*640*580mm |
Weight(Net&Gross) model 400 | 125/160 kg |
model 550 | 145/180 kg |
Standard accessory:
-125mm 3-jaw Chuck
-Dead center MT3/MT2

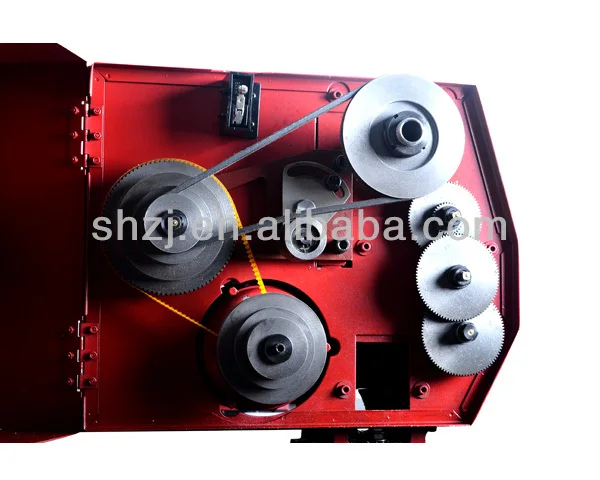

-Change gear set
-Wrench set
-Oil can

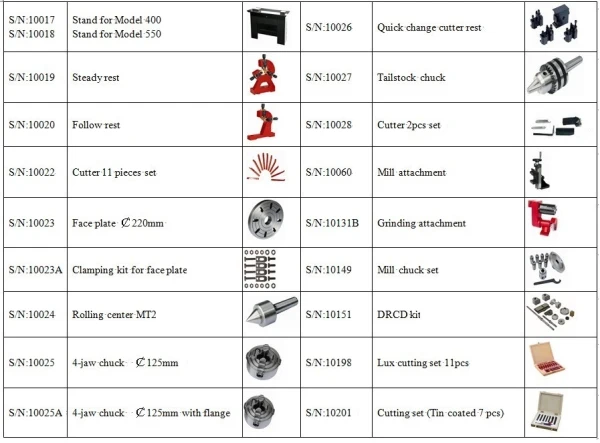

Optional accessory:
