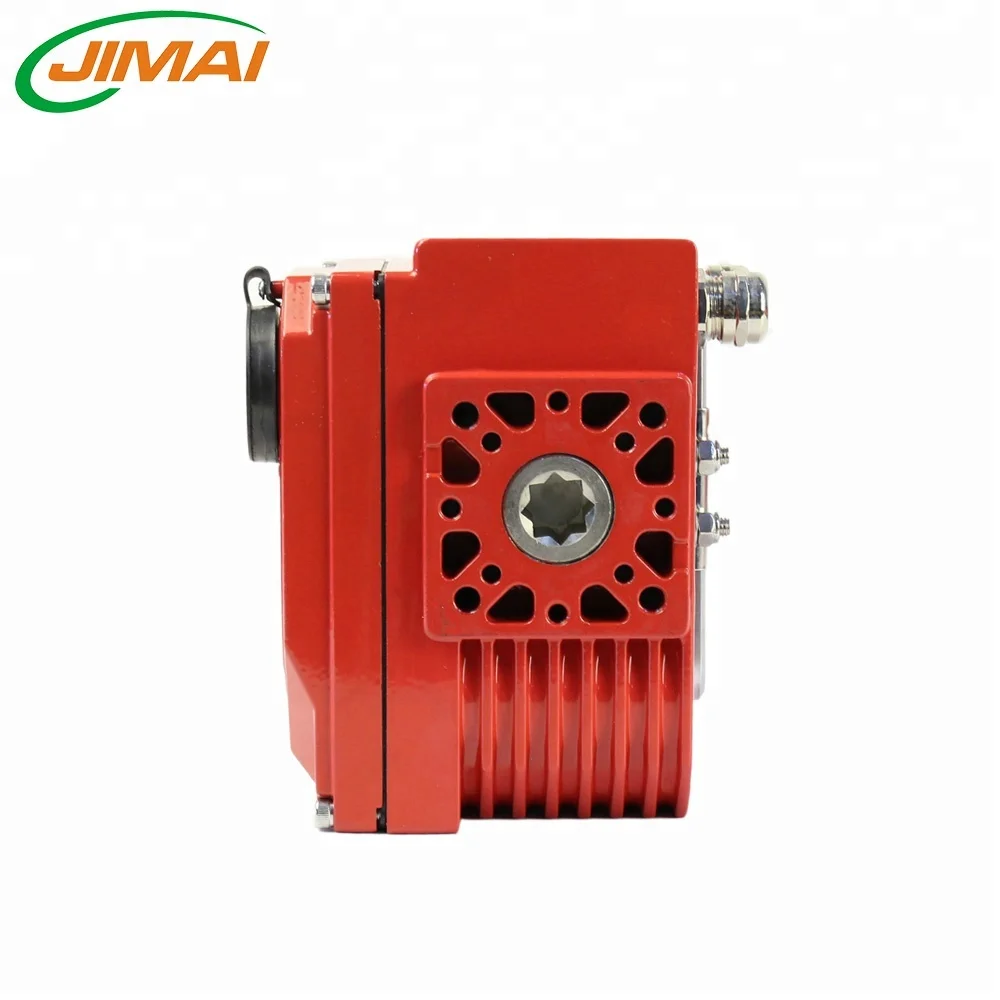

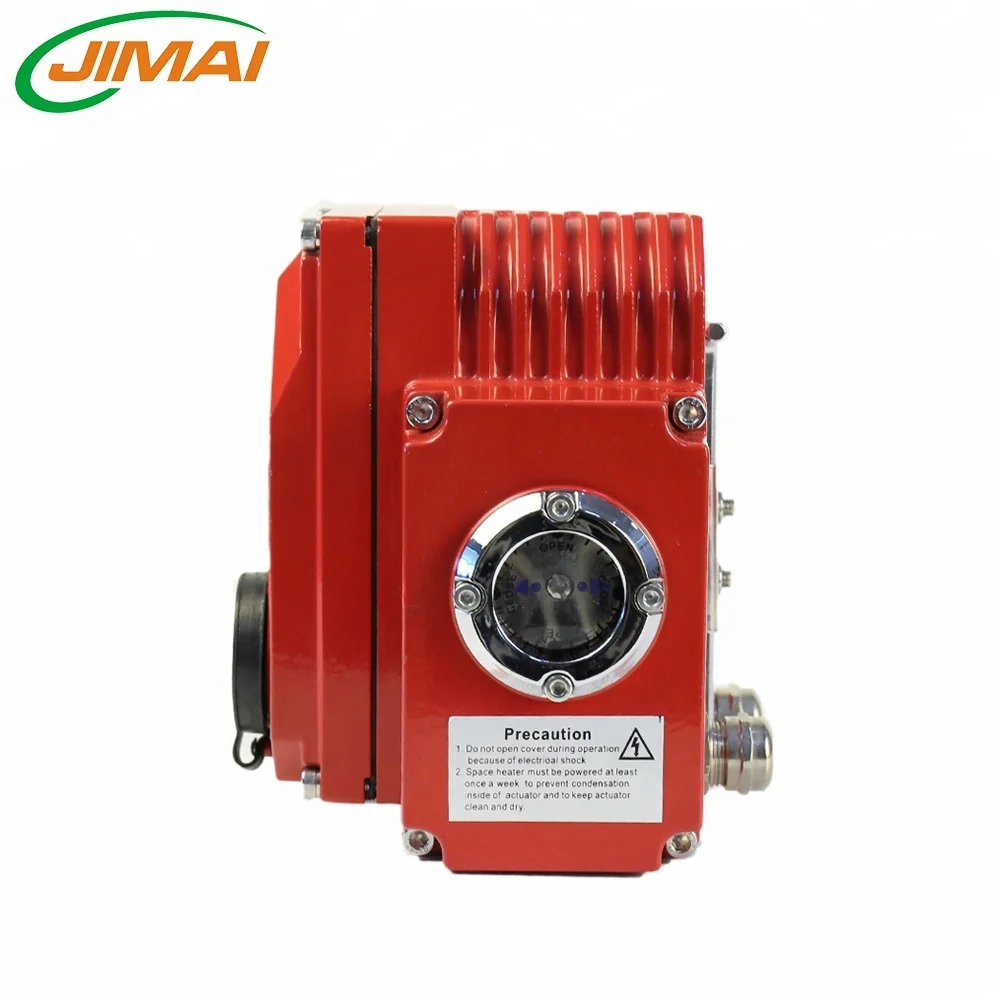

Jimai factory JMO Motorized Butterfly Valve 24VDC/220V/380VAC electric actuator

Share on (60449741605):


Price:RUB 3,898.63 - RUB 46,783.50

Quantity:


Product Overview

Description

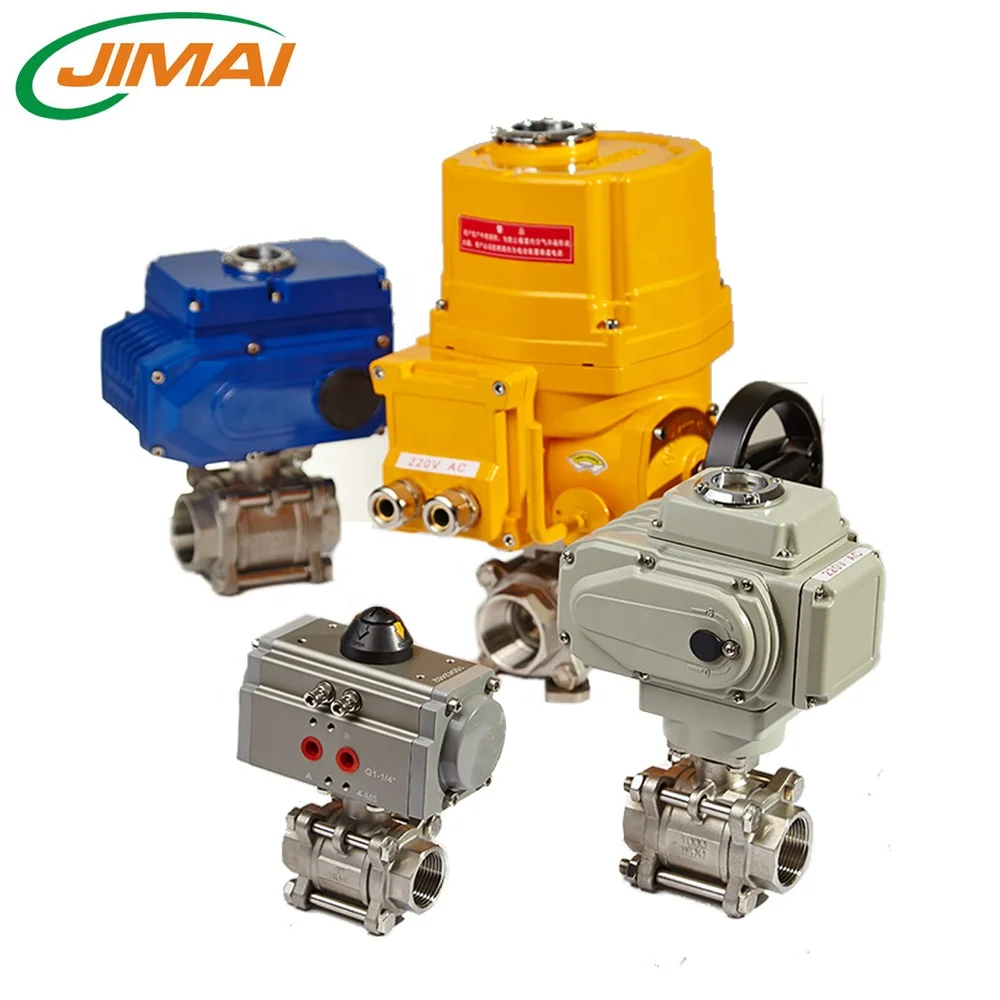

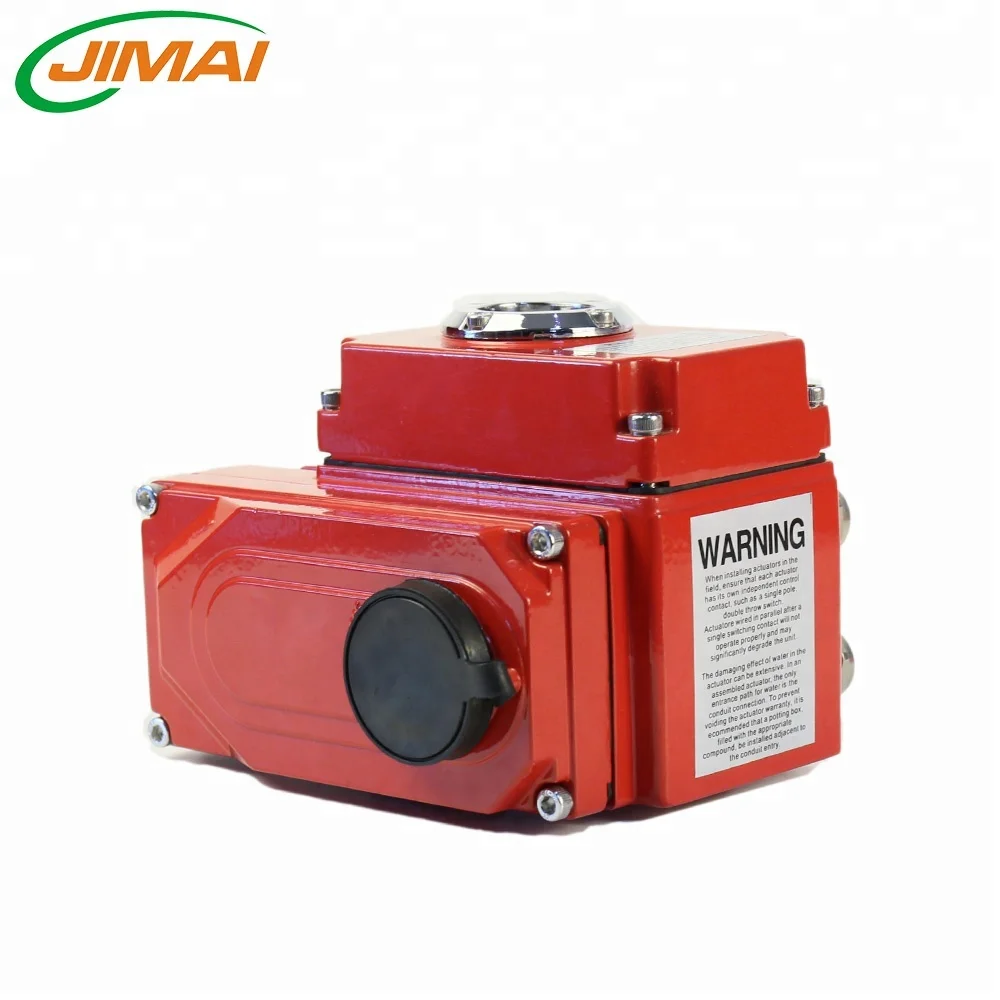

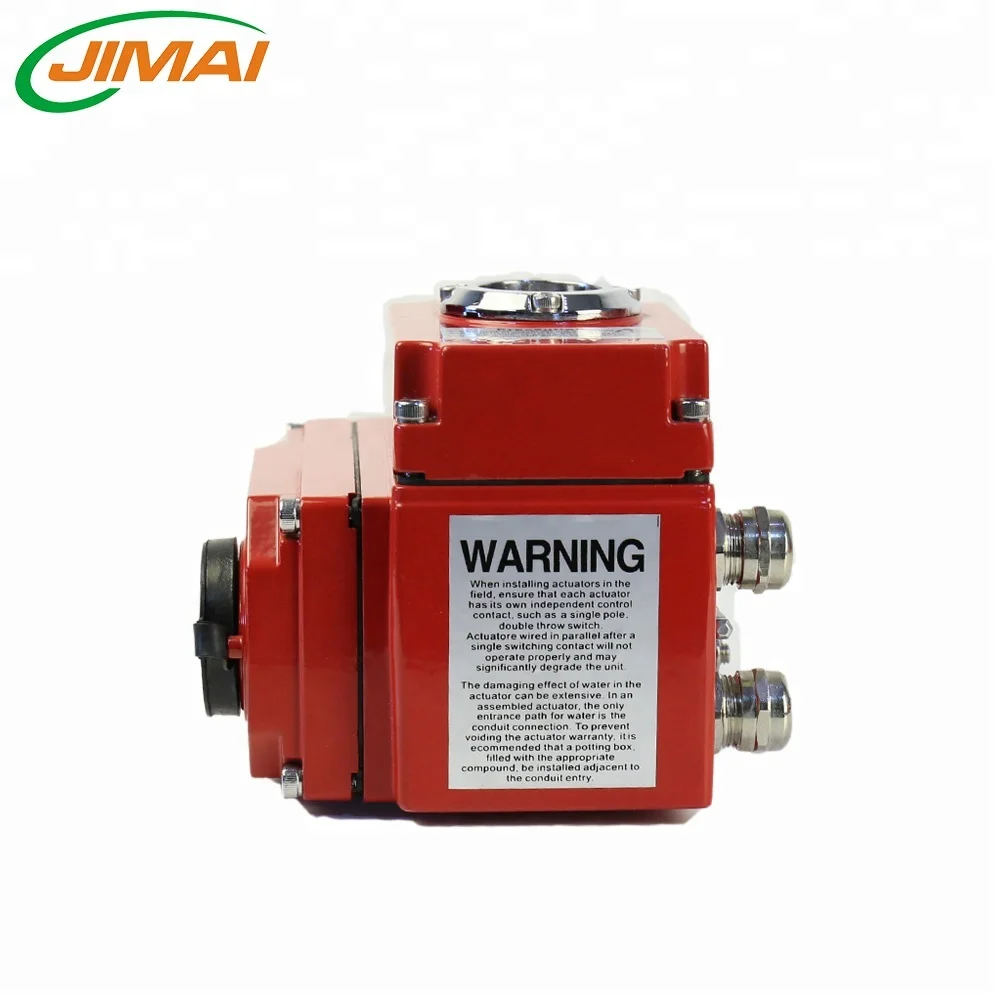

JIMAI JMO Series Compact Industrial Duty Quarter Turn Weather-Proof Valve Rotary Electric Actuator On-off Type for Ball Valve Butterfly Valve



Product Type:A. On-Off Type    B. Modulating Type    C. with control box   D. with worm gear



Our products can be manufactured in accordance with clients' requirement.

It applied in waste water treatment plants, power plants, refineries, mining and nuclear processes, and pipelines.



2

Model

Max Output Torque(NM)

Operating Time90°(S)

Drive Shaft(mm)

Motor(W)

Rated Current(

A)     220VAC

/1ph

Weight(kg)

Square

Deep

Round

Deep

JMO-003

30

10

9X9

13.5

Ø12.6

26

8

0.15

2.1

11X11

15.5

JMO-005

50

30

11X11

15.5

Ø12.6

26

10

0.25

3.6

14X14

18

JMO-010

100

30

14X14

18

Ø15.78

28

15

0.35

4.6

17X17

22.5

Ø 18.95

JMO-015

150

30

14X14

18

Ø18.95

28

15

0.37

4.6

17X17

22.5

JMO-020

200

30

22X22

26

Ø22.13

45

45

0.3

13

JMO-040

400

30

22X22

26

Ø28.48

45

60

0.33

13.8

JMO-060

600

30

27X27

32.5

Ø31.65

45

90

0.33

14

JMO-080

800

40

27X27

32.5

Ø31.65

45

180

0.47

14.3

JMO-100

1000

40

27X27

32.5

Ø31.65

45

180

0.47

14.5



Shell

Waterproof Level IP67,NEMA4 and 6

Motor Power

Standard:220VAC Single-phase

Optional: 110VAC Single-phase,380/440VAC

Three-phase,50/60Hz,±10%24VDC/110VDC/220VDC

Motor

Squirrel-cage asynchronous motor

Limit Switch

Open/close, each 1SPDT,250VAC10A

Auxiliary limit switch

Open/close, each 1SPDT,250VAC10A

Stroke

90°~270°±10°(Please specify in advance if over 90°)

0°~27°Optional

Stall Protection/Operating Temperature

Inside overheating protection, open 120℃±5/ close 97℃±5

Indicator

Continuous position indicator

Manual Operate

Mechanical handle(Handwheel is optional)

Self-locking Device

Provide self-locking by worm and worm gear

Mechanical Limit

2 Pieces of external adjustable bolt

Space Heater

7-10W(110/220V AC)

Conduit Entry

2 Pieces M18

Ambient Temperature

-20~+70

Lubrication

Aluminum base grease(EP type)

Material

Steel, aluminum alloy, aluminum bronze, polycarbonate

Ambient Humidity

Max 90%RH

Non condensation

Anti-vibration performance

XYZ10g,0.2~34Hz,30 Minutes

External Coating

Dry powder, epoxy polyester





Actuator Size Selection for Valve

Model

Ball Valve

(Hard Seal)

Ball Valve

(Soft Seal)

Butterfly Valve

(Hard Seal)

Butterfly Valve

(Soft Seal)

JMO-03



DN40-50



DN15-20

JMO-05

DN50

DN50-65

DN15-20

DN15-32

JMO-08

DN65

DN80

DN25-32

DN25-40

JMO-10

DN80

DN100

DN40

DN50

JMO-15

DN100

DN125-150

DN50

DN65

JMO-20

DN125

DN150

DN65

DN80

JMO-40

DN150

DN200-250

DN80

DN100-125

JMO-60

DN200

DN250

DN100

DN125

JMO-80

DN200

DN300

DN125

DN150



Outline Dimension


MODEL

X

Y

Z

A

N-B

C

N-D

E

F

G

H

I

MXM

JMO-003

123

100

115

Ø 50

4-M8

Ø36

4-M6

50

50

114

40

150

9X9

11X11

JMO-005

161

121

125

Ø 70

4-M8

Ø50

4-M6

66

66

114

40

150

11X11

14X14

JMO-010

188

145

127

Ø 70

4-M8

Ø50

4-M6

100

90

114

40

150

14X14

17X17

JMO-015

188

145

127

Ø 70

4-M8

Ø50

4-M6

100

90

114

40

150

14X14

JMO-020

268

255

164

Ø 125

4-M12

Ø102

4-M10

140

130

114

40

150

17X17

JMO-040

268

255

164

Ø 125

4-M12

Ø102

4-M10

140

130

114

40

150

22X22

JMO-060

268

255

164

Ø 125

4-M12

Ø102

4-M10

140

130

114

40

150

22X22

JMO-080

268

255

164

Ø125

4-M12

Ø102

4-M10

140

130

114

40

150

27X27

JMO-100

268

255

164

Ø125

4-M12

Ø102

4-M10

140

130

114

40

150

27X27




Specializing:

We are specializing in manufacturing pneumatic actuator, electric actuator, pneumatic actuated butterfly and ball valve, electric actuated butterfly and ball valve, Limited Switch box and other Accessories.........

Advantage:

1.Price:  As we are the professional manufacture in valve actuators and accessories, we ensure that the price offered must be very competitive compare with others.

2. Raw material inspection: All material test high quality, and keep in warehouse.

3. Workers: All workers training 3 monthes, skilled workers on production line.

Sample Order:

We will charge express fee only for old customers in generally, and for new customers we will charge 50% of the units cost and express fee mostly. (It can be discussed, we keep options always.)

Delivery Time:

We usually take 20days for official orders after received the prepayment, And Sample orders will be ready within 7days.

Quality Control:

 We got very strict and complete quality system to ensure that each product will meet quality requirements as per clients, incoming quality control, final quality control, out-going quality control. Meanwhile, all of the products will be strictly inspected before delivery.”’ Quality First, Service First’’ that we are pursuing All the time.

Warranty Period:

18 months from the date we signed the contract or PI. Technical support for the whole life.

(In case of goods discrepancy to the order and drawings, the customers issues Reclamation Report concerning defective goods and attaches photo documents. customers shall consider either to make an additional delivery for replacement of defective goods, all expenses are covered by our company. Or the customers shall decide that we should compensate expenses for defective goods. Such compensation will cover all transport costs, custom duty costs, amount of paid goods.)

Payment Terms And Conditions:

1. TT Terms: The payment will be 30% of prepayment by direct bank remittance (T/T),remaining 70% before Shipment or the copy of BL send by us Via Fax or Email.

2. L/C Terms: Payment by L/C at sight and Unrestricted. (L/C must allow 30days minimum from the shipment date of presentation of documents for negotiation, all the clauses within L/C must be clear, concise and acceptable. Do not allow special clauses, terms and conditions.)

Competitive Price:

We provide competitive price, good quality and best service to reach the win-win goal.

Customization:

custom-made is acceptable.
