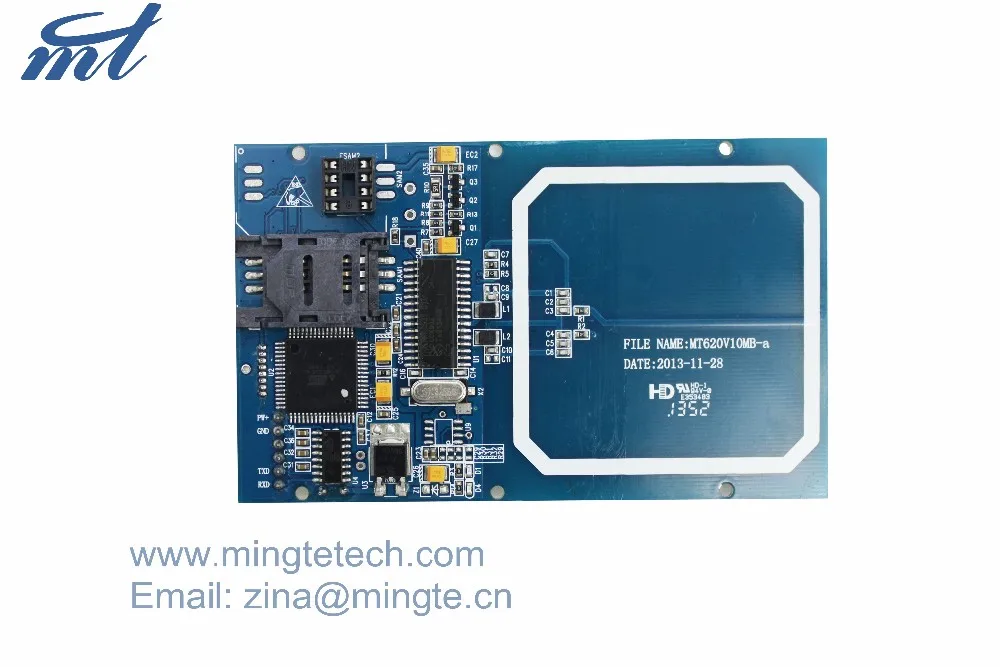

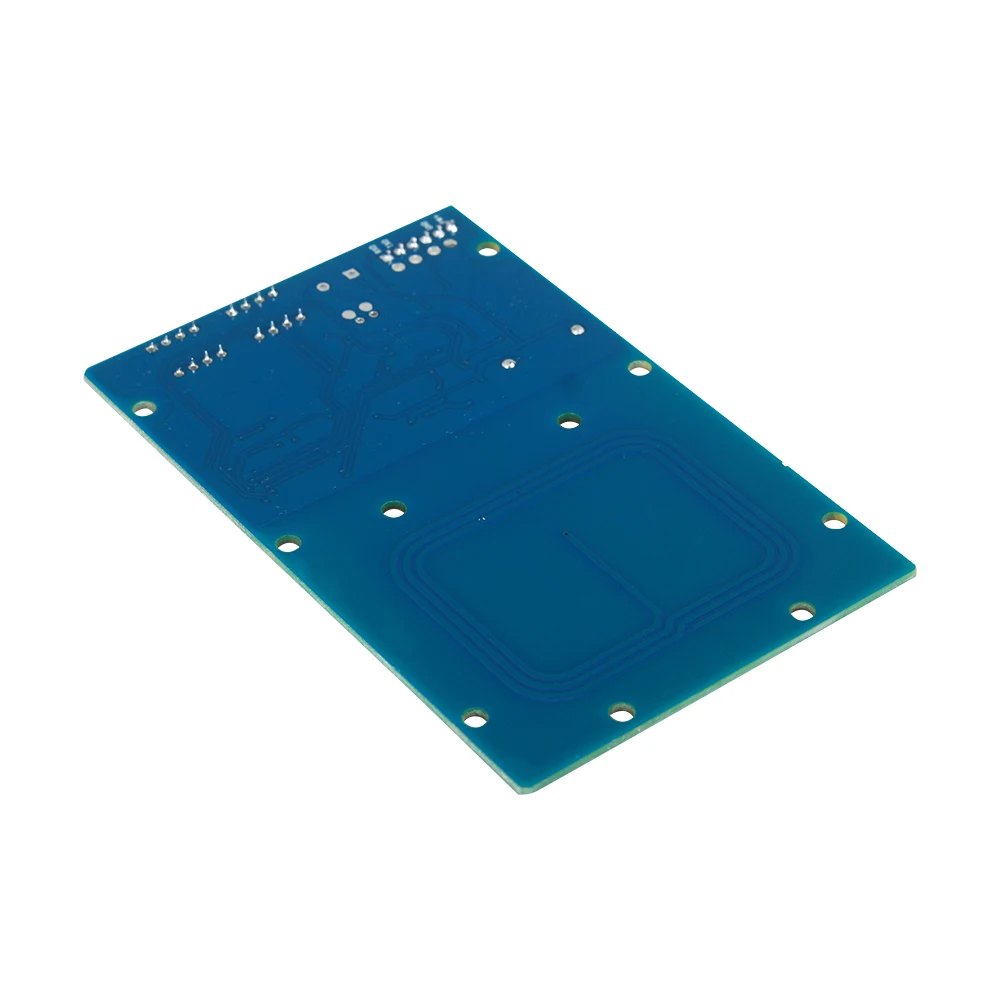

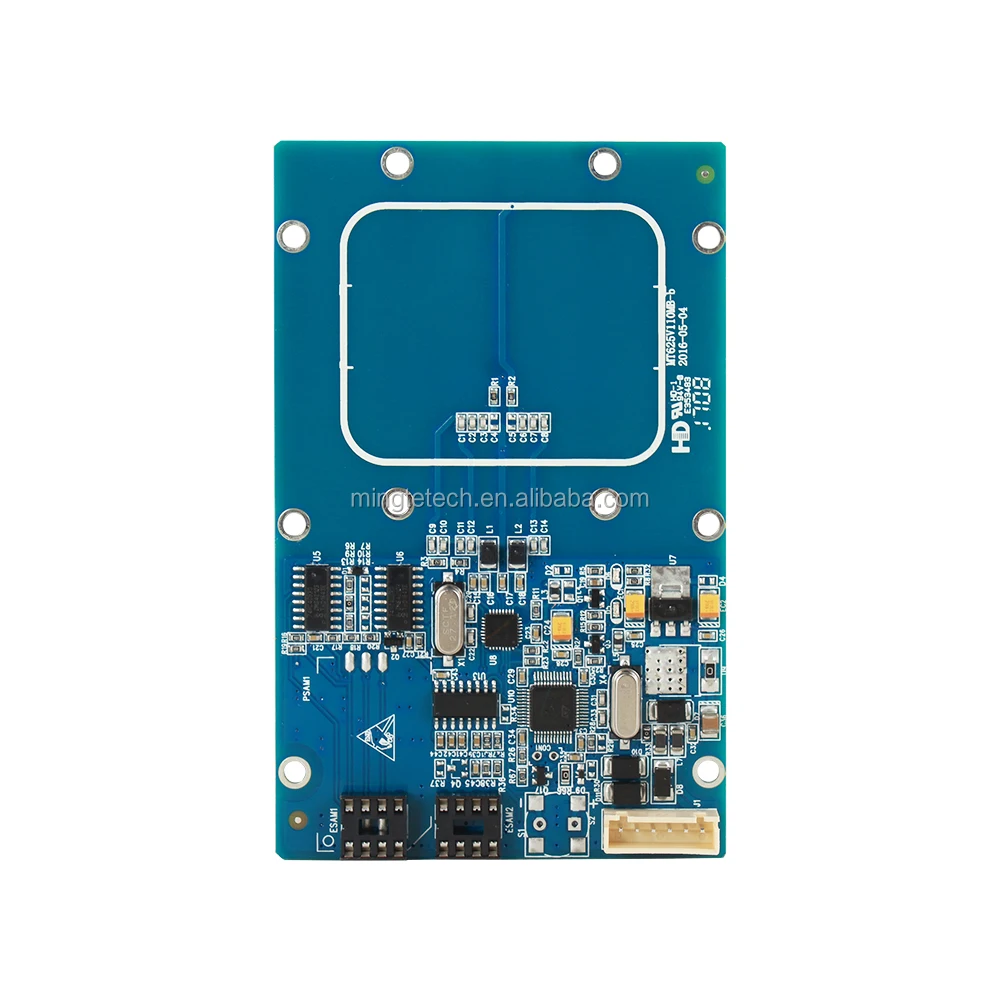

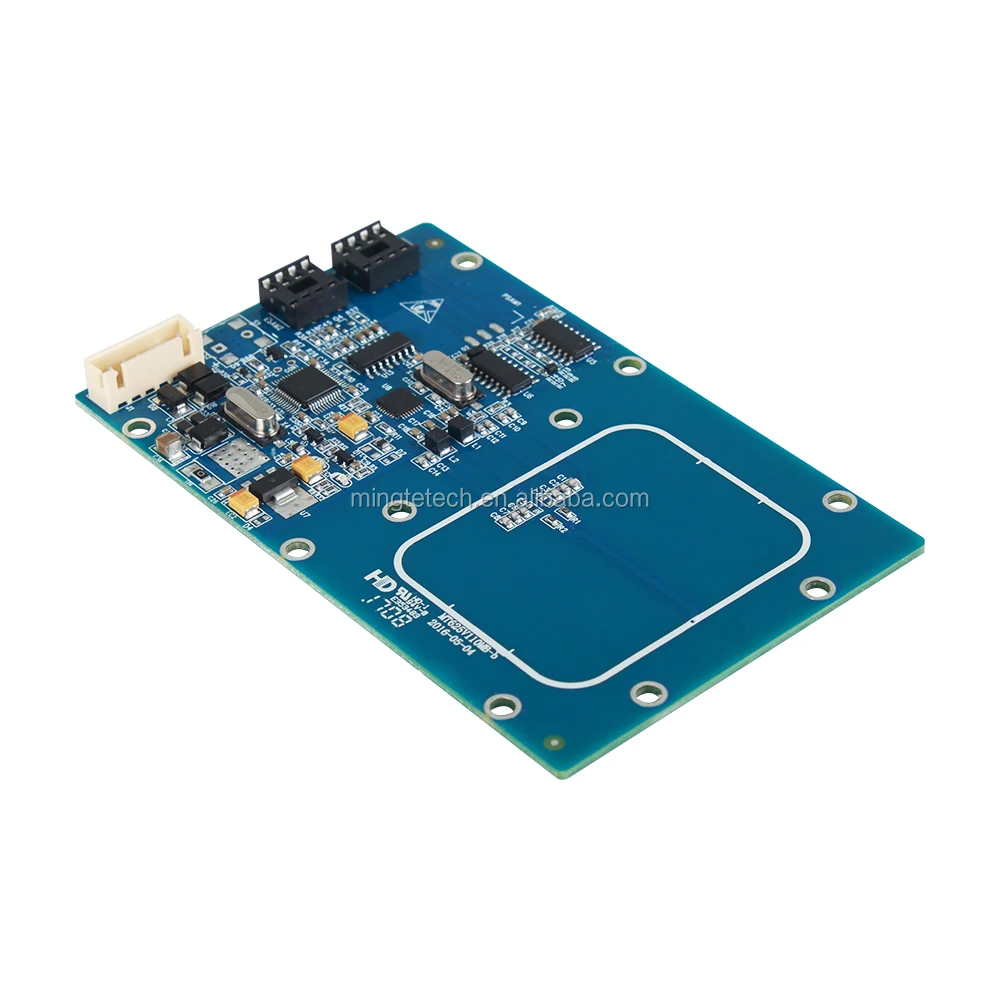

13.56MHz RS232 Contactless Card Readers RF board MT318 625 for Door Access
- Category: >>>
- Supplier: Shenzhen Mingte Tech Co. Ltd.
Share on (60449887305):
Product Overview
Description
Product Description
Features
1:Support contactless IC card (ISO14443 TYPE A & B)
2:Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B)
3:Support 2 PSAM & ESAM card (ISO7816), optional PSAM and ESAM
4:Customized for compatible with application flow of charging points from China Southern Power Grid or State Grid
5:Customized for related or financial applications, easy and cost-effective for secondary development
6:Various corresponding and custom design
7:Software updated via RS232 supported
8:Carefully-designed antenna size for most installation design
9:Various installation dimensions design, temperature-proof
Specifications
CATEGORY | Contactless | |
CARD TYPE | Contactless IC Cards SIM Cards, PSAM Cards, ESAM Cards | |
CONTACTLESS CARD | ISO14443 Type A & B & Mifare | R/W |
IC CARD | SIM/PSAM/ESAM | R/W |
EMV | Level 1 Compliant | |
CARD READING DISTANCE |
4-8cm and 106Kbit (Related to cards and installation environment) | |
INTERFACE | RS-232/TTL(uart) | |
BAUD RATE | 9600/38400/57600/115200bps | |
ANTENNA | PCB Antenna | |
FREQUENCY | 13.56MHz | |
COMMUNICATION SPEED | 106Kbit(212Kbit & 424Kbit pps commands optional) | |
SECONDYARY DEVELOPMENT | VC, Linux | |
OPERATING SYSTEM | Windows 98, Me, 2K, XP, 2003, Vista and Linux | |
DATA STORAGE CAPACITY | Standard capacity inside reader: 4k bytes | |
STATUS DISPLAY | LED indication light & buzzer | |
POWER SUPPLY | DC5V or +8-15V± 5% | |
CURRENT | Current: ≤25mA(5V) Max: ≤130mA(5V) | |
WORKING TEMPERATURE | -40-+65°C | |
WEIGHT | Approx 32g | |
(R: Read only, R/W: Read & Write)
Applications
1:Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers
2:ATMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems
3:POS Terminals, ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals
Company Information
Established in 2005, Shenzhen Mingte Tech Co., Ltd. is a leading and professional worldwide provider for Smart Card Readers, Card Collectors & Dispensers and Banknote Validators. Specializing in design, development, sales and manufacturing, MINGTE provides OEM and complete custom payment solution for every imaginable applications, including ATMs, CDMs, Kiosk Terminals etc.
MINGTE offers a variety of manual dip, manual swipe, motorized, standalone, contactless, mobile payment types and single feed bill acceptors with a experienced technical team. More than 85% employees have almost 10 years’ experience in the field of smart card payment.
MINGTE has obtained various patents relating to smart card reader technologies, and passed various quality inspection tests from China Bank Card Test Center, EMV Consortium, and China Ministry of Information Industry.
Exhibitions
Every year, MINGTE will attend several big exhibitions in our industry to show the perfect quality and reasonable price to all over the world, such as: Cards&Payments Middle East, Uniti Expo in Stuttgart, Germany, TRUSTECH CARTES in France, Vend EXPO in Russia etc.
IN DUBAI IN FRANCE IN INDIA
Sales & Service
1. OEM&ODM: MINGTE provides one-to-one customized solutions to overseas market;
2. Quality Assurance: Before products are packed, professional work team and engineer will run three times test;
3. Professional sales engineers stand by 24 hours waiting to serve you;
4. Material checking: strictly control of material, meet international requirement standards;
5. COMMUNICATION PROTOCOL, SDK are available for your software development.
6. TECHNICAL SUPPORT will be provided when you have problems in software development process.
Payment & Shipping
1. Various ways of payment: T/T, PayPal, Western Union, etc;
2. FedEx/DHL/EMS/UPS/TNT for samples, Door-to-Door;
3. Delivery Time: 3-7 days for samples; 2-7 weeks for batch goods;
Please contact our sales for additional info.
Shenzhen Mingte Tech Co., Ltd.(www.mingtetech.com)
4/F, Aerospace Micromotor Building, High-tech Industrial Park North, Nanshan District, Shenzhen, China
Contactor: Julian
Tel: +86-0755-86232730
Whatsapp/Skype/Phone Number: +86 13580830148
