XH M139 2.1 Amplifier Board Channel Digital Subwoofer Amplificateur de Puissance DC12V 24V 2*50W 100W Chip TPA3116D2
- Category: >>>
- Supplier: Shenzhen Dawangtai Electronics Co. Ltd.
Share on (60449967193):
Product Overview
Description

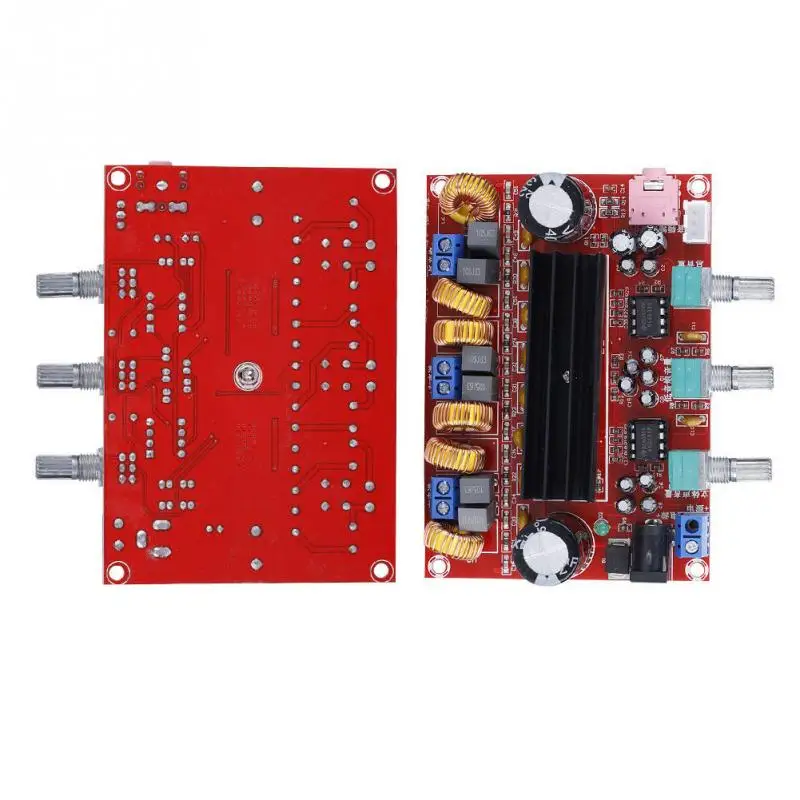

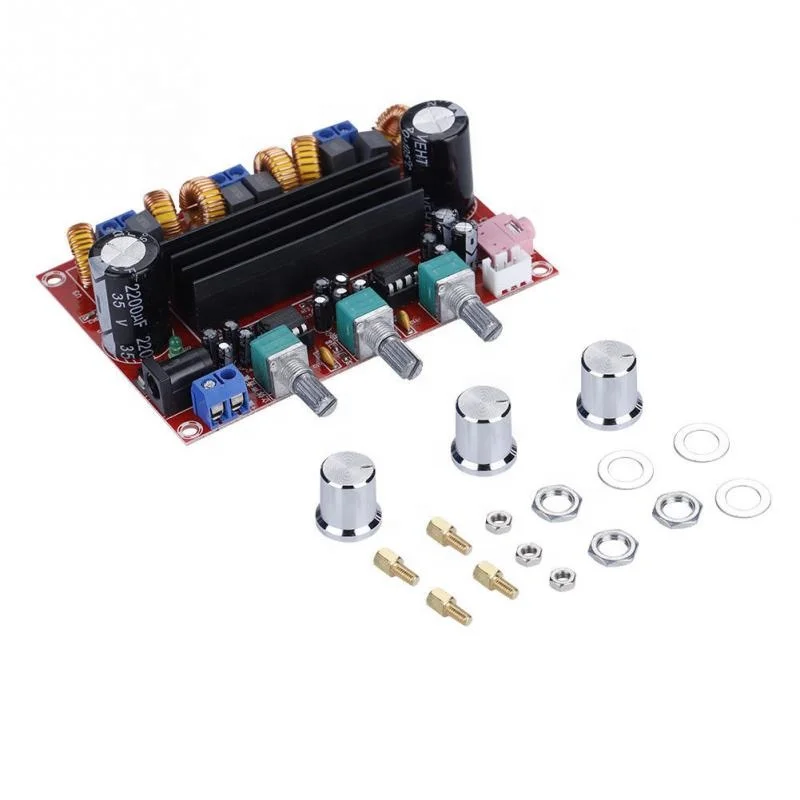

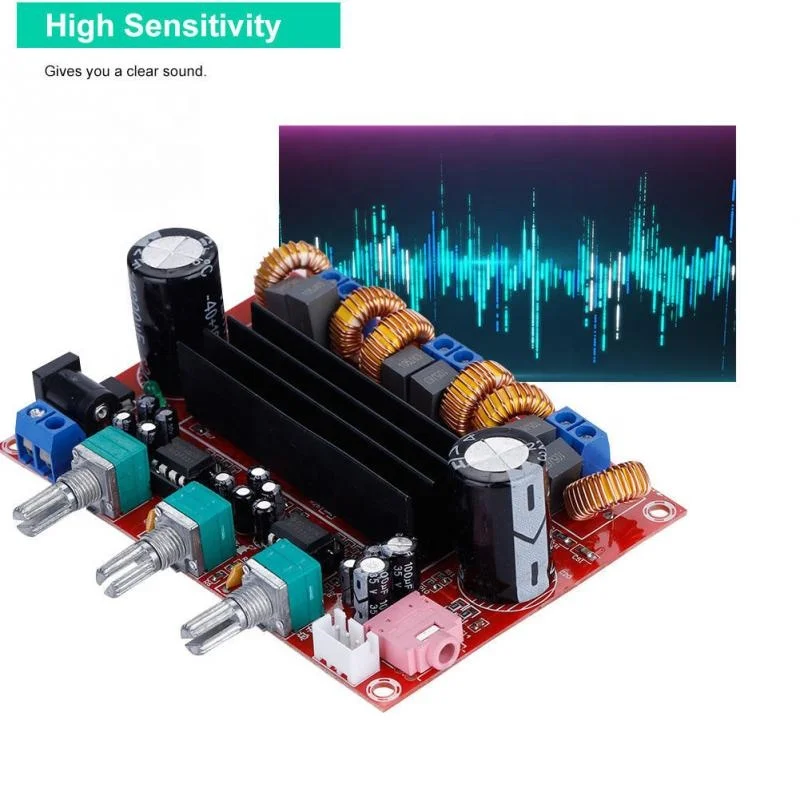

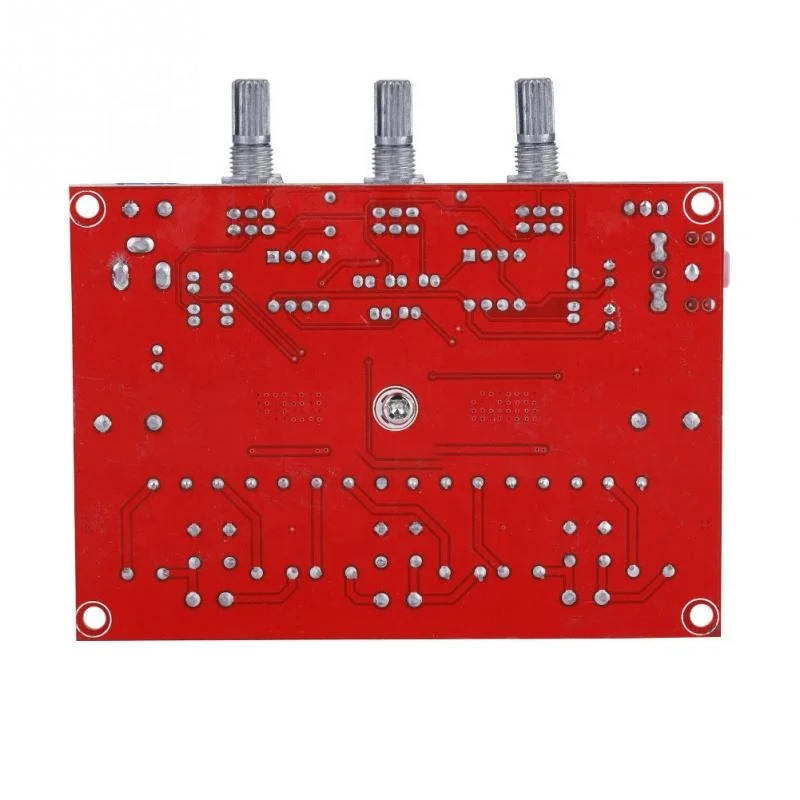

XH-M139 2.1 Amplifier Board Channel Digital Subwoofer Amplificateur de Puissance DC12V-24V 2*50W+100W Chip TPA3116D2
Product Description

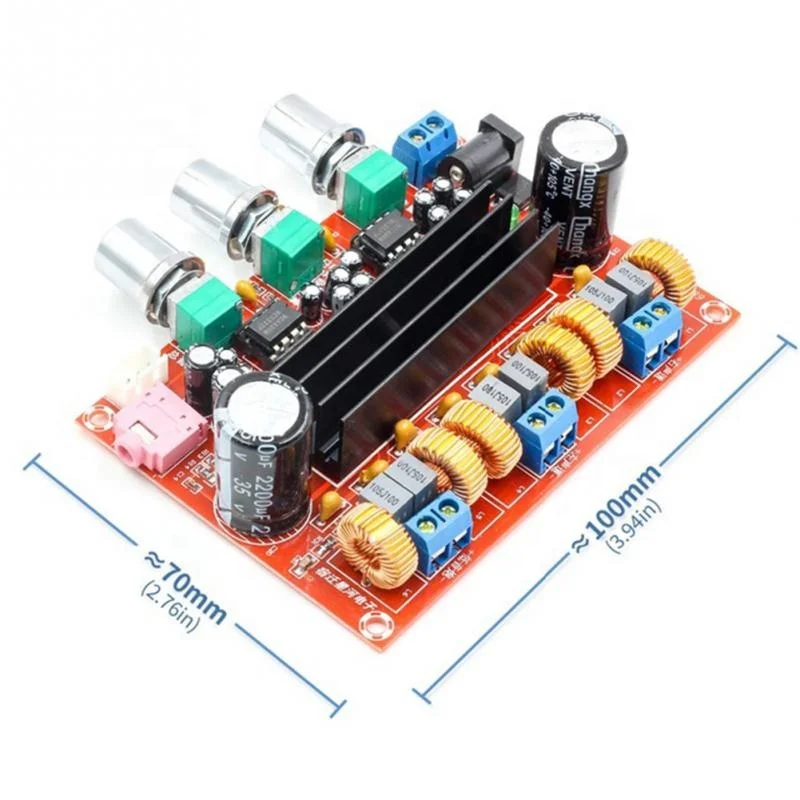

| Features: Accepts two high-quality TPA3116D2 digital amplification chips. The sound quality is very good, high efficiency and amplifying power. 50 W * 2 + 100 W 2.1 channels (left / right channel and subwoofer channel), high efficiency and low heat. Powered by DC 12-24 V, wide input voltage. The user can easily adjust the volume on their own. Applicable Speaker Resistance: 4-8 ohms. Just plug in the power supply and loudspeaker, enjoy pure digital music! Note: This amplifier board should be powered by DC power (DC12-24V), it is better to use a high-performance power switch. Do not use a transformer! Specifications: Power supply: 12-24 V DC Chip: TPA3116 * 2 Channel type: 3 channels (left channel, right channel, subwoofer) Output power: subwoofer 50 W * 2 + 100 W * 1 Output: 4-8 ohms Audio Output: Terminals Response frequency range: 14-100 kHz S / N ratio: 100dB Switching frequency: 1.2 MHz The size of the printed circuit board: 100 * 70 * 30 mm / 3.94 * 2.75 * 1.18 inches (L * W * H) |
