Energy-saving China supplier charcoal retort kiln design 008618937187735
We are China professional charcoal making machines manufactuer with more than 30 years history . we believe that we can give you the most suitable machines with our best service .
Charcoals from the
charcoal retort kiln
Product Description

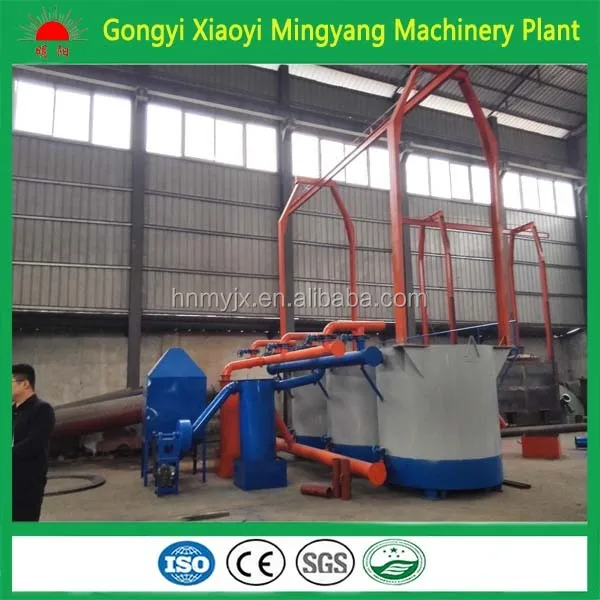

INTRODUCTION of the charcoal retort kiln

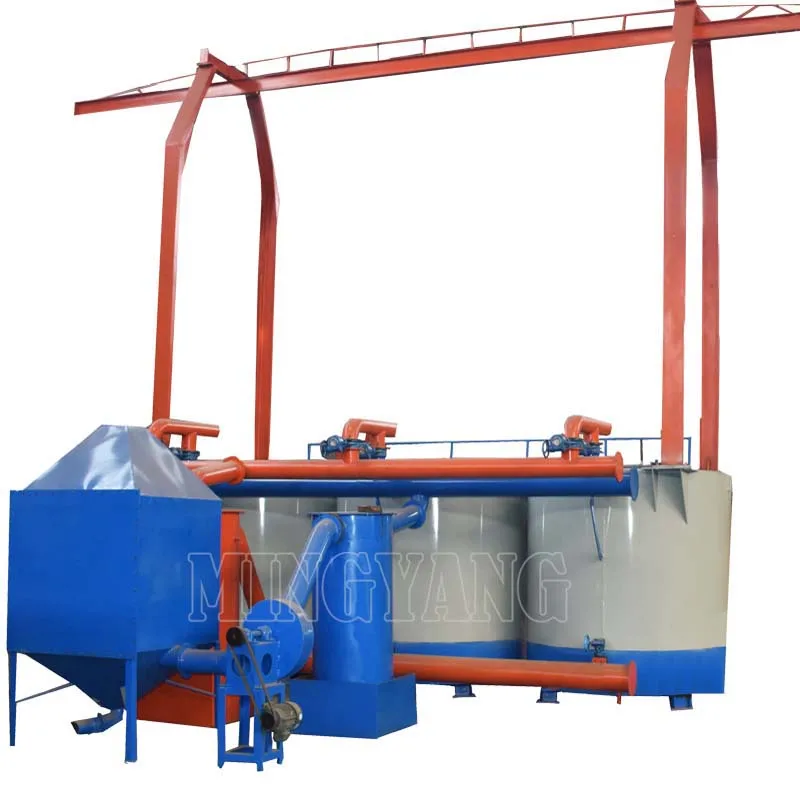

1,The whole gas flow type include the outer stove, three set of inner stoves , and the 3ton hoisting tools.
2,When one inner stove have been finished carbonization, we will use the hoisting tools hoist the inner stove from the outer stove, then let the inner stove natural cooling, at the same time, we can put another inner stove into the outer stove, which will save a lot of cooling time, so the productivity effect increase a lot, it is the ideal choice for mass production of charcoal.
FEATURES of the charcoal retort kiln
1,Easy operate and maintain, higher safety, energy saving
2,High carbonization rate, no smoking, little pollution,
3,Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization. 6-8 hours per stove and can work continuously
4,the tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continue warming the stove, and it will save 70% energy consumption and recycle 95% smoking
ENVIRONMENT of the charcoal retort kiln
1,Totally No pollution ( there are two reasons : the frog and the gas flow will be recycle from the smoke recycle device and use for heating the kiln again
2. We install a special device that can use the liquid gas as the energy to heating the carbonization kiln, and it will not produce any smoke.
all the models of the charcoal retort kiln
model
capacity
inner volume
temperature
machine include
QHL-1
1.5-2t/24h
2.75*3
400-600degree
1outer stove, 3inner stoves with 3 caps, 1 3ton lifting device, 1smoking tank
QHL-2
3-4t/24h
2.75*6
400-600 degree
2 outer stove, 6 inner stoves with 6 caps, one 5-ton hoisting equipment with e-motor, 1smoking tank
QHL-3
4.5-6t/24h
2.75*9
400-600 degree
3 outer stove, 9 inner stoves with 9caps, one 5-ton hoisting equipment with e-motor, 1smoking tank
QHL-4
6-8t/24h
2.75*12
400-600 degree
4 outer stove, 12 inner stoves with 12caps, one 5-ton hoisting equipment with e-motor, 4smoking tank
Model No.
QHL
DESCRIPTION
charcoal retort kiln
TECHNICAL DATAS & FEATURES
power
exhaust fan (0.22kw, 2 phase,used for discharge the moisture of the raw material
includes heating room (for heating the stove), furnace body and heat-keeping layer (it is made of the heat insulating material, used for keep the heating)

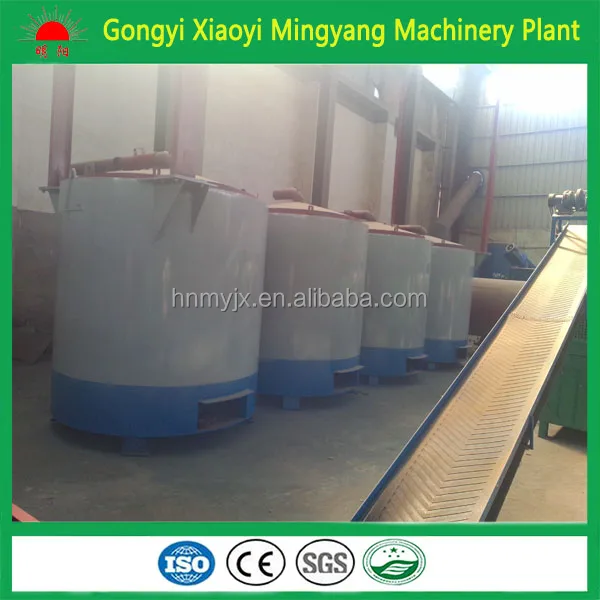

inner stove
Consist of the stove tank body and the sealed top cap. Both of them are made of the heat resistance thermal steel. , and the three carbonization basket can be stack together, easy for loading and transporting ,and it will save a lot of space and transport charge.

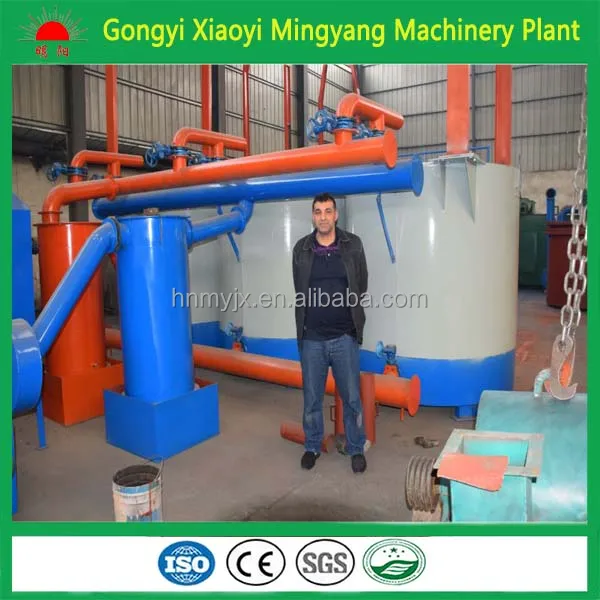

smoking recycle tube
When during the process of carbonizing, there will be some smoke.( can be burning) the smoke can return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the heating room of the outer stove for heating the stove again,
purification tank
This system is consisting of purification tank and the exhaust-heated cycle pipe. And Smoking purification tank are used for purify the smoking (can not Burning) and filter thewood tar. The smoking through the purification tank will Become water vapor, and it will not pollute the air.

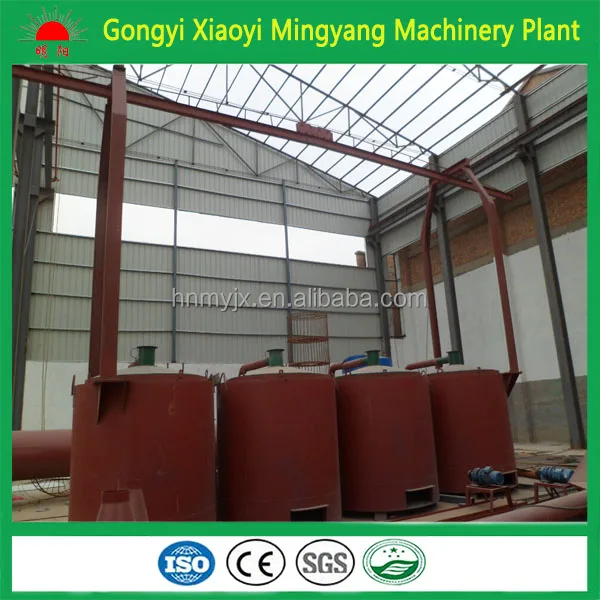

hoisting equipment
it include the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove, and can reduce labor intensity, and it can be avoid the high-temperature burn when lift the carbonization basket
is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery. After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, see more.......
Our Services
Before sale: Help customers choose the most suitable equipments; provide advanced, energy-saving
and practical flow chart as well as responsible for designing the site. On sale: Inspect the product seriously before out of the factory; invite customer for commissioning in the
spot and raising the objection; organize to delivery according to the contract. After sale: Company can send technical datas for guiding to install debug the machine. We also can provide
24-hour telephone or message service.
