DTEC DRT320 Surface Roughness Tester,28 parameters,built in SD card,,remote control,USB to PC with software,ISO
- Category: >>>
- Supplier: Deity Testing Equipment Co. Ltd.
Share on (60450054308):
Product Overview
Description
Product Description

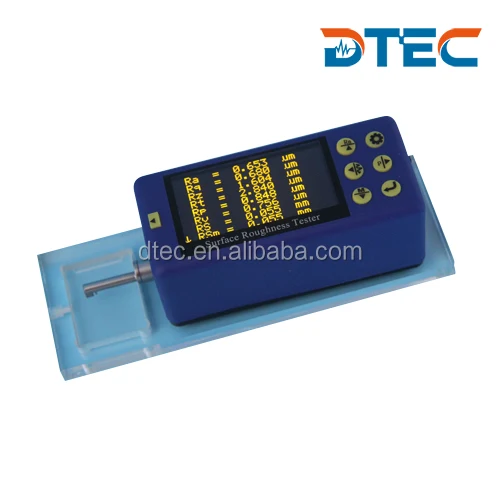

DRT320 Surface Roughness Tester is a new designed model with total 28 parameters, which is in line with international quality standard. It is a upgraded model adopting the newest and the most mainstream processing chip.
DRT320 equips with 2.7 inch OLED screen, communication,SD memory card, wireless remote controlling measurement and micro USB data port, which makes the quality improved significantly.
DR320 is applicable to the on-site production environment and meet the need of mobile measurement. With convenient operation, comprehensive functions, quick measurement, stable performance, it can measure all the main international parameters, coming with varies of optional accessories, enable to connect to PC and Bluetooth printer.
Measuring principle
When measuring roughness on specimen surface, the probe is placed on the surface of the specimen, and then tracing the surface at constant rate. The probe acquires the surface roughness by the sharp stylus inside. The roughness on surface causes displacement of stylus which results in change of inductive value in induction coils, thus generates analogue signal which is in proportion to the tested surface roughness at the output end of phase-sensitive rectifier. This signal enters data collection system after amplification and level conversion. After that, those collected data are processed with digital filtering and parameter calculation by DSP chip and the measuring result can be read on LCD, or printed out through printer or communicated through PC.
DTEC Advantages
- 28 parameters:Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS),RSk,R3z,Rmax,RPc,Rmr, Rku,RΔa,RΔq,Rδc,Ry Rk,Rpk, Rvk,Mr1,Mr2,A1,A2,V0;
- Employ 320um electric-induction transducer with large testing range and high precision;
- 4 filtering modes: RC, PC-RC, GAUSS and D-P;
- 4 Compatible standards:ISO, DIN, ANSI and JIS;

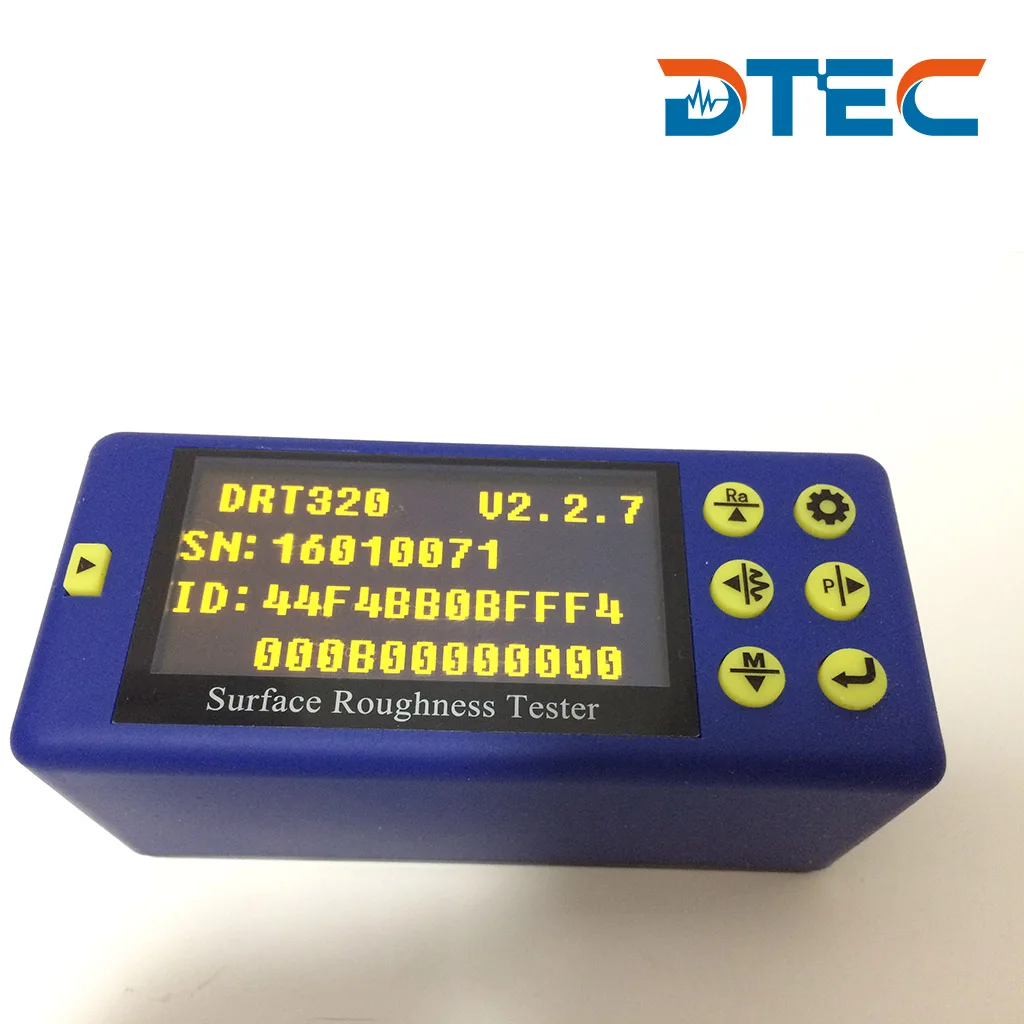

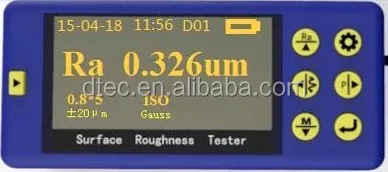

- 2.7-inch large screen 128 × 64 dot matrix OLED display, no backlighting, no dead ends, can display full parameters, contour graphs and menu;
- Adopts the most mainstream for instrument controlling and data processing;
- With built-in storage,can store 20 groups complete testing data;
- With built-in SD card for expand memory;
- With built-in wireless remote module, support remote measurement;
- With built-in standard blootooth module, enable to connect with optional blutooth printer without cable, all parameters and graphs can be printed out;
- With built-in micro USB port, can connect to PC for further data analysis with data pro software;
- Built-in lithium polymer rechargeable batteries and charging protection circuit;
- Automatic switch off, memory and various prompt instructions;

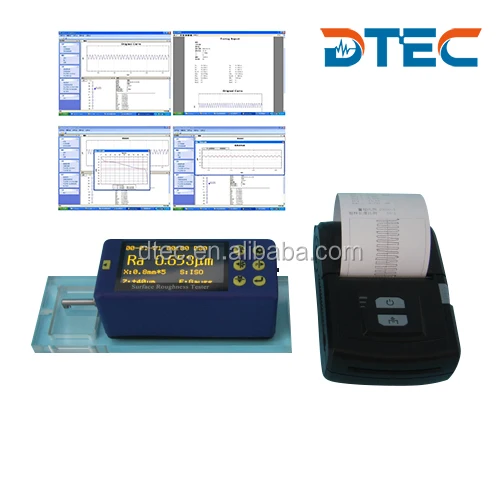

- Optional blutooth mini-printer, analysis software, special probes and measurement platform
Measuring Range | Z Axis(Vertical) | 320μm(Ra=80μm) | |
X Axis(Horizontal) | 17.5mm | ||
Resolution | Z Axis(Vertical) | 0.01μm/±20μm | |
0.02μm/±40μm | |||
0.04μm/±80μm | |||
0.08μm/±160μm | |||
Measurement item | Parameters | Ra,Rq,Rz,Rt,Rp,Rv,RS,RSm,Rz(JIS),Ry(JIS),RSk,R3z,Rmax,RPc,Rmr, Rku,RΔa,RΔq,Rδc,Ry;Rk,Rpk,Rvk,Mr1,Mr2,A1,A2,V0 | |
Standard | ISO,ANSI,DIN,JIS | ||
Graphic | Roughness profile,Material ratio curve,Direct profile | ||
Filter | RC,PC-RC,Gauss,D-P | ||
Sampling length (lr) | 0.25,0.8,2.5mm | ||
Assessment length ln) | Ln= lr×n n=1~5 | ||
Probe | principle | Differential inductance | |
Stylus | Natural Diamond, 90B cone angle, 5μm tip radius | ||
Force | <4mN | ||
Skid | Ruby,Longitudinal radius 40mm | ||
Traversing speed | lr=0.25, Vt=0.15mm/s | ||
lr=0.8, Vt=0. 5mm/s | |||
lr=2. 5, Vt=1mm/s | |||
Return Vt=1mm/s | |||
Accuracy | Less than or equal to ±10% | ||
Repeatability | Less than or equal to 6% | ||
Power supply | Built-in Lithium ion battery,AC adapter 8.4V,800mA | ||
Dimension | 38×25×10cm(LxWxH) | ||
Packing Weight | 3KG | ||
Packing List & Accs

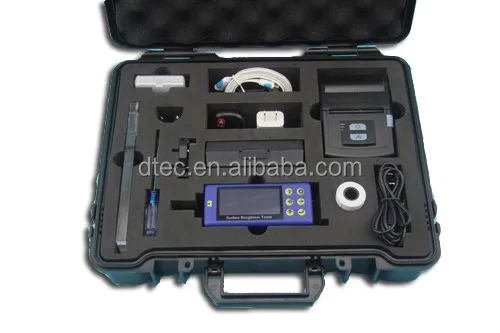

Standard Packing List:
NO. |
Items |
Qty. |
1 | Main Unit | 1 |
2 | Standard Probe | 1 |
3 | Screwdriver | 1 |

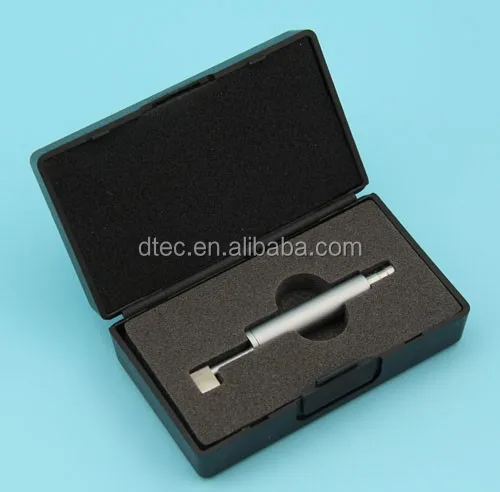

4 | Calibration Specimen | 1 |
5 | Specimen Plate | 1 |
6 | Power Adapter | 1 |
7 | Remote –controller | 1 |
8 | User’s Manual | 1 |
9 | Produce Certificate | 1 |
10 | Guarantee Card | 1 |
11 | Case | 1 |
Optional Accessories:

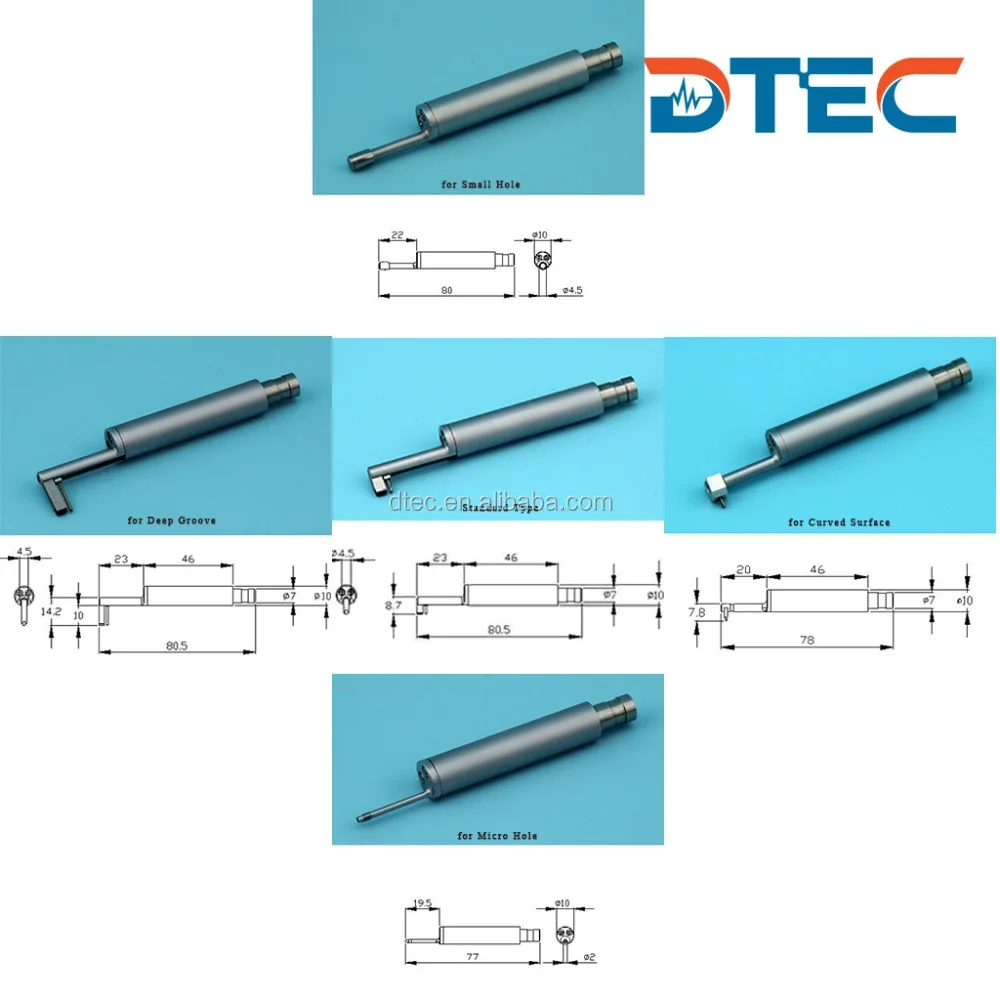

Transducers:

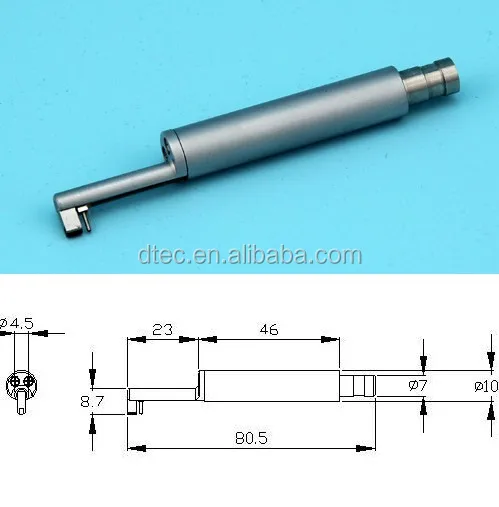

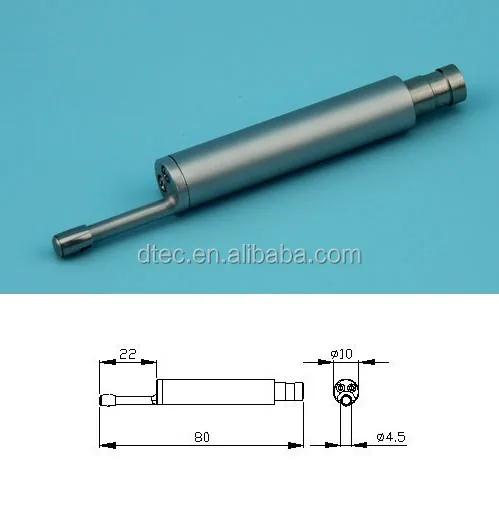

Standard Type

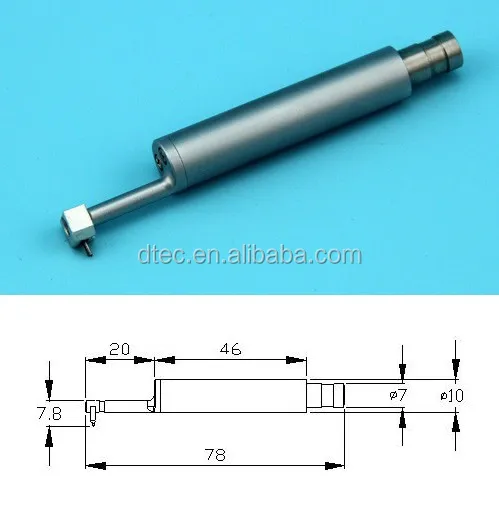

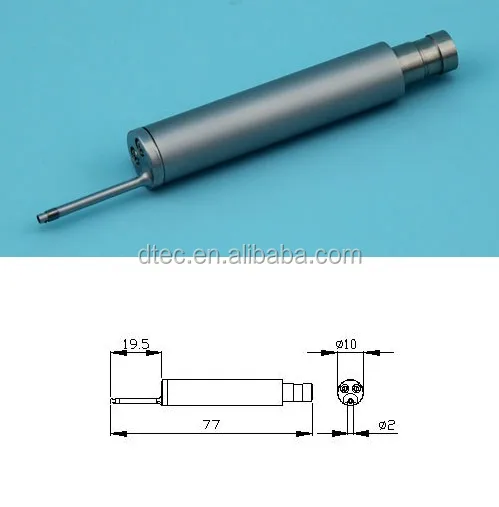

For Curve Surface

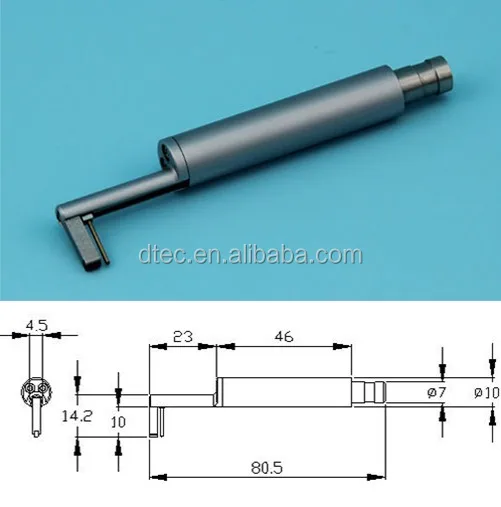

For Deep Groove
For Small Hole
For Even Smaller Hole

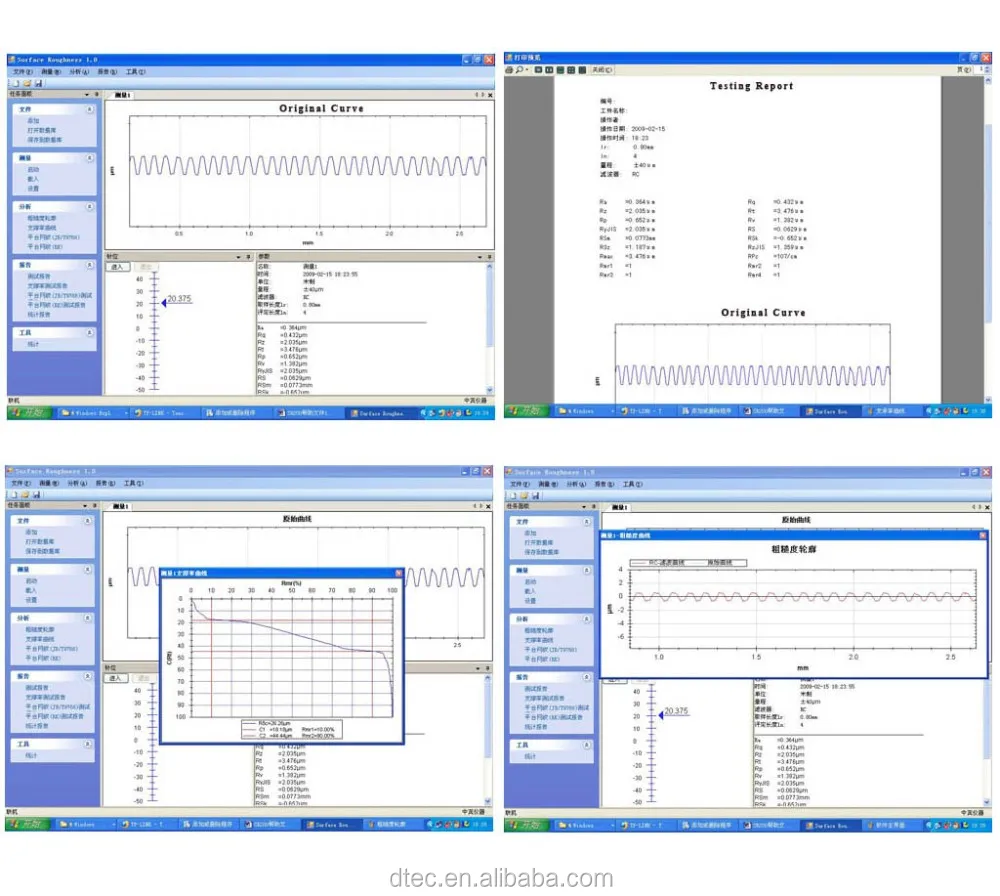

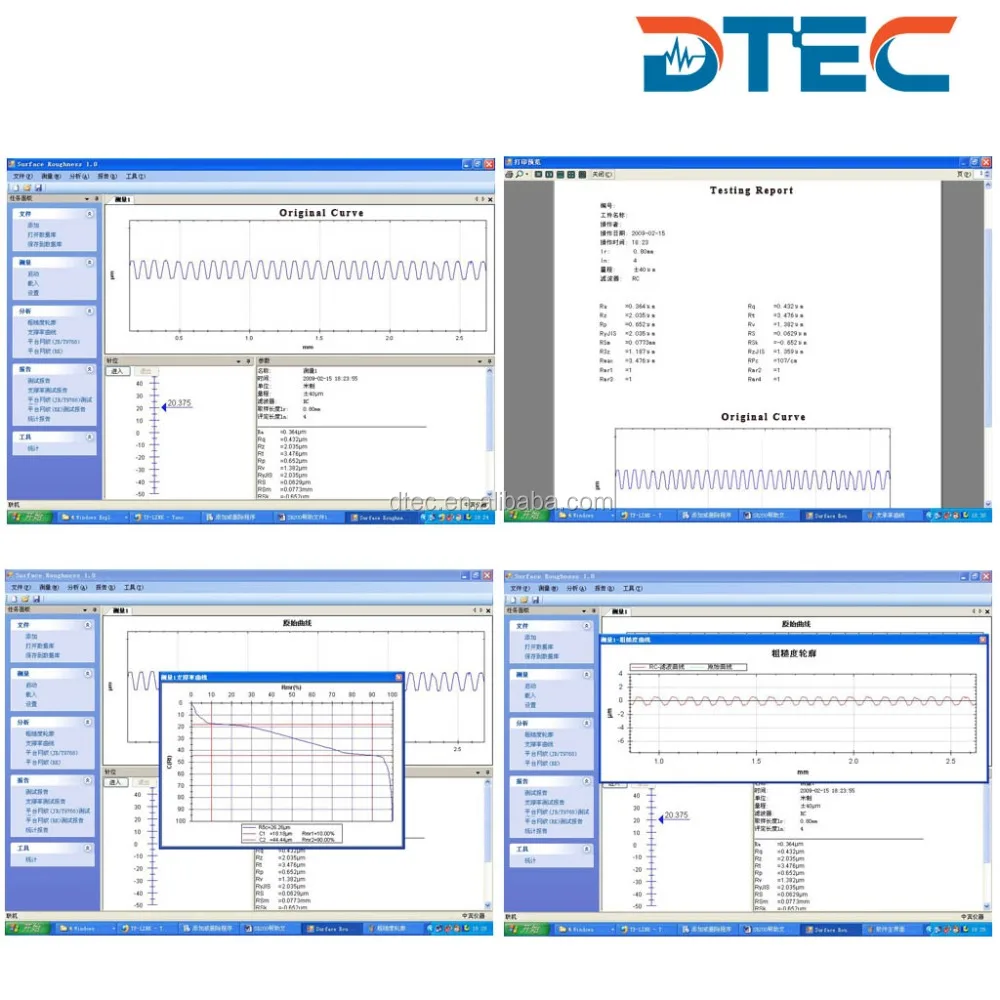

Data Analysis Software
Blutooth Mini Printer

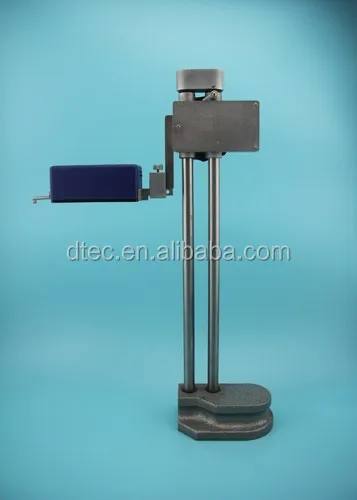

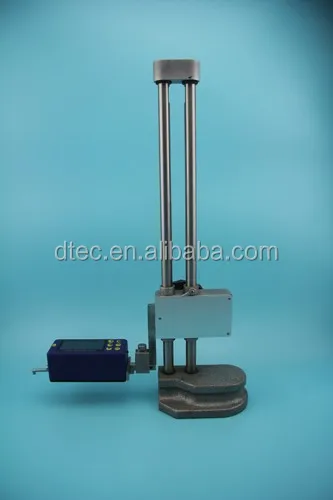

Fine Adjustment Platform & Stand
Packaging & Shipping
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
