Product Overview

Description


Truck Body Details
\t

I
ce Cream Truck Body
Key Features

\t

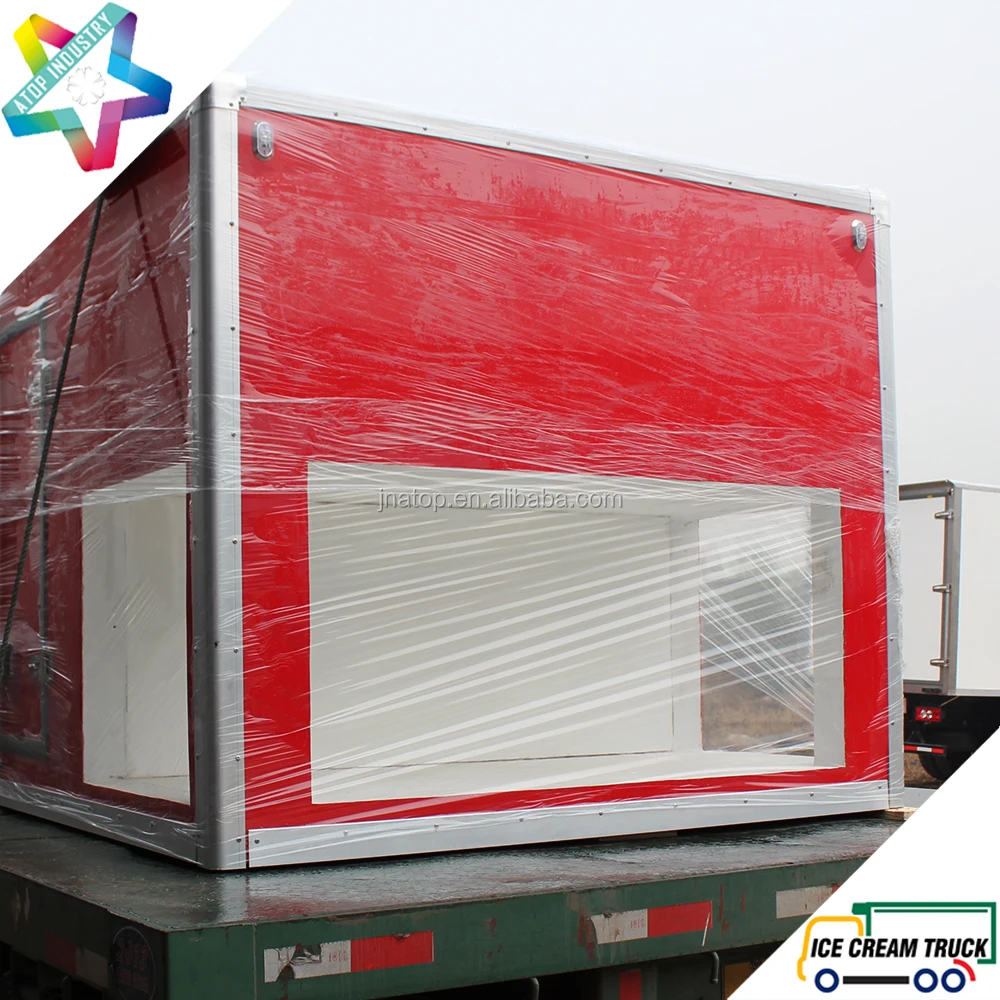

ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
\t
Ice Cream Truck Body
Outer Size
\t
3.4m(L)x1.8m(W)x1.5m(H)
\t
Ice Cream Truck Body
Inner Size
\t
3.19m(L)x1.59m(W)x1.29m(H)
\t
Roof/Floor Panel
\t
105mm Thickness
\t
Side Wall Panel
\t
105mm Thickness
\t
Front Wall Panel
\t
105mm Thickness
\t
Rear Door Panel
\t
105mm Thickness
\t
Panel Structure
\t
All Closed Sandwich
\t
Panel Insulation
\t
FRP + PU Foam + FRP
\t

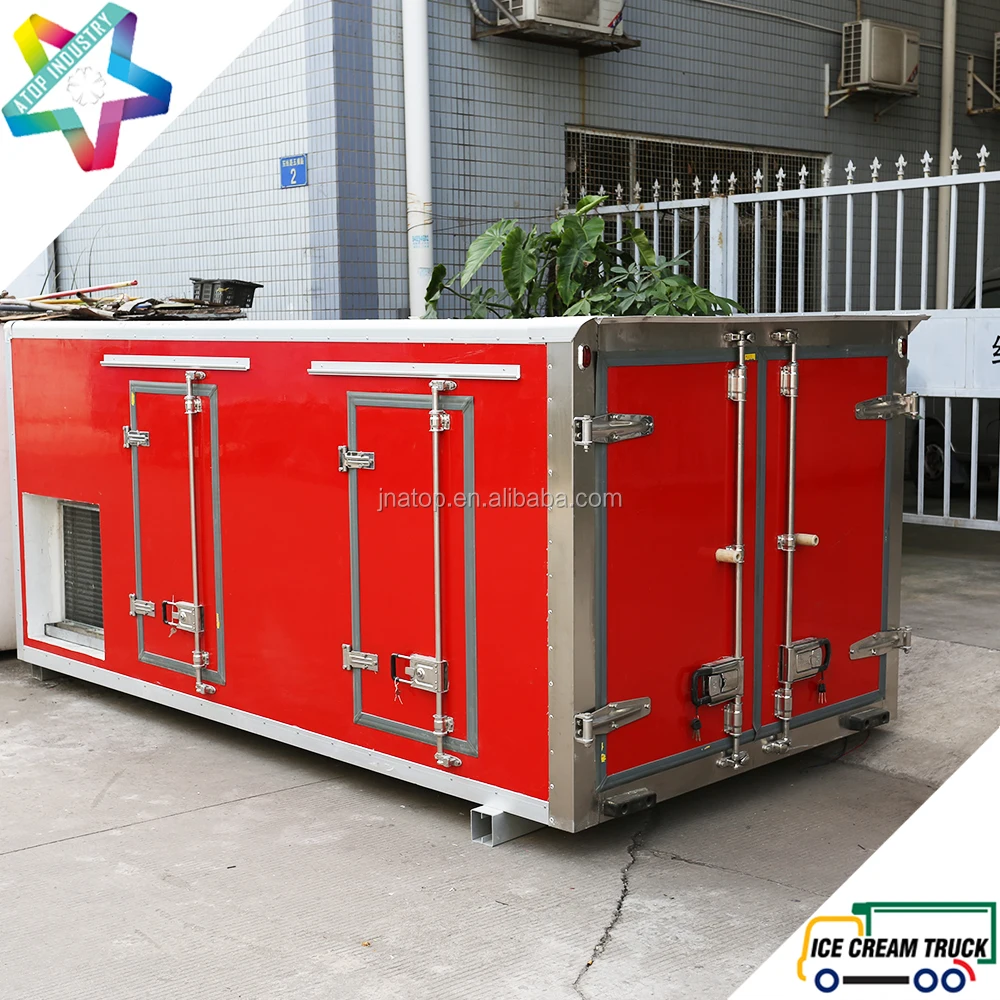

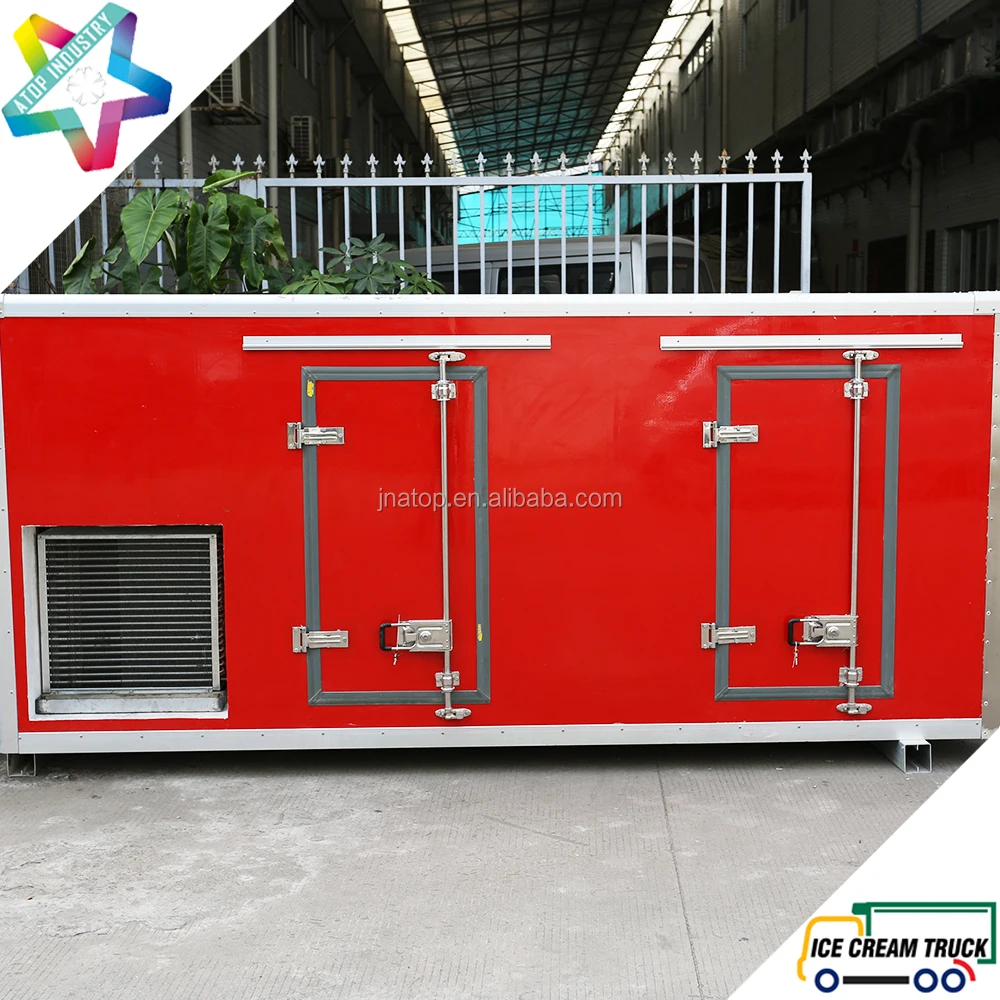

Side Door Quantity
\t
4 (Four) Sets
\t
Side Door Location
\t
2 Sets On Left/2 Sets On Right
\t
Side Door Type
\t
Single Opening
\t
Side Door Size
\t
580mm(W) x 1,100mm(H)
\t
Rear Door Type
\t
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
\t
Truck Body Flooring
\t
Reinforced Floor Covered With Removable PVC Grating ice cream truck body
\t
Cargo Control System
\t
Stainless Steel Internal Dividers To Divide 4 (Four) Cargo Spaces ice cream truck body
\t
Ceiling Light ice cream truck body
\t
2 (Two) Sets of 12/24V Multi-Voltage LED
\t
Marker Light ice cream truck body
\t
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
\t
Ceiling Light Switch ice cream truck body
\t
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
\t
Insulating Curtain ice cream truck body
\t
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
\t
Refrigeration Unit
Service Ladder
\t
None/Optional ice cream truck body
\t
Refrigeration Unit
Service Platform
\t
None/Optional ice cream truck body

Double Opening Rear Door Assembly

With Full Sets of Stainless Steel Lock Sets & Hinges, Sealed By Low Temperature High Quality Door Gasket;

Built-In Condenser Mounted ice cream truck body

Built-In condenser mounted to lower total height of truck body and ice cream truck ice cream truck body

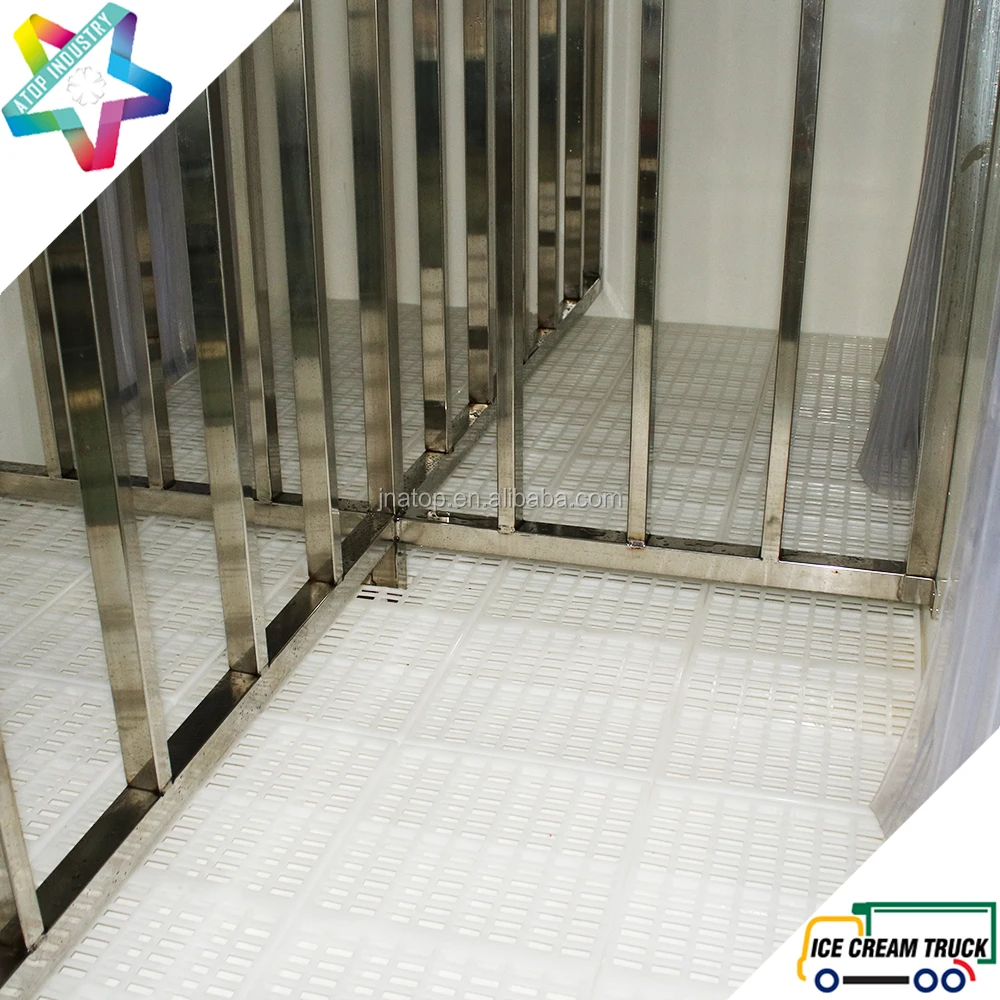

Internal Dividers
Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery.

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage.

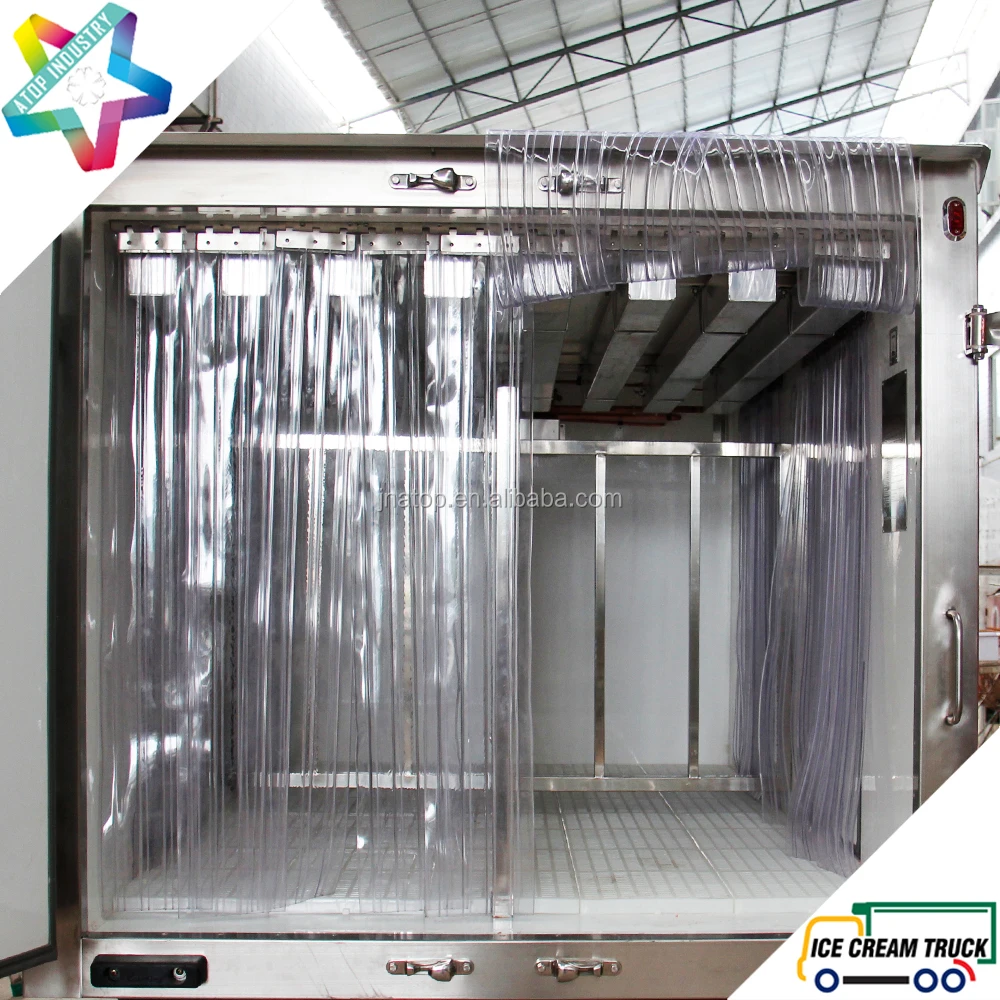

Insulating Curtain

Full Sets of European Standard -40C PVC Strip Curtain System For Side & Rear Doors To Keep Avoid Cooling Lost

Kooltube Unit

Key Features ice cream truck body

ColdKing Kooltube is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round. ice cream truck body
\t
Refrigeration Unit Model
\t
KT280-10N
\t
Refrigeration Unit Brand
\t
ColdKing
\t
Refrigeration Unit Type
\t
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
\t
Refrigeration Capacity
\t
2,280W (@ -40C)
\t
3,150W (@ -35C)
\t
5,4100W (@ -25C)
\t
Total Refigeration Heat Exchange Rate
\t
6,440Kcal/h ice cream truck body
\t
Refrigerant
\t
HFC R404a
\t
Defrost
\t
Manual Warm Water
\t
Condenser Mounted Method
\t
Built-In Truck Body
\t
Kooltube Beams Assembly
\t
2.80m(L) x 10 Pcs
\t
Compressor Brand & Power
\t
Bitzer 3.0Hp
\t
Expansion Valve
\t
Danfoss
\t
Condenser Fan
\t
EBM
\t
Thermometer
\t
REFCO
\t
Power Supply Voltage/Phase/Frequency
\t
380V/3Ph/50Hz 220V/3Ph/60Hz  ice cream truck body

3,000mm(L)  x 8 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. ice cream truck body

Bitzer Compressor ice cream truck body

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison. ice cream truck body

Quality Components ice cream truck body

Quality components from EBM Fans, Danfoss Expansion Valve, Schneider Electric Control, etc. ice cream truck body ice cream truck body ice cream cold plate mini ice cream truck eutectic ice cream container ice cream truck body ice cream truck body ice cream cold plate mini ice cream truck eutectic ice cream container ice cream truck body ice cream truck body ice cream cold plate mini ice cream truck eutectic ice cream container

Optional Items

Hydraulic Tail Lift ice cream truck body

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available

Cargo Control System ice cream truck body

Smart & customized cargo Loading control system

Access Ladder

Foldable zinc-coated access ladder for side door and/or rear door.ice cream truck body

Roll carts

Roll carts for rapid and efficient loading, delivery and unloading goods. ice cream truck body

Multiple Temperature Partition

Multiple temperature purpose longitudinally moveable, insulated transverse partition wall.
