Schools supply all in one pc touch screen interactive smart white board
Product Description
Descriptions:
The complete set of the all in one Interactive White Board is a combination of 2 products: 1) 82" IR interactive whiteboard (FC-82IR) 2) Multimedia all in one PC (FC-4000, a combination of i3 PC, 4G RAM, 500G HDD,speaker, central controller,keyboard+ pad,Wireless MIC)
Remarks: Any type of projectors is OK for the above solution.
Main Features of all-in-one Interactive White Board:
1. The system includes 82inch IR interactive white board, i3 PC, 4G RAM,500G HDD, 2*20W HiFi Speaker, central control system, 5.0 M Pixel visualizer, patent keyboard+ mouse pad and wireless microphone.
2. Integrated whiteboard solution with multiple languages and functional software tools, eg. Pens, moving, rotating, zooming etc..
3. The IR interactive whiteboard allows multiple users to work simultaneously .
4. Quick start in 60 seconds, and one-key to power on/off all devices.

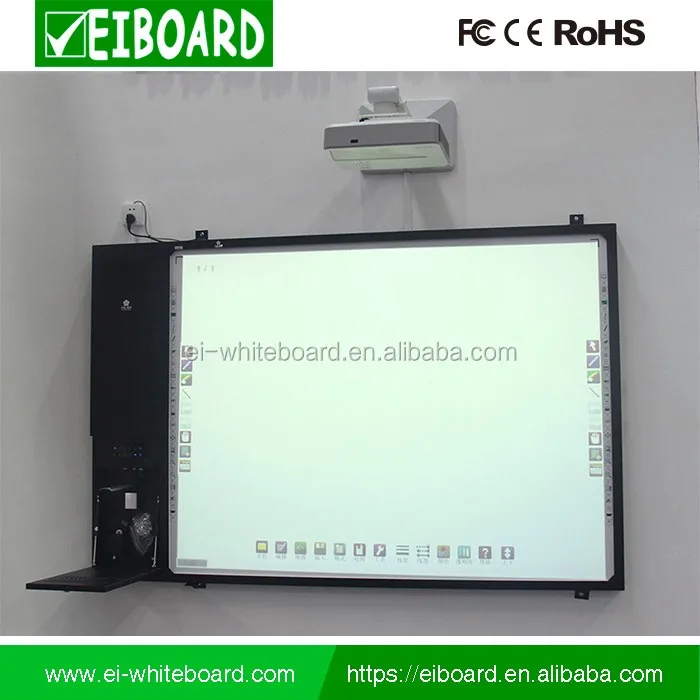

5. Easy installation by wall mounting or mobile stand, and easy maintenance.
6. The FC-4000+FC-82IR is a completely integrated system that will transform your classroom or meeting room and bring the excitement back into learning.
7. Widely used for education, business, training etc.
8. Optional configurations: HDMI,WIFI module, ID card smart lock,I5/I7/OPS mini PC
9. Optional accessories: Any brand projector, patent all in one remote controller , wireless microphone.
Specifications of all in one interactive board:
Model No.
FC-4000 and FC-82IR
IR Interactive Whiteboard FC-82IR
Size
82 inch
Technology
IR
Writing
Finger or any opaque objects
Resolution
32768×32768pixels
Response time
<6ms
Cursor speed
200''/ms
Coordinate accuracy
0.05mm
Interface
USB
Power consumption
≤1W
Operation system
Win7,win 8,Vista,XP
Free Software
Yes
OS for 10 points Touch
Win dows
Calibration
9 or 16 points
Frame
aluminium alloy
Multimedia all-in-one PC FC-4000
Cabinet
Demension
1280x290x80mm
Color
Black/white
Lock system
Machanical keys
Top Interface
Lan port,VGA out,power in/out,RS232,IR,USB port,Audio out ,Vedio out,etc
Weight
N.G 15.5kg G.W.17kgs
Structure Featrues
Slim and compact design,the top panel is fully closed,with side cable holes,dust-proof
PC
CPU
Intel I3 CPU,3.4Ghz with OPS computer and pluggable design
Storage
RAM:4GB,HDD:500GG
Speaker
Power
20W**2,Resistance 4Ω, Sensitivity 85DB, Frequency response:100HZ-18KHZ
Amplifier
Frequency response :20Hz-20KHz, Sensitivity :450mV
Frequency response
20HZ-20KHZ
Central Controller System
Control Panel
Touchable panel
Function keys
VGA, Power on/off, Mute, Projector on/off, PC on/off, video out, video in, USB*2,Optional HDMI
File ,document, books, text, real object, face etc
Light Resource
High brightness LED, natural light
Photo Format
JPEG,TIF,PDF etc
Video Format
AVI,MPEG4,H.264,FLV
Keyboard + 2.4G remote with MIC
Included with Patent design
Details and Applications of all in one interactive board::
Company Information
ShenzhenFangcheng Teaching Equipment Co., Ltd. is a professional manufacturerand supplier of multimedia teaching equipments . The main products are :
Multimedia All-in-one PC
IR Interactive whiteboard
All-in-one interactive whiteboard
LED Interactive Touch Screen
DigitalVisualizer
Central Controller System
All-in-One Remote Controller and otherteaching equipments .
The are widely used in teaching, training and businessfields.
Our Services
Delivery time 3-5 working days for sample order , 15 working days for 20'' container . Payment terms T/T 30% down before production , balance before shipping . Paypal West union Trade assurance for visa card Shipping
After-sales service 2 years warranty for smart board, damaged parts will be shipped to customers during the 2 years with shipping cost paid by our factory .
