China Factory Price Hydraulic Mobile CNG Daughter Station for Gas Transfering/Cylinder Filling/Storage

Share on (60450532639):


Price:$250,000.00

Quantity:


Product Overview

Description



Product Description

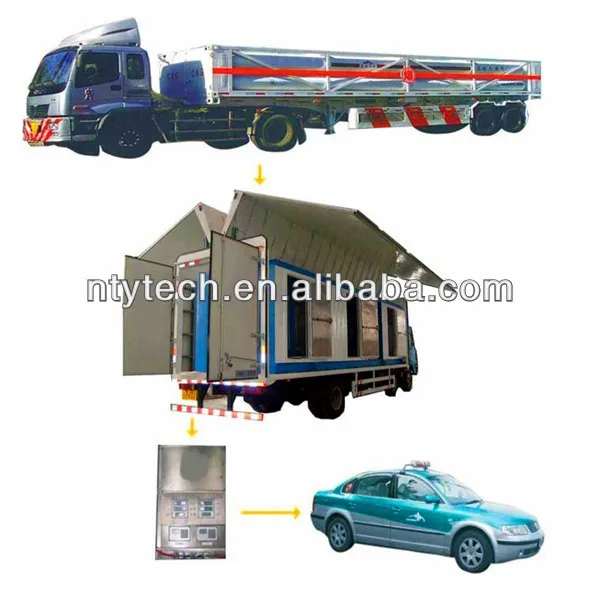

Hydraulic Mobile CNG Daughter Station for Gas Transfering/Cylinder Filling/Storage












I. Technical Characteristics


1.Equipment technical characteristics


Better effect of energy saving: small power motor, evident effect of energy saving.


Hydraulic CNG daughter station aerates in high speed, because it keeps compressed natural gas in the trailer cylinder unit in high and stable pressure. While the pressure of cylinder unit in common CNG station used to changing, the speed of aerating will be reduce with the reduction of pressure of cylinder unit.


Hydraulic CNG daughter station is in high integrated extent. It is simple to install.


Hydraulic CNG daughter station is in high automatic extent. It is mainly controlled by self-contained PLC control system, and startup and shut of the hydraulic CNG daughter station is controlled automatically.


Hydraulic CNG daughter station is in high air-escape ratio. The overpressure of tube bank is less than 1.0 MPa, and the ratio of air-escape is more than 95%.


Hydraulic CNG daughter station is in small volume.


Hydraulic CNG daughter station is mute, and it adopts new and efficient noise-damping design.





2. More advanced than the common hydraulic CNG daughter station.


    Convenient and flexible. Quick in founding, fine capacity in movable.


    Small site area, saving founding investment.





II. Introduction of Equipment Configuration


Main configuration of Independent R & D portable CNG daughter station


                                             Chart 1 configuration of station



















































No.



Name



unit



QTY



remarks



1



Portable pry body of daughter station



Set



1



PLC control housing is designed by explosion proof



PLC auto control housing



Set



1



Pneumatic air-supply equipment



Set



1



2

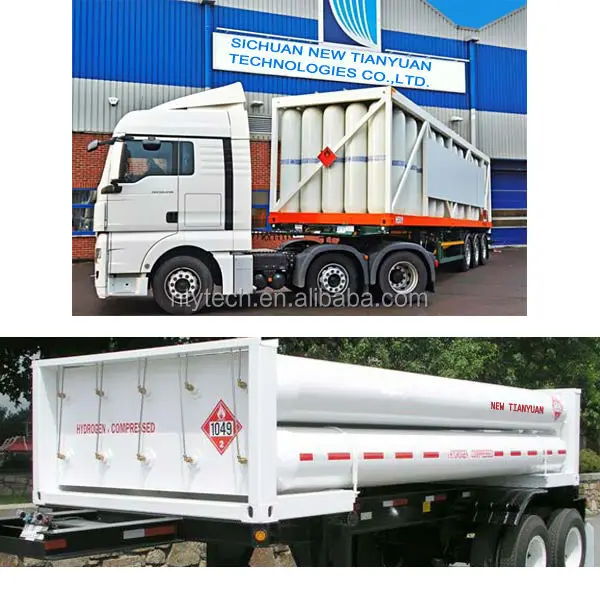

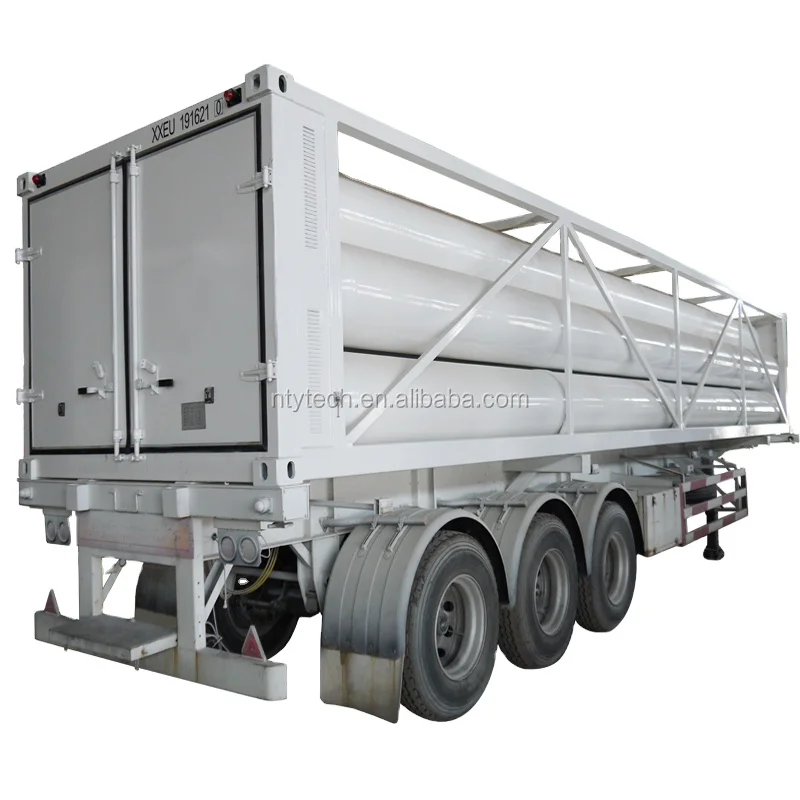

Semi-trailer of CNG transportation



Set



2







3



Gas seller machine



Set



2



Singlet two-gun is set on the pry body of daughter station



4



Tractor locomotive



set



1







NOTE: These 4 items are configuration items, which demand by purchaser in specific procurement.





III. Technical Parameter


1.      Equipment technical parameter


Chart 2 Technical parameter of portable daughter station





































































































NO.



content



HPC1000/20



HPC2000/20



1



Working pressure



20MPa/25Mpa



2



Displacement



1000Nm3/h



1000Nm3/h



3



High-pressure air outlet pipe



Φ22×3.5



4



air-escape ratio



95%



5



Cylinder overpressure after air-escape



≤1MPa



6



Working environment temperature



-40°C~+50°C



7



Main motor power



30kw



30+30kw



8



System total power



≤65kw



≤65kw



9



Weight



About 8000Kg



10



Noise



At one meter ≤75 db



11



Oil content of finished gas



≤10ppm



12



Dust particle diameter



≤5μm



13



Control mode



PLC programmable auto control



14



dimension



8000×2150×2350 mm



15



Exo-dimension of trailer



L*W*H:11000mm/2500mm/4000mm


Chassis height ≤1200mm



16



Time of changing package joint between two trailer



Three minutes ( After transform the package joint, the second trailer starts to work, and the oil return in the first trailer doesn’t influent aerating in the second trailer.)



17



Working life



20 years
