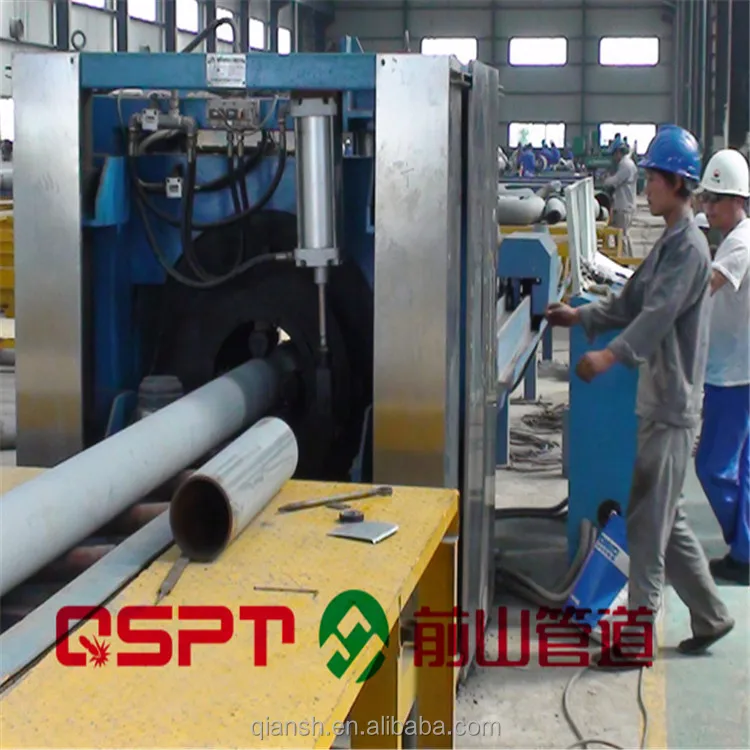

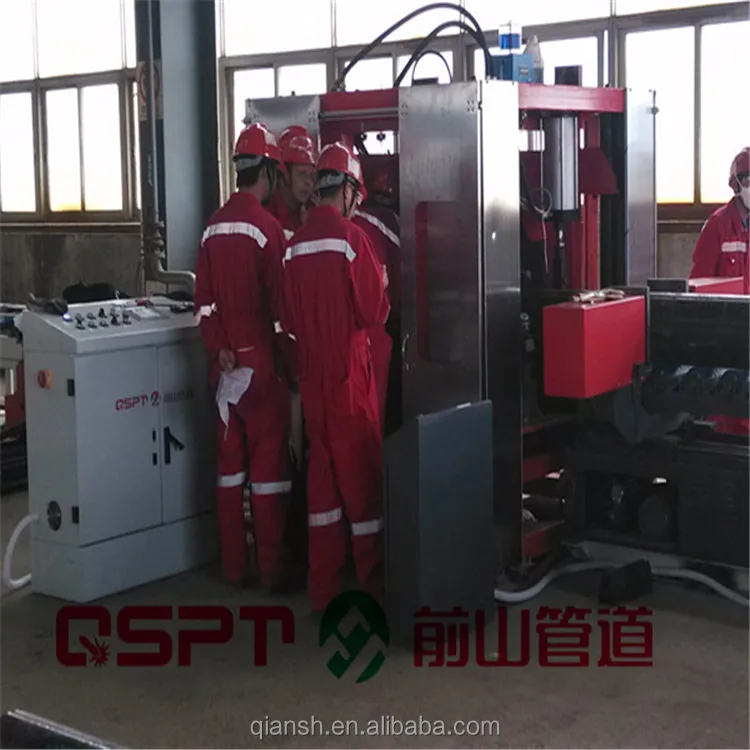

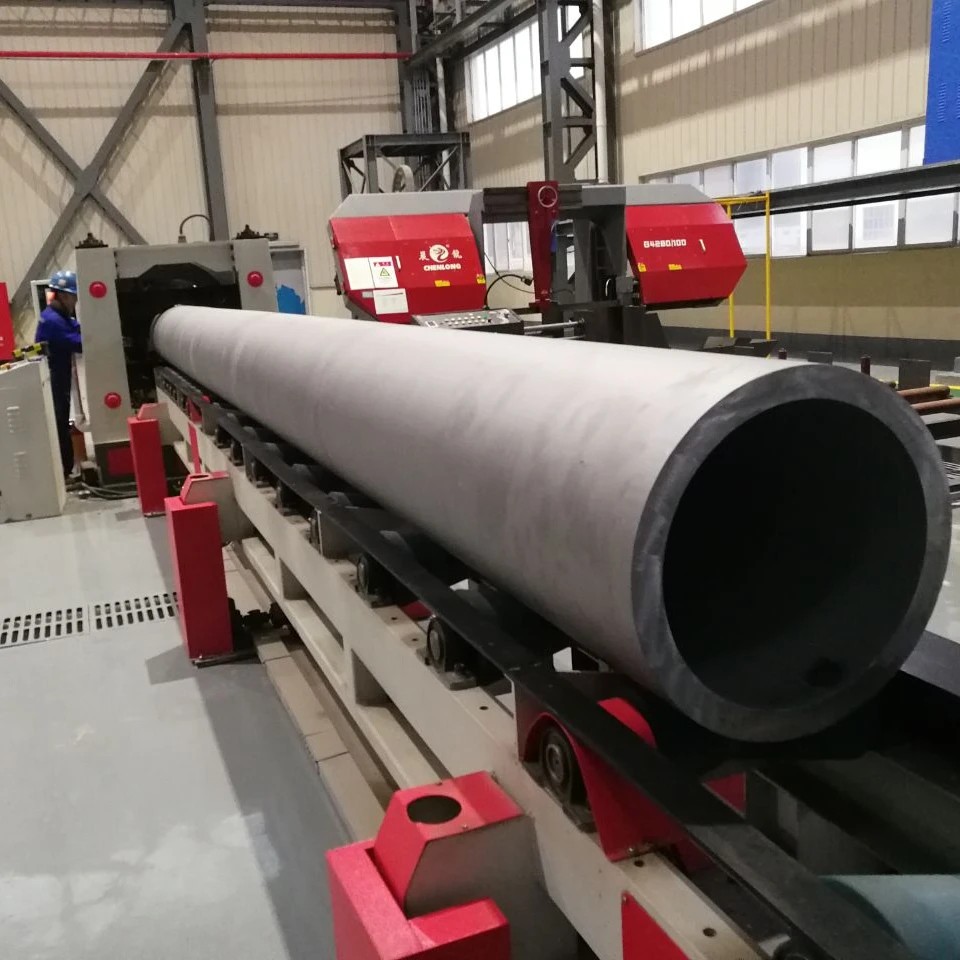

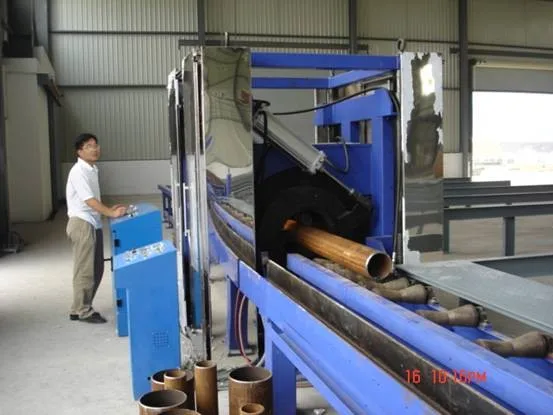

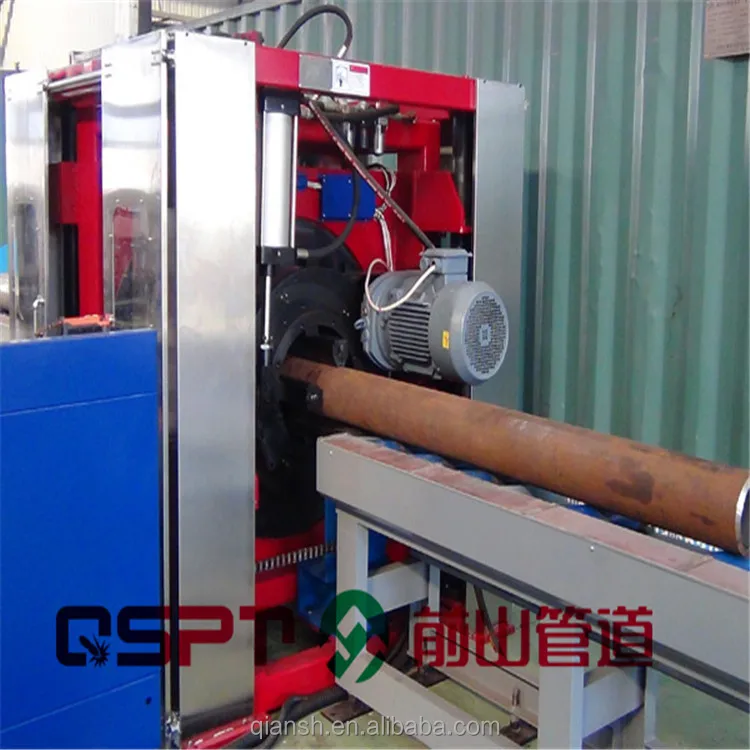

Fixed type High Speed Pipe Cutting & Beveling Machine

Fixed-type High Speed Axial Pipe End Beveling Machine

                                                                                       Performance features

Good(Designed as per the on-line equipment of the production line)

≤5Min /two pipe bevels (DN200 SCH40)

cutting off pipe and two bevels simultaneously,and it is economic

very good

Used for cutting large amount of pipes with standard wall thickness or thin wall thickness and beveling theＶ-shape bevel.

DN50～300(φ60～325)mm

3～12MM

carbon steel, alloy steel, stainless steel and cryogenic steel, ect.

V

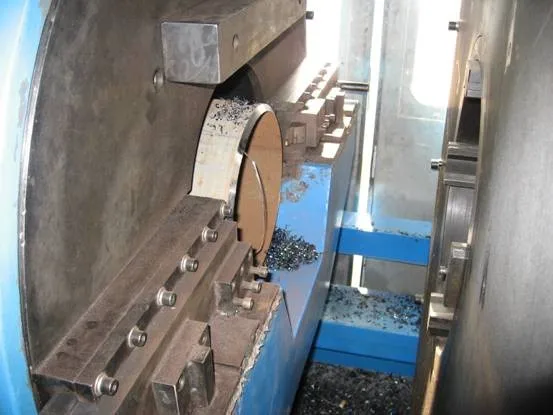

Structure: a four column suspending structure is adopted. Since it is hollow, the pipe can goes into the machine directly and fixed there. The cutter rotates and cuts the pipe circumferentially with high speed.

Cutting direction: lengthwise

Driven by: motor

Clamping system: clamped by cylinder

Control System: PLC VF control and Touching Screen with man-machine interface

Length-measuring system: a mechanical Length- measuring system could be provided if necessary so as to measure the length of the pipes as well as cut and bevel them with the supporting of the conveying system of the cutting and beveling machine.

Mechanical aligning: A automatic lifting and lowering device is equipped to adjust automatically the center elevation of the beveling machine, so the pipes with different diameters get the same bottom elevation on the production line to get the pipes in/out of the machine easily.

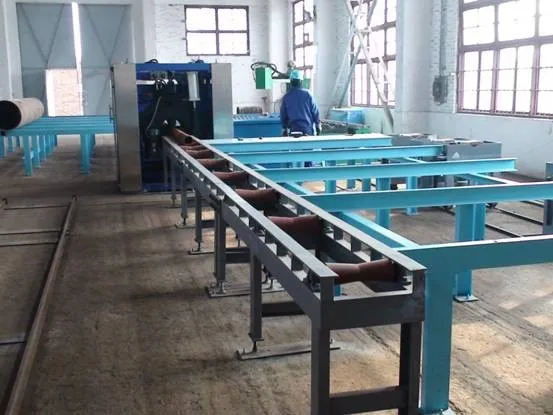

Conveying system: Cutting and beveling conveying systems are equipped at front and rear sides of the beveling machine if necessary.
