Alkaline Alumina Ceramic Ball Beads In Water Treatment
- Category: >>>
- Supplier: JIANGXI XINTAO TECHNOLOGY CO. LTD
Share on (60450749985):
Product Overview
Description
Product Description
Inert Ceramic Ball High Alumina Ball Alumina Grinding Ball

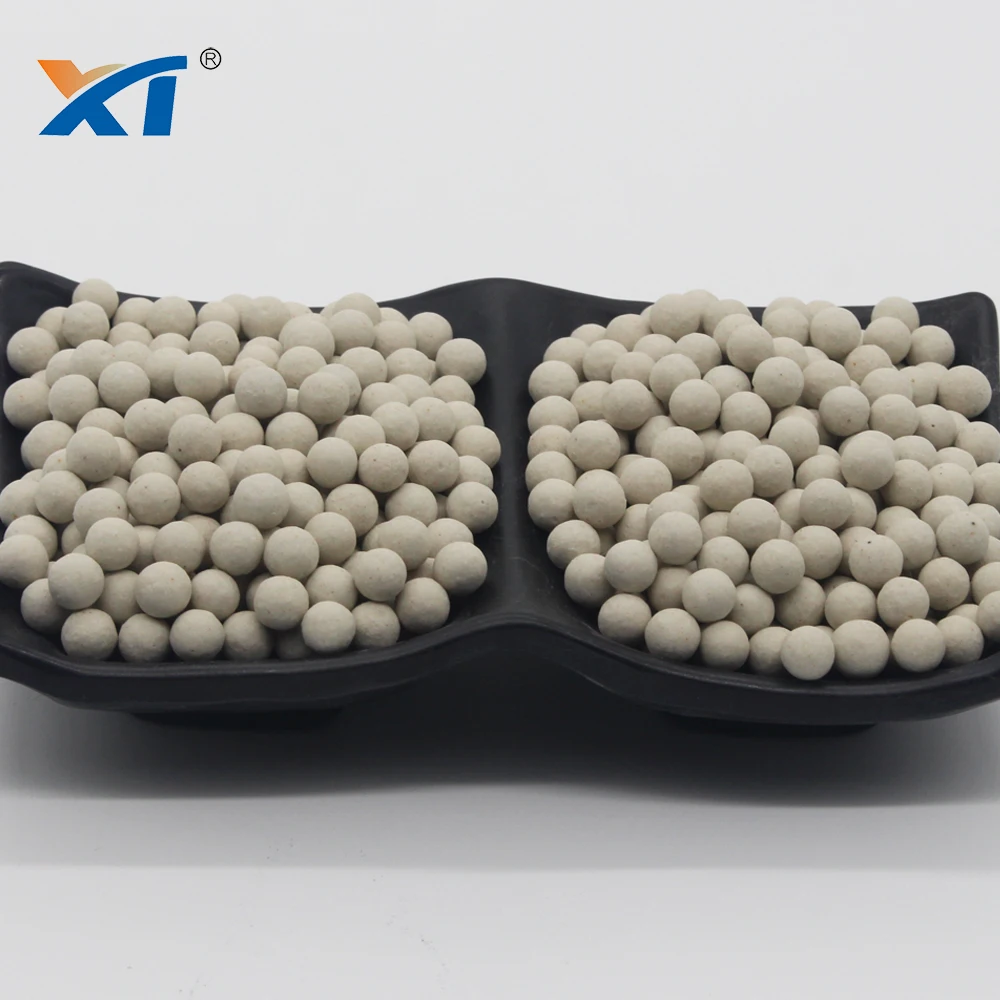

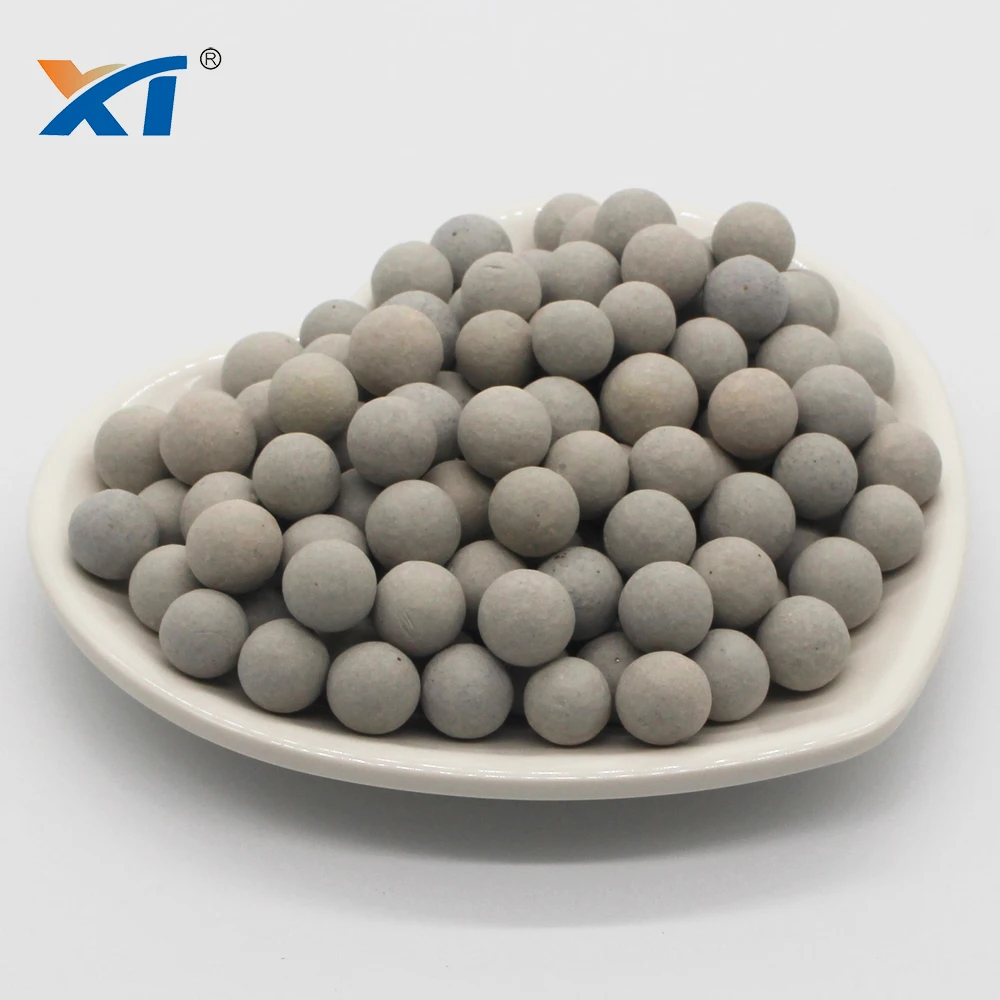

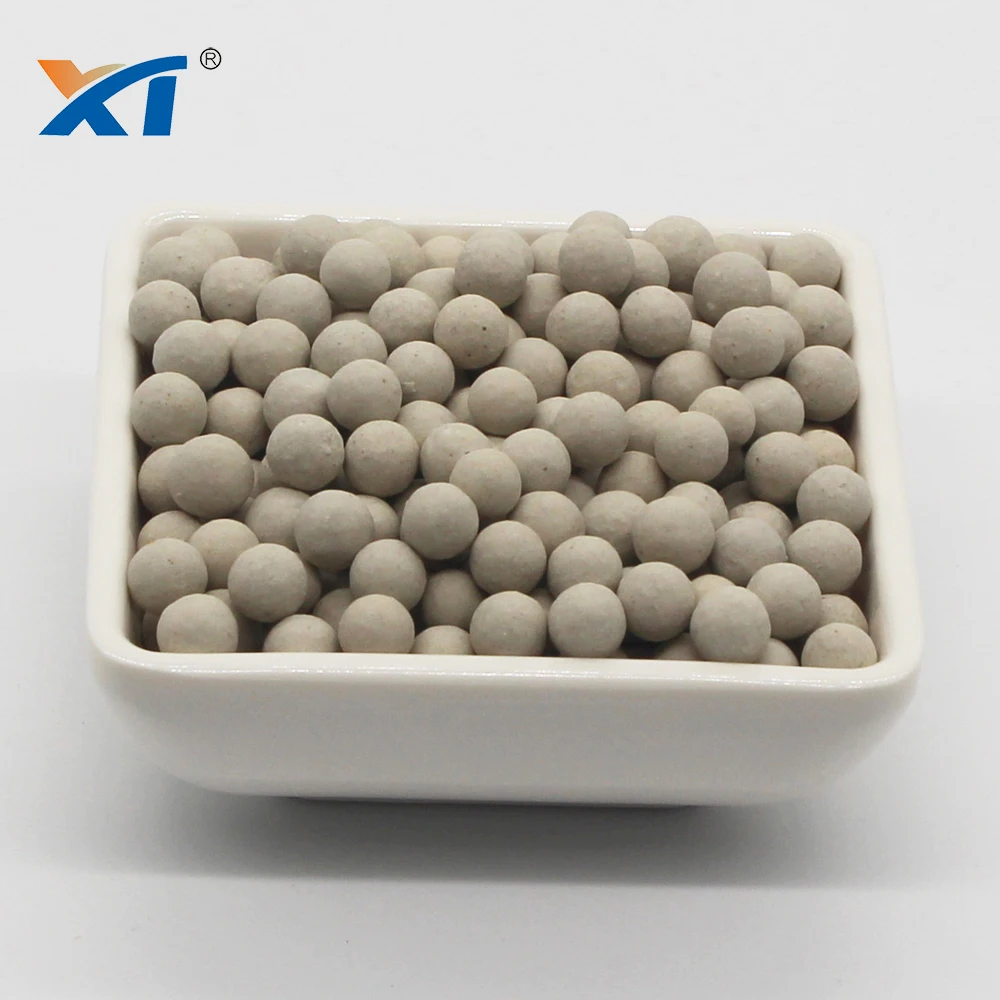

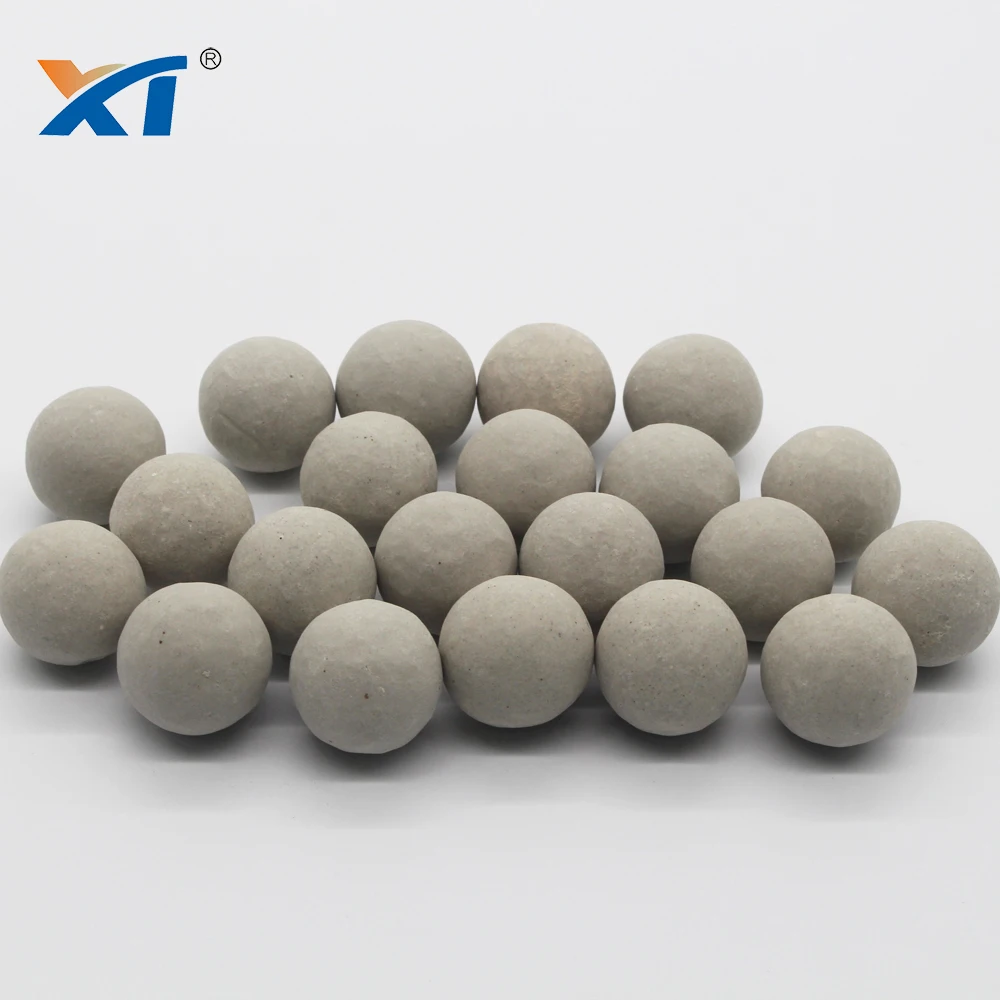

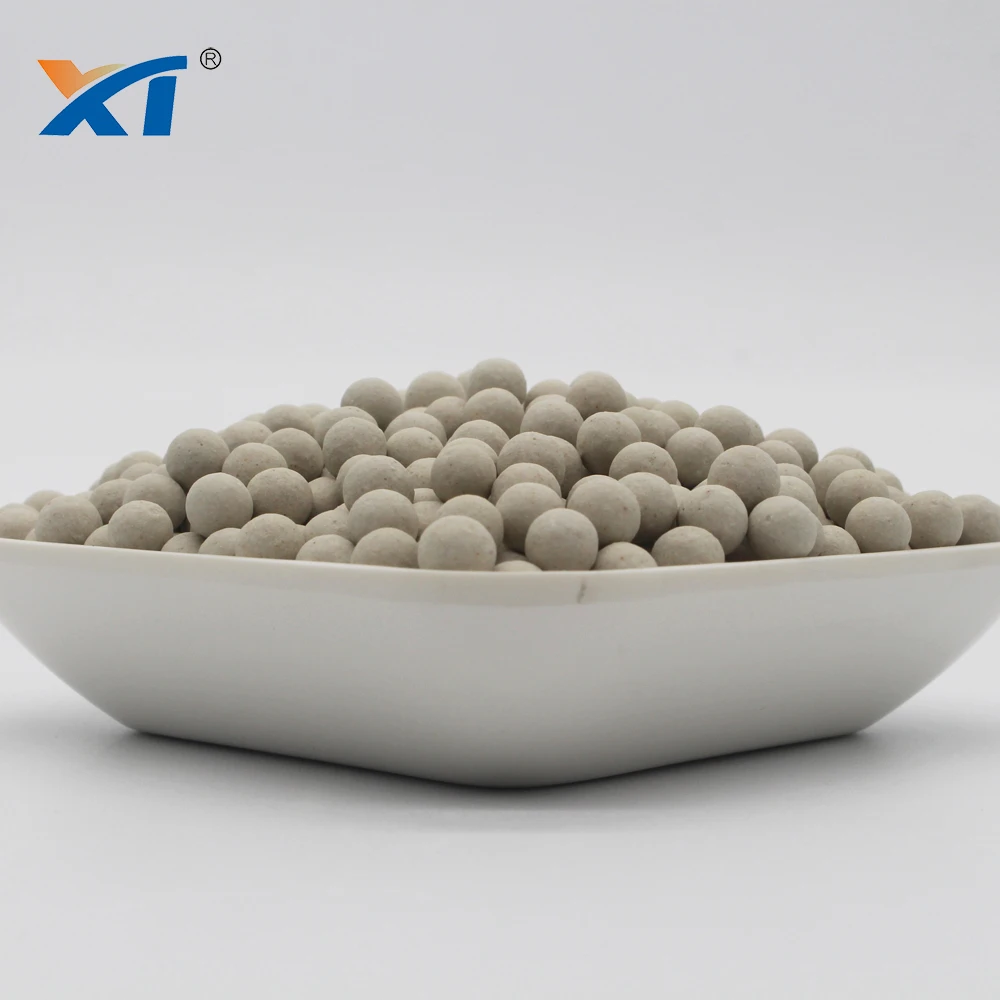

XINTAO alumina ceramic ball beads in water treatment
The XINTAO 23 Support Media is equal to Denstone® 2000 Support Media.It is one of the new media in the industry with unmatched impact resistance, thermal shock, crush strenth and survivability. Products to these specifications are manufactured from very high quality chemical-porcelain clay materials, which has quite excellentstability, high mechanical strength and resistance to thermal shock, this makes them all idea choice for support of all types of catalyst.
Model: | Inert Ceramic Ball | ||||
Color: | Light Grey | ||||
Shape: | Ball | ||||
Typical Technical Composition | Min. % | Max. % | Usual % | ||
SiO2 | 70 | 77 | 74.9 | ||
Al2O3 | 17 | 19 | 18 | ||
Al2O3 + SiO2 | 90 | 96 | 93 | ||
Physical properties | |||||
Index | Value | Value | |||
Max. Operating Temperature | 1050℃ | 1922 | |||
Specific Density | 2300 kg/m3 | 144 lb/ft3 | |||
Bulk Density (Packing Density) | 1350 g/cm3 | 84 lb/ft3 | |||
Size | Crush Strength | ||||
Nominal Size | (lbs) | (kg) | (N/pc) | ||
mm | Inch | min. | min. | min. | |
3 | 1/8 | 77 | 35 | 343 | |
6 | 1/4 | 176 | 80 | 784 | |
10 | 3/8 | 234 | 106 | 1039 | |
13 | 1/2 | 572 | 260 | 2548 | |
16 | 5/8 | 726 | 330 | 3234 | |
19 | 3/4 | 1672 | 760 | 7448 | |
25 | 1 | 1870 | 850 | 8330 | |
38 | 1.5 | 2090 | 950 | 9310 | |
50 | 2 | 3476 | 1580 | 15484 | |
Application
