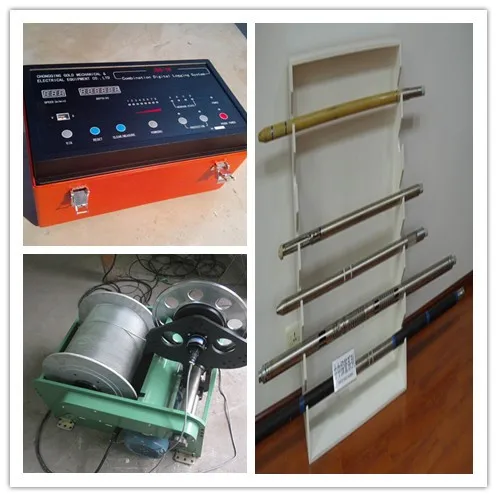

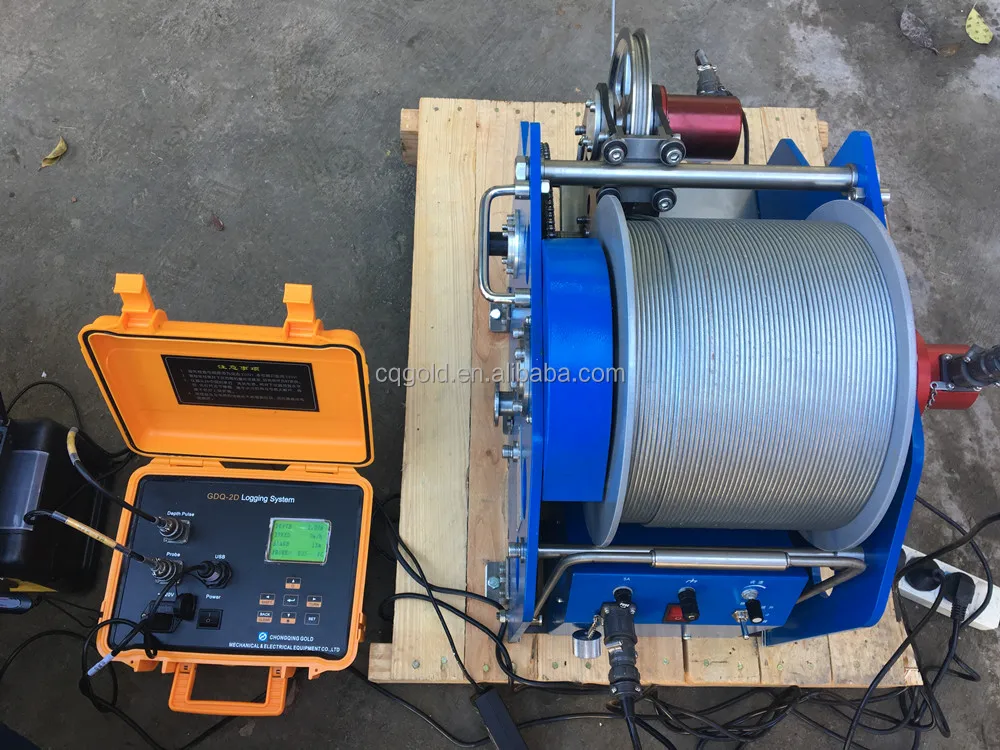

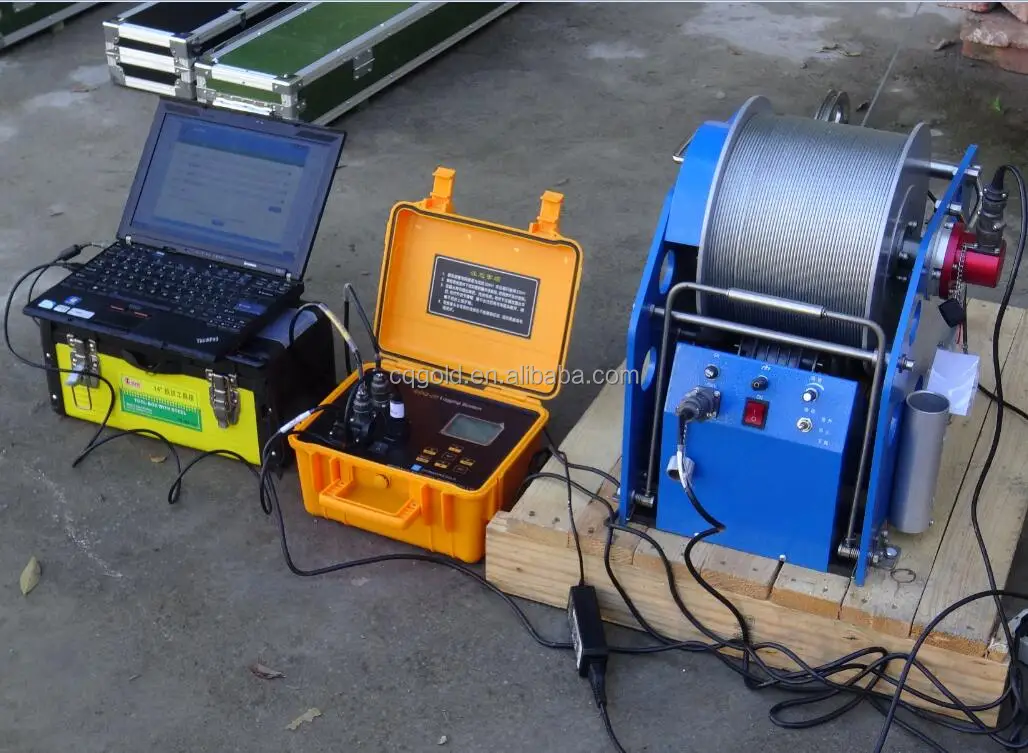

Well logging Survey System 500m To 1000m Downhole Water Well Logger SP Gamma logging Tool
- Category: >>>
- Supplier: Chongqing Gold Mechanical & Electrical Equipment Co. Ltd.
Share on (60450886797):
Product Overview
Description
Well logging Survey System 500m to 1000m Downhole Water Well Logger SP Gamma logging Tool

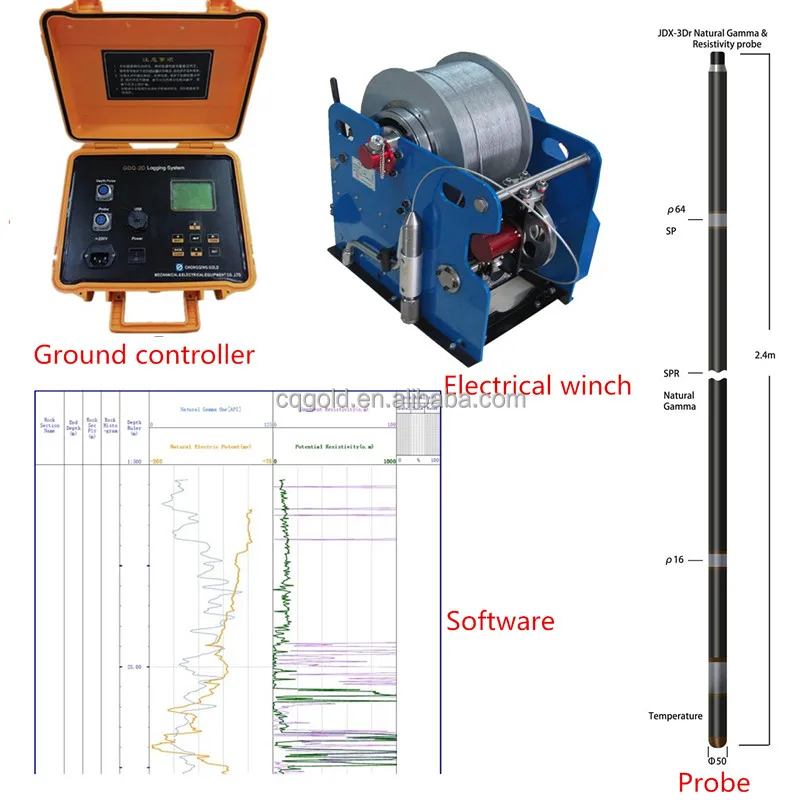

In the GDQ-2D integrated digital control logging system, both hardware and software, no matter probe or ground box, signal measurement or signal transmission, have adopted the standardization and modularization design concept. The benefits of standardization and modularity Product is excellent in products' consistency , maintainability and reliability. It is convenient to operate and maintain. The accessories are 100 percent universal and can be expanded at any time.
1. Coal Field Digital Integrated Logging
2. Hydrological Engineering Digital Integrated Logging
3. Solid Metal Ore Digital Integrated Logging
4. Other Minerals Digital Integrated Logging
1.The use of the environment:
Power supply: 220V, 50 Hz;
Using the environment temperature: -20℃ ~ 45℃;
Using the environment humidity: 90% or less (45℃)
Power supply: 220V, 50 Hz;
Using the environment temperature: -20℃ ~ 45℃;
Using the environment humidity: 90% or less (45℃)
2.The depth measurement system:
Depth measurement range: 0 ~ 9999.99 m;
Depth resolution: 0.28 mm;
Speed measurement range: 0 ~ 9999m/h;
Deep optical pulse signal: 3600 pulses per meter
| JDX-2D electrode system logging tool |
| JJH-2 Polarizability Logging Tool |
| JCC3-2A type high precision magnetic three-component |
| JCH-2 magnetic susceptibility logging tool |
| JSS-3 sonic logging tool |
| JMD-1 density logging tool |
| JMZD-2D density combination logging tool |
| JW238 digital well temperature meter |
| JWTX-1 type well temperature and well deviation combined test |
| JWY-1 type well temperature. Well fluid resistivity |
| JDL-2W Flow Water Level Logging Tool |
| JSXW-3019 combination logging tool |
| JFS-2 single channel radioactive logging tool |
| JFS-4 single-channel radioactive magnetic positioning logging tool |
| JFS-5 single-channel radioactive single-electrode current logging tool |
| JZZ-1 compensated neutron logging tool |
| JMTC-1 combination logging tool |
| JZN-1 Natural Gamma Spectrum Logging Tool |
| JJY-3D Digital Caliper |
| JJY-2D Digital Caliper |
| JJX-3DA type high precision inclinometer |
| JCX3-GMD three lateral gamma self-electricity |
| JCX3-3019 combination logging tool |
| JCX2-1 double lateral logging tool |

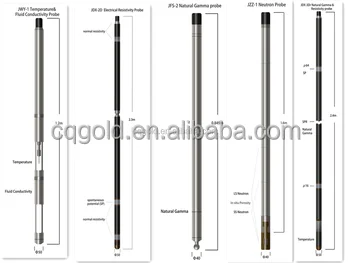

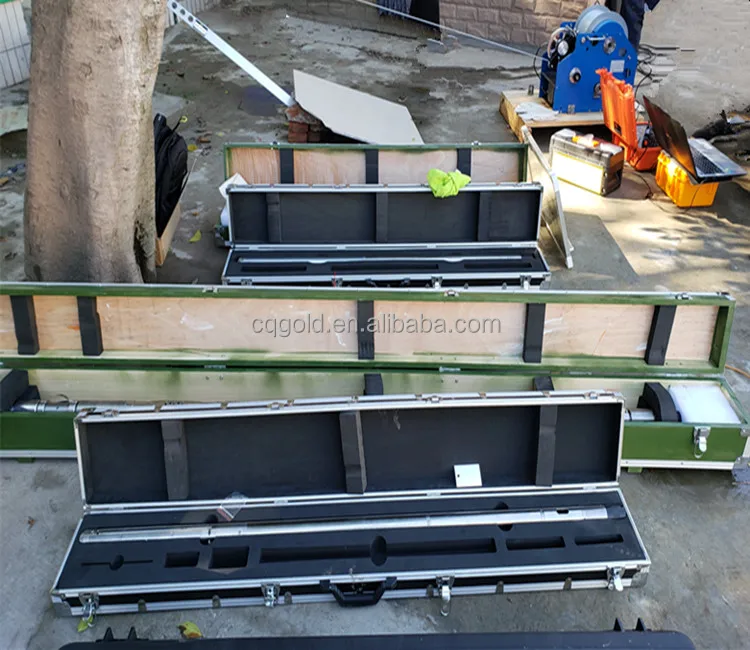

GDQ-2D Logging System probe is almost diameter Φ40 and Φ50 mm, the appearance of length 1000~1500mm size. The probe is made of stainless steel. Resistance to 20~40 MPa water pressure, temperature of 70 ~ 90 ℃. Special orders can be 60 MPa water pressure resistance, temperature 120 ℃ resistance.
