DTEC XXH 3005 Portable Gas filled X ray Flaw Detector,with flat target, panoramic glass X ray tube
- Category: >>>
- Supplier: Deity Testing Equipment Co. Ltd.
Share on (60450890100):
Product Overview
Description
Product Description
XXH-3005 Portable Gas-filled X-ray Flaw Detector comes with 300kv output tube voltage, 5mA maximum tube current and flat target, panoramic glass X-ray tube, with characteristic of auto self-test and anti-jamming.
Equipment Structure:
Each model of X-ray equipment is composed of the controller, X-ray generator, power cable, connecting cable and cable accessories.
- Controller

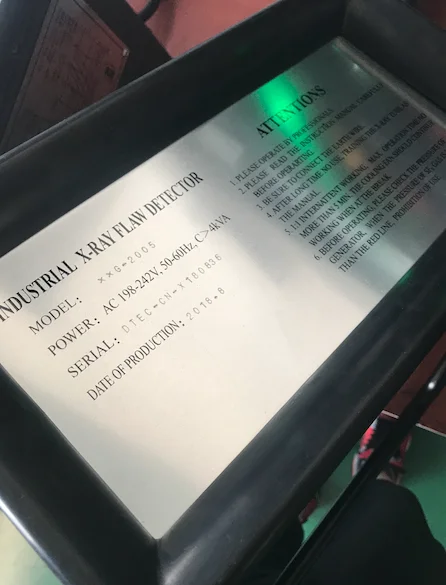

The controller is shaped like a suitcase. All operative buttons are furnished on the front panel while the cable port, main switch and grounding terminal are located inside the control box on the right side of it. The schematic drawing of the controller refers to the Drawings.
The controller includes the parts as below internally:
A. kV control board;
B. mA control board;
C. Microprocessor control board;
D. Protective circuit board;
E. SCR Voltage-regulation modules;
F. LC filter;
G. Primary and secondary SCR inverter system;
H. Cooling fan;
The controller includes the parts as below internally:
A. kV control board;
B. mA control board;
C. Microprocessor control board;
D. Protective circuit board;
E. SCR Voltage-regulation modules;
F. LC filter;
G. Primary and secondary SCR inverter system;
H. Cooling fan;

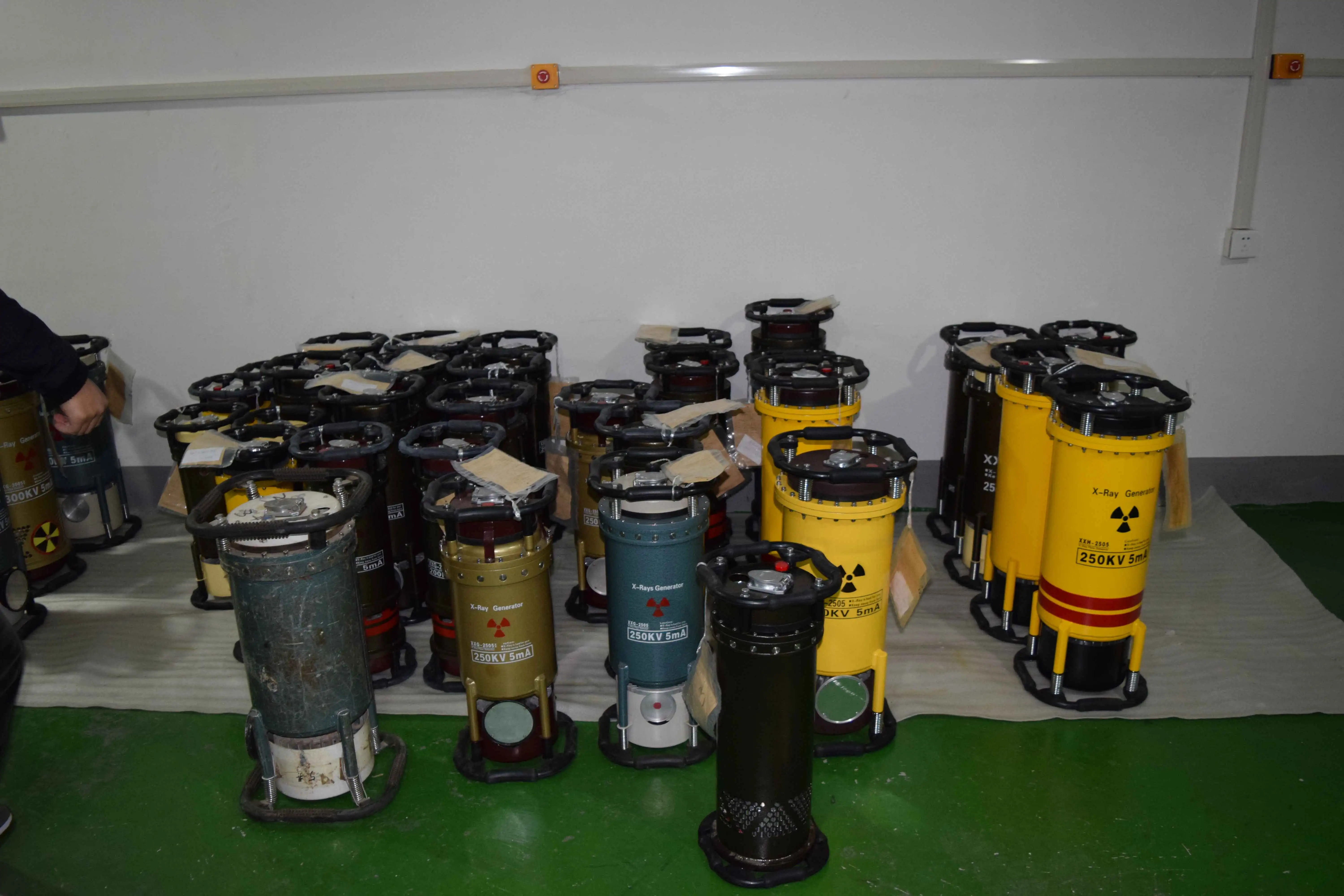

- X-ray Generator
Main Panel

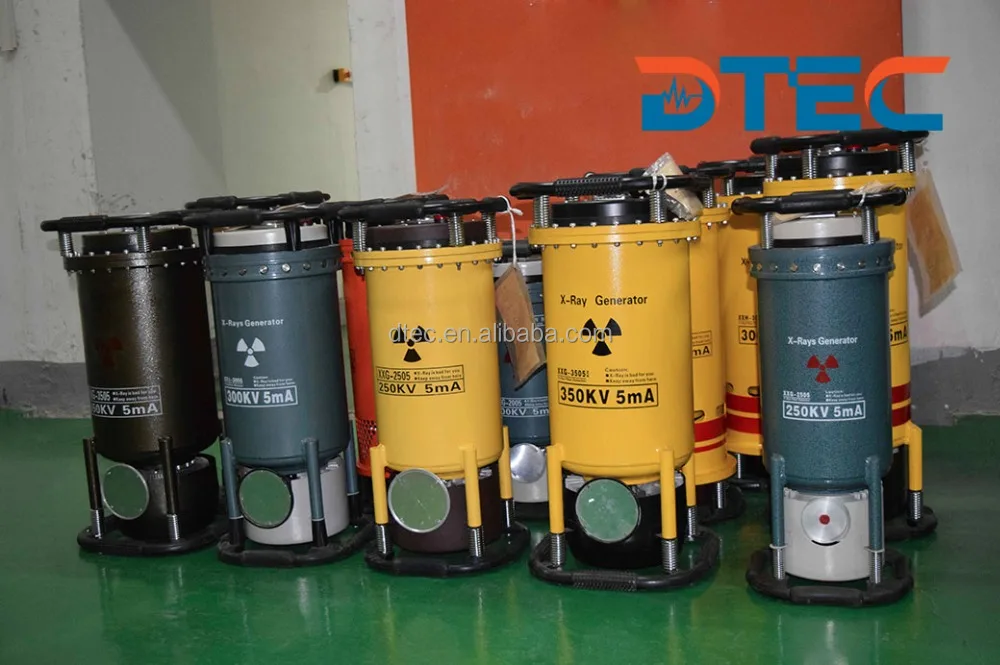

The X-ray generator is of the module type. The X-ray tube, HV transformer and insulated gas (SF6) are encapsulated in an aluminum shell of sylindrical shape. The fan and heat radiator are mounted on one end of the X-ray generator. When the warning lamp lighting on, it means the X-ray NDT equipment is under the stand-by condition and X-ray will be produced (The warning lamp keeps lighting on in the whole course of producing the X-ray). The schematic drawing of the controller refers to the Drawings.
The X-ray generator mainly includes the parts as below

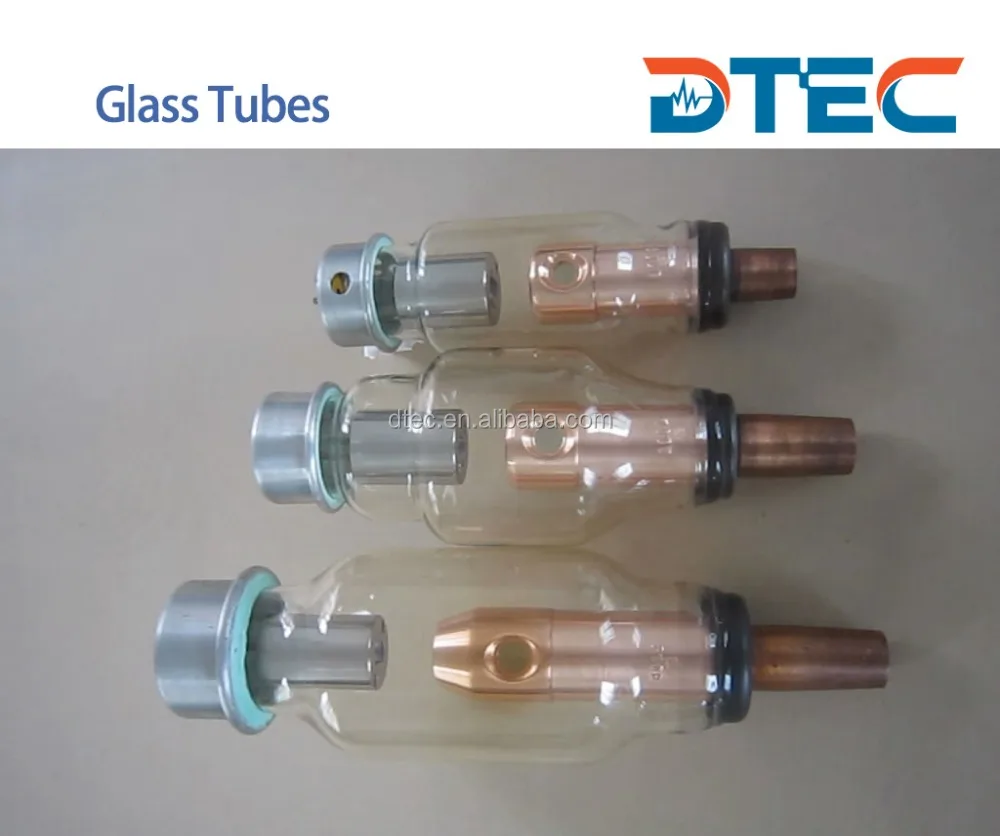

A. X-ray tube;
B. HV transformer;
C. Temperature relay;
D. Pressure meter for gas;
E. Socket for connecting cable;
F. Warning lamp;
G. Cooling fan for the X-ray tube;
H. Charge and discharge valves for gas.
DTEC Advantages
- Automatically Checking the software and hardware after starting the machine;
- Excellent anti-jamming performance, which is suitable for field operation without power supply, due to the motor support;
- Adjustable of exposure parameters with keys (easy operation);
- Function of delaying to open HV, convenient for operator to keep away from dangerous field;
- Adjustable of high voltage slowly for protecting X-ray generator;
- Automatically controlling according to 1:1 working and rest operating mode, the longest continuous exposure period is 5 minutes;
- Complete protecting system included: over KV, low mA, over mA, over temperature and optical-sound alarming;
- Convenient for repairing and maintenance;
- Much more Substance for structure designing, much more convenient for local operation;
- Time can be changed for±0.3 according to the power supply net to make the exposure more precise.
Specification
Model | 100KV | 160KV | 200KV | 250KV | 300KV | 350KV | |||||||
Power Supply | AC220V±10% 50MHz | ||||||||||||
Max. Tube Current | 5 mA | ||||||||||||
Power (kW) | >1.0 | >1.5 | >2.0 | >2.5 | >3.0 | >3.5 | |||||||
Tube Voltage (kV) | 40-100 | 60-160 | 80-200 | 130-250 | 150-300 | 200-350 | |||||||
Focal Spot (mm) | XXQ | 1.0x1.0 | 1.5x1.5 | 1.5x1.5 | 2.0x2.0 | 2.5x2.5 | 2.5x2.5 | ||||||
XXG | 2.0x2.0 | 1.5x1.5 | 1.5x1.5 | 2.5x2.5 | 2.5x2.5 | ||||||||
XXH | 1.0x1.5 | 1.0x2.0 | 1.0x2.0 | 1.0x2.4 | 1.0x2.5 | 1.0x2.5 | |||||||
XXHA | 1.0x3.5 | 1.0x3.5 | 1.0x5.0 | 1.0x6.0 | 1.0x6.0 | ||||||||
Generator (KG) | XXQ | 10 | 15 | 23 | 35 | 43 | 44 | ||||||
XXG | 14 | 25 | 31 | 37 | 38 | ||||||||
XXH/XXHA | 11 | 15 | 22 | 31 | 41 | 44 | |||||||
Controller Weight | 13KG | ||||||||||||
Radiation Angle | XXQ | 40° | |||||||||||
XXG | 40° | ||||||||||||
XXH | 360°x25° | ||||||||||||
XXHA | 360°x40° | ||||||||||||
Max. Penetration (mm) (A3Steel) | XXQ | 8 | 20 | 29 | 39 | 49 | 59 | ||||||
XXG | 20 | 29 | 39 | 49 | 59 | ||||||||
XXH | 6 | 18 | 26 | 36 | 46 | 55 | |||||||
XXHA | 15 | 24 | 34 | 40 | 50 | ||||||||
Insulation | SF6 Gas | ||||||||||||
Environmental Temperature | -25℃-40℃ | ||||||||||||
Relative Humidity | No more than 85% | ||||||||||||
Working Conditions of X-ray Photography | 1. Focus to Film: 600mm 2. Exposure time: 5 min. 3. Film: TianJin, Model III, intensified by double lead foil. 4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. blackness ≥ 1.5 | ||||||||||||
Safe Working Pressure for Gas | 0.35 ~ 0.50 MPA (Operation will be prohibited in the case less than 0.35 MPA) | ||||||||||||
Packing List & Accs
Standard Packing List:
Items | Qty. | Note |
X-ray Generator | 1 Pcs. | Flat Target, Panoramic Glass X-ray Tube |
Controller | 1 Set | |

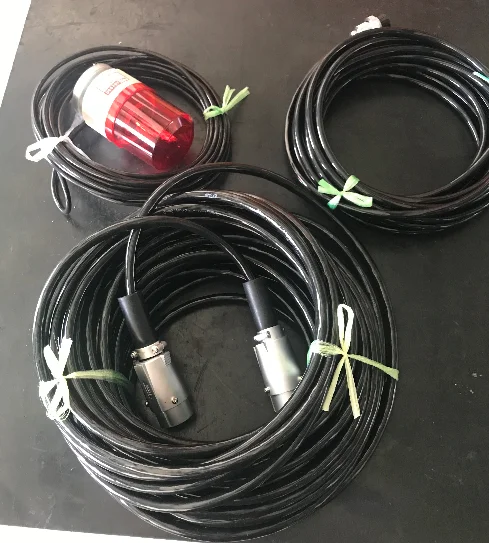

Connecting Cable | 1 Pcs. | 10 Cores, 25M |
Power Cable | 1 Pcs. | 2 Cores, 10M |
Grounding Wire | 1 Pcs. | 5M |
Fuse | 5 Pcs. | 20A |
Fuse | 5 Pcs. | 3A |
Alarm Lamp | 1 Pcs. | |
Film dark cassettes | 5 Pcs. | |
Intensifying Screen | 5 Pcs. | |
Wire Penetrameter | 1 Set | IQI |
Packaging & Shipping
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
