240X128 Graphic Lcd Display Module with RA6963 driver IC
- Category: >>>
- Supplier: Shenzhen Yabin Electronics Co. Ltd.
Share on (60450990070):
Product Overview
Description
1.Specifications
Model Number | YB240128A |
Module Size | 144*104*13.5mm |
View Area | 114*64mm |
View direction | 6 O’clock |
LCD Mode | White on blue、black on yellow green、white on gray |
Operating voltage | 5V、3.3v |
Driver IC | RA6963 or Equivalent |
Driving Method | 1/128 Duty; 1/12 Bias |
Dot Matrix | 240*128 Dots |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |
Interface | 8080 serial 8-Bit MPU |

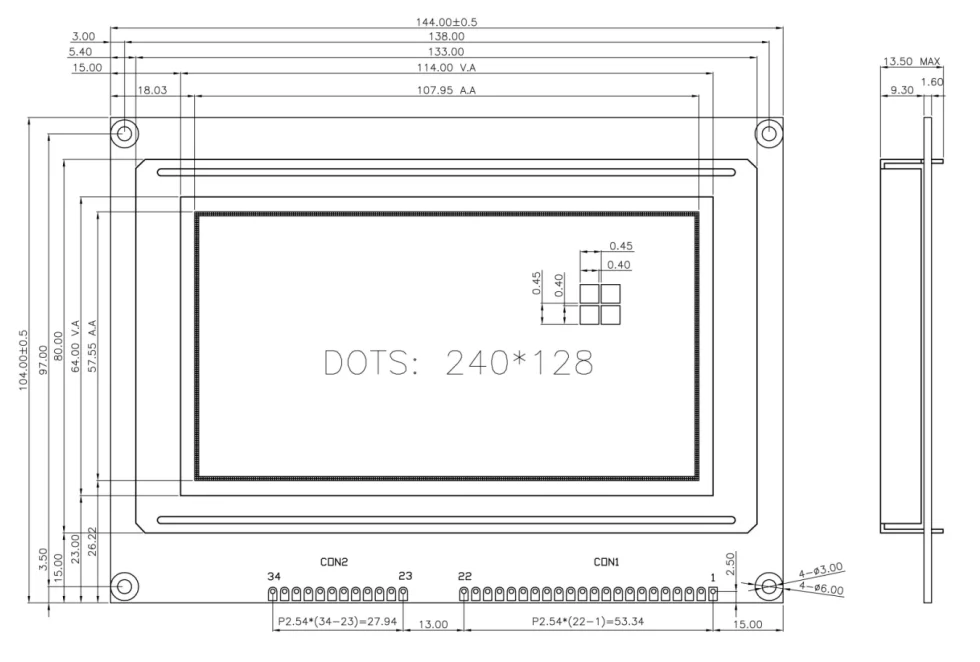

2.Overall dimensions

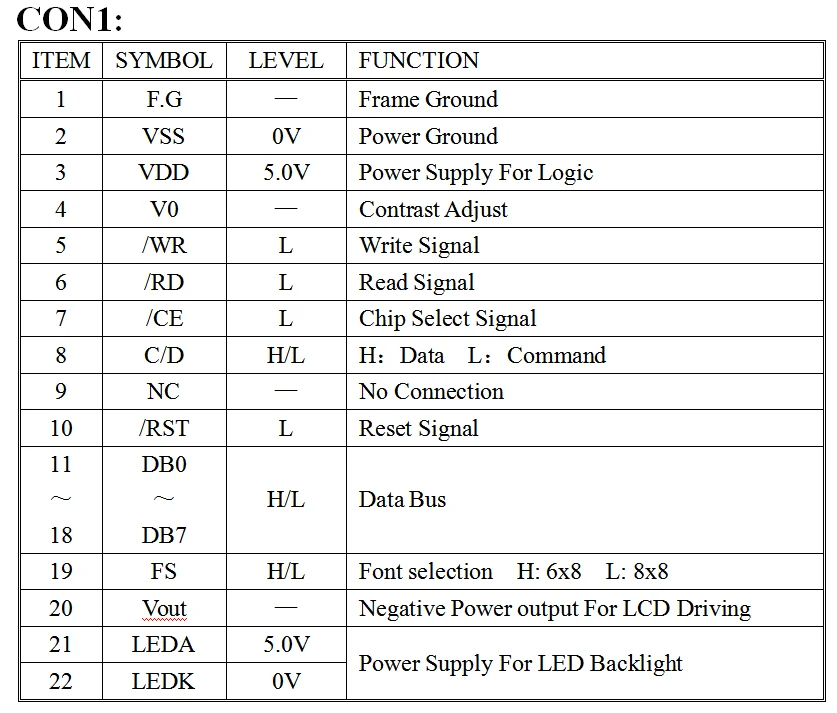

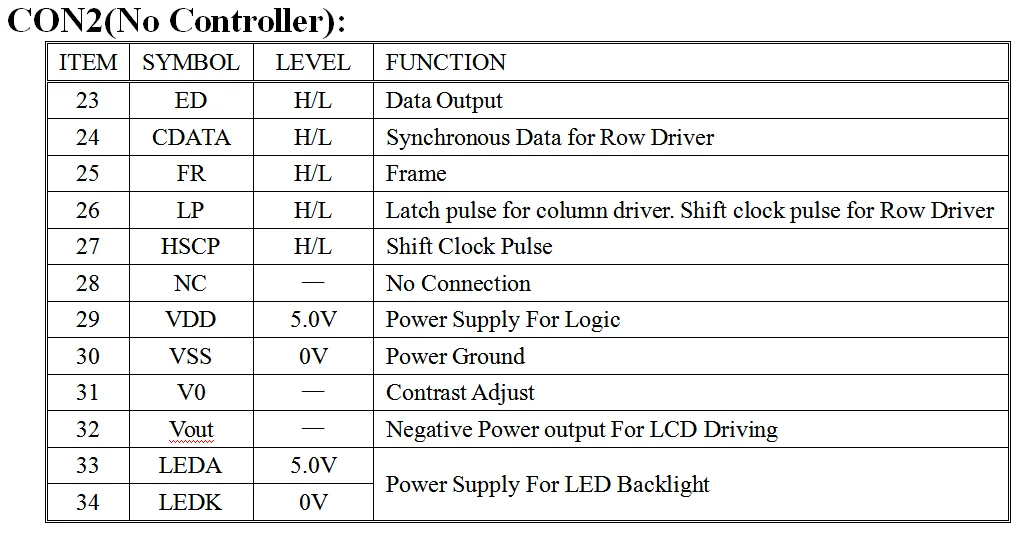

3.PIN description

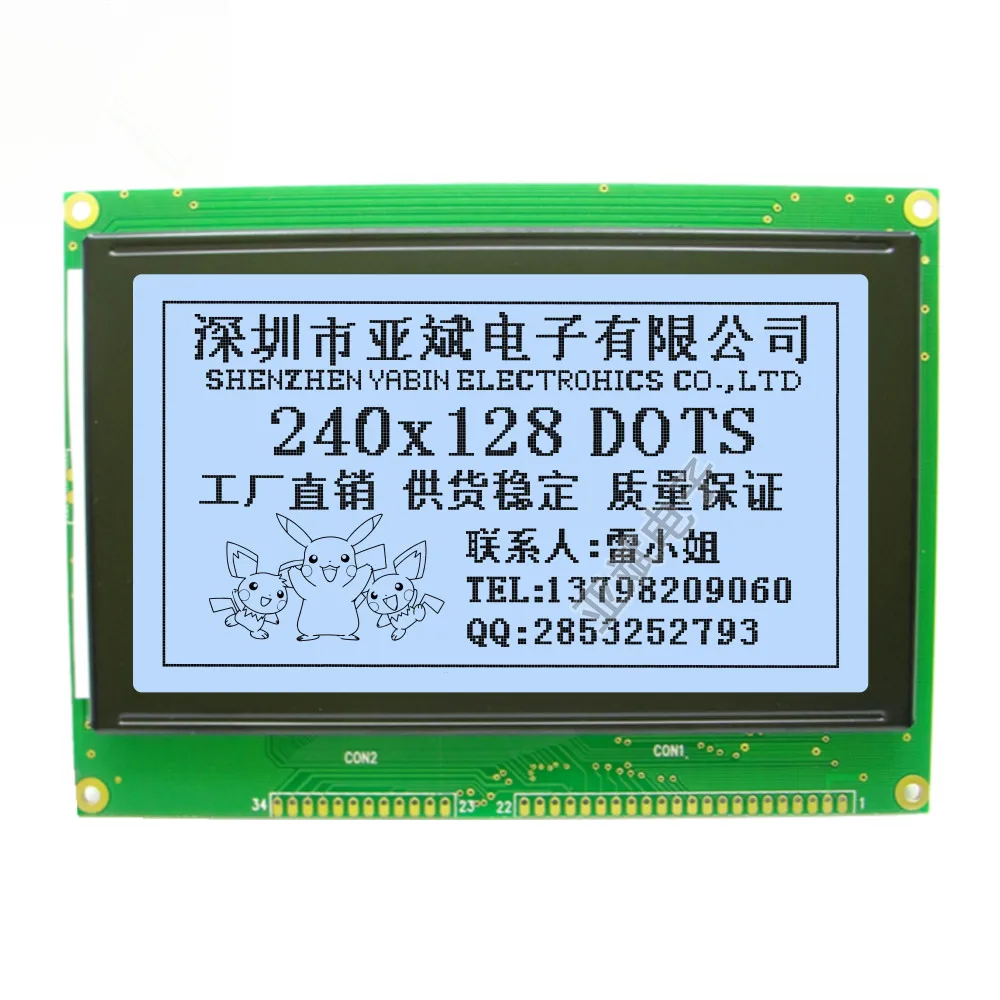

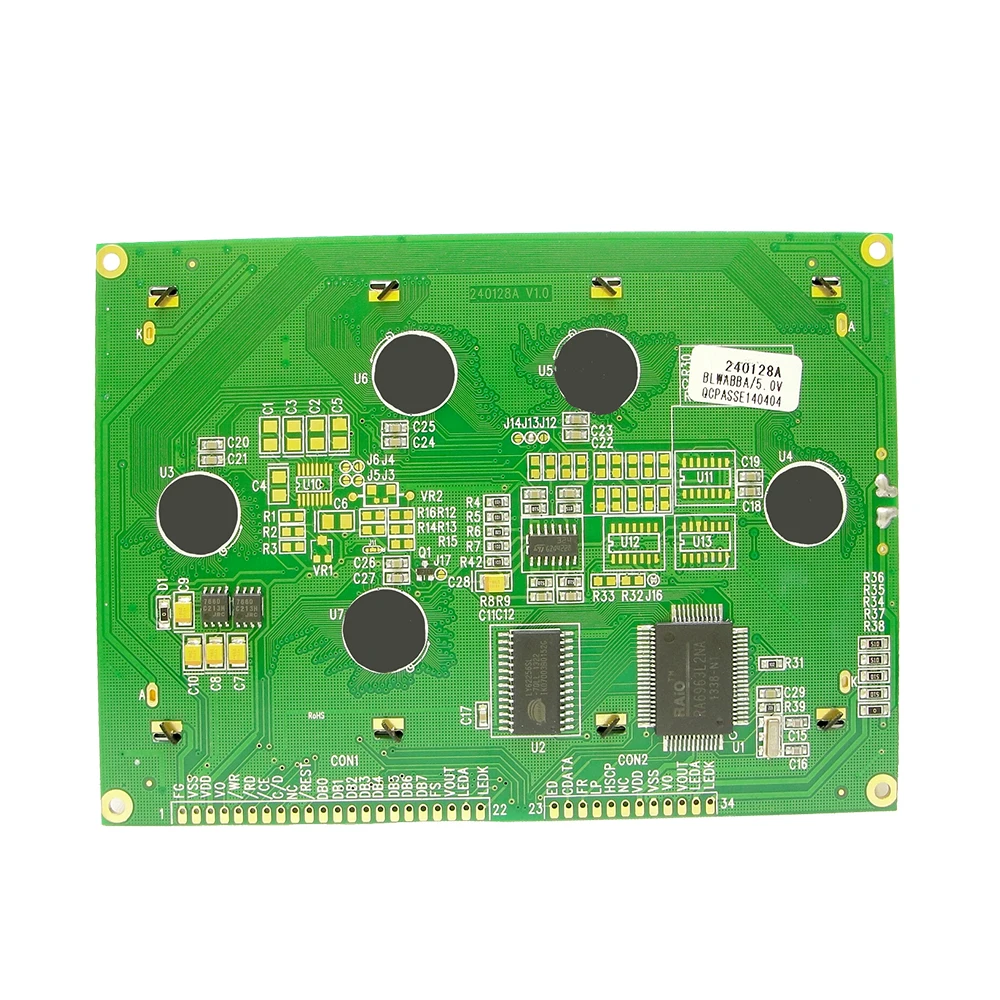

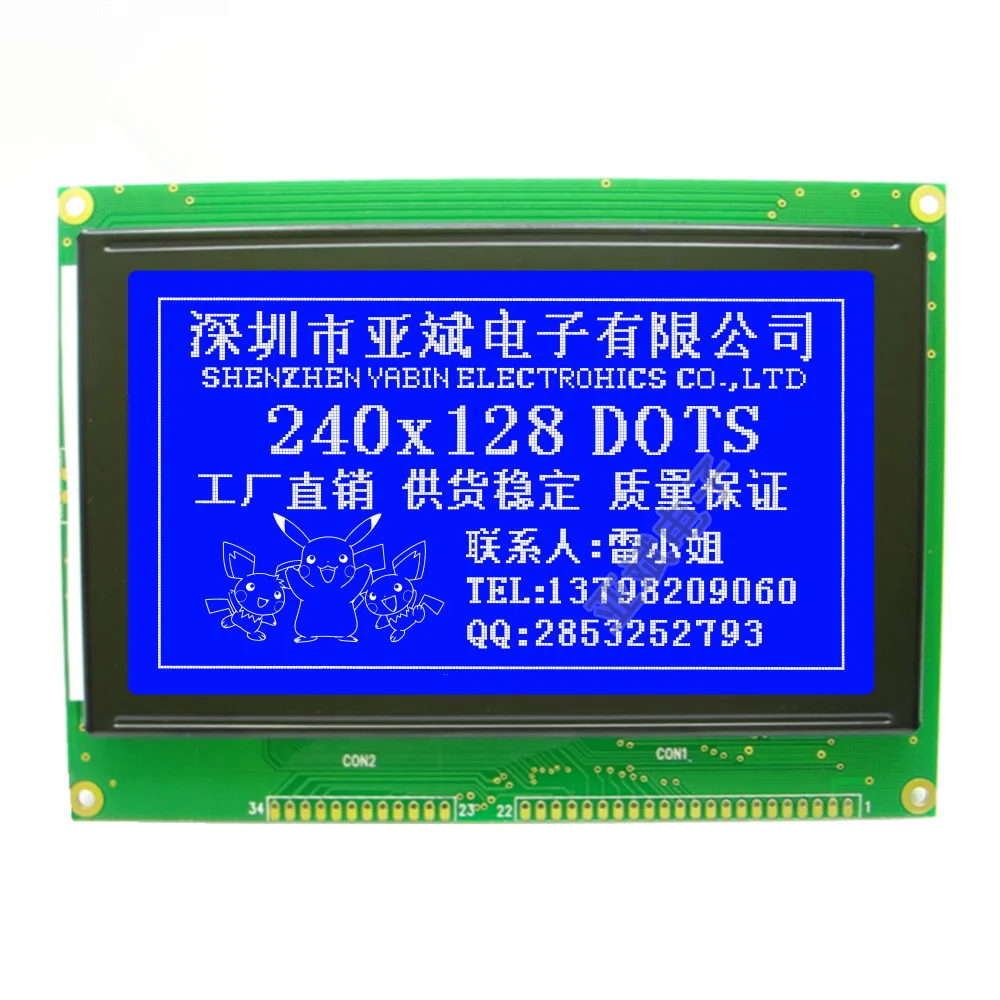

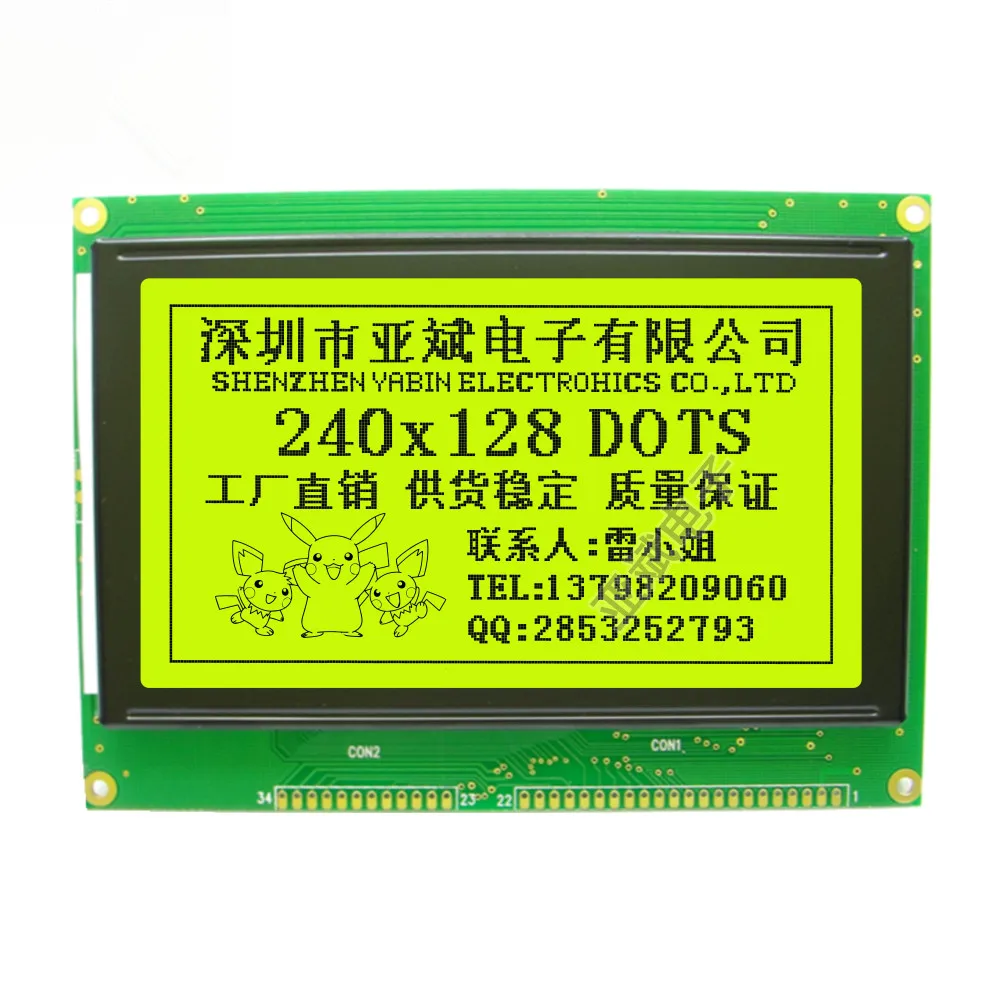

4.Photo display
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples
→ Samples finished → Delivery via freight or sea collect.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.
Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than
10 years.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples
→ Samples finished → Delivery via freight or sea collect.
Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.
Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than
10 years.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
