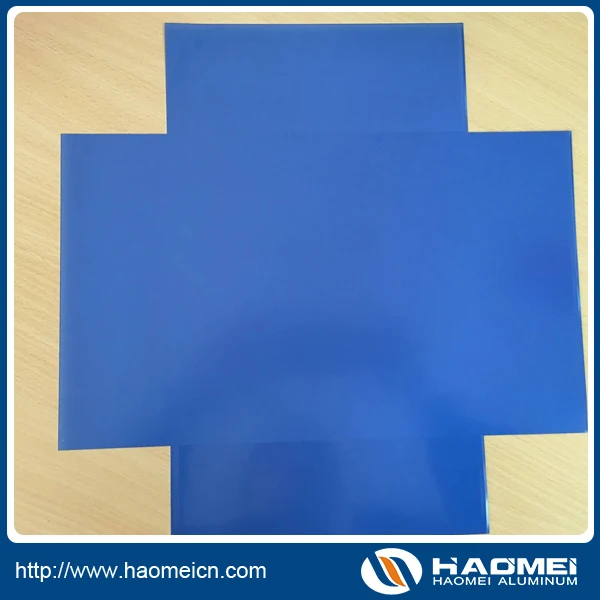

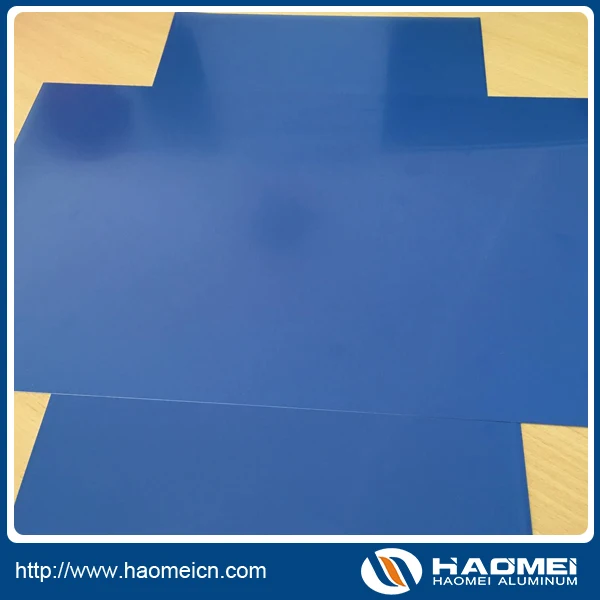

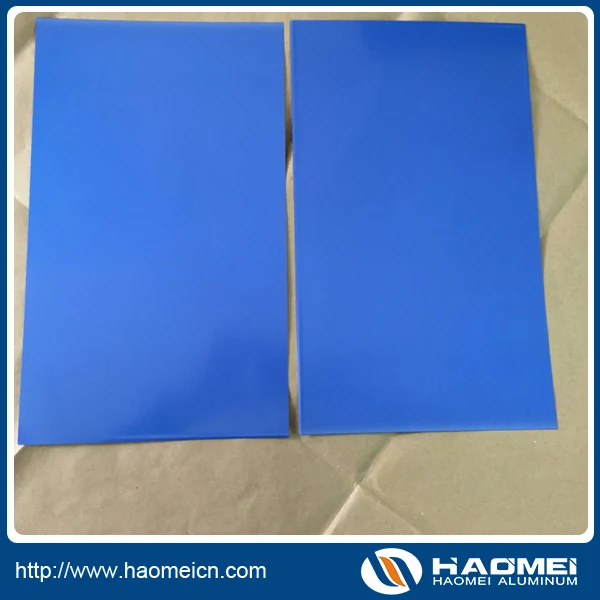

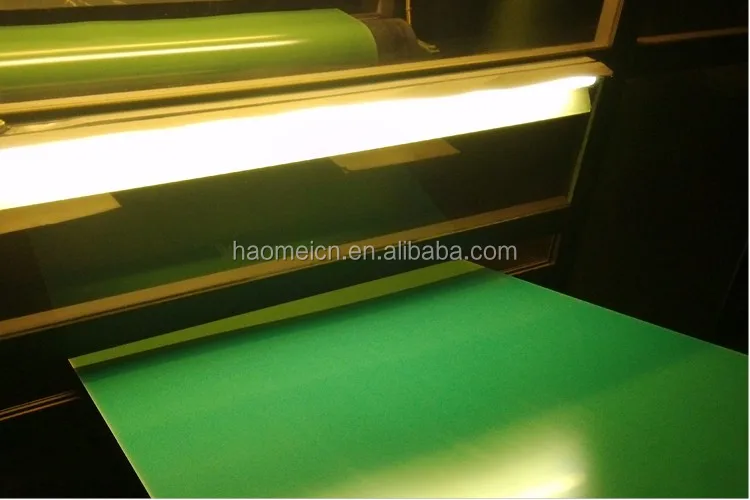

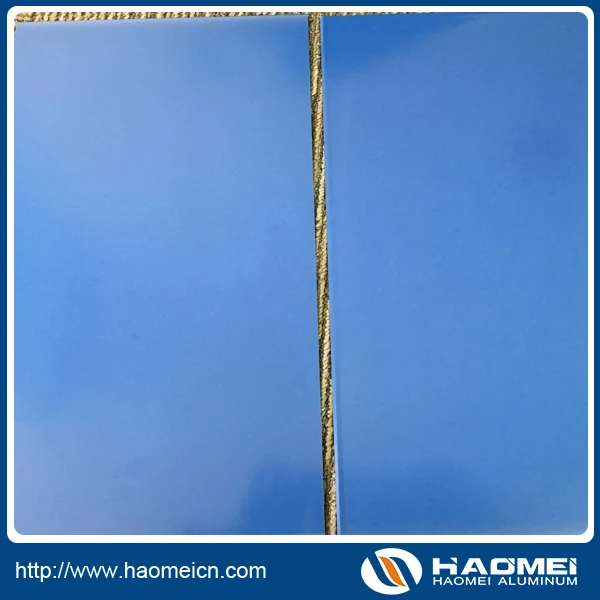

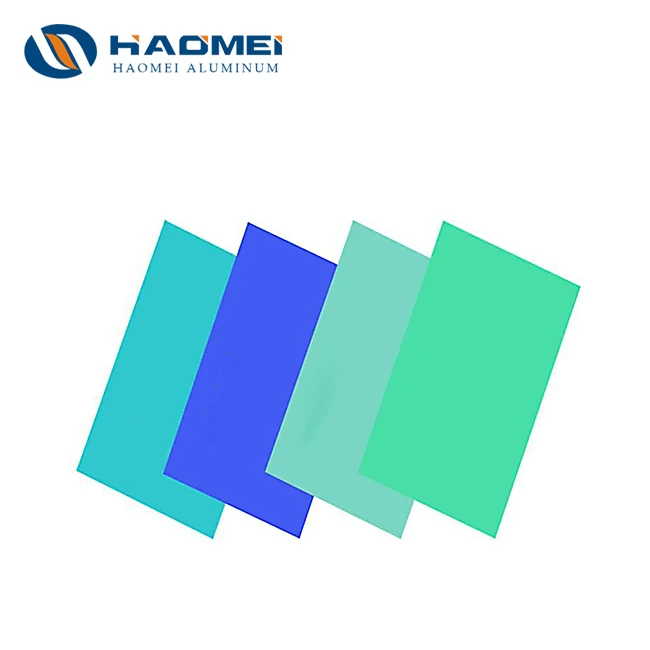

Промышленная алюминиевая ctp и ctcp пластина

Product Overview

Description



China manufacturer factory price Positive CTCP Plate



Positive Computer to Conventional Plate

UV CTP plate



Features:

1.High quality aluminium substrate

2.Special coating to give excellent inaging quality

3.High Resolution.

4.High Pressrun

5. A wide latitude in operation condition

6. It it suirtable for superb color business printing



Technical parameters:

Name : offset plates CTcP,UV-CTP plate:

Application: Newspaper printing, Commercial printing etc...

Alloy and temper : 1060/H18

Gauge : 0.14mm -0.30mm

Spectral Sensitivity : 400-410nm

Sensitivity : 70-90 mj/cm²

Developing Temperature : 25±2℃

Developing Time : 20±5s

Safelights: safe yellow lights

Dot reproduction:2-98%@ 175 lpi

Press suns of 50000 (un-baked), 100000( baked)

Shelf Life : 18 months shelf life from date of production when stored in a cool,dry and lucifugal area in original packing.

Storage conditions: temperature 5-30°C, RH:≤65°C, Stacking height :≤1.2m

Suitable for 405nm CTCP printing;developing system .





Technical parameters for UV-CTP plate:

UV CTP  Technical specifications
Plate Type	Positive offset plate for UV-CTP plate making
Application	All kinds of CTCP machine
Substrat	Electrochemically grained and anodized aluminum
Thickness	0.15mm-0.30mm
Maximum short grain width	1500mm
Spectral sensitivity	350-420nm UV light 365-375nm & 405-410 UV laser
Plate setter compatibility	Luscher XPose! UV, Basysprint UV-Setter, Cron UVP etc.
Safelights	UV filtered or Yellow
Sensitivity	60-70mj/cm2
Development	Conductivity: min 55ms, max 65ms Temperature: 20-25  degrees PH13.00-13.10
Developer	Common positive offset plate developer
Dot reproduction	1%--99% 200lines/inch
Final image colour	Green
Shelf life	12 months when stored in a light-free area away from excessive cold, heat and high humidity
Run length	0.30mm above 100, 000 (Actual run length may vary according to press, ink and stock conditions.





Technical parameters for Positive CTCP Plate

Style	Positive CTcP Plate
Application Type	Newspaper printing , Commercial printing, etc
Compatibility	Basys, Luscher, CRON, etc
Plate Thickness	0.15mm-0.30mm
Spectral Sensitivity	405-410nm
Developing Temperature	23±2°C
Developing Time	20±5s
Developing ratio	1:4-1:5 (use after being diluted)
Safelight	Yellow light
Shelf life	18 months
Storage Conditions	The recommended storage conditions are 10-25°C,with 40%--70%humidity. Away from sunlight radiation &direct sunlight, Anti-humidity, Anti-acid &alkali.









Packing and Delivering

We usually use container to deliver our products. And first, we will packaged our products by plastic to prevent being mositured, then we will use frame to fix this plate. no matter what, please do not worry about delivering, because we have been this field for many years, we will try our best to offer you the greatest goods.





Before Service: we will try our best with professional advice to gve you the best reasonable product



During Service:will make sure that these products will be deiliverd to customer's port.



After Service:we like to solve problems with prossional knowledge.







HAOMEI is a professional manufacturer of Conventinal PS Plates, UV-CTP(CTcP) Plates and Thermal CTP Plates in China. HAOMEI brand printing plates are popular in mainland and oversea, widly used in prining market like newspaper, commercial print, etc.



We can also offer these following products :



1.Why did you choose our company?

Because our company has been in this field for almost 15years with customers from all over the world.

2.What did we mainly focus on?

we are manufacturers for aluminum sheet , aluminum circle, aluminum foil roll, aluminum strip and so on aluminum products.
