coasts High quality energy conservation KSB C 4.5kw 220v 240v 380v commercial use steam generator

Product Overview

Description

coasts High quality energy conservation KSB-C 4.5kw 220v 240v 380v commercial use steam generator

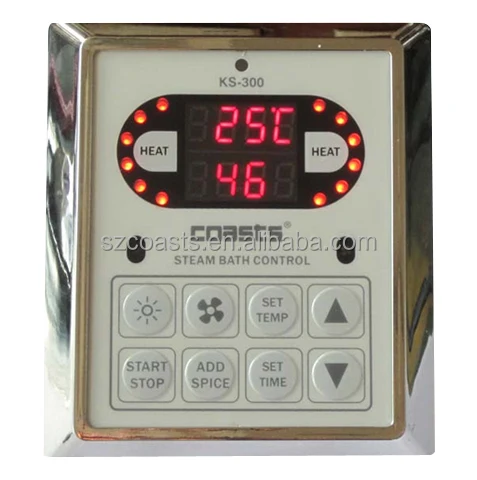

COASTS KSB-C Commercial series steam generator with KS-300Adigital control panel and KS30A sub panel,

The Commercial series is an updated version of our Premier steam generator, specialized for heavy duty

commercial use.Targeting on the difference from residential bath and the special demands of commercial

environment, the Commercial steam generator features dual control panels and Smart-steam function.





Main Features

1.Time ,Temperature Display / settings / control



2. Fahrenheit/ Centigrade switching temperature display.

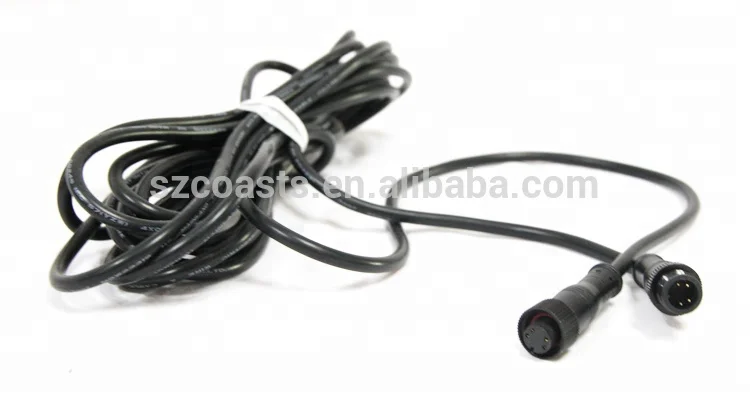

3.Host and controller with digital signal control, control cable 5m length, transfer data reliably. Control cables with waterproof, moisture-proof interface.



4.Built-in temperature protection, to prevent dry burn.



5. Fast heating function, power that is able to only about 2 minutes out of steam, greatly reducing the time to wait.



6.With a steam room light switch function, you can switch regular incandescent Lamp, also can control colorful LED lights.   Can control the fan.



7.Control (Fragrances)aroma pump function.



8.With low pressure to release the pressure relief valve, can effectively prevent the occurrence of the case of the steam pipe is blocked explosion overpressure condition.



9.Steam temperature set point in the vicinity of segmented heating and achieve continuous and uniform out of steam, good bath effect; while extending the power control devices and heat pipe life.



10.Preliminary diagnosis by working status indicator on the control panel, and then work with the symbol on the control panel status lights and steam on the motherboard LED display can basically understand the operation and operating state of the steam engine, and the failure of the machine in order to facilitate maintenance and repair.



11.Machine continued to work,the water vapor constantly.



12.Top service hole to make the decalcification much easier and without removing existing pipeline.



13.The steam engine with Keya company's independent development and production of the drainage device (traffic, closed strong, runner smooth, reliable operation), adding to the water inlet and water level probes specially designed layout (power steam engine, power ≥12KW ) can greatly reduce the scale and level probe fouling rate of long-term damage to the state at a high temperature insulating material on the probe and probe tube, ensure long probe, stable and reliable operation, but also more effective in slowing the heating tube and speed generate scale tank, thus extending the life of heating pipes.



Tips: scale is the steam engine, especially the life of a commercial steam power bottlenecks, which led to the failure of water level probes, it is the steam engine and the electric heating pipe liner harm; to work long hours in order to ensure continuous and prolonged steam steam engine life must regularly carry out cleaning timing steam cleaning and cleanup. But manual cleaning cleaning is a time-consuming and complicated work, for which the company developed specifically for steam cleaning apparatus to make a regular maintenance and management easier and effectively extending the life of the product. Cleaning device functions and features, how the steam engine were necessary and so, please contact our company.

Parameter

Model	Power  kW	Power supply (50/60Hz)		Power wire(copper) N*mm2	Dimensions   cm	Packing dimensions  cm	Gross weight  kg
		Voltage V	Curren A
KSB-30C	3.0	220-240V~	13.6	3*2.5	42.5*16*31.5	54.5*21.5*42	12-13
KSB-40C	4.0	220-240V~	18.2	3*2.5
KSB-45C	4.5	220-240V~	20.5	3*2.5
		380-415V3N~	6.8	5*1.5
KSB-50C	5.0	220-240V~	22.7	3*2.5
KSB-60C	6.0	220-240V~	27.3	3*4.0
		380-415V3N~	9.1	5*1.5
KSB-75C	7.5	220-240V~	34.1	3*6.0
		380-415V3N~	11.4	5*2.5
KSB-90C	9.0	380-415V3N~	13.6	5*2.5	47.5*18.5*45	53.5*23*59	18-20
KSB-105C	10.5	380-415V3N~	15.9	5*2.5
KSB-120C	12.0	380-415V3N~	18.2	5*2.5
KSB-150C	15.0	380-415V3N~	22.7	5*2.5
KSB-180C	18.0	380-415V3N~	27.3	5*4.0	51*18.5*46	56.5*23*59	20-22
KSB-225C	22.5	380-415V3N~	34.1	5*6.0
KSB-240C	24.0	380-415V3N~	36.4	5*6.0
Notice: Commercial steam generators are equipped with in-generator auto drain system and room-temp-preserving function which is an great function for commercial steam bath. Operator could preset the room temperature and the room-temp-preserving function will maintain the room temperature and start to produce steam output immediately after customer activated the sub-panel, no more waiting time! 3/4/5 kW units only have 220-240V versions. Large power units above 9 kW only works under three phases system. 9-12 kW units could be customized to 220-240V on request.

Products display

 3-7.5KW Model

   9-12KW  Model

 15-24KW  Model

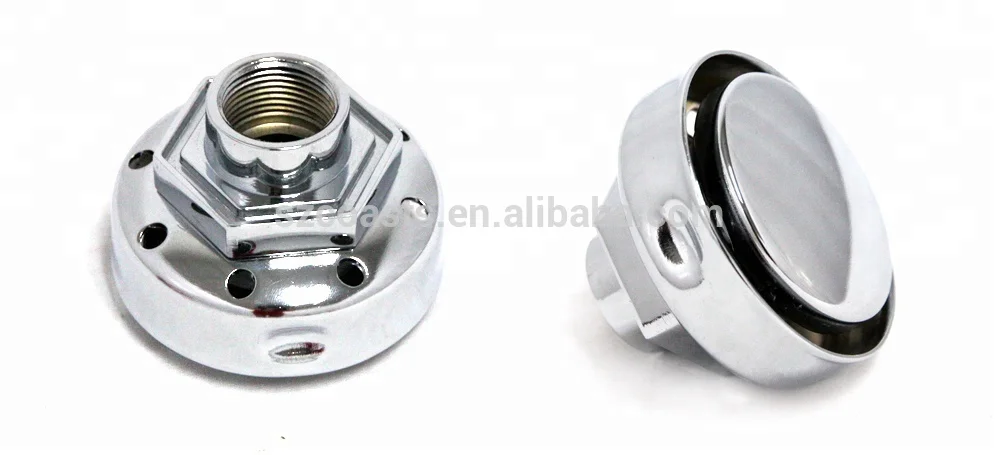

Lower noise and dffusion steam shower nozzle

 powerful automatic draining system
