Product Overview
Description
CTB series Permanent magnet synchronous servo motor is new type of ac spindle induction servo motor with independent research, design, production and enters international market, which has been reached international leading level.
CTB series servo spindle motor has a compact structure, superior function, good shape and high efficiency, widely used in various fields of machinery manufacturing with very good cost performance.
Wide range of product series
Torque range:0.16-4000N.m Max torque can reach 15000N.m
Rated rotate speed: 500-3000rpm can supply non-standard design
Voltage class: 200V, 400V, 660V class
Speed sensor: can built-in incremental encoder, rotary transformer, absolute value encoder
Type demonstration(15N.m servo motor for example)
Model | Name | Description | Catalog Number Explanation | |
1 | Plant code | CTB CTB plant motor code | CTB company product | |
2 | Voltage class | 2:200V 4:400V 6:660 V class | 400V | |
3 | Power code | See standard specification table | 15 N.m | |
4 | Motor type code | S:natural cooling servo motor Z: Forced cooling permanent magnet servo motor | S series servo motor | |
5 | Encoder code | Code Encoder type B: no encoder A: absolute value encoder(17B) | Built-in optical encoder | |

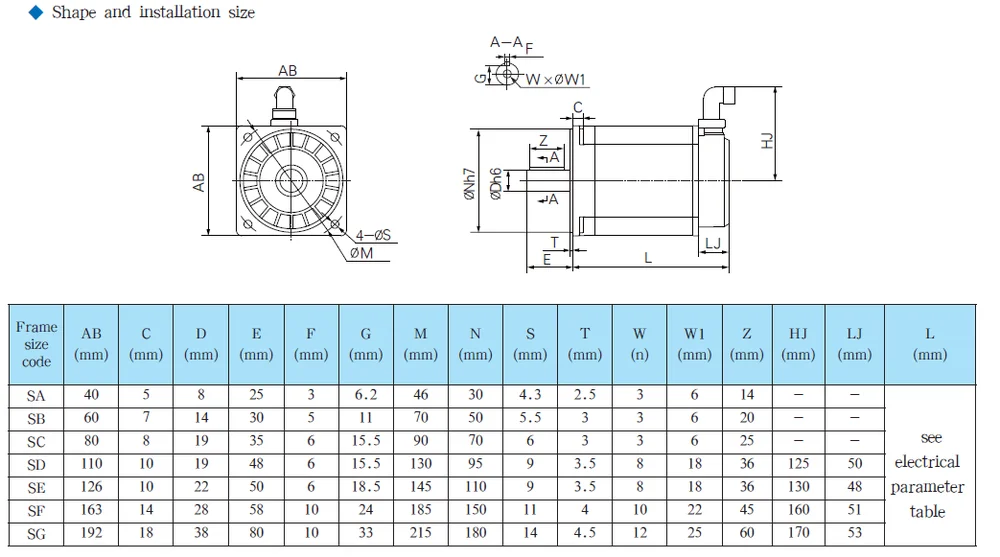

6 | Motor base code | Base model: S series: A-G P series :A B C E F G | SB motor base | |
7 | Basic rotate speed code | Code rotate speed r/min d5 50 01 100 02 200 03 300 04 500 07 750 | Code rotate speed r/min 10 1000 15 1500 20 2000 25 2500 30 3000 | Basic rotate speed:1500r/min |
8 | Installation method code | 3: B3/ horizontally-mounted 5: B5/ flanged mounting 35: B35/horizontally-flanged mounting |
flanged mounting | |
9 | Shaft extension structure code | G: optical shaft J: bond shaft | Optical shapt | |
10 | Brake | B: Dead electricity electromagnet brake | Have brake | |
Company Information
- Beijing CTB servo Co., Ltd founded in 2000, which is the national high-tech company of Beijing Zhong Guan Cun science park. CTB has been successfully listed in “New OTC Market” since Dec, 12th 2014, Stock code: 831544, stock abbreviation: BK servo.

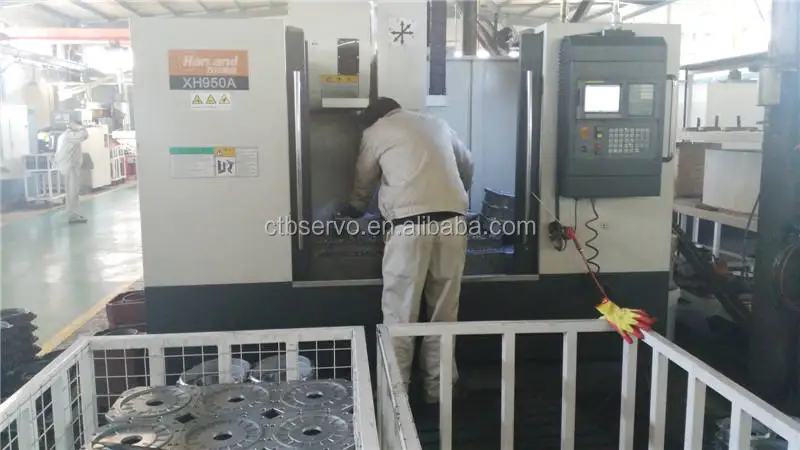

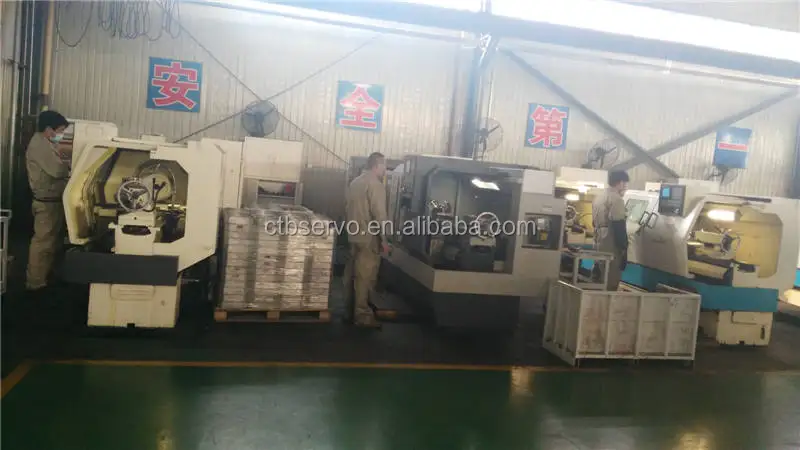

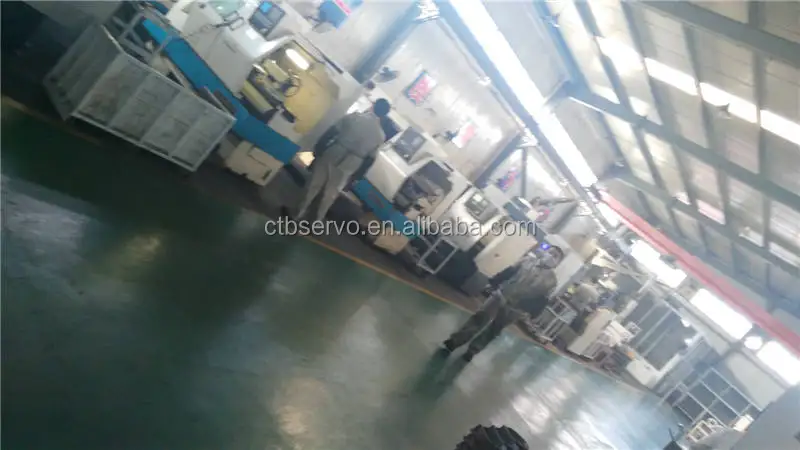

- CTB is unique large-scale production-oriented enterprises with combination of servo motor and drive, equipped with first domestic smart motor parts processing production line, which is designed by SMTCL, adopt domestic intelligence I5 CNC system, basically can reach 4.0 industrial standards, annual production capacity of 100000 sets.
- CTB products cover whole series of motorized spindle, ac servo motor, spindle motor, frequency conversion motor, built-in motorized spindle, dedicated servo motor for press, injection molding machine, pumping unit as well as various drives. All CTB production with our independent intellectual property right.
FAQ
FAQ:
1. Q:Can you provide detailed model selection advice for our machine or device?
A: Of course, we can provide our product catalogue, drawings, data and application manual, meanwhile, we have professional engineers can provide a specialized technical explanation along with your package.
2. Q: Whats your company's main products?
A: Servo spindle motor, variable-frequency motor, induction servo motor, PMSM, built-in rotor and stator, vector motor, motorized spindle, spindle drive, Multi-axis servo drive.
3. Q: Do you have products in stock?
A: Our products are manufactured according to your order requirement, we have some normal products in stock, but not include some abnormal models.
4. Q: What’s the delivery time?
A: It usually takes about 7 working days for servo motor and drive, about 30 days for motorized spindle, but the exact delivery time might be different for different orders.
5. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.
6. Q: How does your factory do regarding quality control?
A: CTB strictly obey PPAP (Production Part Approval Process
) and we have professional quality team for quality assurance and control, every product will be fully assembled and carefully tested before it's packed for shipment
7. Q: How about your warranty terms?
A: Regarding export products, we can offer 24 hours online technical consultation and we also can dispatch our applying engineers for maintenance and installation. We offer different warranty time for different products.
8. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. CTB is a listed national high and new technology enterprise in China, The core and foundation of our company culture is honesty and credit. We have cooperated with more than 20 countries’ factories and agents.
