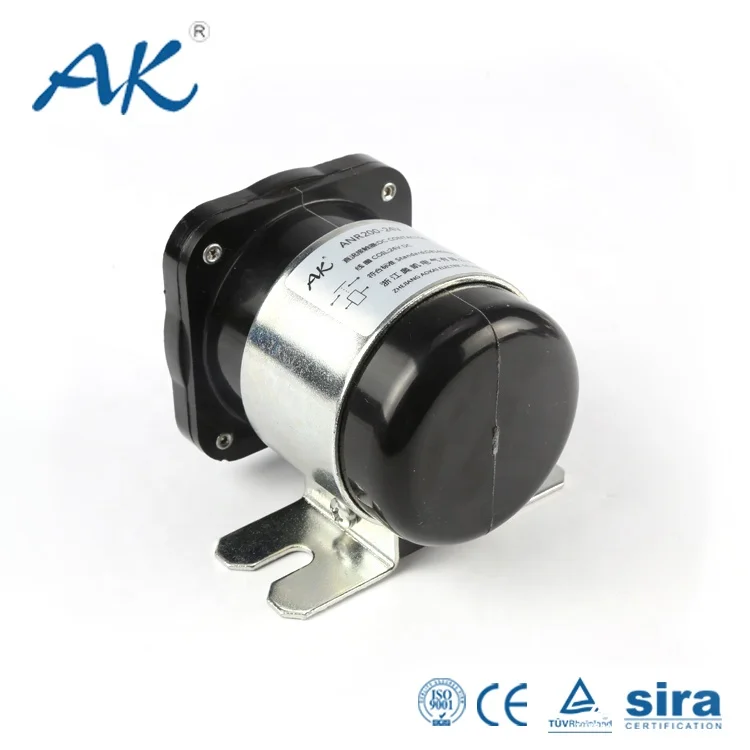

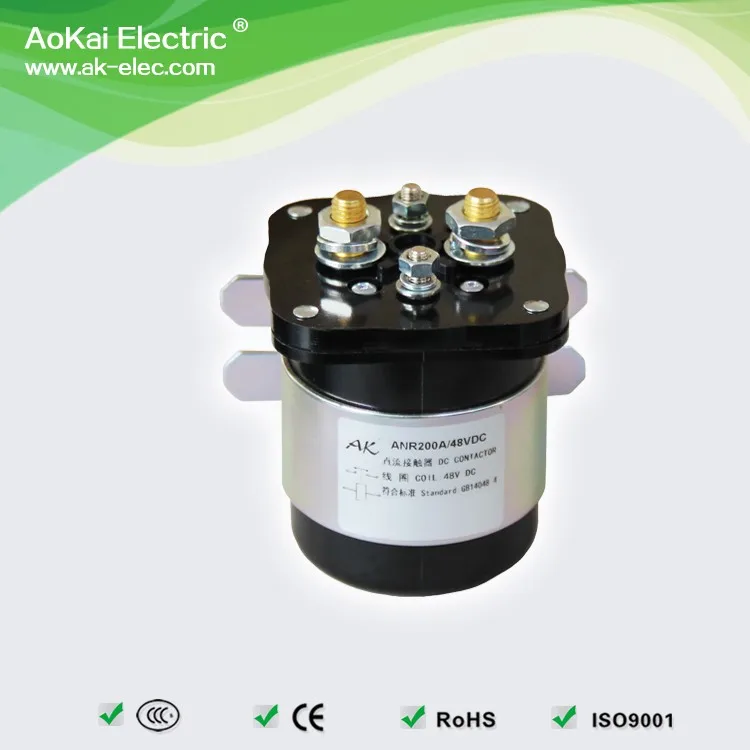

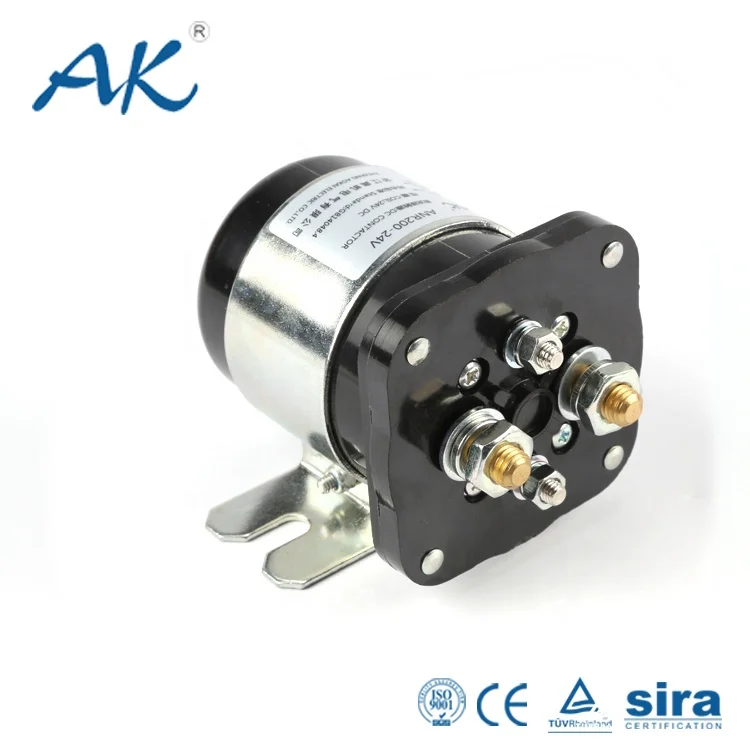

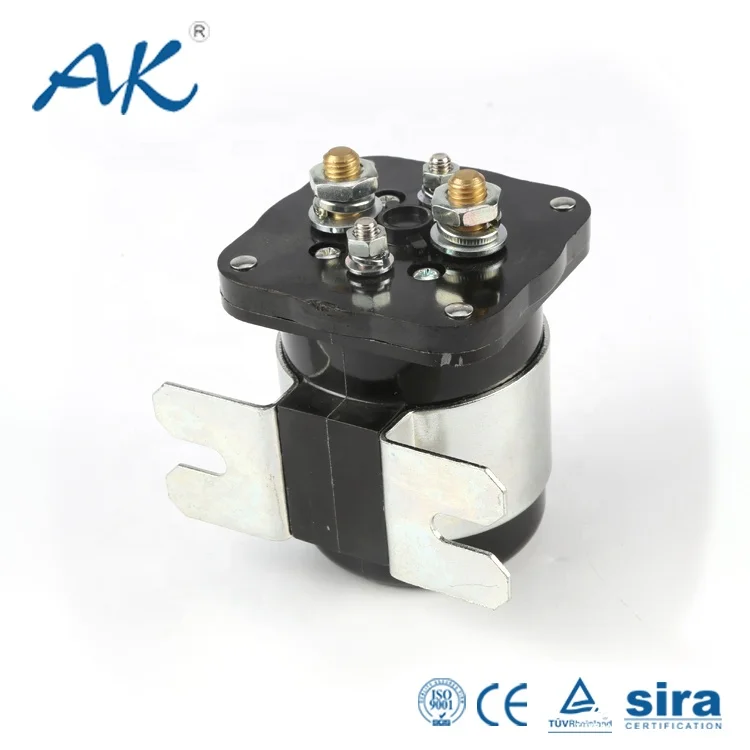

One normally open and one normally close contact dc contactor 12V 24V 200A dc contactor for electric vehicles













         Brand:AK/AoKai





         Name:DC Contactor





         Model: ANR200/500-1Z


         Rated Voltage:DC12/24/48V





         Rated Current:200A





         Dimension:  67.7mm*84.5mm*117mm(max))





         Weight:About 750g












Product Features:1,Colsed waterproof structure; 2,Double contact switch function; 3,Strong ability to resist load; 4,Novel appearance and wide application; 5,Contact Material:AgCdO/AuCuO.
Product Application: The product has one  set of contact switch, is used for auto electric winch, telecommunications equipment, engineering machinery, storage battery, electric forklift trucks, trains, ships, uninterruptible power supply, electric control system, etc.

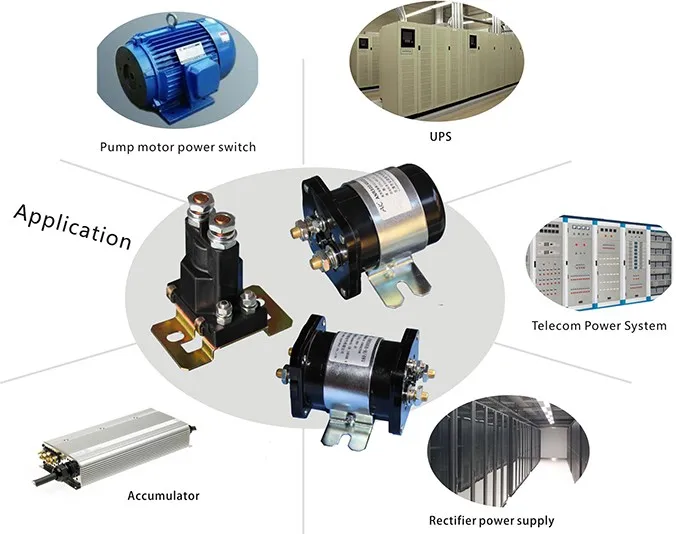

Product Application

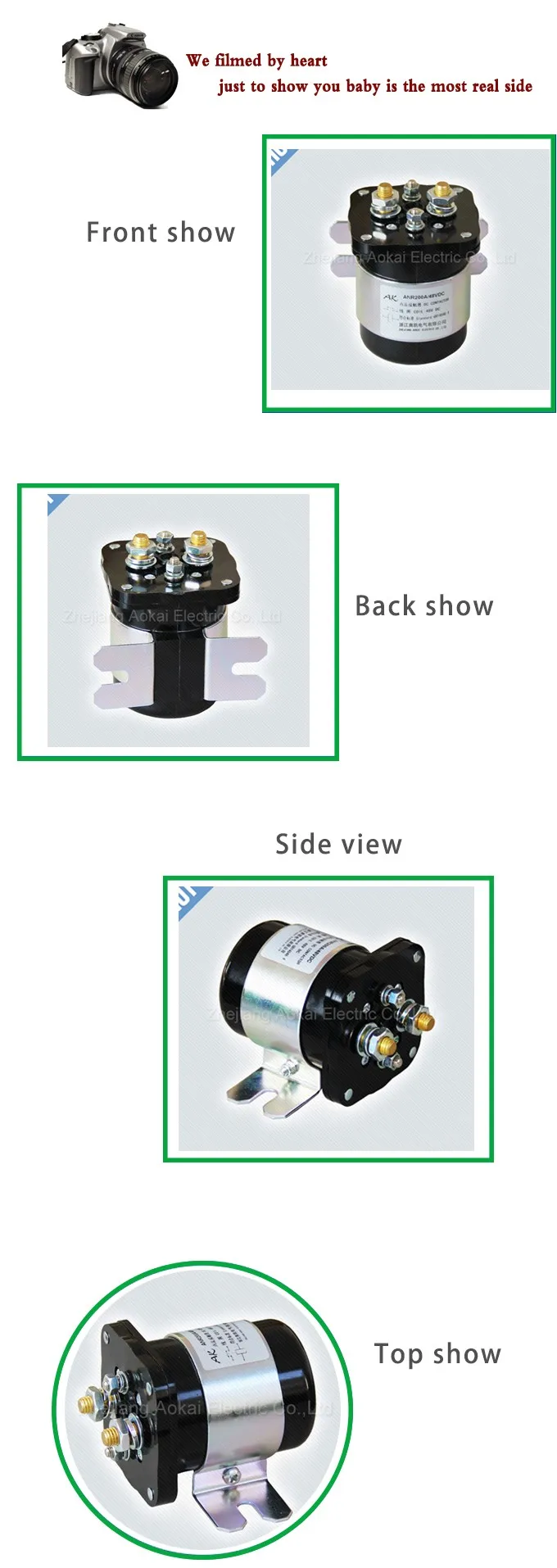

Product Show






Model Implication
























Technical Parameters





















































































Coil rated voltageDC12V,24V,36V,48V
Main circuit rated current(A)Continuous 200A
Main circuit contact voltage drop of(load:100A)

≤80mV


under(20±5℃),cooling pull-in voltage≥70%
under(20±5℃),cooling release voltage≥30%,≤5%
Acceptable fluctuation range of coil voltage±20%
 Electrify ctuation time5ms
 Disconnecting release time20ms
 The max disconnecting time of contacts3ms
 Insulation resistance50MΩ
 Dielectric strength50Hz/60Hz 1000VAC/1min
 Overload current≤7Ie, ≤1s
 Coil consumption(W)≤38.0W
 Electrical lifeContinuous 20000times
 Mechenical life 1 million times
 Working ModeContinuous
 Contacts Type1NO
 Contact MaterialAgCdO/AgCuO
 Auxiliary contact rated load(optional parts) 2A/48VDC, 5A/24VDC
 Refering StandardGB14048.4-2010






Useage Environment





























Altitude≤2KmAmblent temperature-25~+55℃
International protectionIP50Installation typeIII
Way to installAnyVibration2.5g(5~50)Hz
Impact50g,11ms(Half-sine wave)

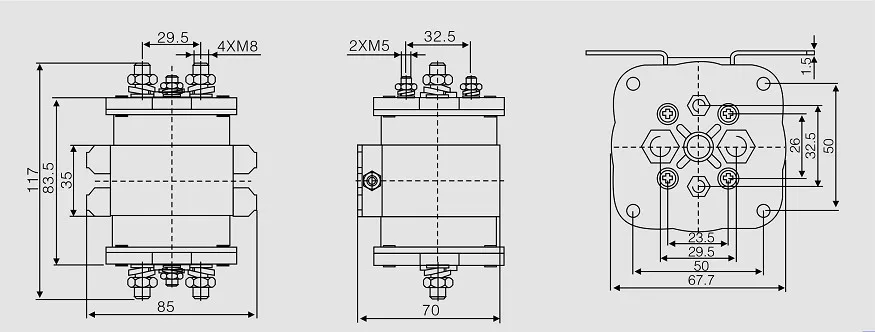

Installation Diagram





 ANR200-1Z 500-1Z

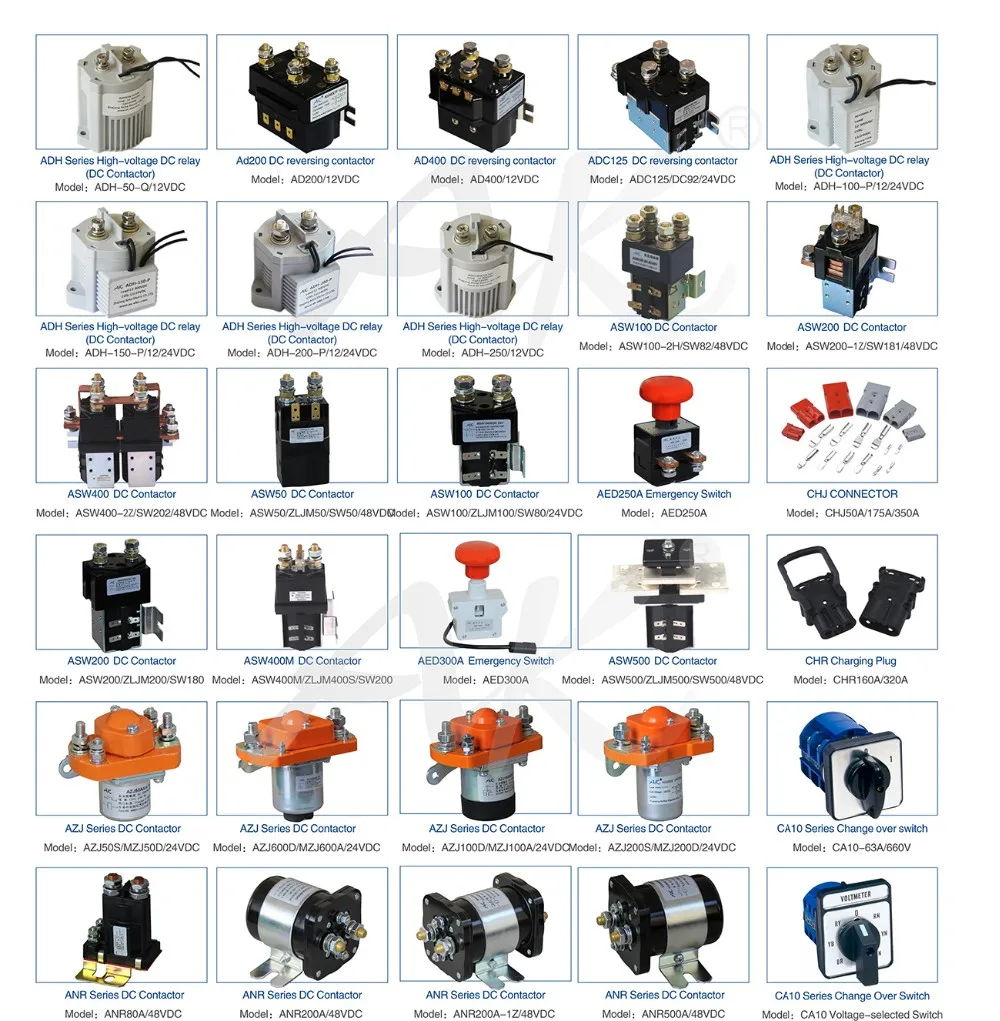

Hot sale products                                                                                                                                             2
