Product Overview

Description



Products Description




KT series drilling rig is the drill and screw air compressor system combined together. the advanced drilling equipment, compact structure, good integrity, mobile convenience.

Energy-saving efficient
Safe environmental protection
Flexible and convenient operation
Stable performance


Feature of integrated drilling rigs:

1. Large displacement of the hydraulic pump directly installed on the engine after force mouth, concise structure reduces the fault source.

2. Large scale range of drill arm system can meet the needs of various working conditions is different, especially to low level hole.

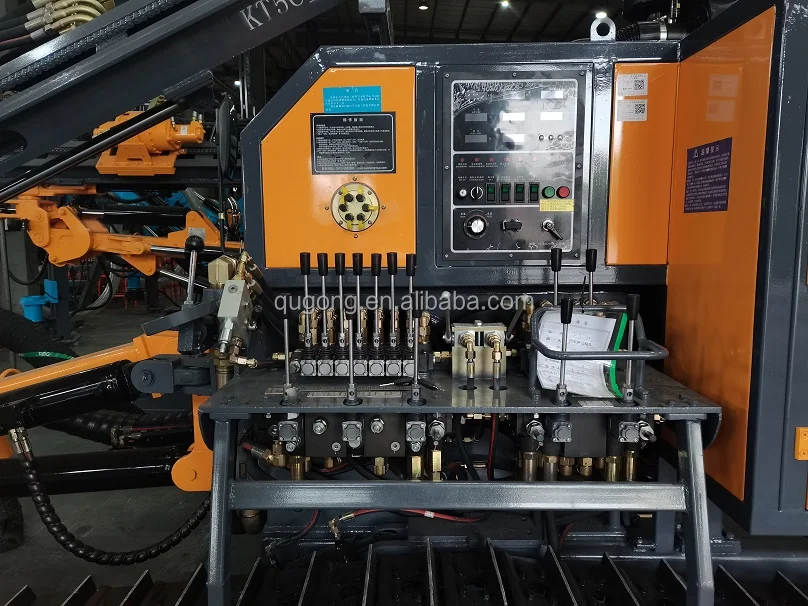

3. Highly integrated hydraulic control system, and arrange centralized operation platform, a workstation can freely control the whole machine.

4. The rotary drill rig configuration to promote fast switching valve, according to the different characteristics and different working conditions, drilling and rock can be adjusted, drilling speed, a high porosity.

5. The machine is equipped with real time monitoring system and the stability of the ego to protect system, accurately reflect and control the working state of the drill rig, exceeds the scope and failure can be automatic stop.

6. Efficient two-stage dry dust collection system, greatly improve the working environment, accord with energy conservation and environmental protection concept.




Product Paramenters


Model
Kaishan KT5C DTH Drilling Rig
Rock rigidity
f=6-20
DIA. of hole
φ80-105mm
Optium drilling depth
25m
Speed of rotary
0-120rpm
Traveling speed
2.5/4.0km/h
Climb ability
30°
Ground clearance
430mm
Sliding carriage pitch angle
Up:54° Down:26°
Sliding carriage swing angle
125°
Lateral horizontal swing angle of carriage
From -15° to +97°
Drill boom(arm) swing angle
R:53° L:15°
Leveling angle of track
Up:10° Down:9°
Diesel engine power
YC6J220-T303(162KW)

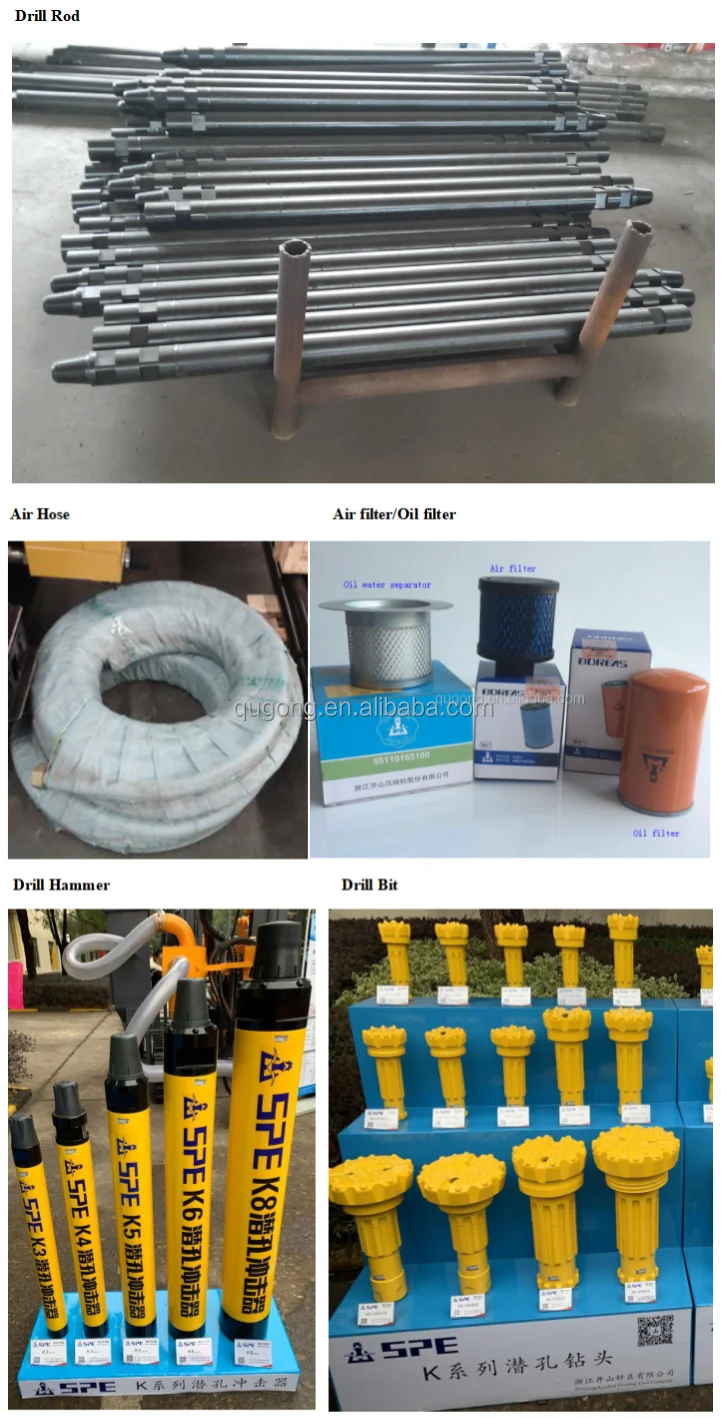

Drilling componments
DTH hammer
M3
Drilling rod
φ64mm*3m
DIA. of bit
φ90-110mm
Rotation torque
1680N.m
Screw Air Compressor
Air delivery
10 m³/min(353CFM)
Working pressure
15 bar(218psi)

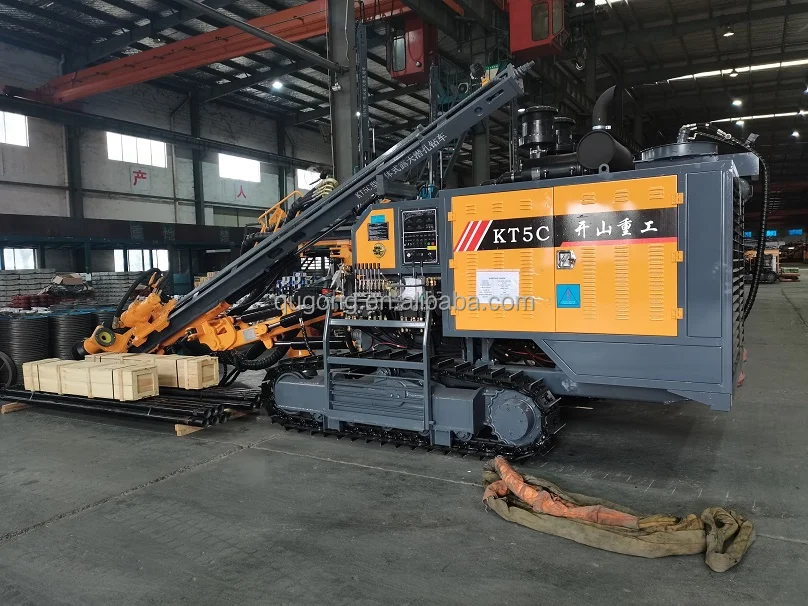

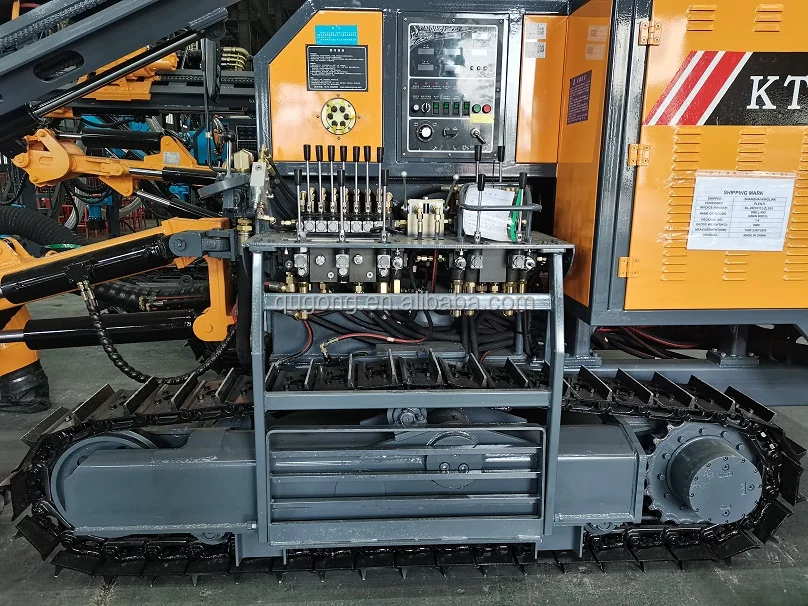

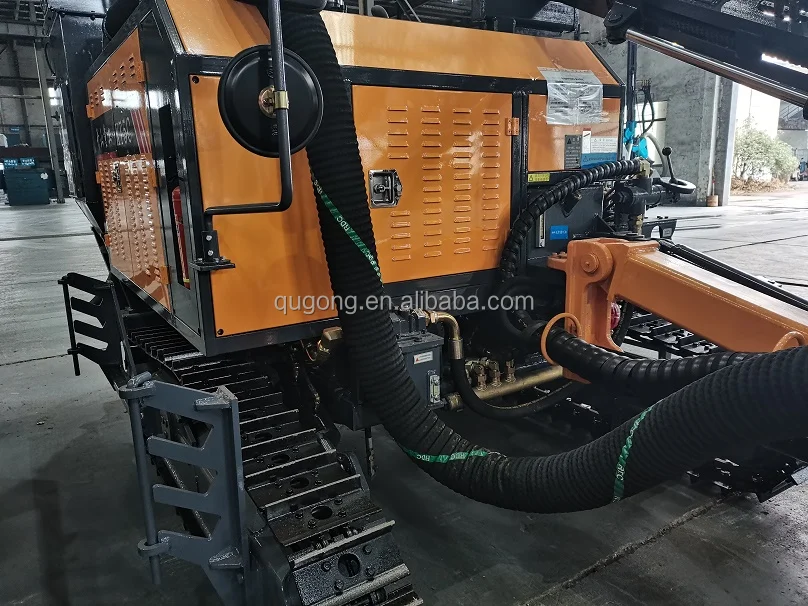

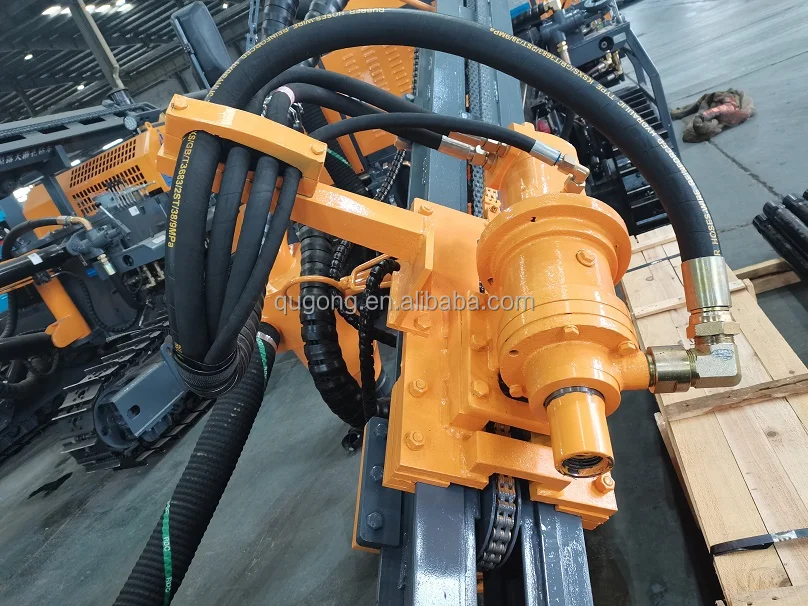

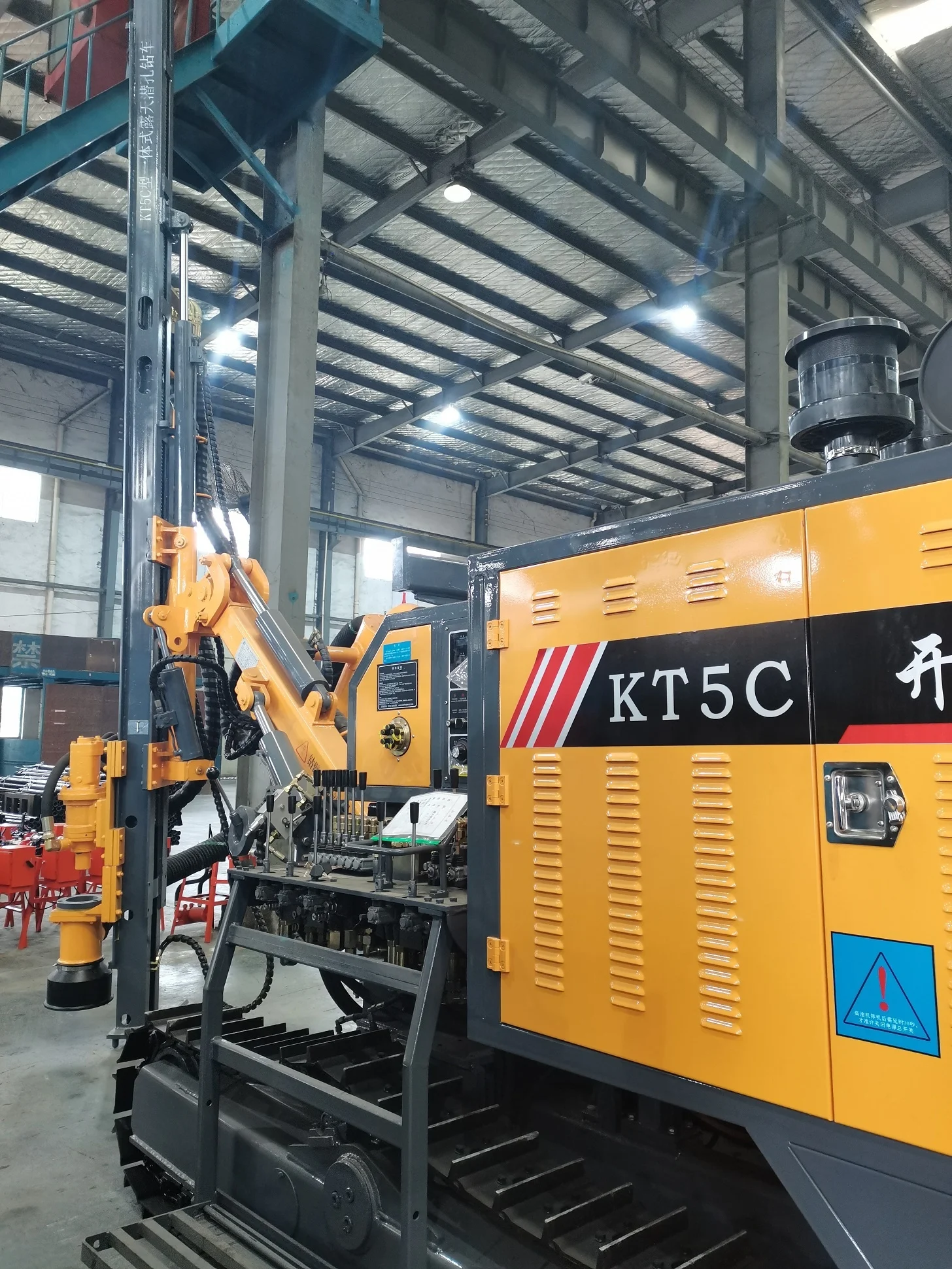

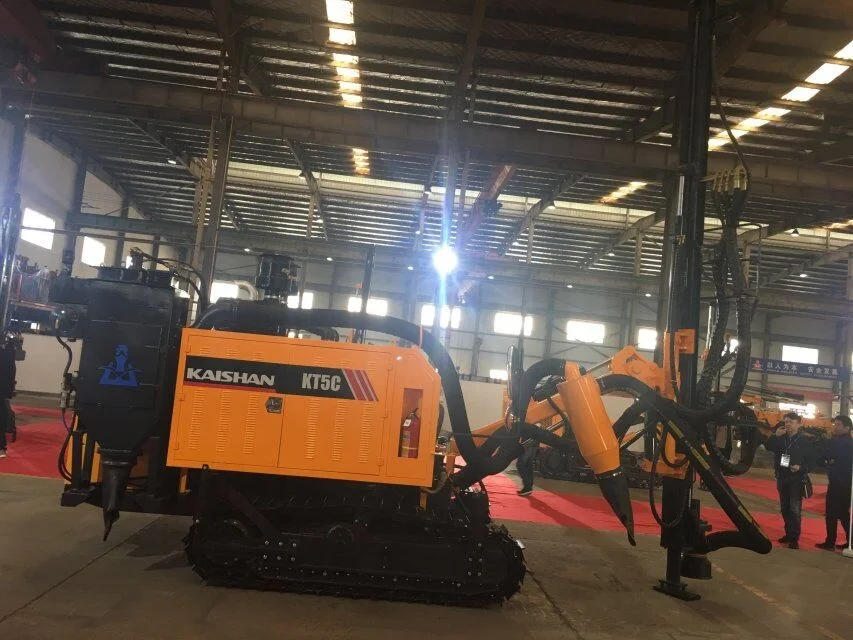

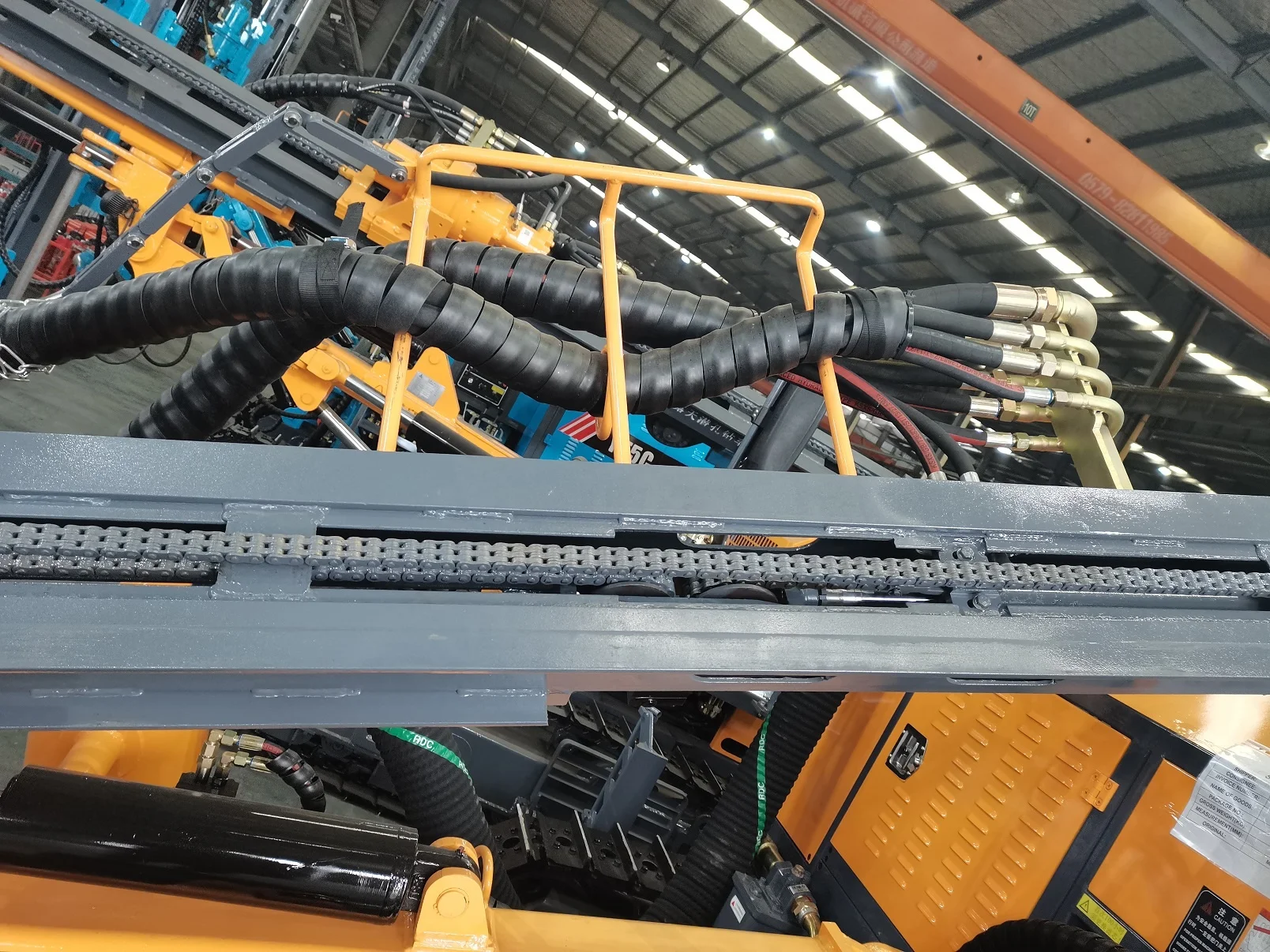

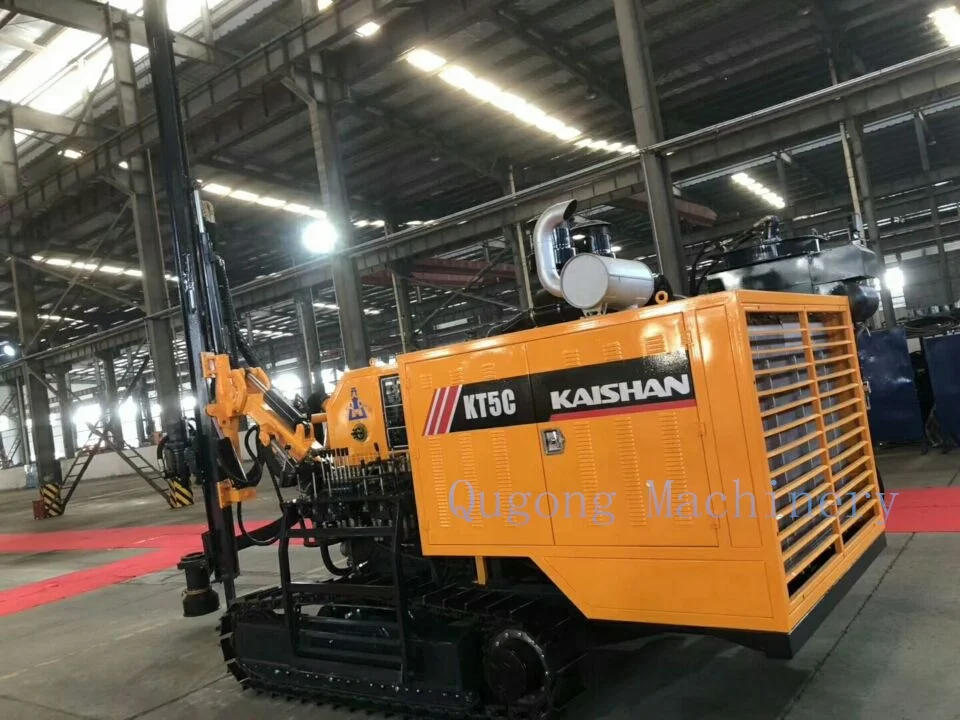

Details Images

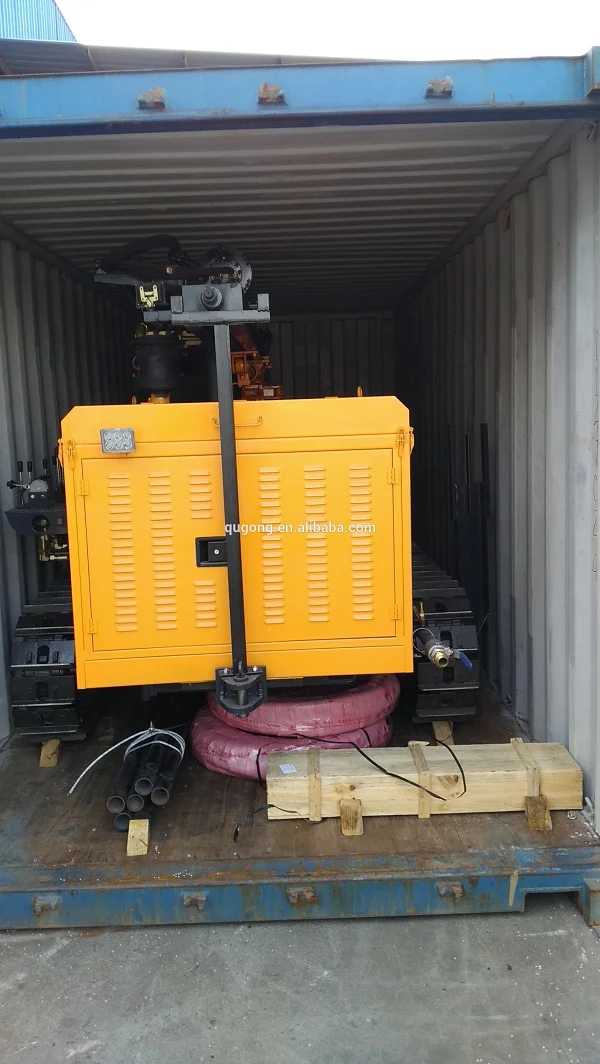

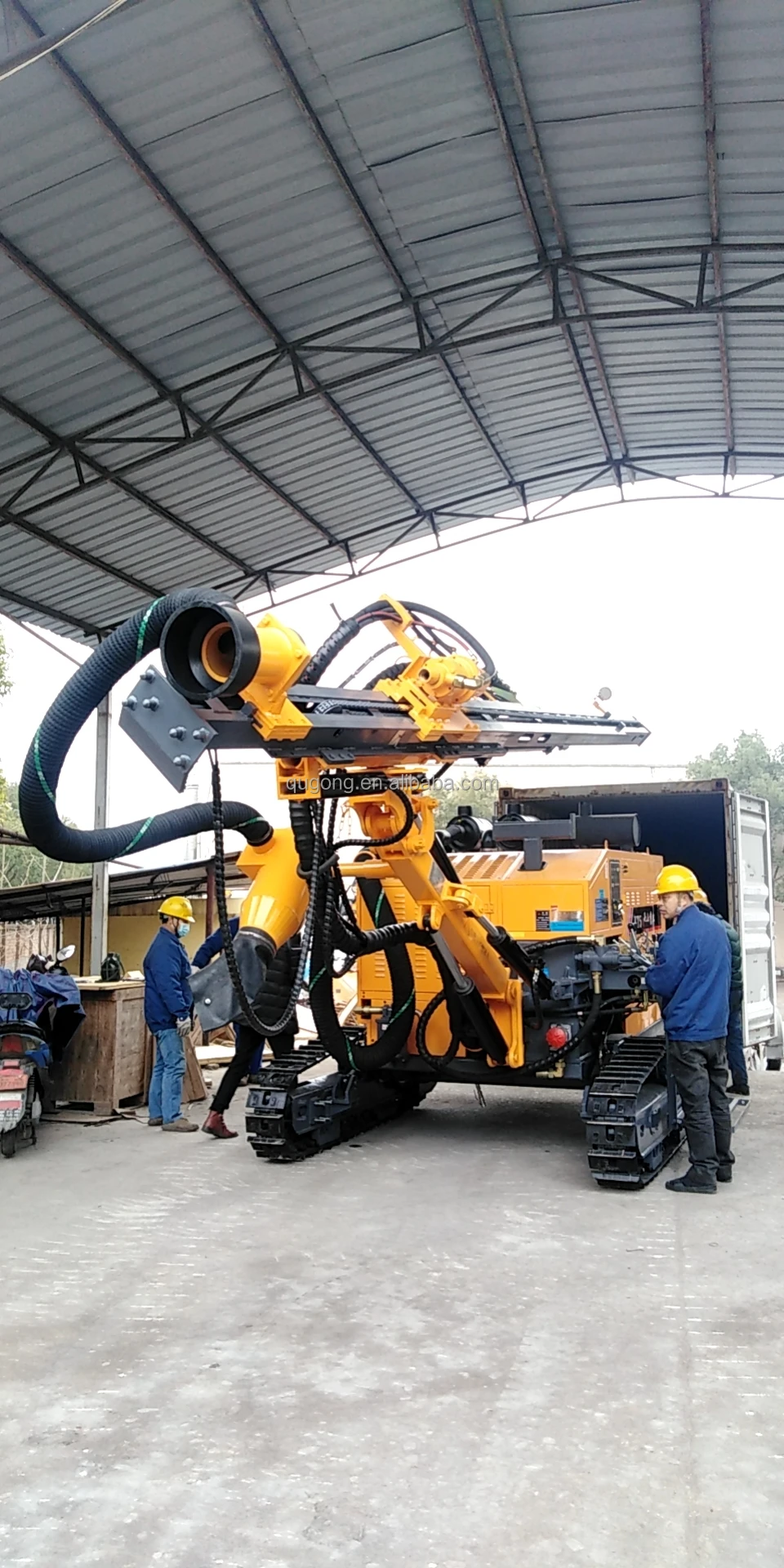

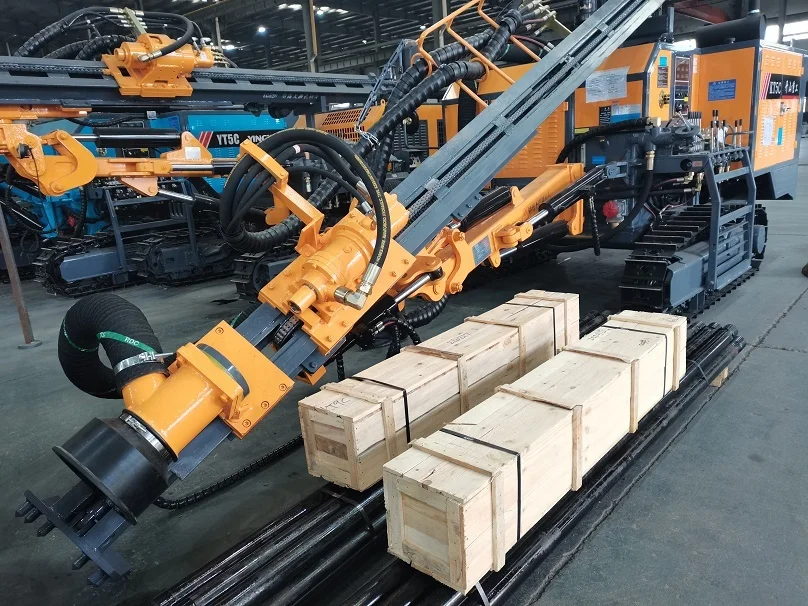

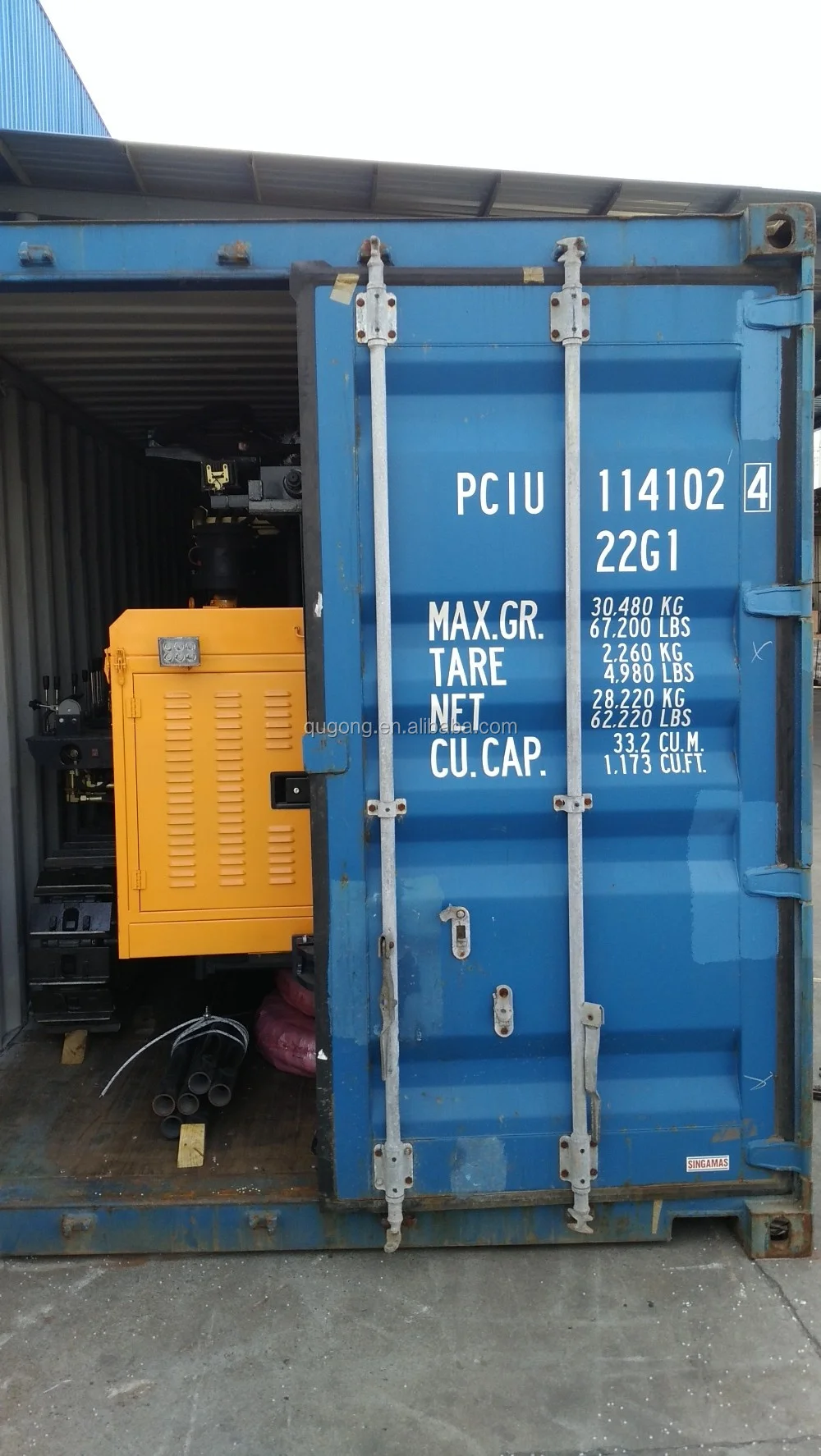

Product packaging

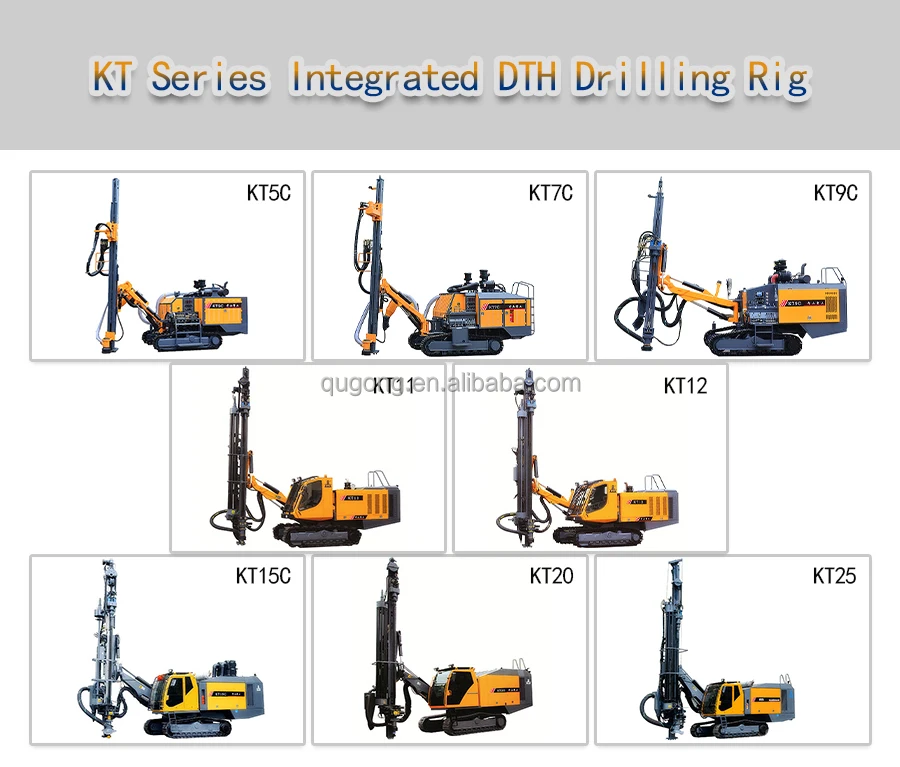

Recommend Products

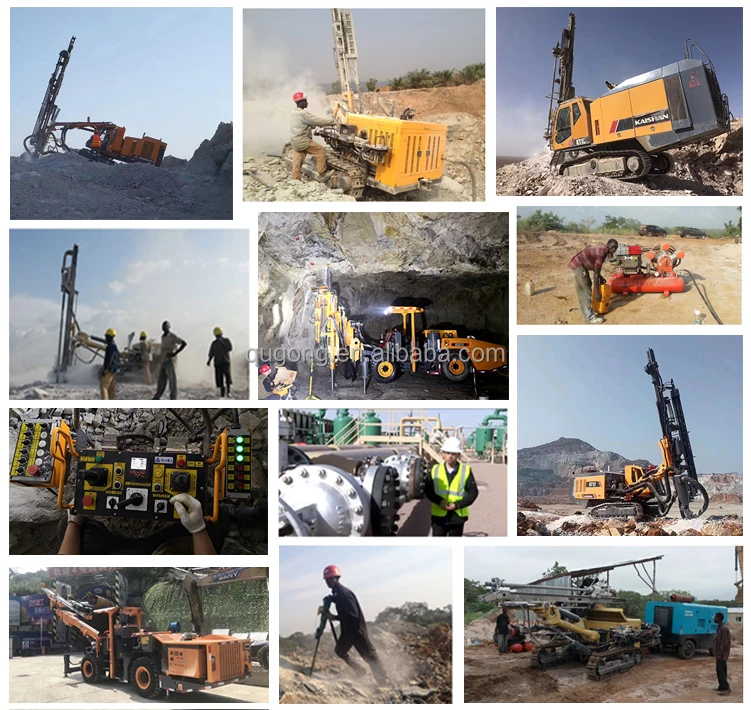

Working Theory

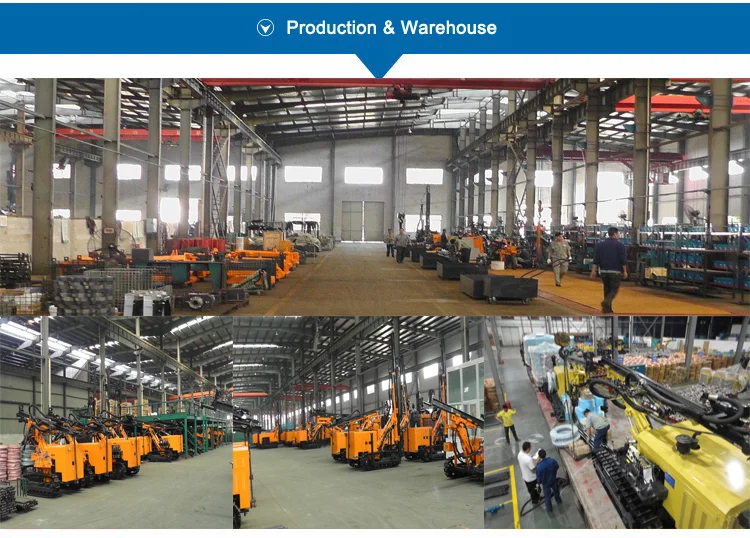

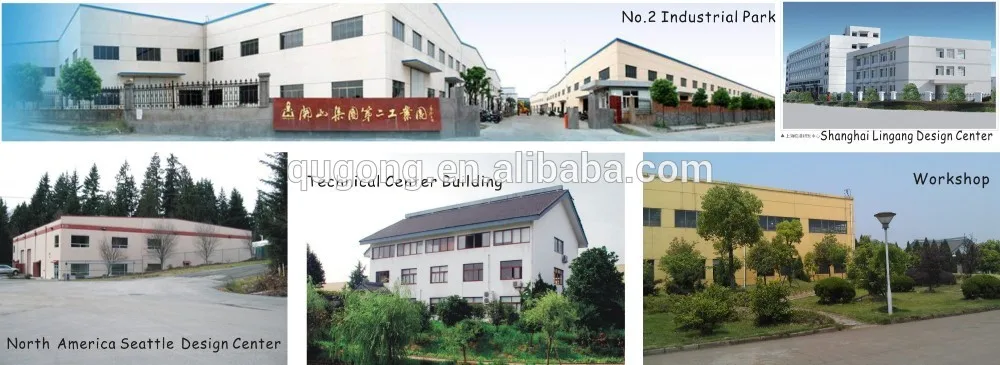

Company Profile
