combination lathe milling machine mill lathe combo machine BHP250V brushless motor Max length is 750mm at discount
- Category: >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (60451502072):
Product Overview
Description
Product Description
Product Application
This machine can turning ,drilling round bar work piece,process out circle ,inner bore ,cutting ,threading ,
drill hole ,reaming ,groove ,mill keyslot ,mill surface ,end face,very popular with small workshop ,development,DIY hobby ,school for training .

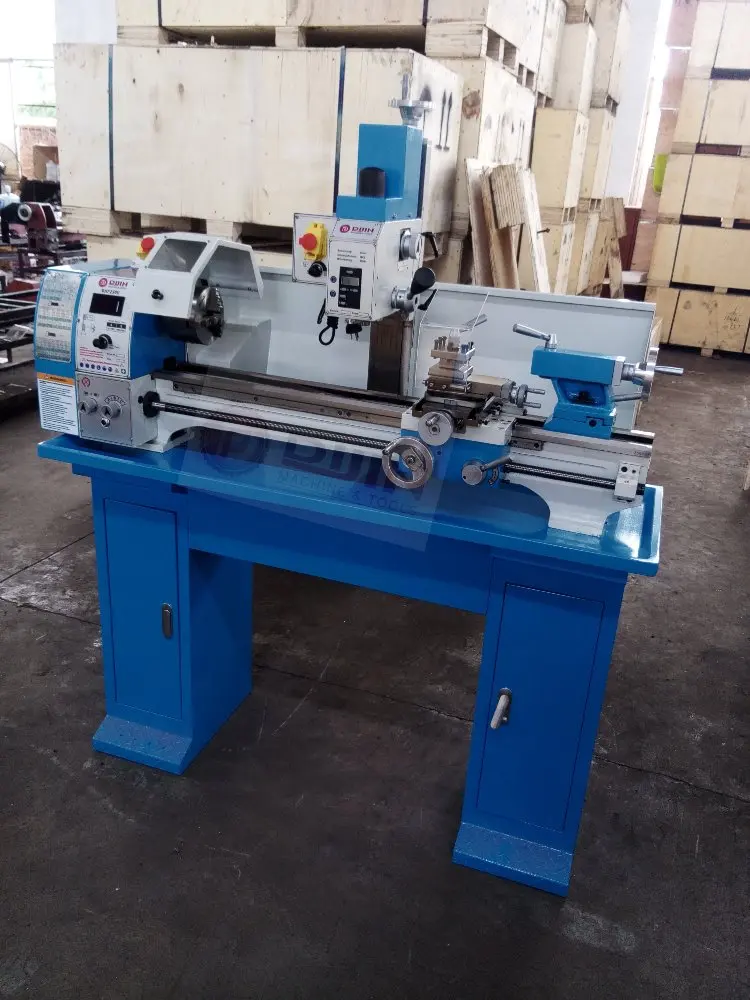

NOTE: Machine stand,Euro quickly change tool post and digital readout are optional accessory ,Not standard part,The website picture just for display purpose .
Model | BHP250V |
Max swing over bed | 250mm |
Max swing over cross slide | 165mm |
Max distance between center | 550/750mm |
Bed of width | 135mm |
Spindle bore | 26mm |
Taper of spindle bore | Mt4 |
Range of spindle | 50-2000rpm |
Slide feed speed | 0.07-0.40mm/r |
Inch threads | 8-56TPI (21kinds) |
Metric threads | 0.2-3.5mm(18kinds) |
Top slide travel | 50mm |
Cross slide of travel | 115mm |
Tail stocks quill travel | 70mm |
Taper of tail stocks quill | Mt2 |
motor | 750W |
Max drill capacity | 16mm |
Max end mill capacity | 16mm |
Max face mill capacity | 50mm |
Taper of spindle | Mt2 |
spindle speed | 50-2250rom |
Vertical travel | 210mm |
T-Slot | 10mm |
Main motor | 500w |
Spindle travel | 50mm |
Overall Packing size | 1400*700*880mm |
Overall Net /gross weight | 200/230kgs |
Main Features
1) Install three jaw chuck guard ,meet CE requirement .
2) Install limited switch inside headstocks ,be safety.
3) Bed surface and mill spindle both super frequency hardening.
4) milling head can tilt +- 90drgree , better to drilling and milling
5) mainl voltage 220V,but also can customised 110V .
Detailed Images
Advantage(1)

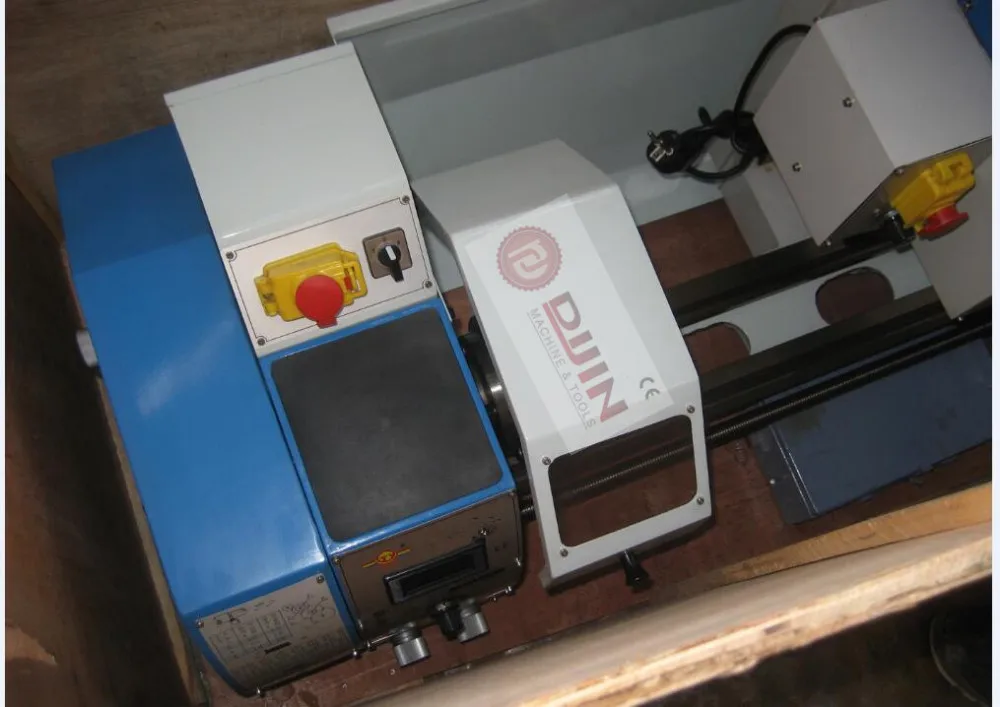

Install three jaw chuck guard ,meet CE requirement.
Install limited switch inside headstocks ,be safety

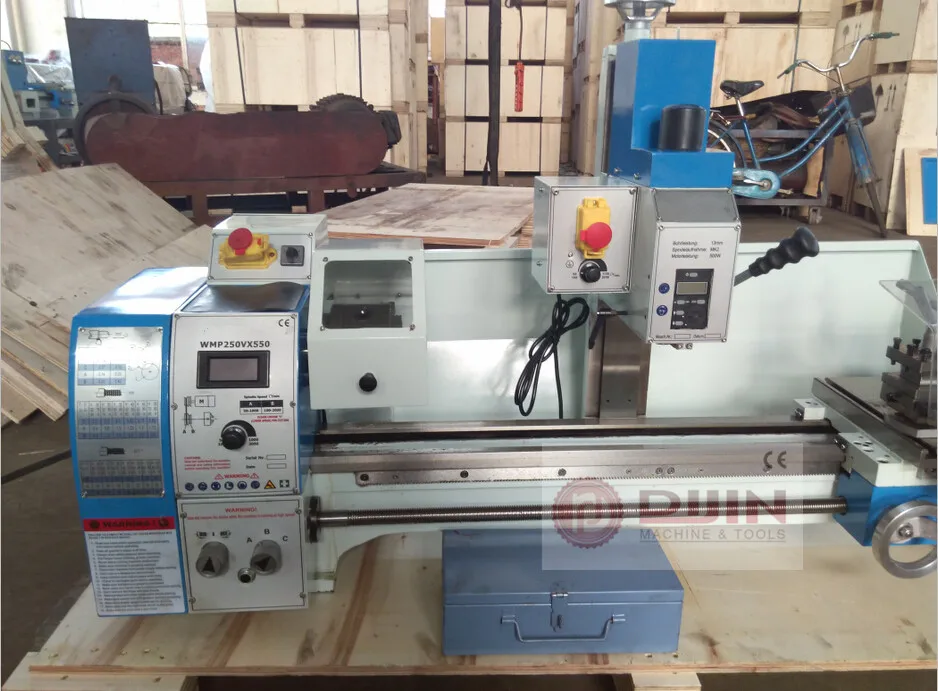

install speed display ,easy to control speed.
Advantage(2)
Milling spindle frequency hardening .
Milling head tilt +-90degree ,free to drilling milling.
Advantage(3)

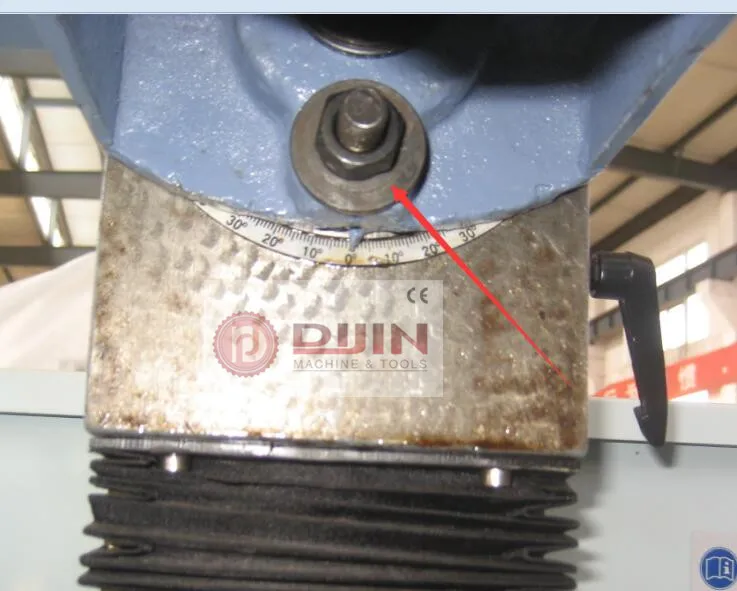

Just loose two bolts ,the milling head can tilt +-90degree .
Advantage(4)

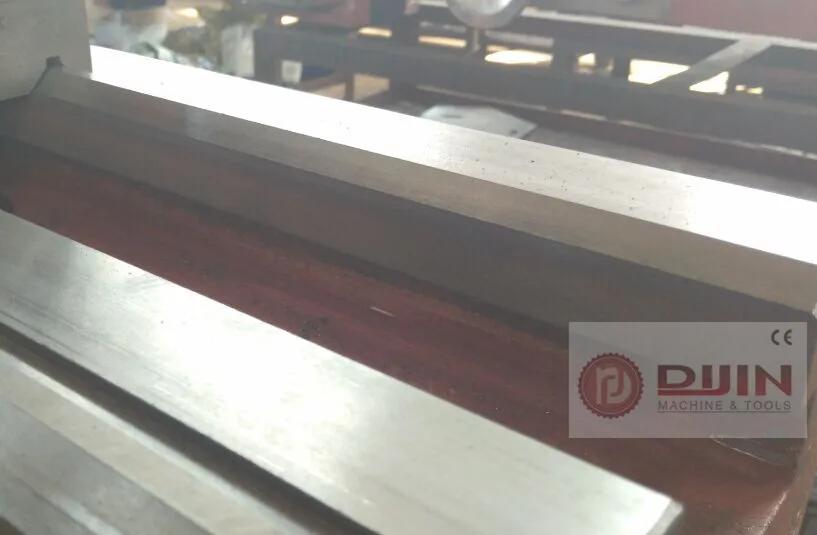

Bed surface super frequency hardening !!!
Packing & Delivery
Packaging | ||
Size | 1150(L) * 560(W) * 570 (D) | |
Weight | 175kgs | |

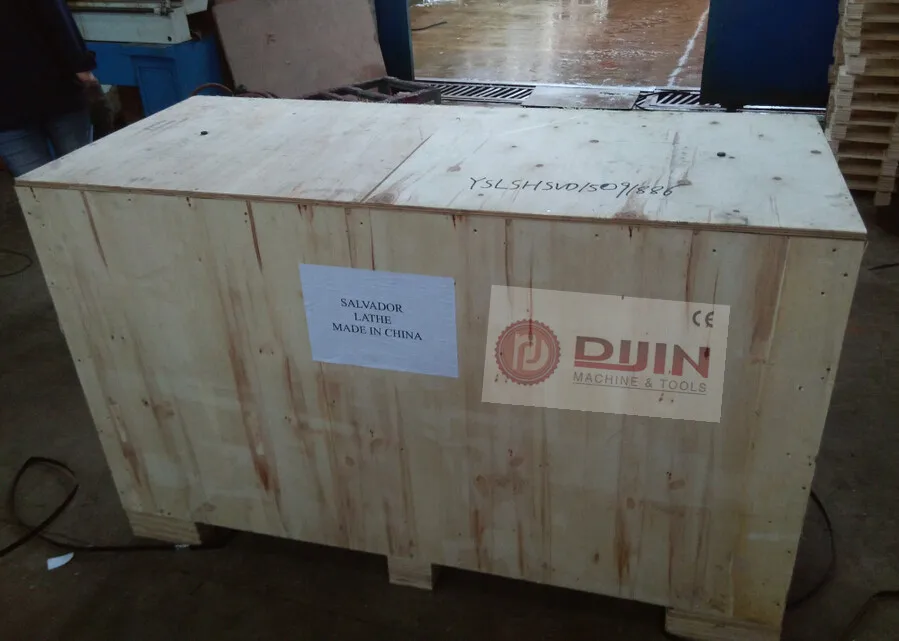

Packaging Details | use three-ply board wooden case , bottom use screw connect machine ,more steady ,put enough foam ,ensure goods safety arrive your home . | |
Packaging | ||
Size | 1150(L) * 560(W) * 570 (D) | |
Weight | 175kgs | |
Packaging Details | use three-ply board wooden case , bottom use screw connect machine ,more steady ,put enough foam ,ensure goods safety arrive your home .use three-ply board wooden case , bottom use screw connect machine ,more steady ,pust enough foam ,ensure goods safety arrive your home . | |
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Free to deliver spare part to you within warranty period.
* Professional engineer teach you if meet problem
* Net price spare part supply to you if over warranty time.
Factory Images
