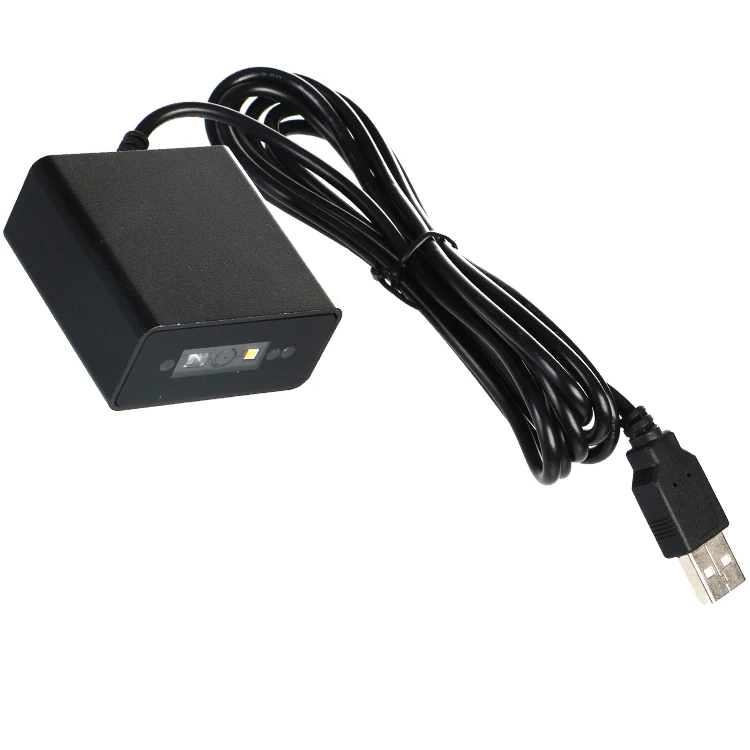

Automatic Fixed Mount Reader 2D QR Code PDF417 United States Driving License Barcode Scanner

Acquisition Performance

Sensor

Image Type,CMOS Sensor 640*480

Acquisition Speed

1/120fps

FOV

Diagonal 54°

Precision

1D ≥ 4mil , 2D ≥ 5mil

Depth of Field

Symbologies

DOF

Code 128 10mil 18bytes (Paper)

60~200mm

Code 128 18bytes (Screen)

60~200mm

QR 10mil 160bytes (Paper)

40~120mm

QR 18bytes (Screen)

50~250mm

Scan Angle

Roll 360°,Pitch ± 55°,Skew ± 55°

Symbologies

Conforms to the international and domestic general 2D code standards:QR Code, Data Matrix, PDF417,Han Xin Code,Dotcode,OCR,etc.

Conforms to the international and domestic general 1D code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5,

Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar,etc.

OCR-A,OCR-B Standard(*Special Version)

Print Contrast

20% minimum reflectance

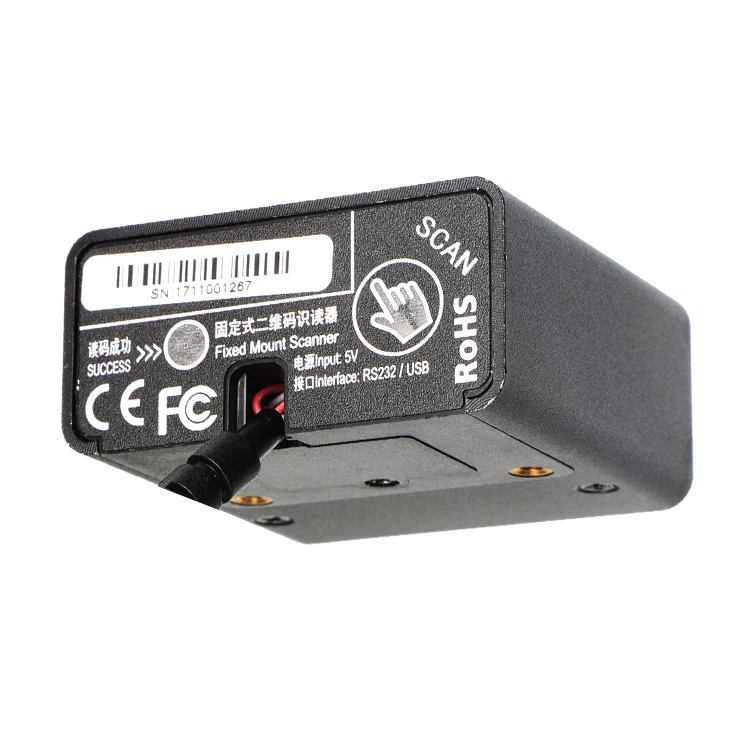

Physical parameters

Size (mm)

(L×W×H)52.5 mm × 52 mm × 25 mm

Weight

53g

Mounting

M3 * 0.5mm threaded inserts 4.0mm.

Interface

Interface

Scanning Mode

Trigger Mode/Command Mode/Sense Mode

Notification

Green LED, Double-LED, Beeper.

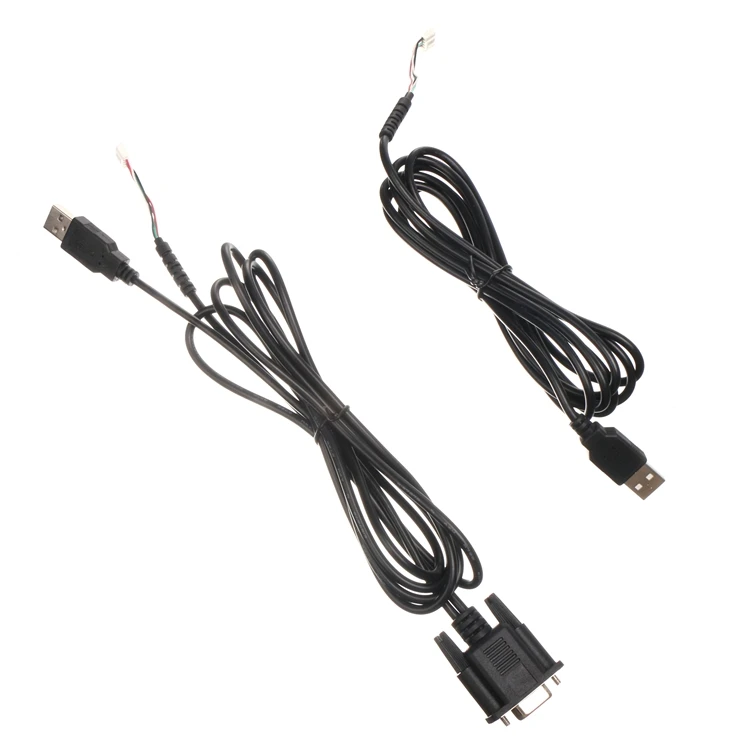

Cable(Customized)

2 meter USB-A cable, 2 meter DB9 cable with USB power supply

Environmental Parameter

Operating Temperature

-30℃ ~ 70℃

Storage Temperature

-40℃ ~ 80℃

Humidity

5% ~ 95% RH (non-condensing)

Ambient Light

Max.100,000 Lux

Electrical Parameter

Input Voltage

3-3.6V or 3.6-16V

Operating Current

<190mA(3.3V Input),<150mA(5V Input)

Standby Current

< 5mA (Trigger Mode)
