Lab fluidized bed reactor with borosilicate lab glassware and surface

Product Overview

Description

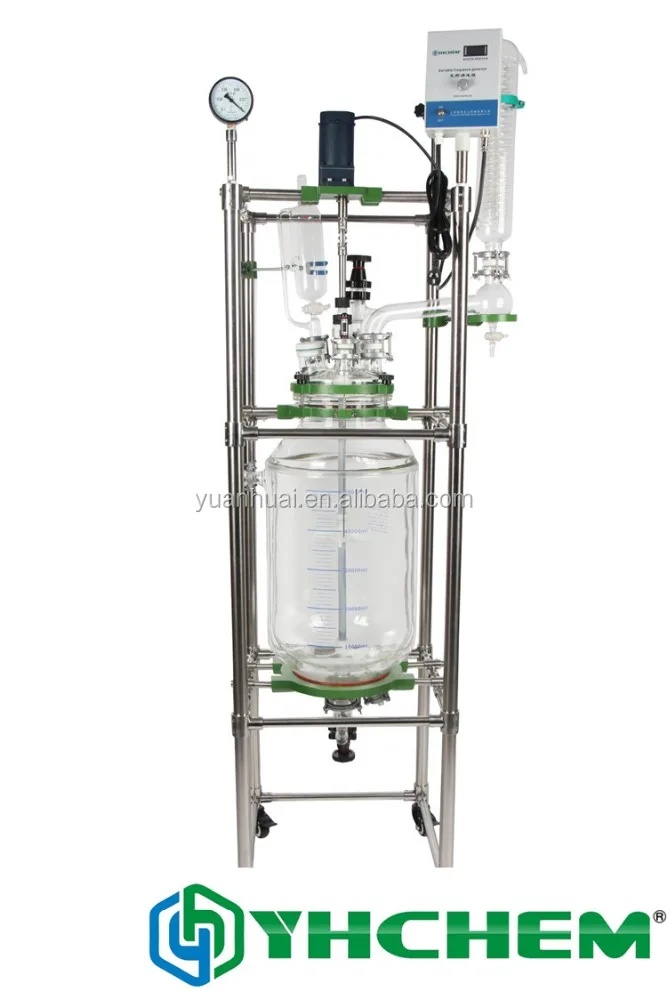

Lab fluidized bed reactor with borosilicate lab glassware and surface  (JGR50A)



JGR series jacketed glass reactors have been widely used in chemical reaction, combination, separation and concentration. Different heating or cooling liquids, such as water or oil, can be injected in the interlayer of the  industrial jacketed glass reactor for providing a constant temperature for reactions. It also can provide excellent mixing in the lab reaction kettle under atmospheric or sub-atmospheric pressure. The transparent glass structure can be helpful to monitor the complete reaction.



Features of the fluidized bed reactor (JGR50A) :

- High quality Borosilicate Glass 3.3 with excellent physical and chemical properties

- Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.

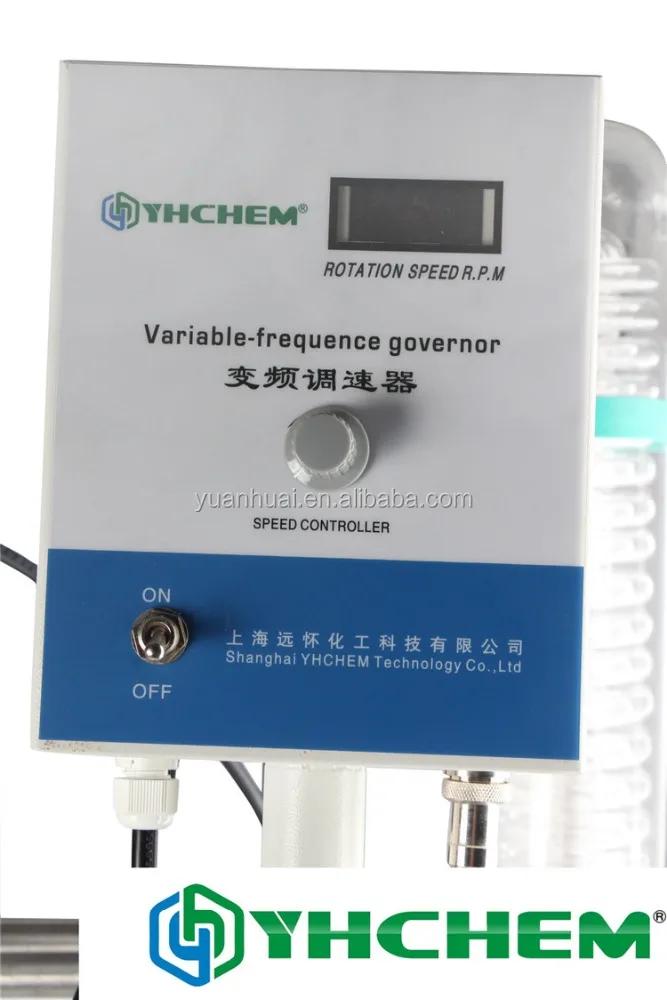

- Frequency-conversion stirring system + PTFE seal & bearing system

- Digital display and control

- Easy-to-install modular design for exceptional ease and low cost of maintenance







Attention here:  YHCHEM is a professional chemical and phramaceutical equipment manufacturer and we can produce customized chemical reactor as per clients' required specifications. YHCHEM is also dedicated to provide the best product solution for clients' lab or pilot scale experiment.

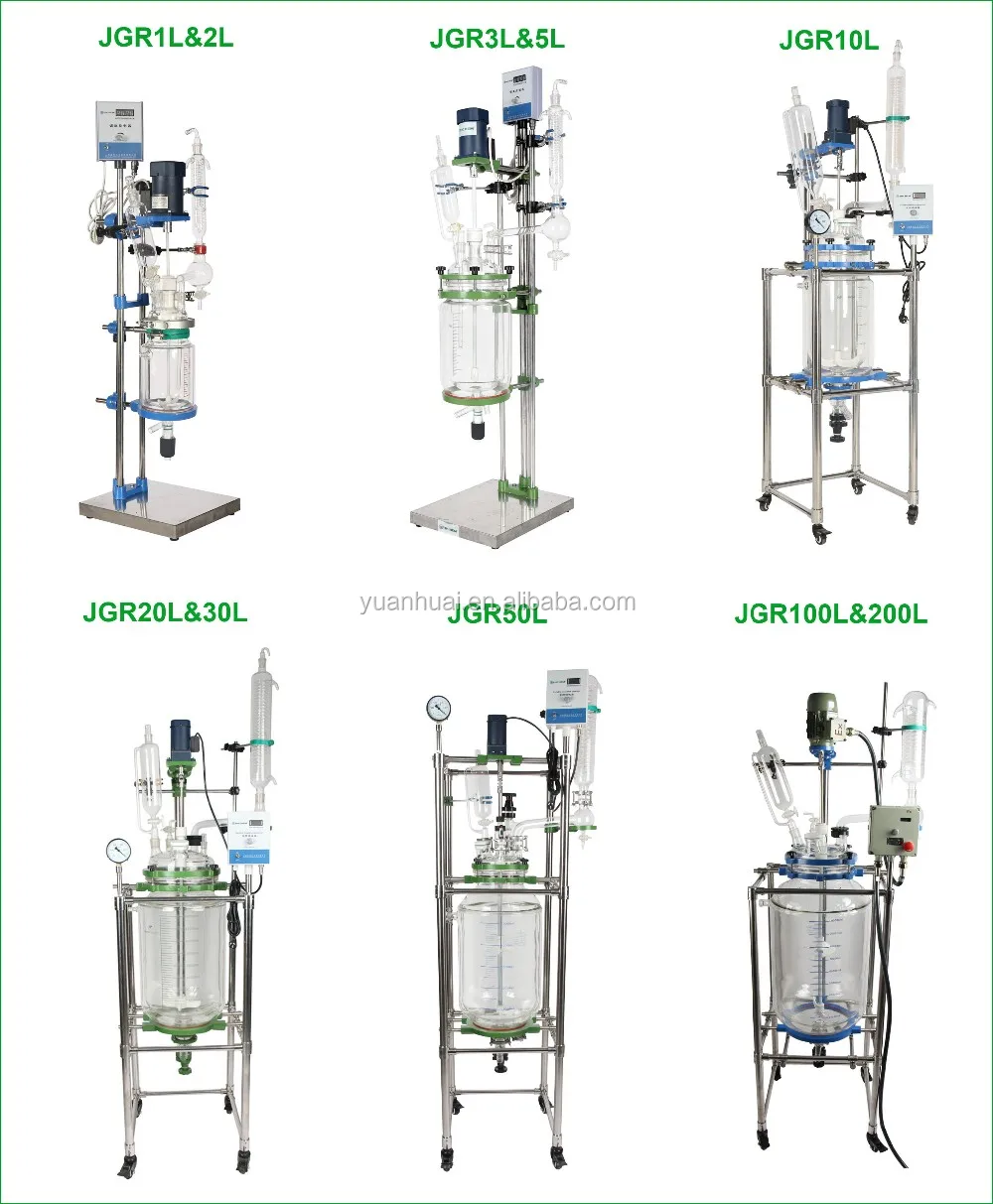

Specifications of fluidized bed reactor (JGR series):

Model	JGR10L	JGR20L	JGR30L	JGR50L	JGR100L	JGR200L
Volume(L)	10L	20L	30L	50L	100L	200L
Neck No. On Lid	6	6	6	6	6	6
Max. torque(N.cm)	250	250	250	250	400	550
Jacket Volume(L)	3	6	10	16	30	60
Stirring power(W)	120	120	120	120	200	750
Rotating speed(rpm)	0~680
Power supply	220V/ 50-60HZ (110V)

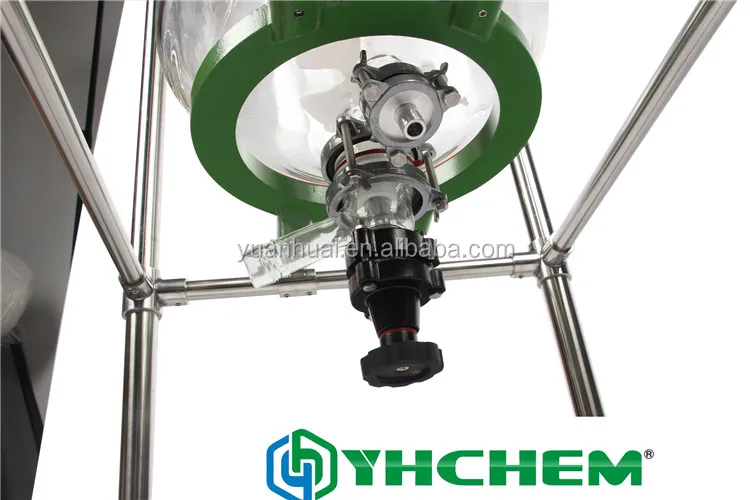

Discharge	PTFE Bottom Discharge Valve
Working Temp range	-60 to 200°C

 * Volume can be customized from 1L-200L

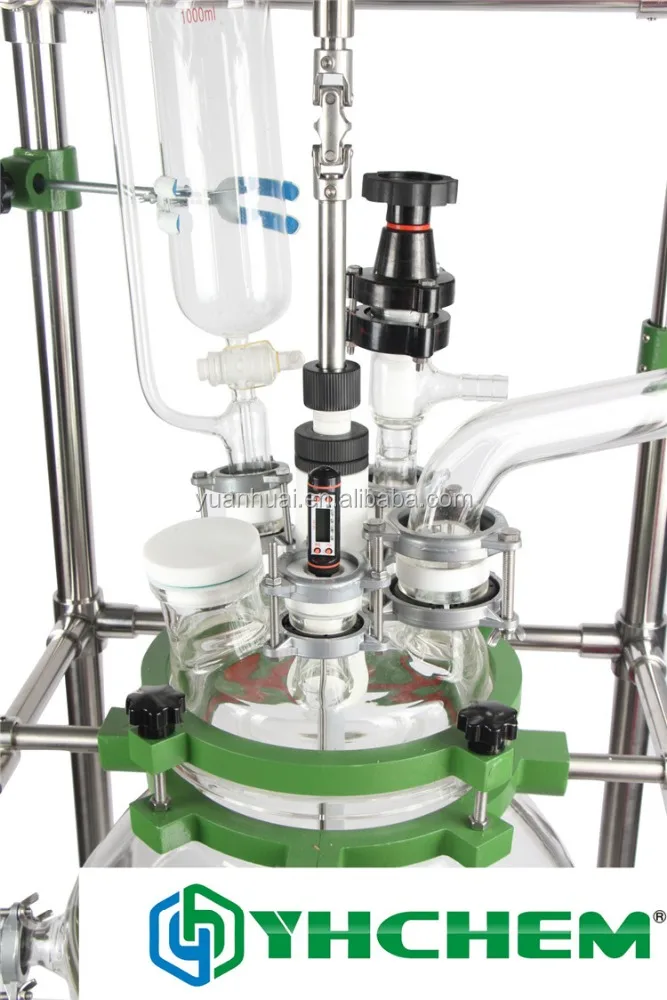

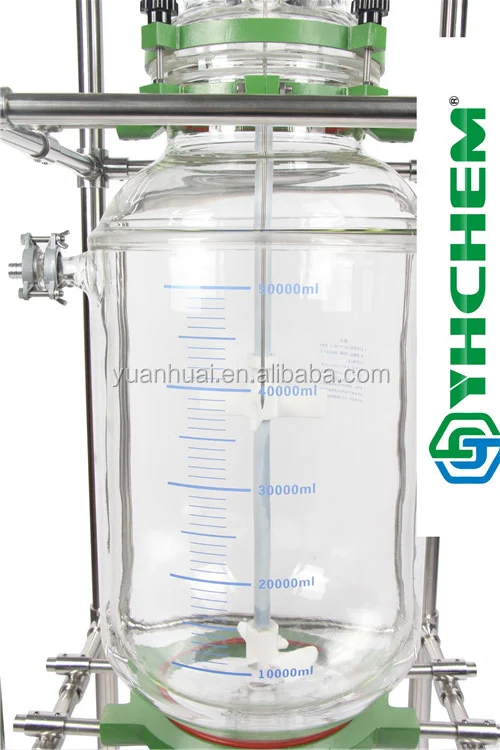

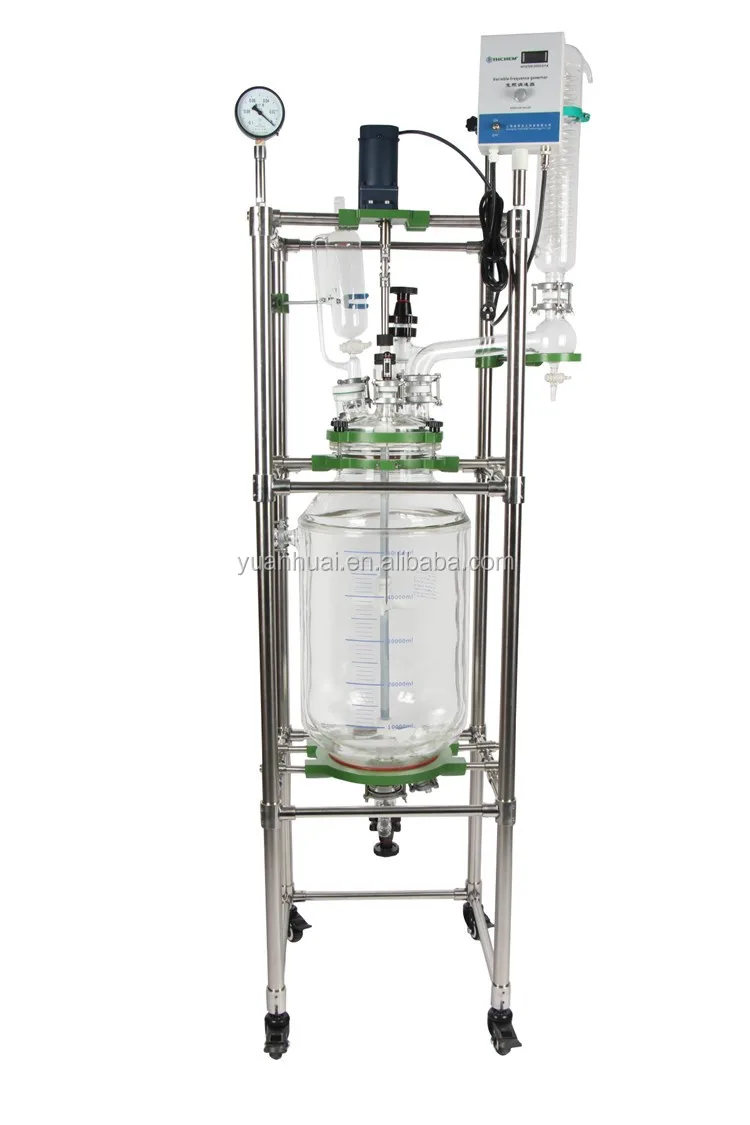

  Detail display of the fluidized bed reactor (JGR50A) :
