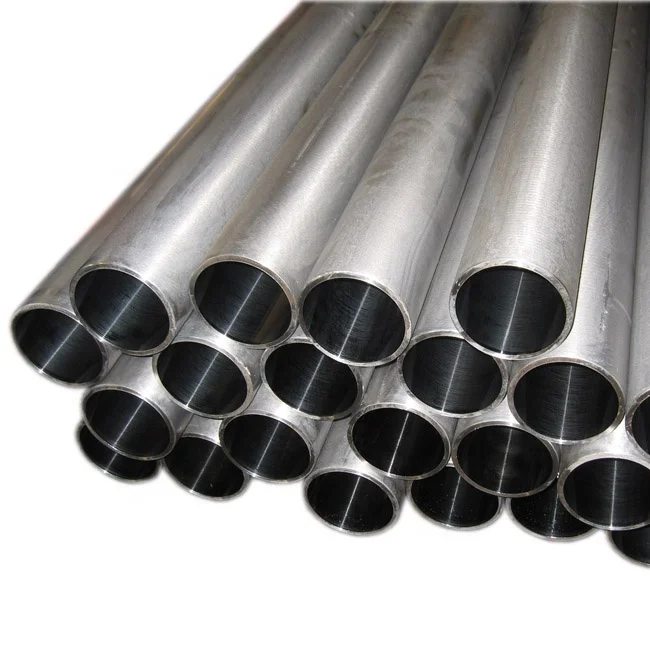

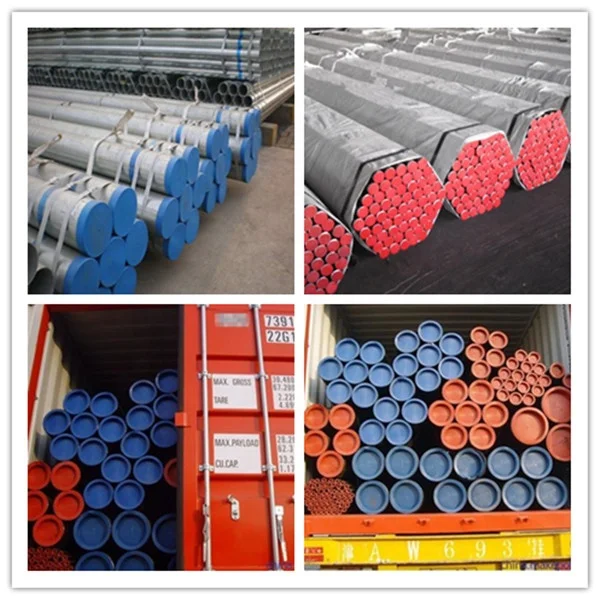

Good Quality Seamless Honed Tubing St52.3 SRB CDS DOM steel pipe
- Category: >>>
- Supplier: Yantai Xinpeng Steel Pipe Co. Ltd.
Share on (60452292267):
Product Overview
Description
Product Information
Cold Drawn Tube/Cold Rolled Tube
Cold Drawn Steel Tube, or Cold Rolled Steel Tube, usually help us to change the size of seamless pipe material.
Material such as ASTM A53, A106, CK45, S45C, E355, ST52, STKM11A, STKM13A, STKM13C, SAE4140, AISI1020,1045 and so on.
Material such as ASTM A53, A106, CK45, S45C, E355, ST52, STKM11A, STKM13A, STKM13C, SAE4140, AISI1020,1045 and so on.
Honed Tube
Equipped with saws CNC skived and roller burnished machine, we can do honing or SRB on inner tube.
Tolerance can up to H8, H9,
Inner roughness: Ra0.4micron(max)
Straightness: 1:1000 or as customized
Usage: can be used for main body of hydraulic cylinder directly or other hydraulic parts
Tolerance can up to H8, H9,
Inner roughness: Ra0.4micron(max)
Straightness: 1:1000 or as customized
Usage: can be used for main body of hydraulic cylinder directly or other hydraulic parts
Polished Tube
Roughness of OD: 0.8-1.6um
Straightness: 1:1000 or as customized
Product Type: | |
Material: | Carbon Round Steel Tube |
Outer Diameter: | 30-250mm |
Wall Thickness: | 3-20mm |
Material Grade: | ST52,E355,CK45,A106,A53,SKTM11A,STKM13A,STKM13C,S45C,and so on |
Delivery Condition: | BK/BKS/GBK/NBK |
Delivery time: | within 20-30 days after receiving prpayment |
Trade Terms: | FOB Yantai, Qingdao or any other China main port |

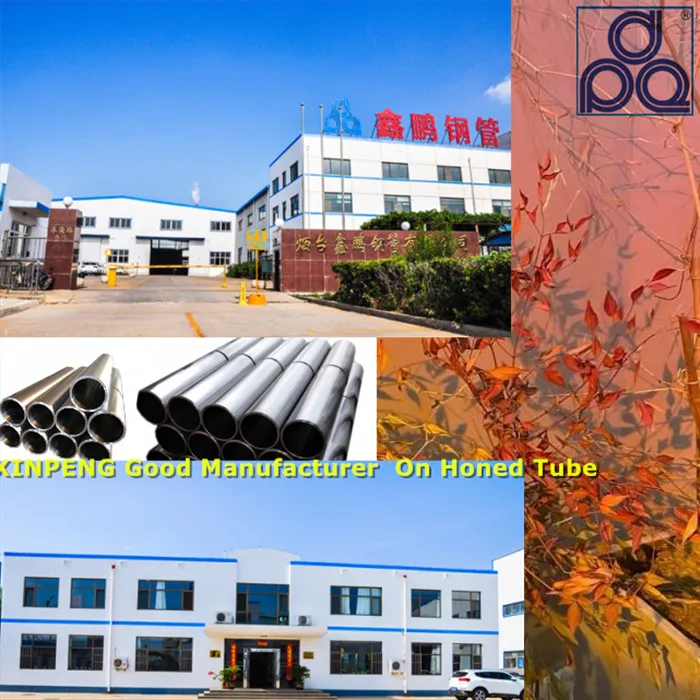

Company Information
Good manufacturer on cylinder Tube
Welcome~
We are Yantai Xinpeng Steel Pipe Co.,Ltd
♦ Professional Cylinder tube manufacturer which have over 20years experience
♦High reputation we have got from all over the world.
♦ Supply all kinds of steel pipes such as:
√ hot rolled/cold drawn seamless steel pipes
√ honed and SRB pipes for hydraulic cylinder
√ Cold drawn welded tubes (DOM tubes)
√ we can manufacture many standard steel tubes.
♦ Our Website: //www.yt-xinpeng.com
We are Yantai Xinpeng Steel Pipe Co.,Ltd
♦ Professional Cylinder tube manufacturer which have over 20years experience
♦High reputation we have got from all over the world.
♦ Supply all kinds of steel pipes such as:
√ hot rolled/cold drawn seamless steel pipes
√ honed and SRB pipes for hydraulic cylinder
√ Cold drawn welded tubes (DOM tubes)
√ we can manufacture many standard steel tubes.
♦ Our Website: //www.yt-xinpeng.com
OUR PROCESS
Technology Parameter
OD | GB/T3639 | DIN2391 (EN10305) | Our Tolerance | Best Quality | ||||||
31-40mm | ±0.15mm | ±0.15mm | ±0.05mm | ±0.03mm | ||||||
41-50mm | ±0.20mm | ±0.20mm | ±0.05mm | ±0.03mm | ||||||
51-60mm | ±0.25mm | ±0.25mm | ±0.08mm | ±0.03mm | ||||||
61-70mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm | ||||||
71-160mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm | ||||||
160mm-230mm | ±0.50mm | ±0.50mm | ±0.40mm | |||||||
Tolerance in WT | ±0.12mm | ±0.10mm | ±0.05mm | ±0.03mm | ||||||
PROCESS | ||||||||||
Process | Diameter | Length | ||||||||
Cold Rolled | 30-100mm | ≤10 m | ||||||||
Cold Draw | 30-250mm | ≤10 m | ||||||||
Honing | 40-500mm | ≤10 m | ||||||||
Skived burnished | 40-400mm | ≤76m | ||||||||
HONED OR SRB TUBE TOLERANCE | ||||||||||
Inner Diameter | H8 | H9 | H10 | |||||||
30mm | ±0.033 | ±0.052 | ±0.084 | 5-30mm | ||||||
30-50mm | ±0.039 | ±0.062 | ±0.100 | ±0.080 | ||||||
50-80mm | ±0.046 | ±0.074 | ±0.120 | |||||||
80-120mm | ±0.054 | ±0.087 | ±0.140 | |||||||
120-180mm | ±0.063 | ±0.100 | ±0.160 | |||||||
180-250mm | ±0.072 | ±0.115 | ±0.185 | |||||||
250-315mm | ±0.081 | ±0.130 | ±0.210 | |||||||

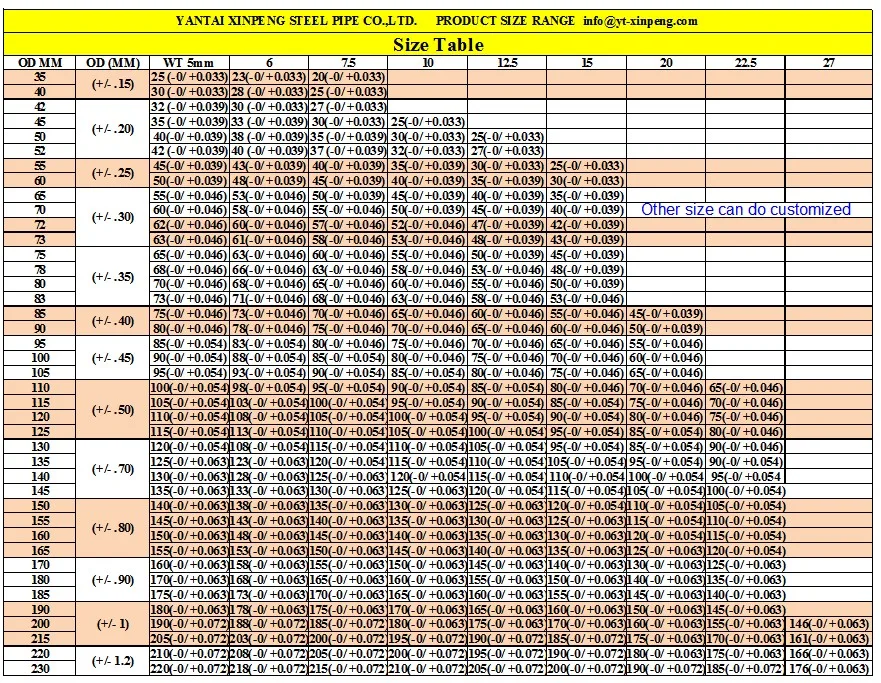

SIZE OF XINPENG
Application
Widely used in hydraulic system ,injection molding machine, hydraulic press, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, military industry, diesel engine, the internal combustion engine, air compressor, construction machinery, forestry machinery, etc.
Customer Photos
FAQ
1. How many employees in your company? More than50 people.
2Could you produce the cylinder according to our request?
Yes, we could design the cylinder according to your request or your drawing.
3 What's your main export market?
Middle East, Africa, Southeast Asia, European and South America
4. What’s your leadingtime?
About 10days to 25days after payment
5. What is your MOQ?
3-5tons start on each specification.
6. Can you sent samples?
Yes we can, the freight need to stand by customer.
Any need or request, please feel free to contact us!
2Could you produce the cylinder according to our request?
Yes, we could design the cylinder according to your request or your drawing.
3 What's your main export market?
Middle East, Africa, Southeast Asia, European and South America
4. What’s your leadingtime?
About 10days to 25days after payment
5. What is your MOQ?
3-5tons start on each specification.
6. Can you sent samples?
Yes we can, the freight need to stand by customer.
Any need or request, please feel free to contact us!
