  • Adapter Cul 12 V 4a 48w Led Driver 48 Watt Transformador Ac 240v Dc 12v 4.2a Kc Transformer 12 Volts 4.2 Amps Dc Power Supply

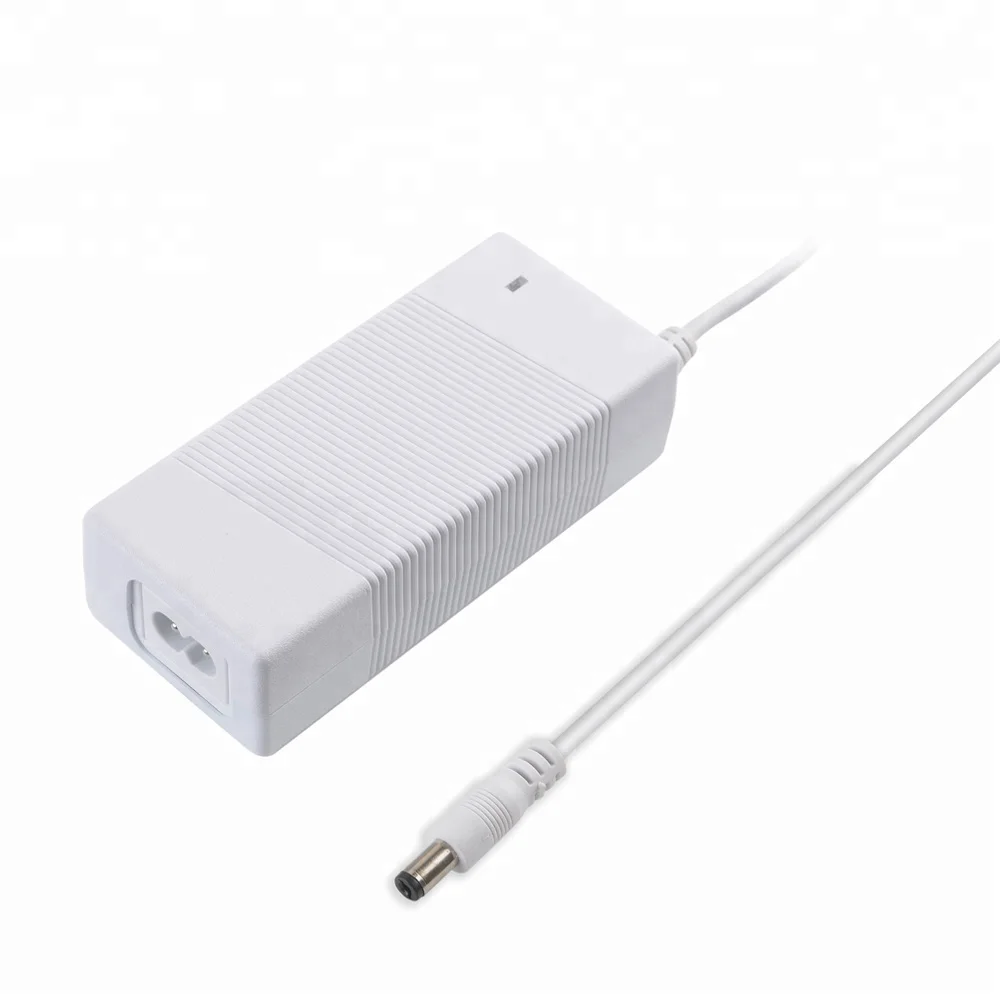

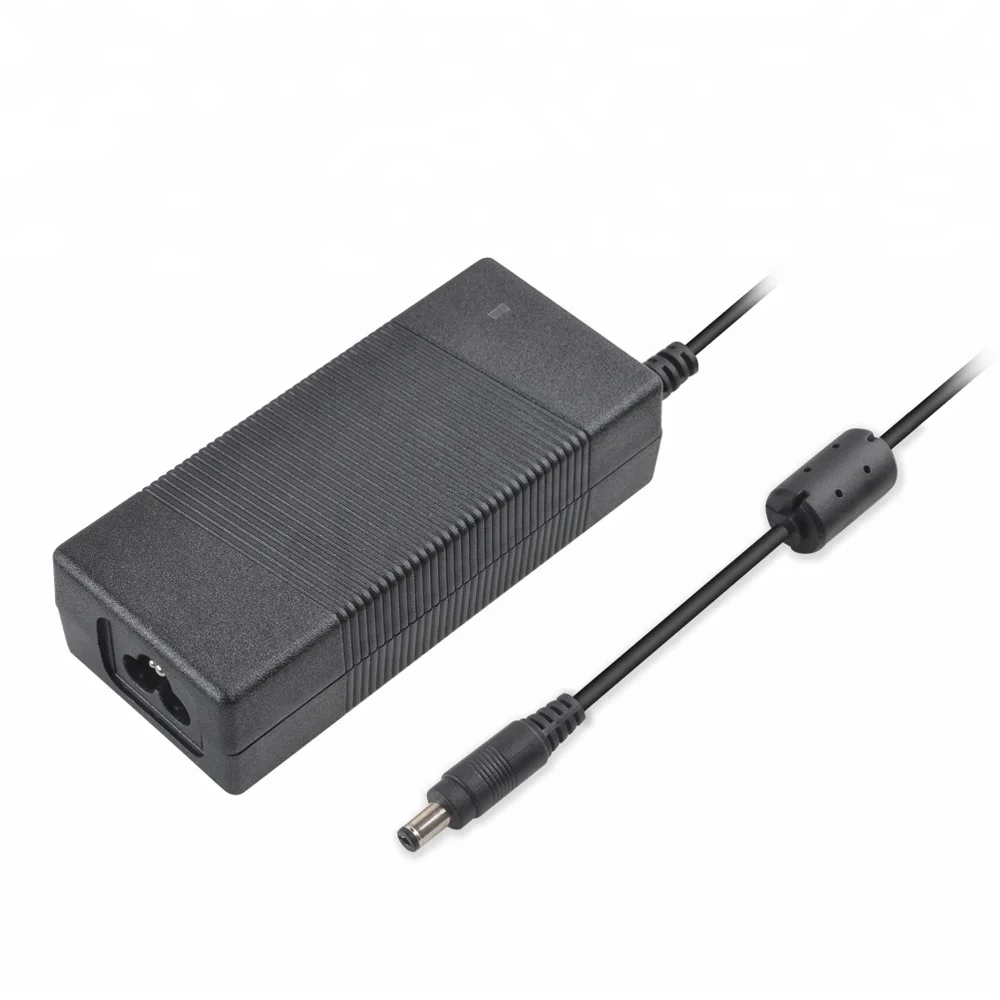

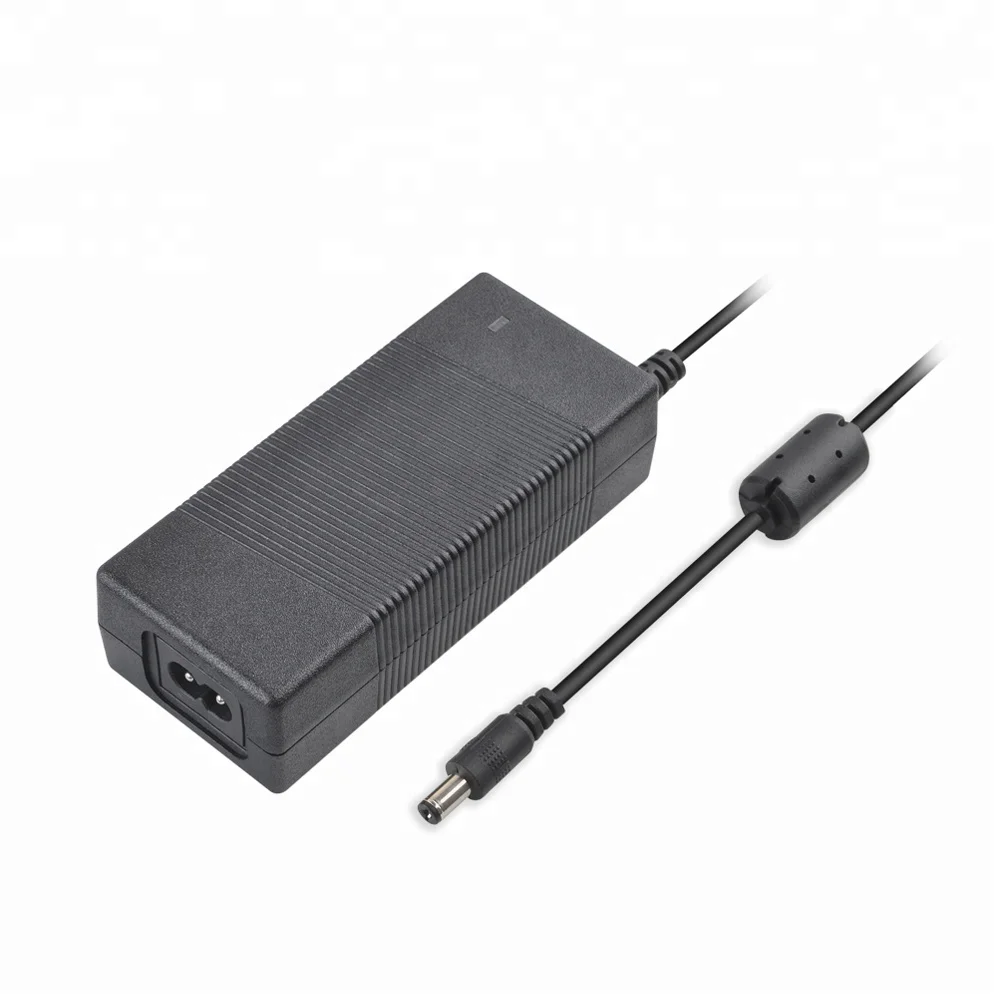

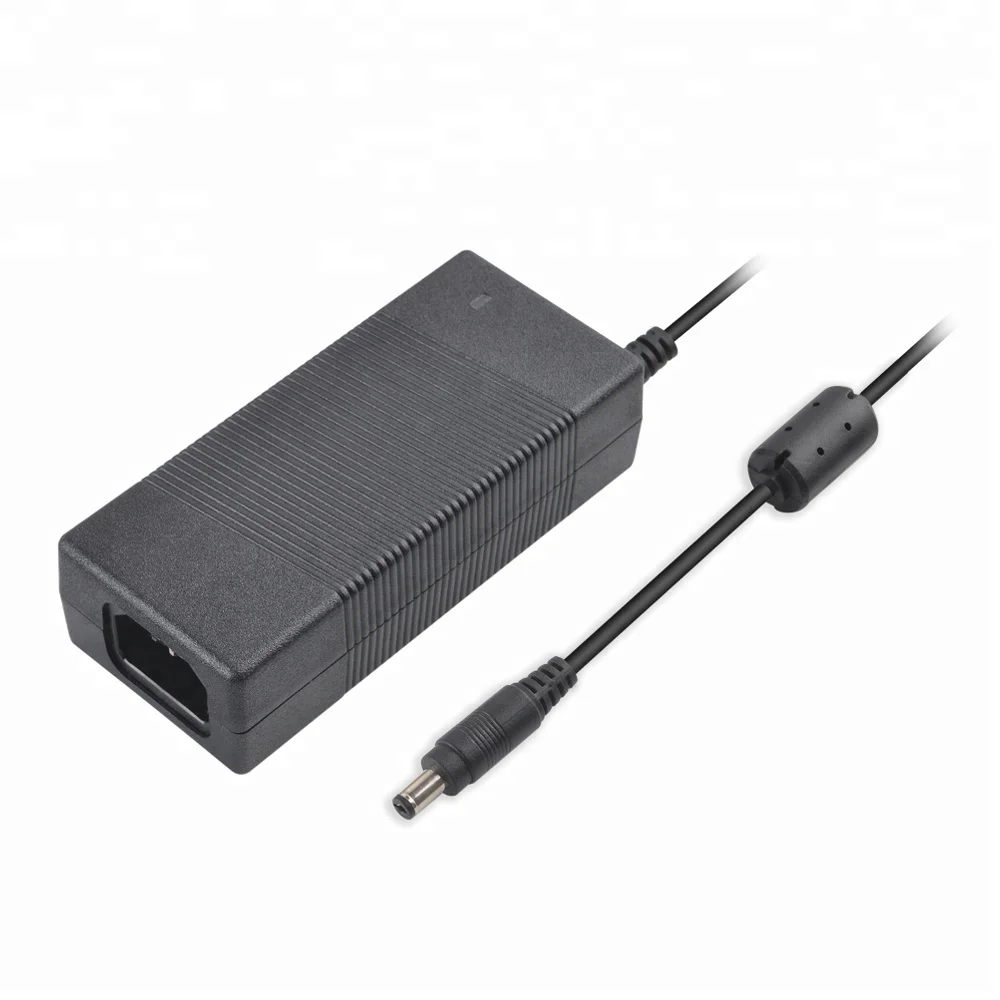

Adapter Cul 12 V 4a 48w Led Driver 48 Watt Transformador Ac 240v Dc 12v 4.2a Kc Transformer 12 Volts 4.2 Amps Dc Power Supply
Adapter Cul 12 V 4a 48w Led Driver 48 Watt Transformador Ac 240v Dc 12v 4.2a Kc Transformer 12 Volts 4.2 Amps Dc Power Supply
Adapter Cul 12 V 4a 48w Led Driver 48 Watt Transformador Ac 240v Dc 12v 4.2a Kc Transformer 12 Volts 4.2 Amps Dc Power Supply
Adapter Cul 12 V 4a 48w Led Driver 48 Watt Transformador Ac 240v Dc 12v 4.2a Kc Transformer 12 Volts 4.2 Amps Dc Power Supply
Adapter Cul 12 V 4a 48w Led Driver 48 Watt Transformador Ac 240v Dc 12v 4.2a Kc Transformer 12 Volts 4.2 Amps Dc Power Supply
Adapter Cul 12 V 4a 48w Led Driver 48 Watt Transformador Ac 240v Dc 12v 4.2a Kc Transformer 12 Volts 4.2 Amps Dc Power Supply

Adapter Cul 12 V 4a 48w Led Driver 48 Watt Transformador Ac 240v Dc 12v 4.2a Kc Transformer 12 Volts 4.2 Amps Dc Power Supply

Share on (60452343674):


Price:

Quantity:


Product Overview

Description



Products Description


Specification
Input Voltage Range
100-240Vac 50/60Hz
Input Current(Max)
2.5A
Temperature Coefficient
±0.05%/℃
Voltage Accuracy
±2%
Total Regulation
±5%
Ripple & Noise
120mV
Short Circuit Protection
Continuous - hiccup mode
Over Voltage Protection
110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load
88% min
Operation Temperature
0 to ＋60℃, derating linearly to 50% load above 40℃
Storage Temperature
-10 to ＋85℃
Humidity (non condensing)
10-90% RH
Cooling
Convection
Withstand Voltage
Input to Ground 1.5kVAC
Input to Output 3kVAC
(Output is connected to Ground)
Vibration (non condensing)
23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
Shock
< 196.1 m/s2 (20G)
Safety Agency Certifications
UL62368,UL1310,UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation
V , VI
Off-Load Power Consumption
<210mV
Conducted & Radiated EMI
EN55023-B, FCC Class B
Immunity
EN55024






Recommend Products




More Models
Desktop










Products List


Power
Output
Voltage
Output
Current
AC Type



50W
Series
0-6.0V
0-5.0A



Desktop
Wall-mounted
Interchangeable
7-13.0V
0-4.0A
14-16.0V
0-3.0A
17-21.0V
0-2.5A
22-25.0V
0-2.0A
26-30V
0-1.3A
Remark:
1.Model NO : YHY-XXXYYYYY , "XXX" is for current ,
   "YYYYY" is for voltage
2.Input :100-240Vac , 50-60Hz , 2.5A max.


Wall-Mounted
Interchangeable


Company Profile


Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China

-Since 2007

-Real Service From Real People

-Global certifications,ISO 9001 Quality management

-More Than 2000 clients from all over the world

Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc
