Gypsum ceiling tile making boarder machine

Product Overview

Description

Gypsum ceiling tile making boarder machine









1.2 million m2/y~50 million m2/y



2. Automation Fully automatic

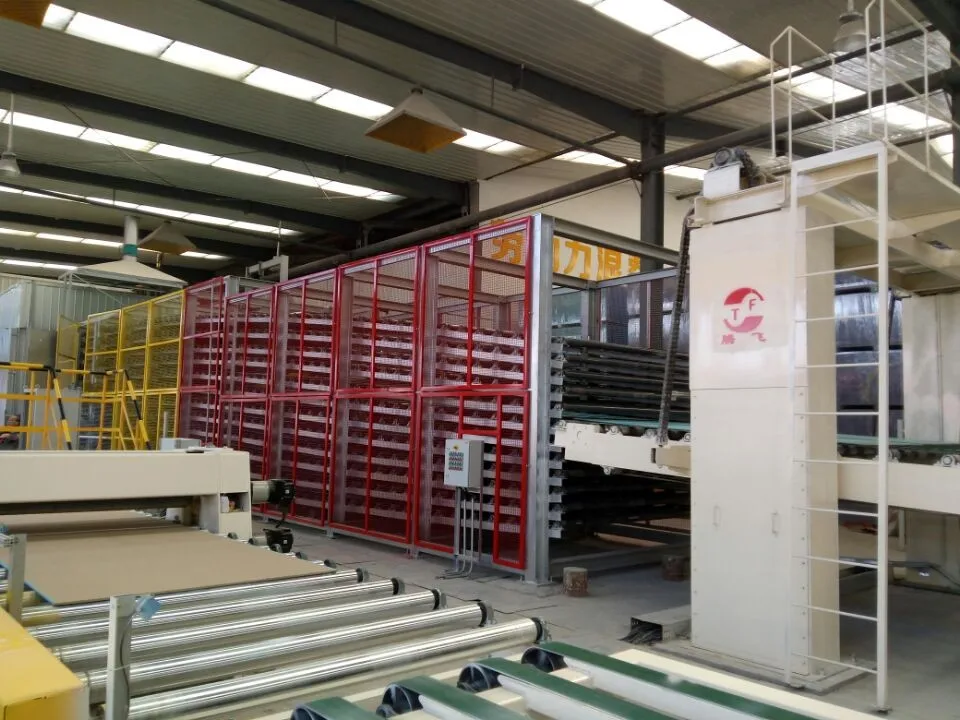

3. Drying system Using hot air for drying



4. Fuel: Coal, natural gas, heavy oil and diesel oil



5. Main materials:

Construction gypsum powder, modified starch, protective paper, foaming agent, water, white latex. Fiberglass and paper pulp (adding selectively according to different raw materials and kinds of products) Quantity of raw material required for producing per m2 gypsum board (referenced data) (thickness of gypsum board: 9.5mm)





Laminated film width	1300mm
Laminated film thickness	2-50mm
Laminated film speed	2-15m/min(Adjusted)
Conveying power	4.5KW
Pneumatic working pressure	4kg
Machine weight	About2500kg
Machine size(Length x with x height)	12600x1950x1600mm



This  model adopts latest double sides coating and laminating technology, synchronous coating and gluing the front( such as PVC)  and the reverse side (such as aluminium foils)at the same time, without turn-over.

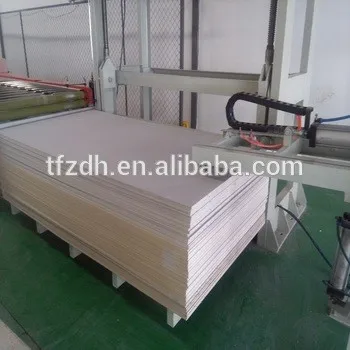

Gypsum board lamination machine is to laminate film on gypsum board,the whole machine is in a synchronous way.

6.Capacity:

7000-12000m2 per day

(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board)

7.Automation

simple and high degree automatic

8.Main materials

Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum

9.Dimension of product

Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm

Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm
