16 А 250 в spdt рычажный микропереключатель t125 5e4 с UL TUV KC CE
- Category: Micro Switches >>>
- Supplier: Zhejiang Xurui Electronic Co. Ltd.
Share on (60452517522):
Product Overview
Description
16a 250v spdt lever micro switch t125 5e4 with UL TUV KC CE
Characteristic & Using:
Adopt thermosetting plastic or thermoplastic;
Small contact gap,snap action,high sensitivity and small operating travel;
Variety of levers;
Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.
Contact Forms
Technical Specifications:
Item | Data | |
Operating speed | 0.1mm-1m/s | |
Operating frequency | Mechanical | 600times/min |
Electrical | 30times/min | |
Insulation resistance |
| 100MΩAbove DC500V |
Contact resistance |
| 25mΩ initial value |
Withstand voltage | Non-connection wire | 1000VAC |
Every terminal | 1500VAC | |
Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
Impact | Durable | 1000m/s² |
Misoperation | 300m/s² | |
Life | Electrical | 100,000 above |
Mechanical | 1,000,000 above | |
Protection degree | IP40 | |
Operating temperature | -25~+80℃ | |
Operating humidity | <85% | |
Ue (V) | Ie (A) | Ith (A) |
AC-250 | 7.5 | 10 |
AC-125 | 15 | 20 |
DC-250 | 0.3 | 0.45 |
DC-125 | 0.6 | 0.75 |
AC-250 | 16 | 20 |

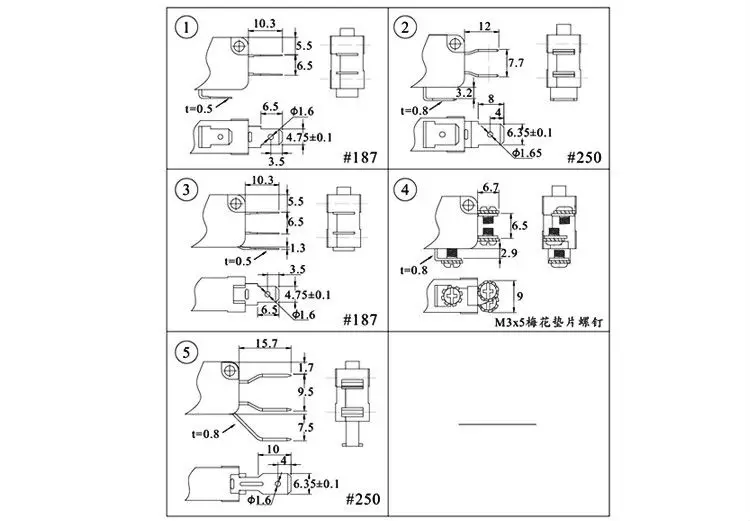

Terminal Forms:

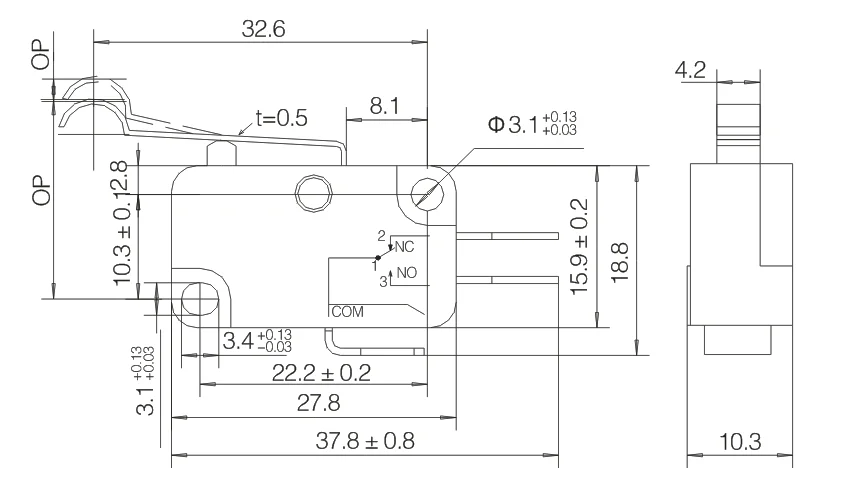

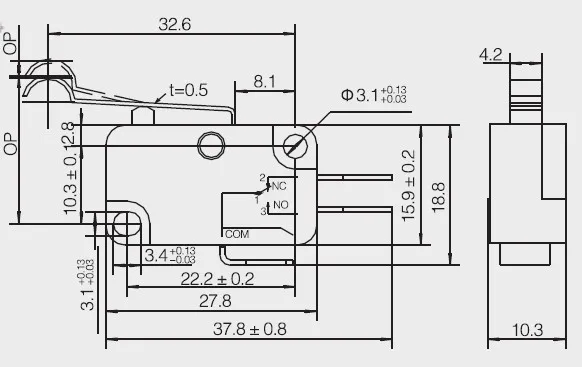

Outshape & Dimensions:
| OF MAX | 50g (0.49N) |
| RF MIN | 5g (0.05N) |
| PT MAX | 10MM |
| OT MIN | 3.0MM |
| MD MAX | 2.0MM |
| OP | 15.2±2MM |
