Laser Cutting Machine Air Compressor

Product Overview

Description

Laser Cutting Machine Air Compressor

1. The compressor can remove waste and dirt automatically by after cooling system. High-quality air out ed with a special, highly effective air cooling chiller of advanced design.


2. Market leader “Hoerbiger” main air valve with large capacity. Its high efficiency characteristic ensures the stable running of the compressor.put due to economical dirt removal system in 3 stages.


3. The compressor is equipped with a special,highly effective air cooling chiller of advanced design.

  Specification for air compressor :



Model	FAD M3/min	Working pressure Mpa	Motor KW	Speed rpm	Size mm	Weight kg
VH-0.65/35	0.65	3.5	7.5	800	1250*760*800	475
WH-1.1/35	1.1	3.5	11	900	1420*830*840	475
WH-1.0/40	1.0	4.0	11	790	1420*830*840	550
WH-1.7/40	1.7	4.0	22	735	1140*71081500	550
WH-2.0/40	2.0	4.0	25	860	1140*735*1600	550
WH-2.2/35	2.2	35	25	860	1140*735*1600	550
2-WH-2.2/35	2.2	3.5	2*11	800	1880*1430*1000	1500
4-WH-4.0/40	4.0	4.0	4*11	790	2020*1570*2000	2400
6-WH-6.0/40	6.0	4.0	6*11	790	3495*1565*2000	3600

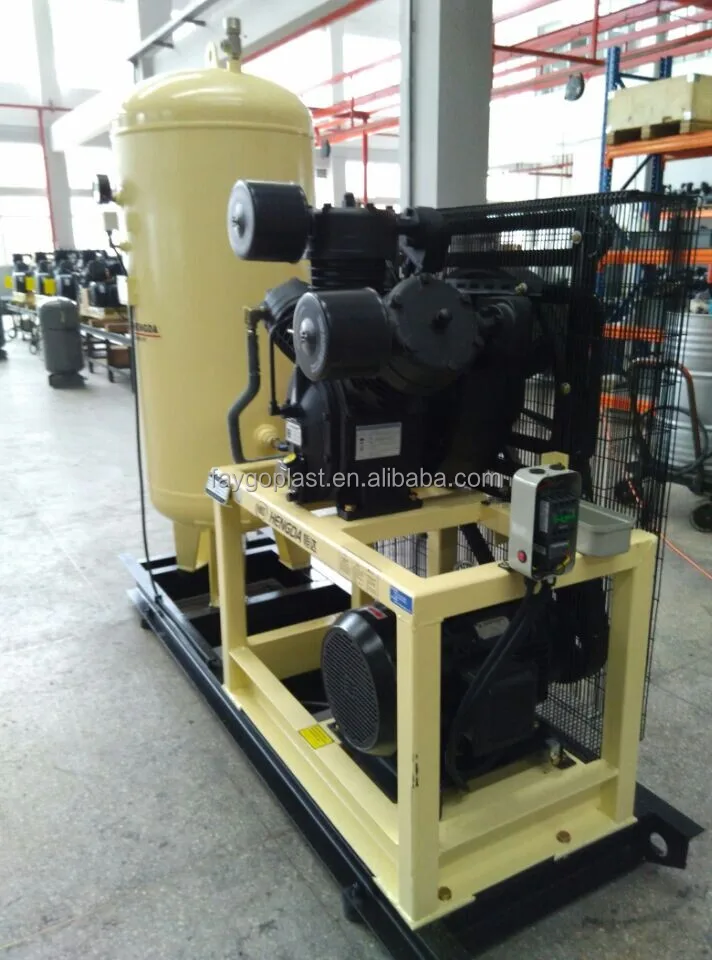

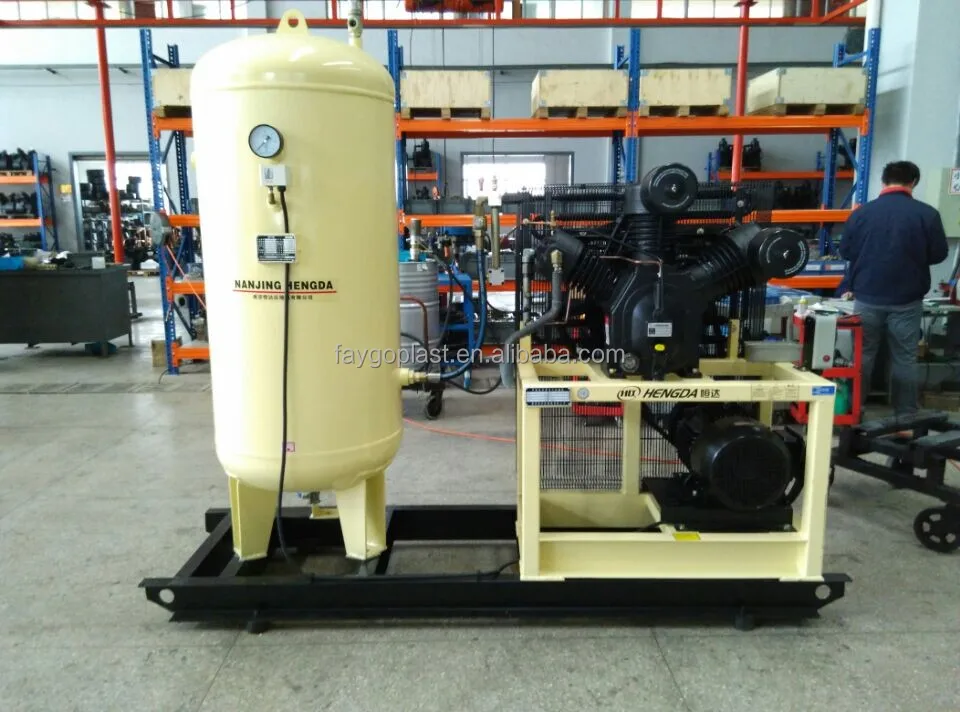

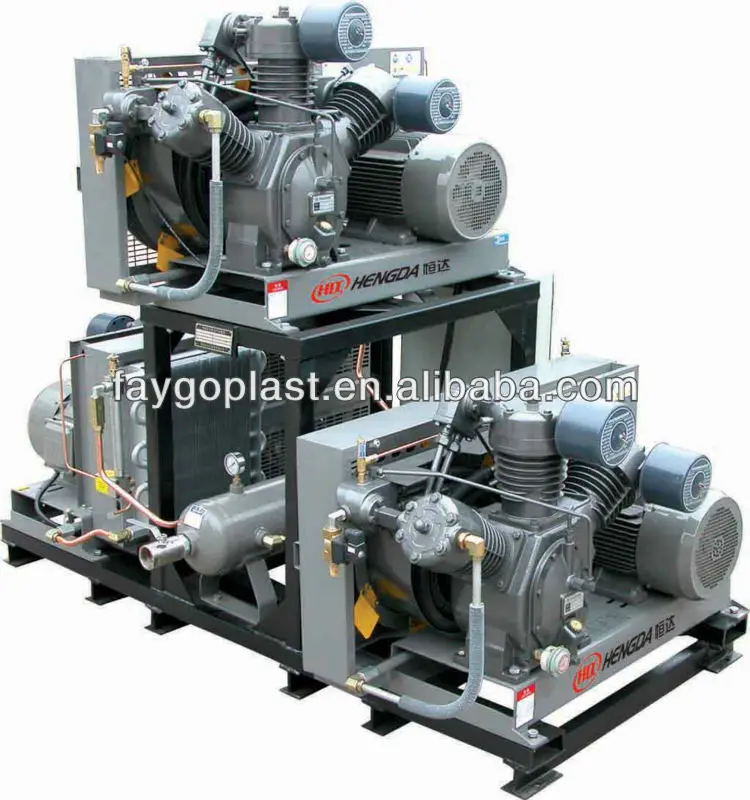

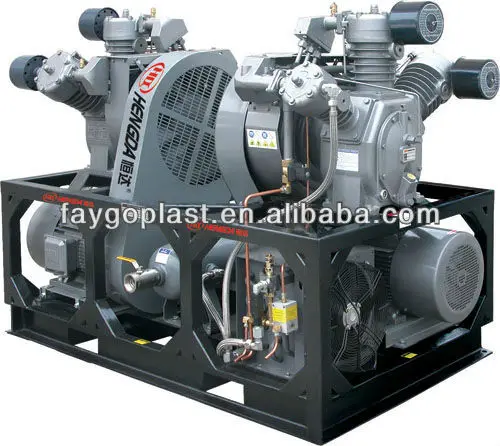

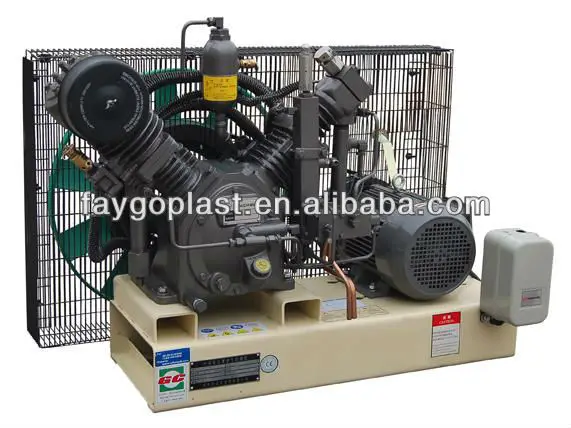

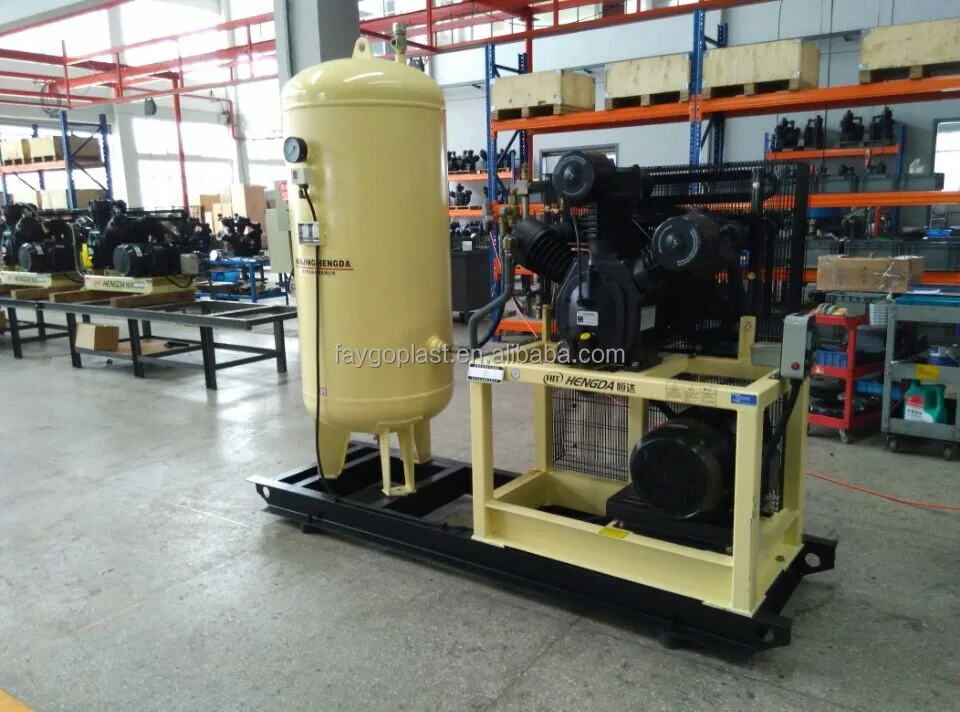

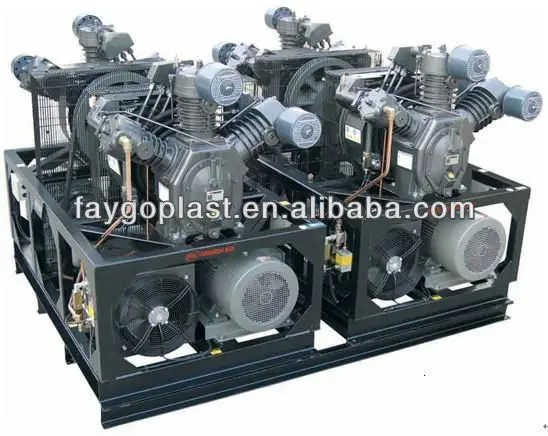

Pictures about our products:
