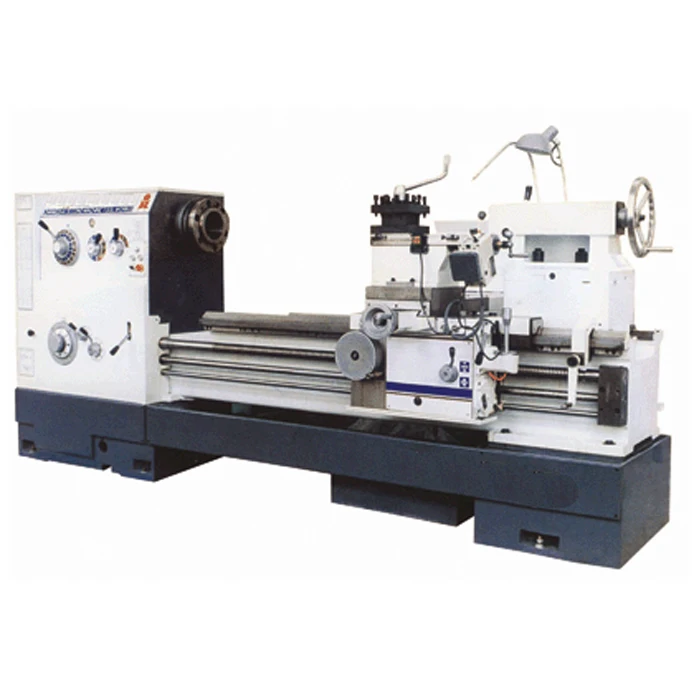

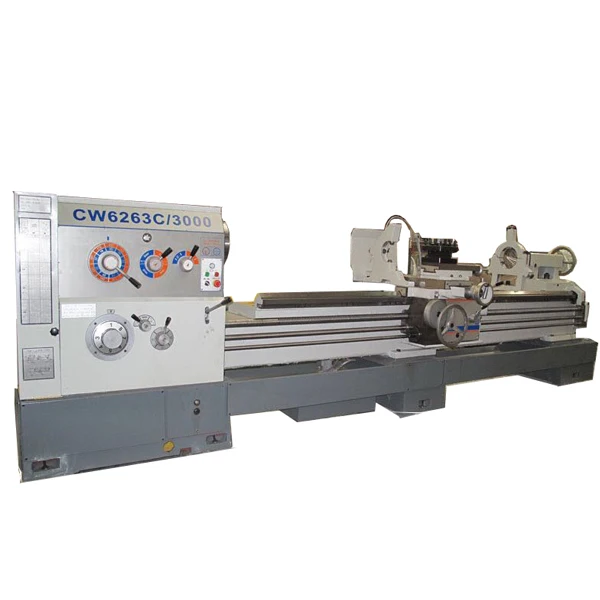

China metal heavy duty horizontal manual lathe machine CW6280C
- Category: >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60453049757):
Product Overview
Description

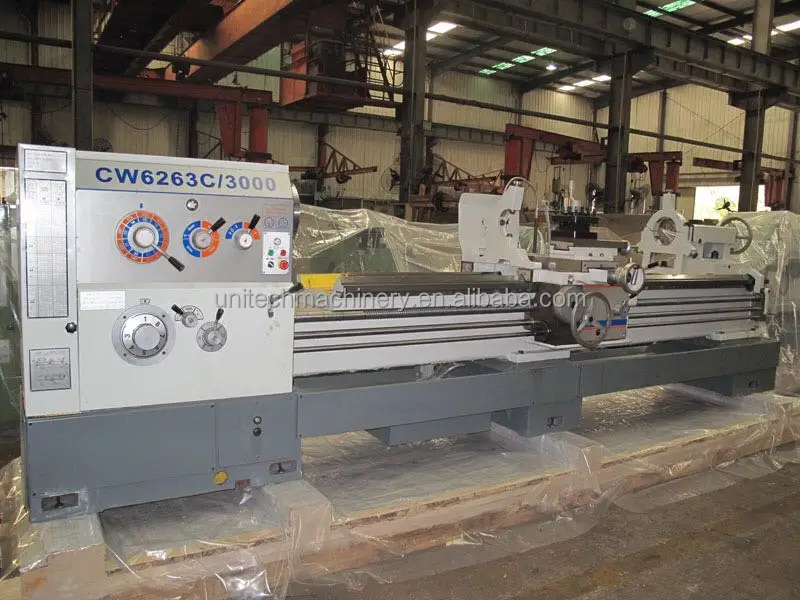

China metal heavy duty horizontal manual lathe machine CW6263C
Product Description

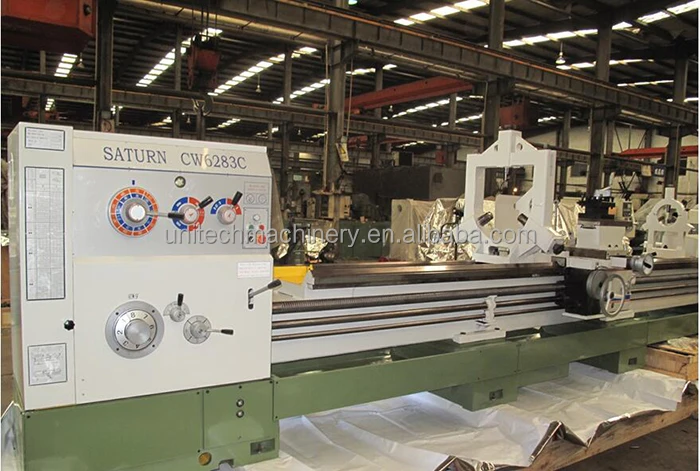

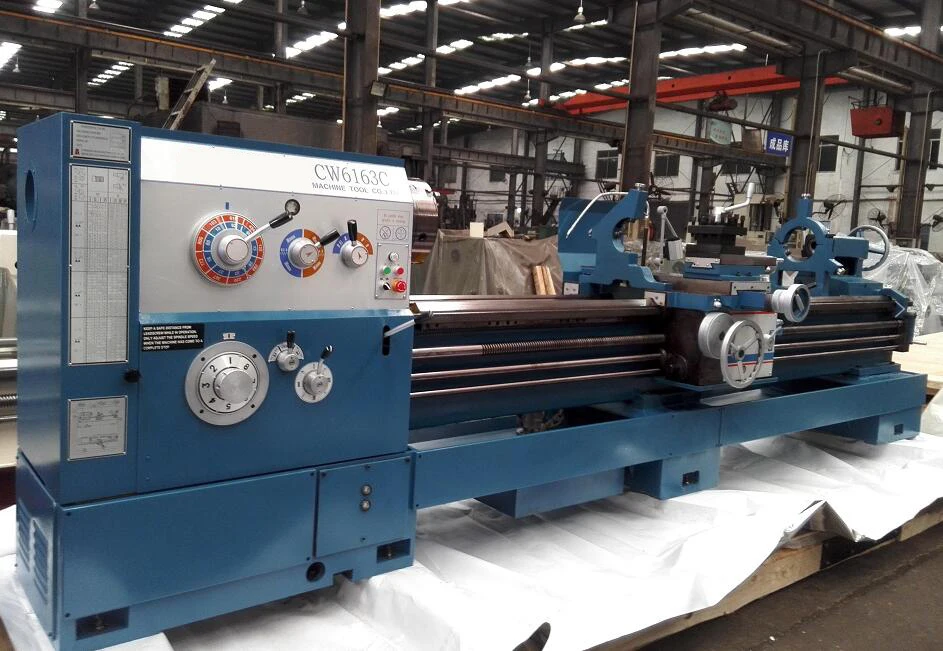

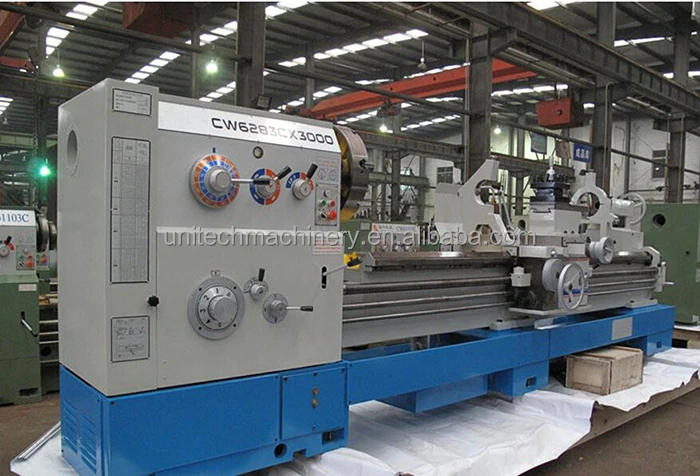

| Model | unit | CW6163C/6263C | CW6183C/6283C | CW6193C/6293C |
| max swing over bed | mm | 630 | 830 | 930 |
| max swing in gap | mm | 890 | 1090 | 1190 |
| max swing over cross slide | mm | 350 | 550 | 650 |
| distance between centers | mm | 1000/1500/2000/3000/4500/6000 | ||
| spindle nose | C11 or D11 | |||
| spindle bore | mm | 105/130 | ||
| spindle speed | rpm/steps | 10-1800/18 | ||
| cross slide travel | mm | 480 | ||
| top rest travel | mm | 225 | ||
| max travel of cross slide | mm | 480 | ||
| max travel of top slide | mm | 225 | ||
| longitudinal feed | mm/min | 3240 | ||
| cross feed | mm/min | 1870 | ||
| quill diameter | mm | 100 | ||
| quill travel | mm | 260 | ||
| quill taper | MT6 | |||
| bed width | mm | 550 | ||
| metric threads | mm/kinds | 1-240/53 | ||
| inch threads | tpi/kinds | 30-2/31 | ||
| module threads | mm/kinds | 0.25-60/46 | ||
| diametral pitch threads | lpi/kinds | 60-0.5/47 | ||
| main motor | kw | 11 | ||
| Standard accessories | Optional accessories | |
| 325mm 3 jaw chuck and flange | Chasing dial | |
| 500mm 4-jaw chuck and flange | 800mm face plate | |

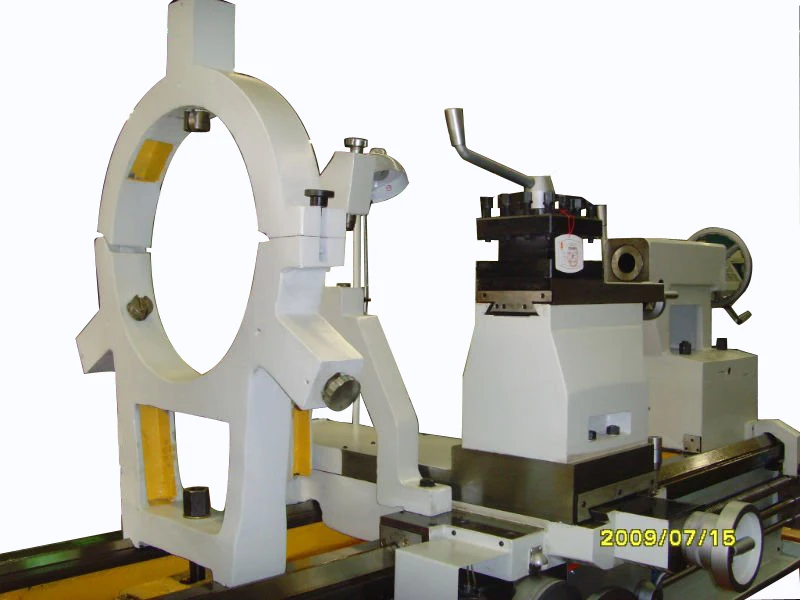

| 200mm steady rest | Live center | |
| 20-140mm follow rest | 300mm steady rest: | |
| Dead centers | 500mm steady rest: | |
| Reduction sleeve | Drive plate | |
| Foundation bolts | ||
| Level blocks | ||
| Maintenance kits |

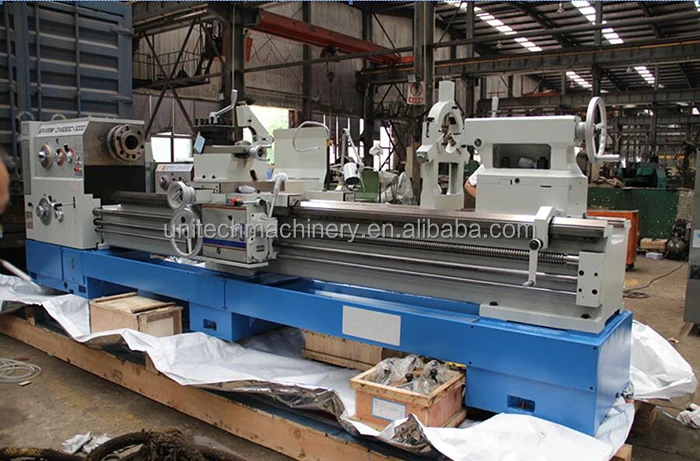

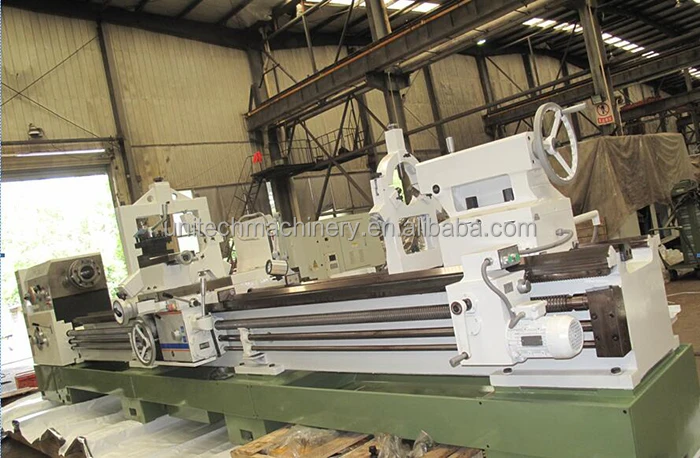

More photos
