For Pakistan Market, Horizontal Style Coal Fired DZL Type Steam Boiler

Share on (60453342876):


Price:

Quantity:


Product Overview

Description


f0a7.pngThis is a video, click and learn more about our company's strength!

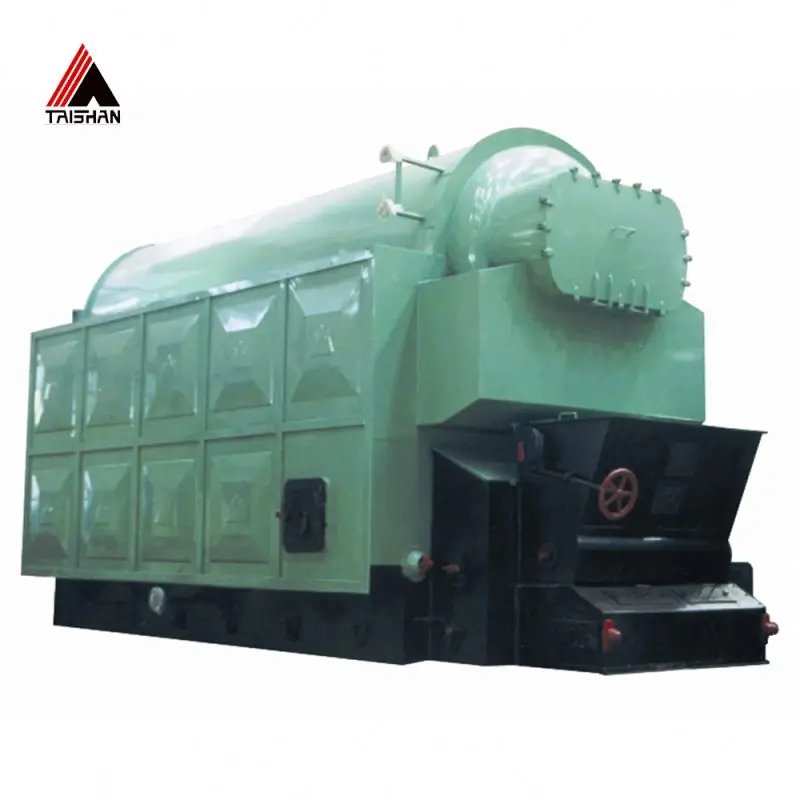

FOR PAKISTAN MARKET, HORIZONTAL STYLE COAL FIRED DZL TYPE STEAM BOILER







Product Description


APPLICATION                                              DZL Cheap Steam Boiler

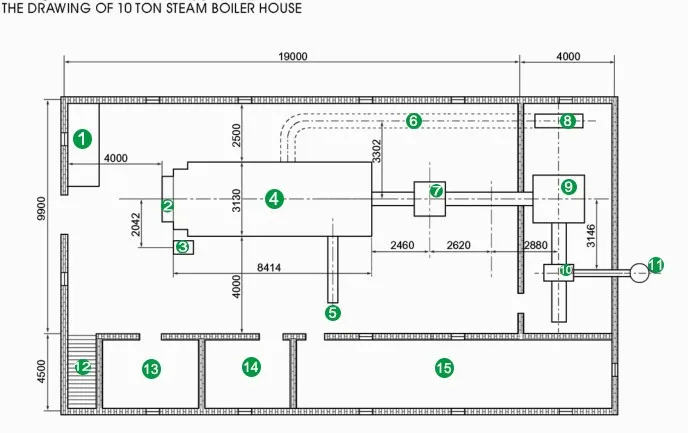

DZL coal fired boiler application.jpg

1 Control Room                     6 Wind Channel                          11 Chimney

2 Coal Feeder                       7 Economizer                              12 Ladder

3 Reduction Gear                  8 FD Fan                                     13 Rest Room

4 Boiler Centre Line              9 Dust Catcher                           14 Labouratory

5 Slag Remover                   10 ID Fan                                      15 Water Treatment Room, Pump Room



Note: the drawing is only for reference

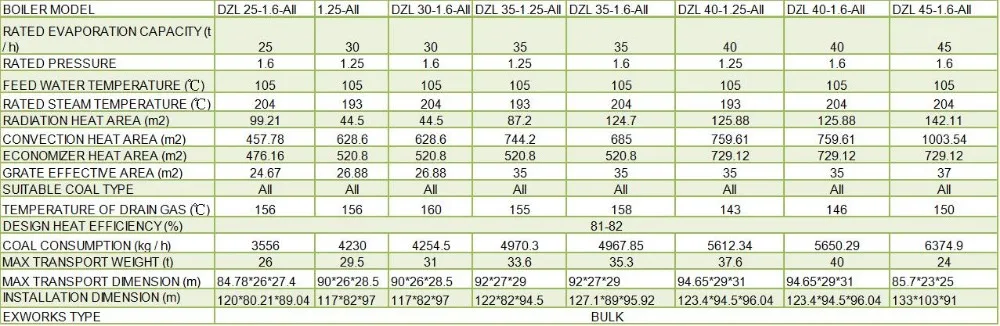

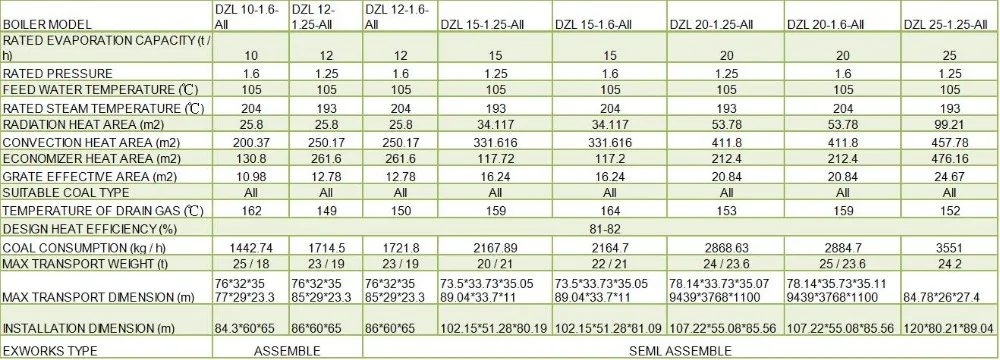

Technical Data Of Dzl Boiler



  dzl 1.jpg





 dzl 2.jpg




Feature


Main Character





1. Water-fired tube shell steam boiler,  no setting ash without soot blowing


2. Boiler Efficiency>81%,  4%-5% higher than national standard


3. Capacity: Steam boiler is from 1t/h to 50/h


4. Adopt big and high strength grate, add rolling device for big grate which improve the boilers' safety and lessen the leaked coal and adjust burning conveniently.


6. Separated boiler furnace which can reduce dust content and lessen abrasion of back heat surface.


7. Closed scoot cleaning avoid the second pullution and save time and labor.


8. Big water volume benefits for power-off protection, high ability suitable for load waving.

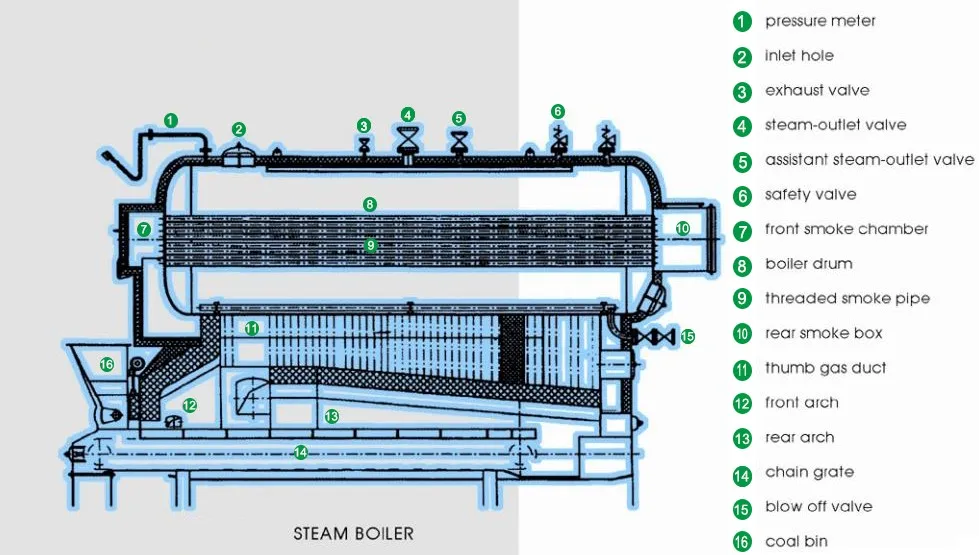

Structure Design

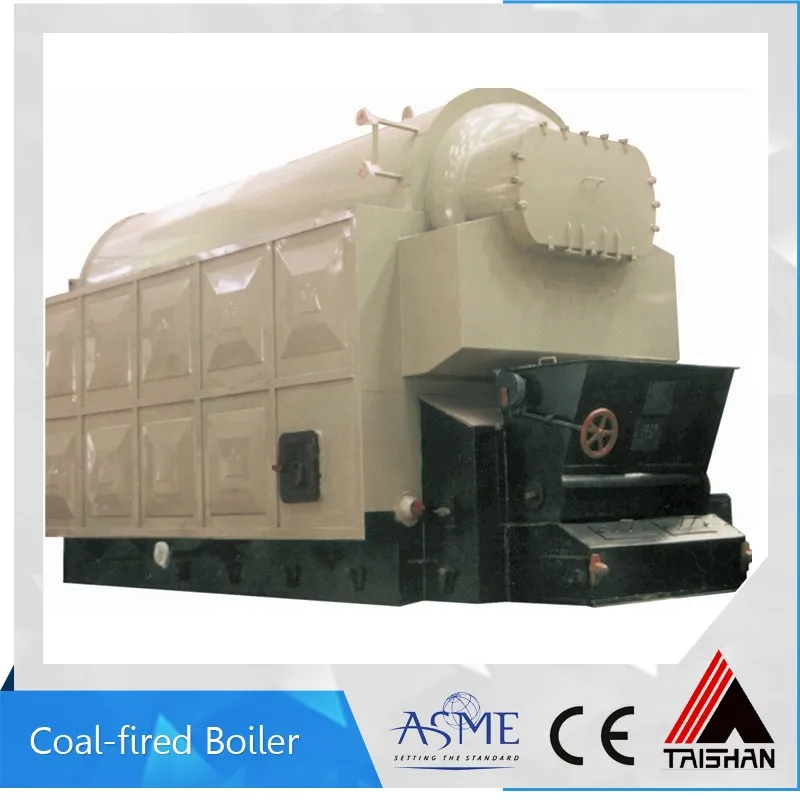

dzl type coal fired boiler (3).jpg-1.jpg



1 Water Meter                                 5 Gate Valve                          9 Feed-regulating Valve

2 Water Drain Valve                       6 Stop Valve                        10 Feed Pump

3 Sensor                                          7 Safety Valve                      11 Soft Water Sampling

4 Pressure Meter                            8 Check Valve                     12 Thermometer



Why Choose Us


1. Chinese Famous Brand.





2. Super High Quality, Competitive Price.


3. Big Production Ability.


4. Fast Delivery, Excellent After-sale Service.


5. Certificate ISO9001, ASME, ISO14001, OHSAS18001.

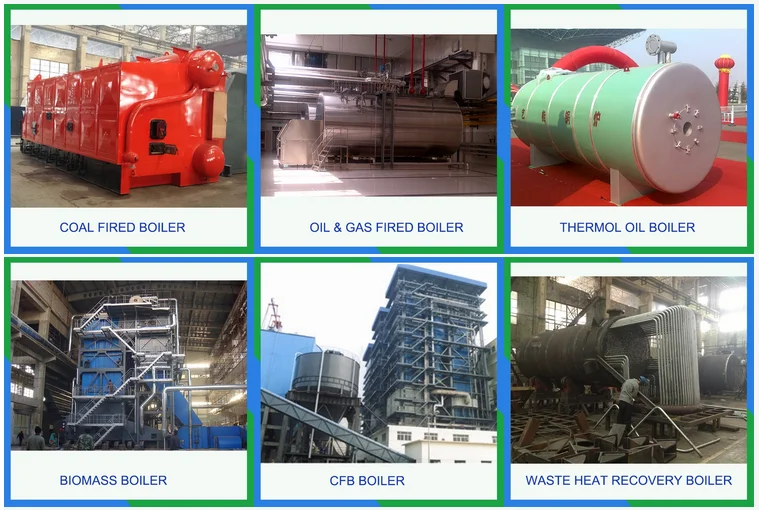

Our Popular Boiler


We Have Other Kinds of Boilers, Please Feel Free to Get More Information from Us!
