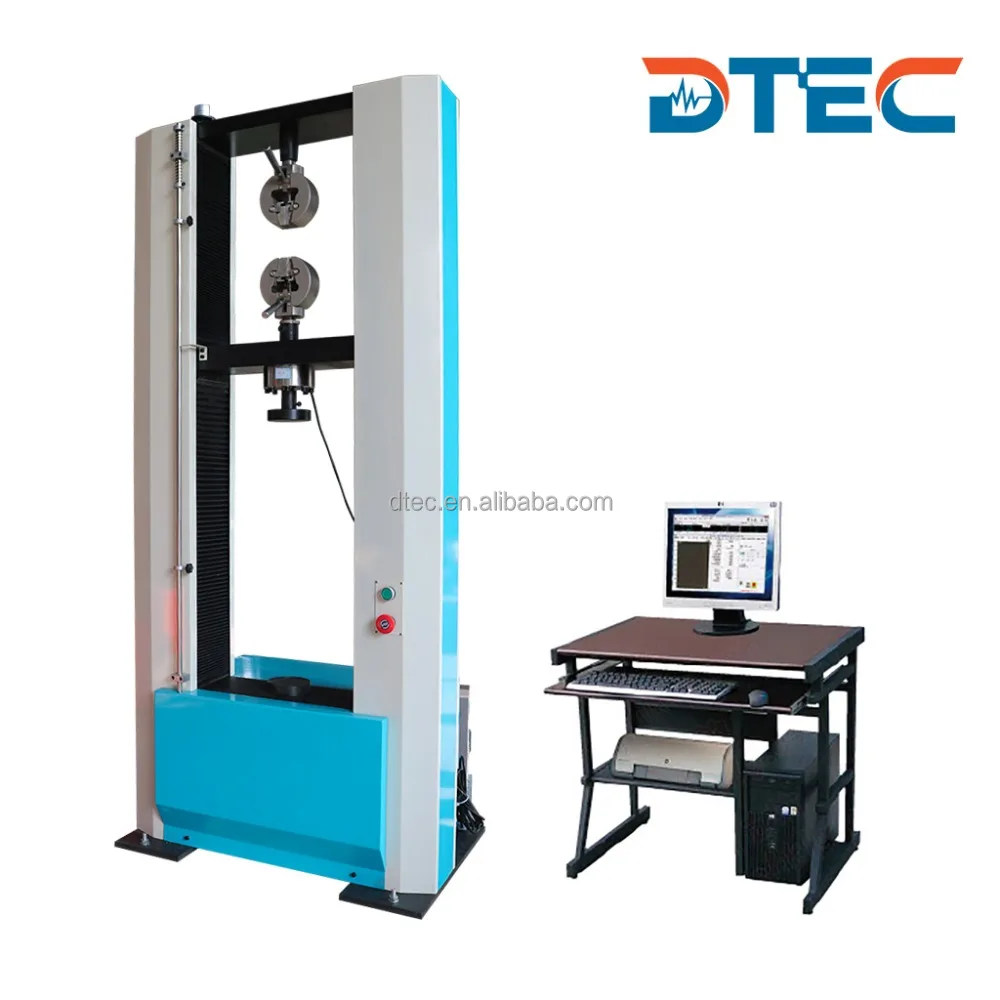

DTEC DDW 50 Electronic Universal Testing Machine,50KN,Computer Controlled,Standard claws for Tensile,Compressing and bending

DDW Series computer Control Electronic Universal Hardness Tester Common Configuration adopts AC servo motor made in Taiwan and employs advanced chip integrated technology as well as the use of professional design of PCI data acquisition and control system, achieving a fully digital adjustment for testing force and deformation amplification as well as A/D conversion. The equipment adopts fully digital servo speed adjustment system and servo motor as the machine’s driving system,which has high precision speed adjustment and stable and durable working performance, meanwhile, it employs WINDOWS to control operation interface and supply data processing software, so as to realize the computer screen display for testing force, testing force peak value, beam displacement,test deformation and data curve picture. All the test can be completed by computer control.

Equipment’s Main Structure:
The whole structure is formed by the upper beam, the middle beam, the lower beam and the bottom panel, with two pairs of ball screw-rod and a vertical column. The full-digital AC Servo motor drives the Reducer and the synchronic gear belt, so as to drive the two pairs of high-precision and seamless ball screw-rod, and to make the beam move up and down.

Using Scopes:
DDW Series Microcomputer Control Electronic Universal Testing Machine (Normal Configuration Gate Type) is applicable for tensile,compression and bending tests of materials with relatively small test force, such as rubber, plastic, textile, waterproofing material, cable, network wire, metal wire, metal rod, metal plate and others. With attaching tools, it can also do compression and bending tests.

Application:

The equipment is applicable to the measurement and analysis of mechanical performance not only metal, non-metal material, but also composite materials. It is widely used in aerospace, petrochemical, machinery manufacturing, wire and cable, textiles, fibers, plastics, rubber, ceramics, food, medicine packaging, plastic pipes, plastic doors and windows, geotextile, film, wood, paper, metal materials and manufacturing. According to GB, JIS, ASTM, DIN, ISO and other standards, it can automatically strike the maximum test force value breaking force value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation, tensile modulus, flexural modulus test data etc.

• The built-in controller ensures the achievement of constant displacement control;

• Adopt the use of stable and durable AC servo motor made in Taiwan, which comes with protection device against overcurrent, overvoltage, overspeed, overload, with speed ratio up to 1: 5000;

• Testing software: All English WINDOWS interface, menu hint function, with mouse operation;

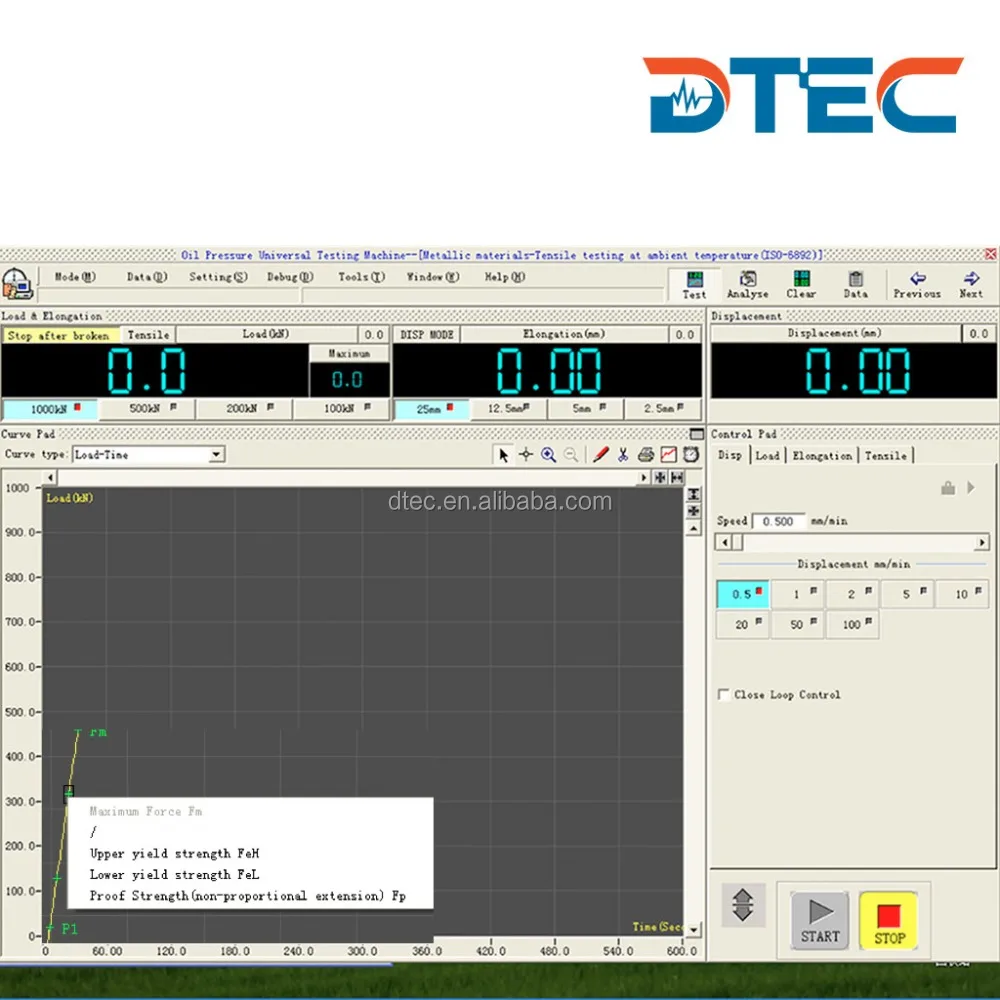

• Data Curve: dynamically display the data curve, and re-analyse the curve after test, the data can be found with mouse correspond to any point on the curve, and according to specific need, it can choose different parameters of curves such as stress - strain, force - displacement, force - time, displacement – time to display and print out;

• Test report: It can edit report according to customer’s required format and then print out, the machine has a network interface for data transmission, storage, print and network transmission printing, also suitable for LAN internal network or Internet connection;

• The electrical control circuit refers to international standards, which is in line with national testing machine electric standard, high anti-interference ability, ensuring the controller stability and experimental data accuracy;

• AUTO shift gear: automatic switching to the appropriate range according to load size to ensure the accuracy of measurement data, realizing the automatic shifting , ZERO, calibration and storage for the true sense of physical zero, gain adjustment and force measurement, without analog adjustment links and with highly integrated control circuit;

• Conditions save: test control data and test conditions can be made into modules to facilitate the batch tests;

• AUTO speed changing: The beam moving speed during testing can be not only automatically but also manually changed according to the pre-set program;

• AUTO calibration: The system can automatically realize the calibration of indicating value accuracy;

• Full Displaying: Real-time display on computer test force, peak value, displacement, speed, status, etc.;

• Breaking Judgment: when the specimen is broken, the movable beam will stop the test automatically;

• Limit Protection: two protection functions of mechanical and control limit protections;

• AUTO save: Testing data and curve can be automatically saved;

• All by Computer: Testing course, measurement, display, analysis are all controlled by computer;

• Batch test: for the same parameters, can be sequentially completed after one set.

  Standard Packing List:

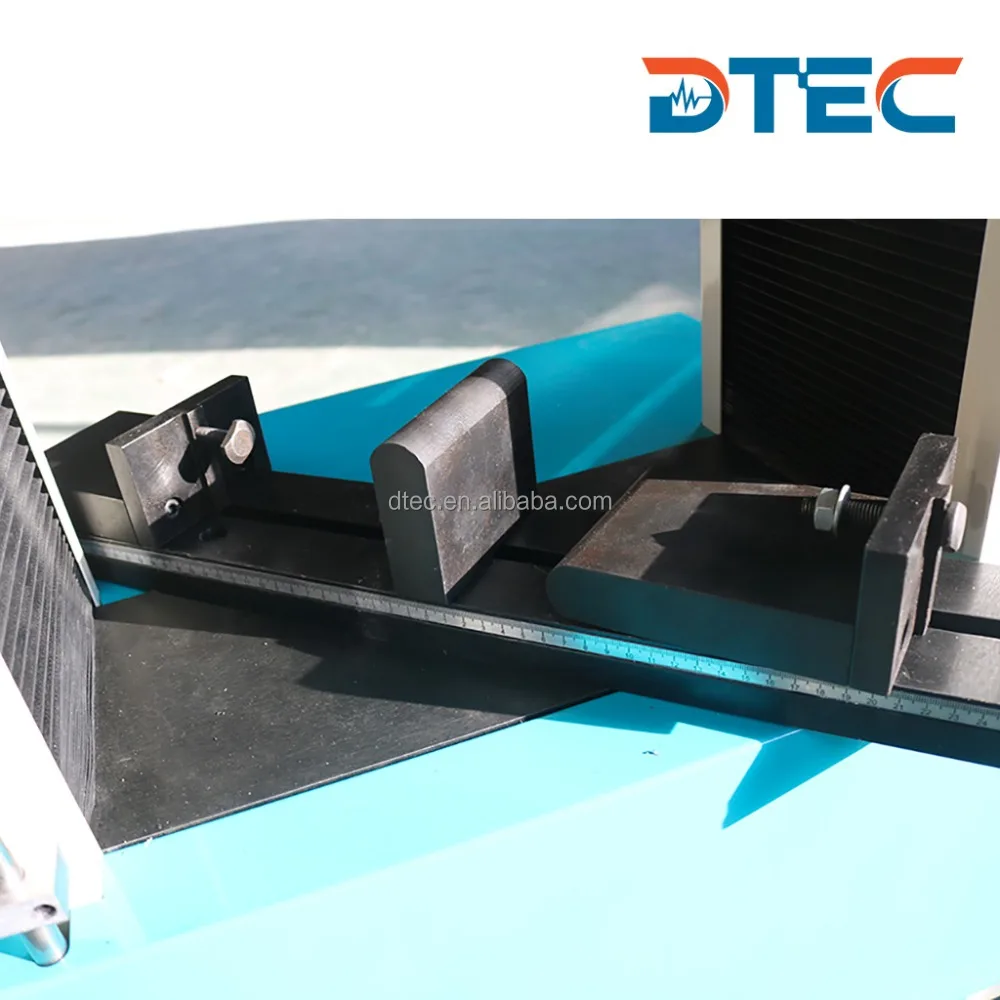

Optional Clamps:

• 36 Months Quality Warranty from the day customers receive our goods;

• Offer customer video of machine installment,handle,operation if they need;

• If neccessory,we can provide on site adjustment and installment;

• Lifetime Technical support and solution offered by means of vedio,telephone call,or remote assistance via teamview;

• Free supply certain spare parts within warranty period;

• Free offer customer machine trainning in our factory,help to book hotel and air ticket in advacne;

• Arrange considerate and 100% satisfed customer entertainment for coming visitor.

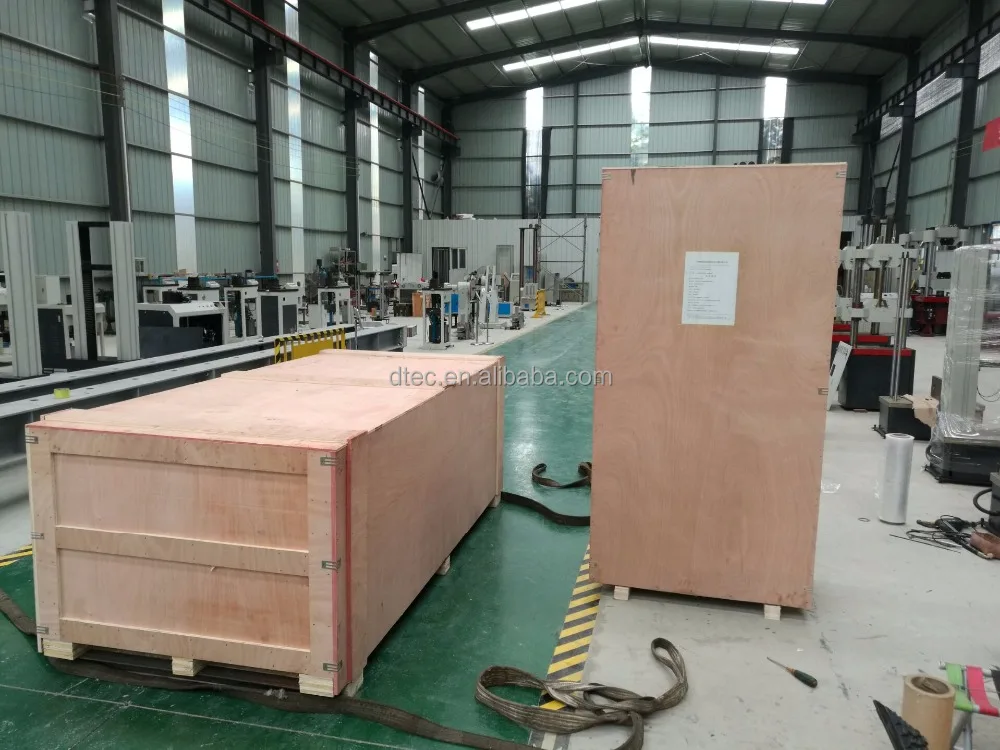

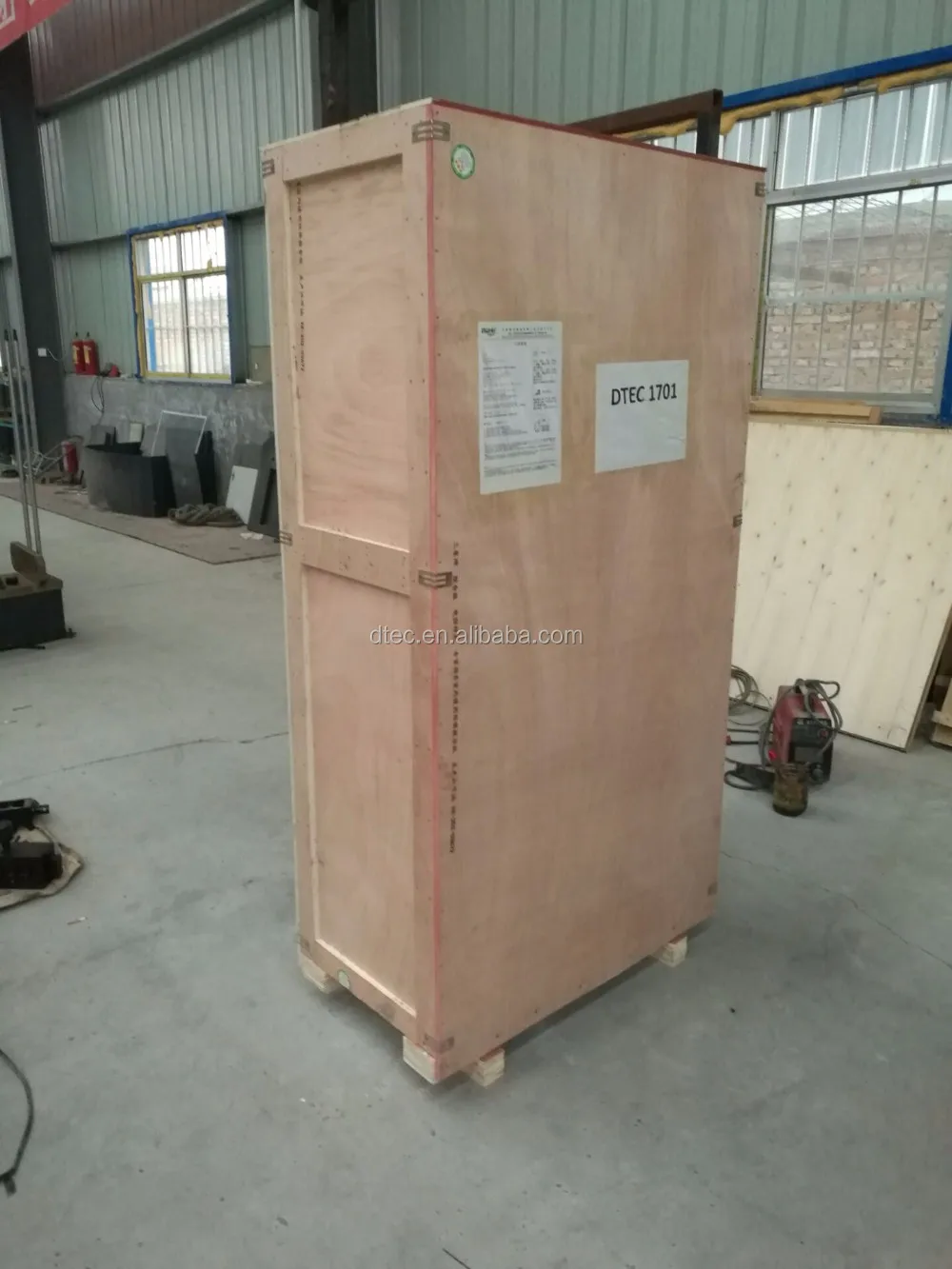

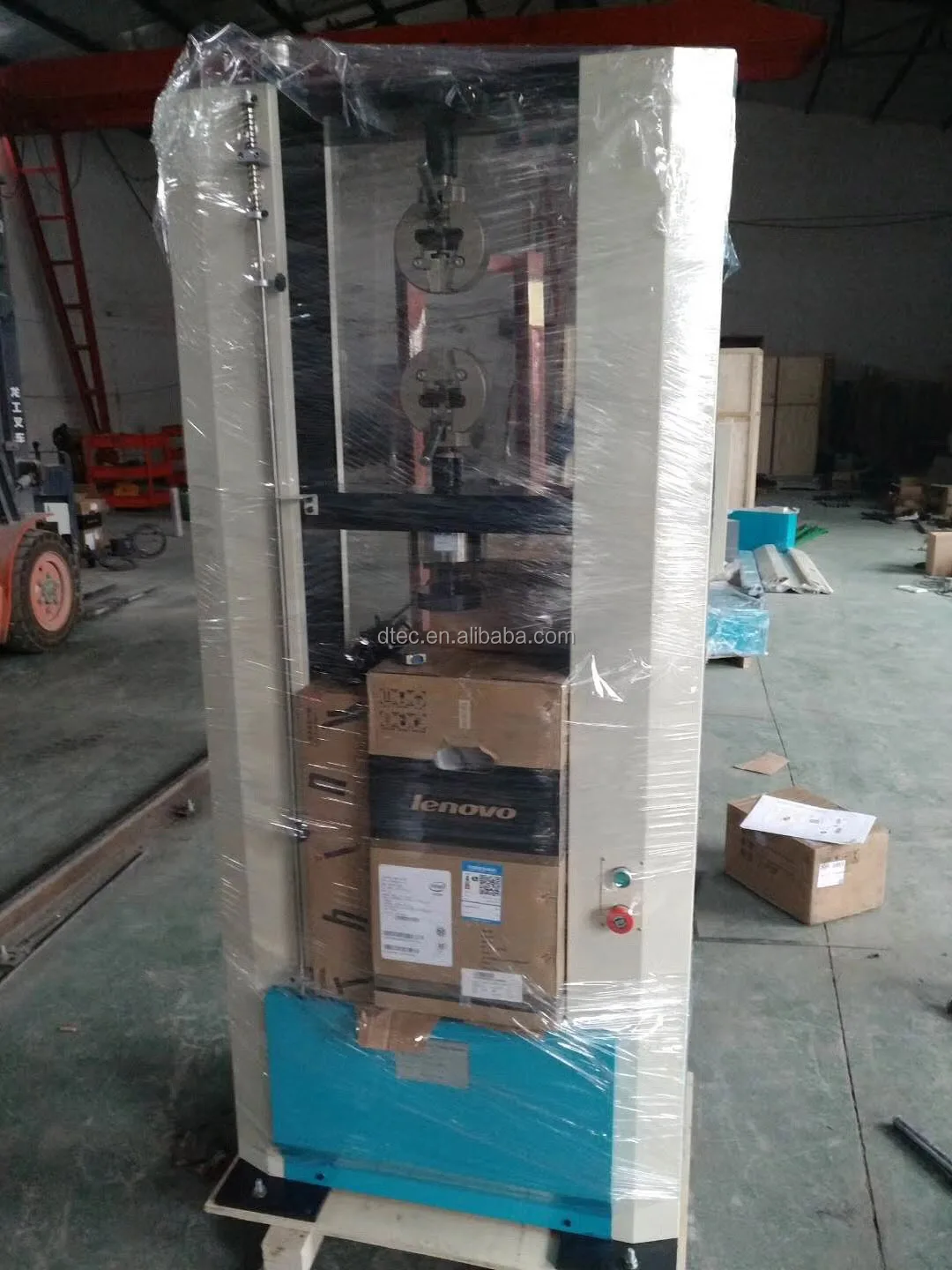

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
