CE 5 Гц/ч озоновый генератор озона керамическая трубка для очистки воды AC220V/110V обработки воды в бассейне KHT-5GOA1/A2 dgozone
- Category: Water Treatment Machinery >>>
- Supplier: DGOzone,Ltd.
Share on:
Product Overview
Description
Product Description
CE 5g/H Air cooling Ceramic Tube Ozone Generator KHT-5GOA1/A2 for Air and Water Treatment is a very good unit for big ozone machines or fields below.
The ozone tube is newly-developed, double air cooling design, can work 7*24hours only under AIR COOLING. Besides, the electrode inside the tube is improved to change into titanium alloy, this makes the longlife of ozone tubes longer than former tubes.

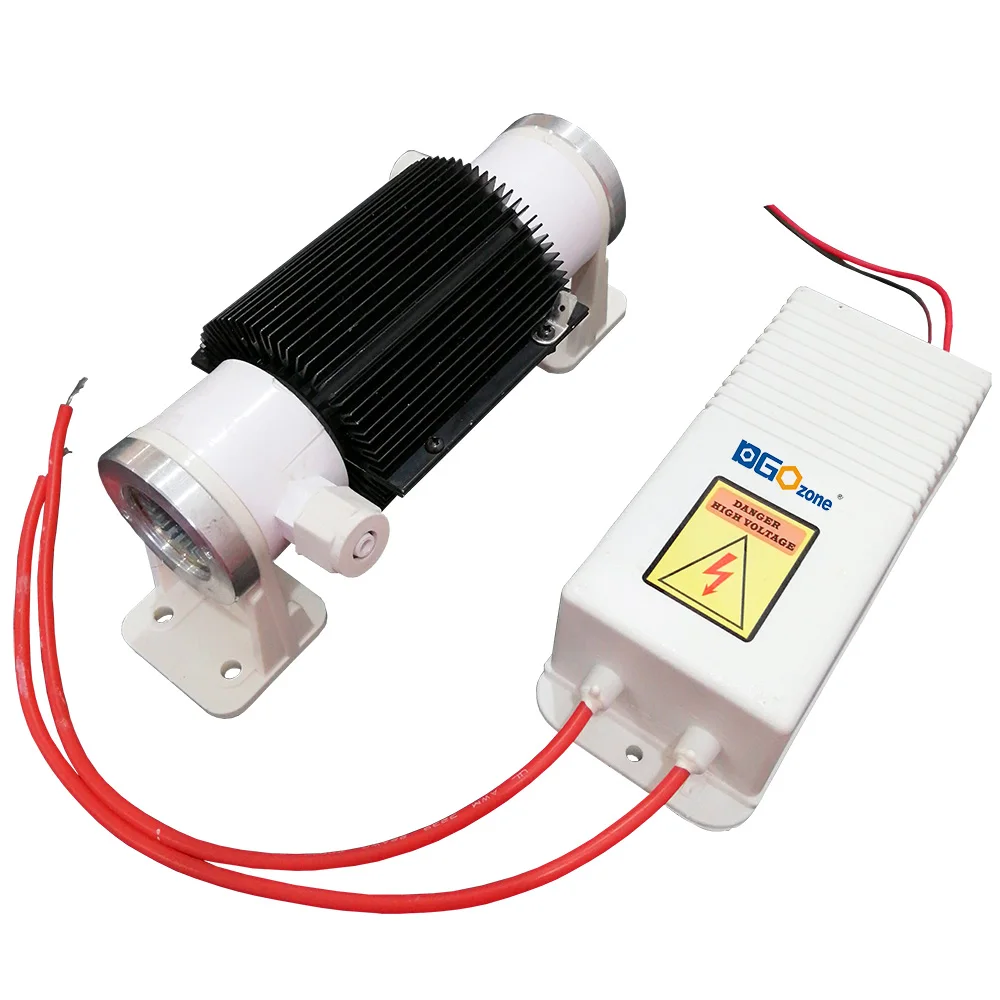

One set includes one ozone tube and one transformer. By the way, for two gas nozzles on the tube, you can take either one as air inlet or ozone out outlet, no difference.
Model | KHT-5GA1/A2 | KHT-5GOA1/A2 | KHT-5GORA1/A2 | KHT-5GD12 KHT-5GD24 | |||
Voltage | A1: AC110V~130V 50/60Hz A2: 220V~240V 50/60Hz D12: DC12V D24: DC24V | ||||||
Oxygen flow | 1L/min | 3L/min | 5L/min | ||||
Ozone concentration based on oxygen feeding | 65Mg/L | 43Mg/L | 30Mg/L | ||||
Ozone output based on oxygen feeding | 3.9G/H | 7.7G/H | 9.0G/H | ||||
Power | 80W | 80W | 80W | 60W | |||
Output high voltage | 2.5~3.5KV 16KHz | 2.5~3.5KV 16KHz | 2.5~3.5KV 16KHz | 3.5~4.0KV 12KHz | |||

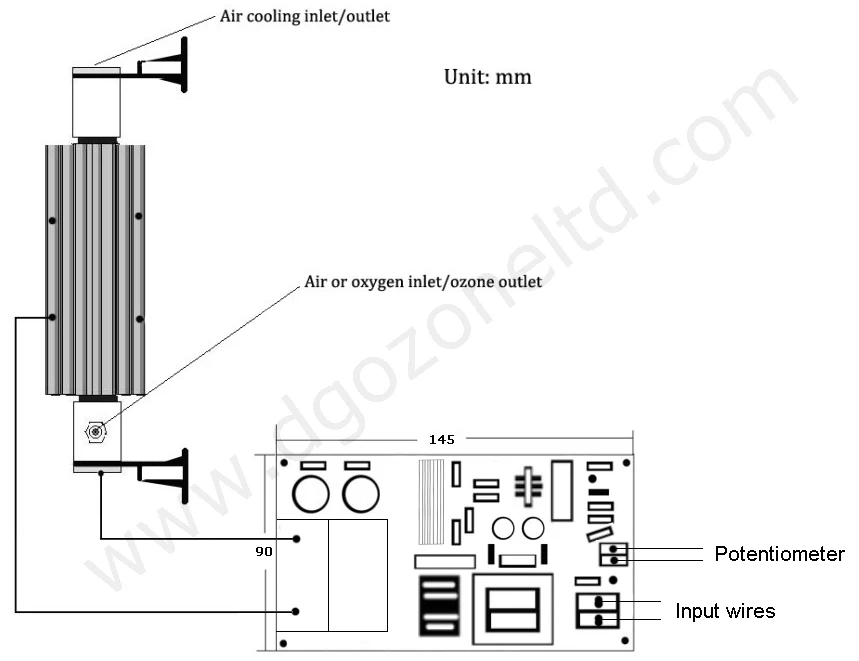

The drawing of connecting method.
Features
1. Narrow discharge gap, high ozone output and concentration, low noise.
2. High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.
3. The ceramic tubes are with low working voltage but high dielectric constant, not easy to be breakdown.
4. Dielectric materials are made by imported high purity aluminum oxide that are sintered through high temperature, two times high-precision internal and external burnish, thus discharge uniformity. Beside 316L stainless steel internal electrodes and
tightness firmwares make its performance better. The end caps of ozone tube and ozone outlets are made of polytetrafluoroethylene, high-purity corrosion resistant fluorine rubber seal rings, with aluminum alloy external radiator, an very effective way to heat radiation.
5. Ozone decrease is lower than 5% if work for a long time, while life time is more than 20,000 hours.
2. High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.
3. The ceramic tubes are with low working voltage but high dielectric constant, not easy to be breakdown.
4. Dielectric materials are made by imported high purity aluminum oxide that are sintered through high temperature, two times high-precision internal and external burnish, thus discharge uniformity. Beside 316L stainless steel internal electrodes and
tightness firmwares make its performance better. The end caps of ozone tube and ozone outlets are made of polytetrafluoroethylene, high-purity corrosion resistant fluorine rubber seal rings, with aluminum alloy external radiator, an very effective way to heat radiation.
5. Ozone decrease is lower than 5% if work for a long time, while life time is more than 20,000 hours.
Related ozone products
Our Company
DGOzone Ltd. is one technical listed company, who professionally designs, develops, distributes ozone generators for civilian and industrial air and water treatments.
DGOzone majors in ozone generator units, ozone generator machines and accessories. Ozone generator units include ceramic plate ozone generator units and ceramic tube ozone generator units. The accessories cover venturi, check valve, air dryer and so on. Our ozone generator units are certificated through CE and RoHS, honored by nice clients from home and abroad, which are widely used in houses, hotels, schools, offices, mansions, swimming pools, food factories, bottled water fill lines and fields of medical treatment and public health.
Much respect is paid to the talent and much to science and research of ozone high-tech and environmental protection materials by DGOzone. Most effort is made on meeting requirements of different customers with positive service, quality products and favorable prices. OEM service offered, Design service offered, Buyer label offered. Ozone is 100% eco-friendly and chemical-free, leaving no chemical residue or harmful byproducts. For the benefit of worldwide people and the environment, now DGOzone is doing best to be well positioned as an Efficient, Excellent and Entire supplier in this wonderful sector.
Now DGOzone has been one of the biggest exporter for ozone generators and accessories in China.
FAQ
Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if goods are on stock. if not, according to quantities, it takes 15-20 days .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer samples free of charge but the buyer needs to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10,000USD, 100% in advance. Payment>=10,000USD, 30% T/T in advance, 70% before shipment.
