iCT 1P 2P 3P 4P 16A 25A 40A 63A 100A 24V 220V Lighting control panel Heating Ventilation Roller blind DIN Rail Modular Contactor
- Category: >>>
- Supplier: Shanghai Newtrend Electric Co. Ltd.
Share on (60453411627):
Product Overview
Description
iCT 1P 2P 3P 4P 16A 25A 40A 63A 100A 24V 220V Lighting control panel Heating Ventilation Roller blinds DIN Rail Modular Contactor

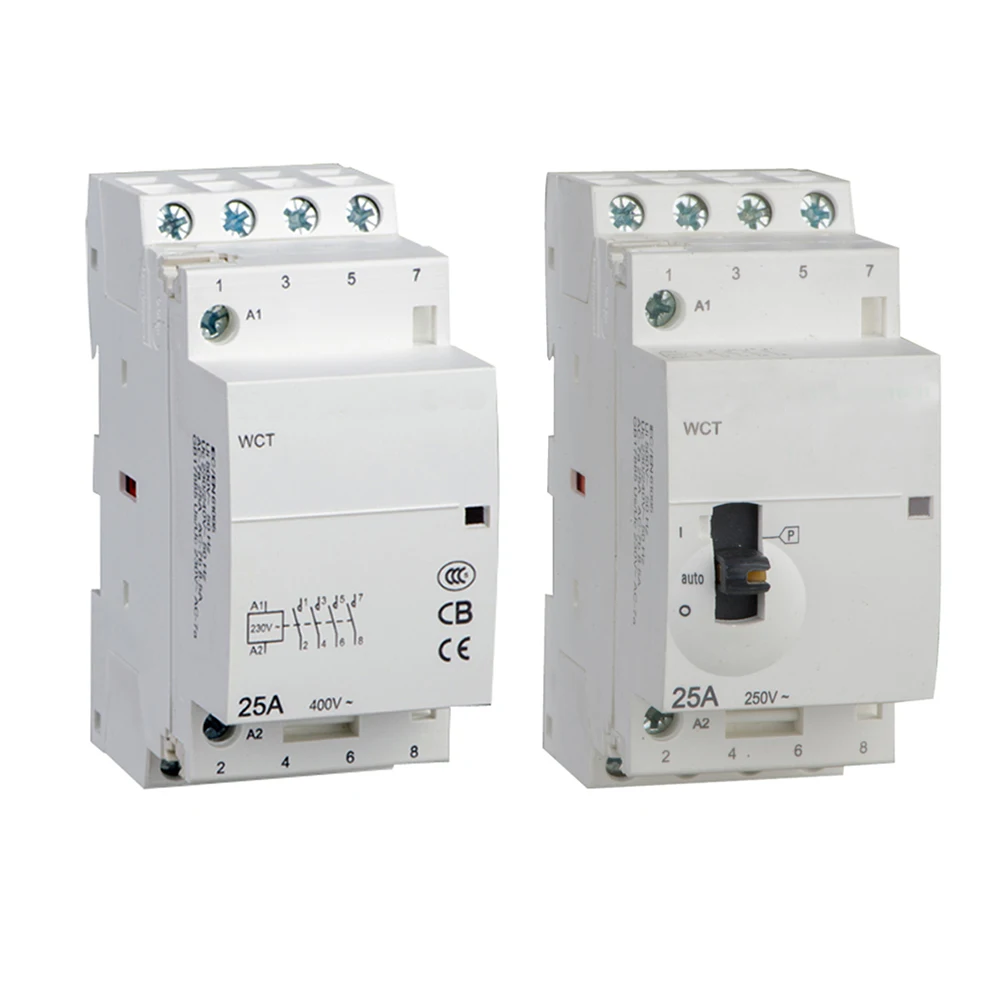

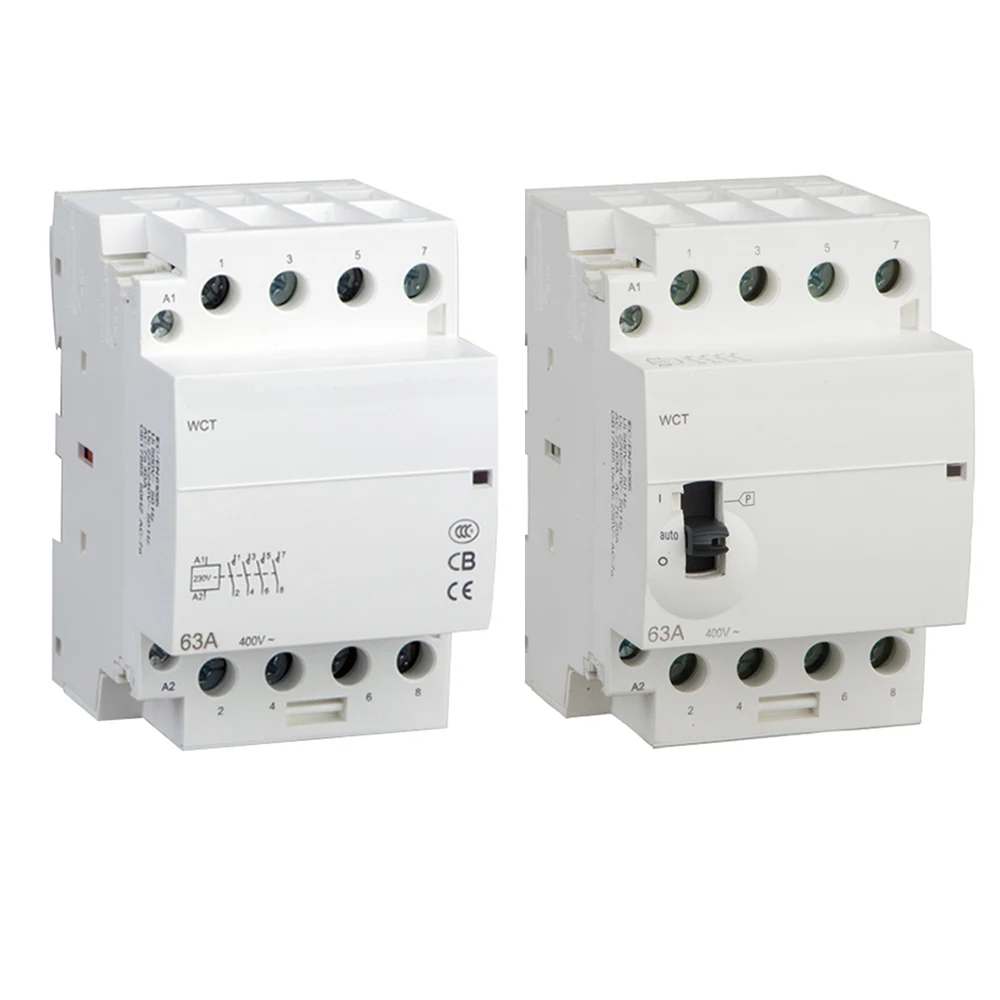

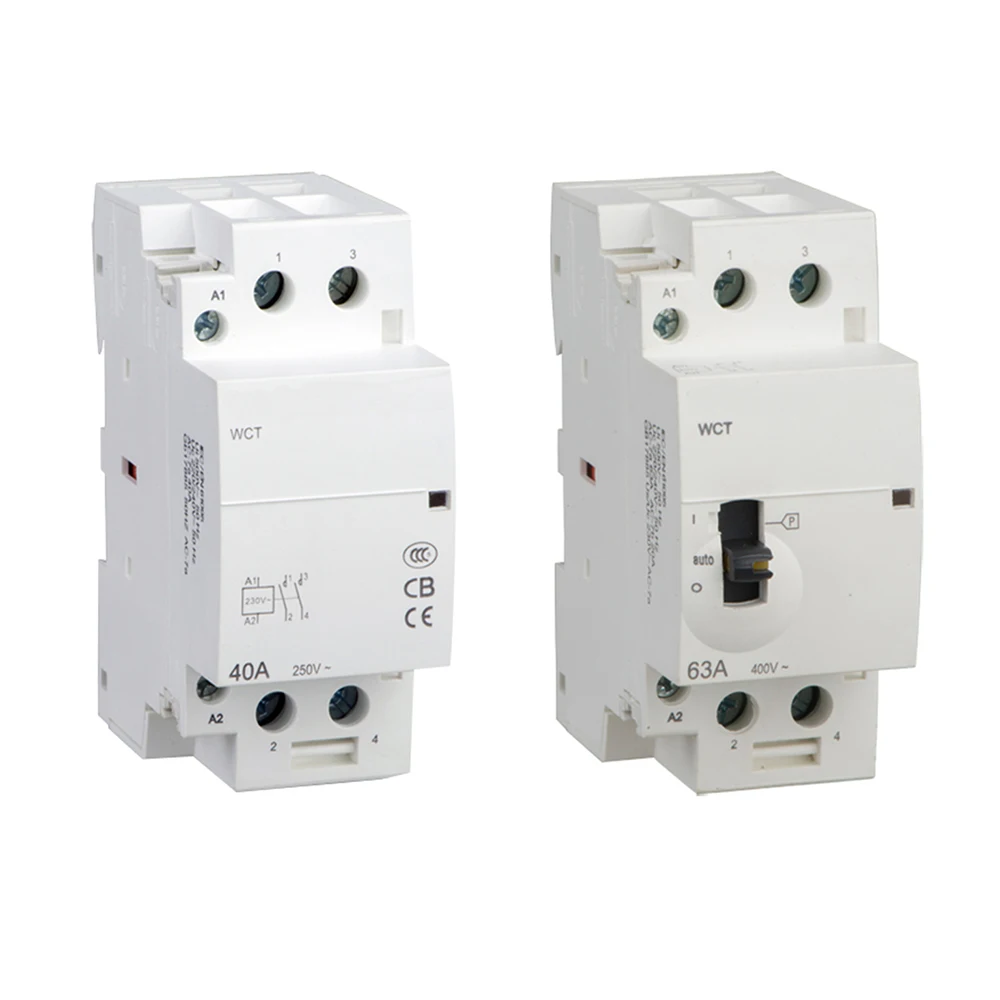

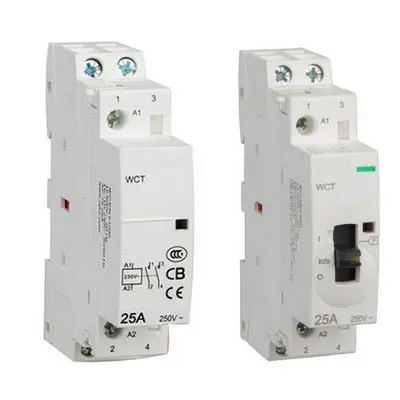

iCT modular contactors are available in two versions:
- Contactors without manually-operated
- Contactors with manually-operated
Use of contactors from 16 to 100 A
For automation needs in the housing, tertiary and industrial sectors, the range of modular iCT contactors is used for:
- Power control of final circuits for housing and the tertiary sector:
- lighting (luminous signs, shop windows, safety lighting, etc.)
- Heating, heat pumps, ovens
- hot water for domestic use
- small utility motors (pumps, fans, barriers, garage doors, etc.)
- emergency stops and safety systems
- air conditioning
-Energy distribution control:
- load shedding and restoration
- source changeover, etc.
| No. of poles | Max AC-7a Current | Model Number | |||||
| 50 Hz coil - different voltages | |||||||
| NO | NC | 12V | 24V | 48V | 110V | 220/240V | |
| 1 | - | 16A | GC1610J5 | GC1610B5 | GC1610E5 | GC1610F5 | GC1610M5 |
| 1 | 1 | GC1611J5 | GC1611B5 | - | GC1611F5 | GC1611M5 | |
| 2 | - | GC1620J5 | GC1620B5 | GC1620E5 | GC1620F5 | GC1620M5 | |
| 2 | 2 | - | GC1622B5 | GC1622E5 | GC1622F5 | GC1622M5 | |
| 3 | - | - | - | - | - | GC1630B5 GC1630M5 | |
| 4 | - | - | GC1640B5 | - | GC1640F5 | GC1640M5 | |
| - | 2 | 25A | - | GC2502B5 | GC2502E5 | - | GC2502M5 |
| - | 4 | - | GC2504B5 | GC2504E5 | - | GC2504M5 | |
| 1 | - | - | GC2510B5 | - | - | GC2510M5 | |
| 1 | 1 | - | GC2511B5 | - | GC2511F5 | GC2511M5 | |
| 2 | - | GC2520J5 | GC2520B5 | GC2520E5 | GC2520F5 | GC2520M5 | |
| 2 | 2 | - | GC2522B5 | GC2522E5 | GC2522F5 | GC2522M5 | |
| 3 | - | - | GC2530B5 | - | GC2530F5 | GC2530M5 | |
| 3 | 1 | - | - | - | - | GC2531M5 | |
| 4 | - | GC2540J5 | GC2540B5 | GC2540E5 | GC2540F5 | GC2540M5 | |
| - | 2 | 40A | - | GC4002B5 | - | - | GC4002M5 |
| - | 4 | - | GC4004B5 | - | GC4004F5 | GC4004M5 | |
| 1 | 1 | - | GC4011B5 | - | - | GC4011M5 | |
| 2 | - | - | GC4020B5 | - | GC4020F5 | GC4020M5 | |
| 2 | 2 | - | - | - | - | GC4022M5 | |
| 3 | - | - | GC4030B5 | - | GC4030F5 | GC4030M5 | |
| 4 | - | - | GC4040B5 | GC4040E5 | GC4040F5 | GC4040M5 | |
| - | 2 | 63A | - | - | - | - | GC6302M5 |
| - | 4 | - | GC6304B5 | - | - | GC6304M5 | |
| 1 | 1 | - | - | - | - | GC6311M5 | |
| 2 | - | - | - | - | - | GC6320M5 | |
| 2 | 2 | - | - | - | GC6322F5 | GC6322M5 | |
| 3 | - | - | GC6330B5 | - | GC6330F5 | GC6330M5 | |
| 4 | - | GC6340B5 | GC6340E5 | GC6340F5 | GC6340M5 | ||

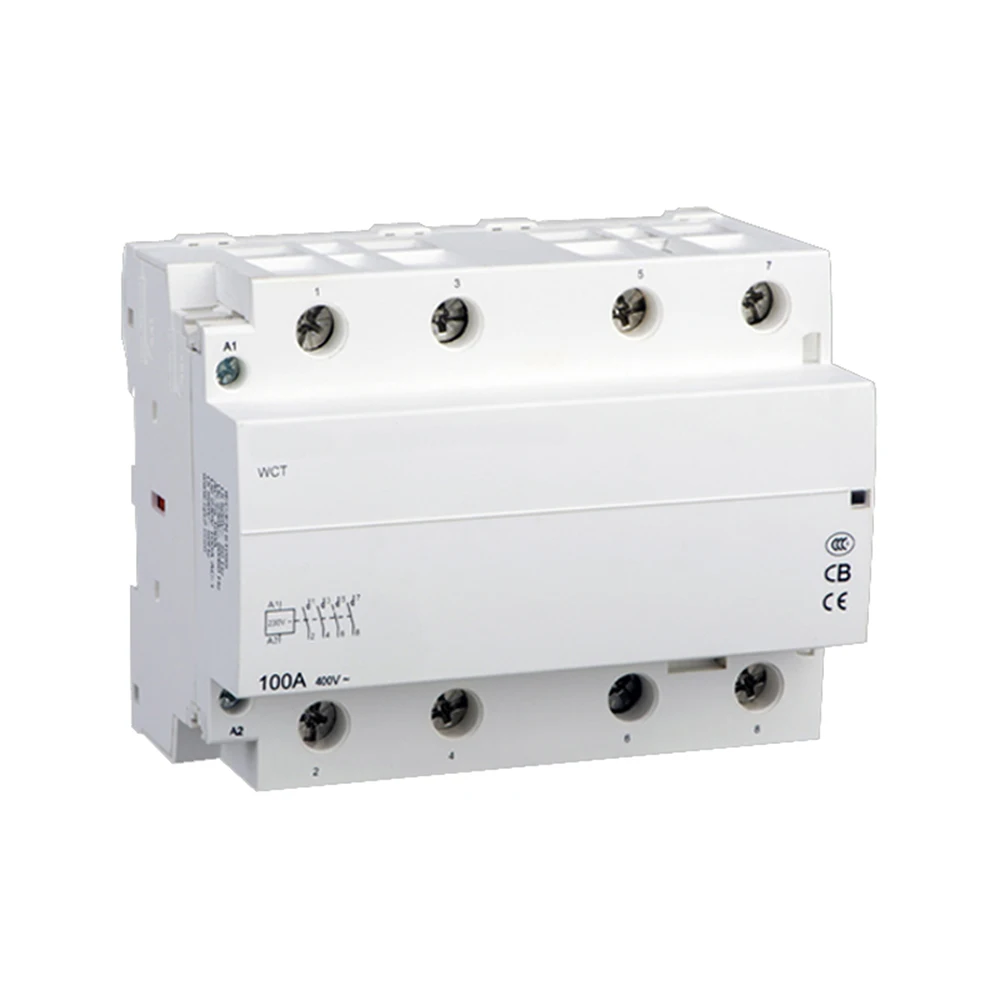

| 2 | - | 100A | - | - | - | - | GC10020M5 |
| 4 | - | - | GC10040B5 | - | - | GC10040M5 | |
| No. of poles | Max AC-7a Current | Model Number | |||||
| 60 Hz coil - different voltages | |||||||
| NO | NC | 12V | 24V | 48V | 110V | 220/240V | |
| 1 | - | 16A | GC1610J6 | GC1610B6 | GC1610E6 | GC1610F6 | GC1610M6 |
| 1 | 1 | GC1611J6 | GC1611B6 | - | GC1611F6 | GC1611M6 | |
| 2 | - | GC1620J6 | GC1620B6 | GC1620E6 | GC1620F6 | GC1620M6 | |
| 2 | 2 | - | GC1622B6 | GC1622E6 | GC1622F6 | GC1622M6 | |
| 3 | - | - | - | - | - | GC1630B6 GC1630M6 | |
| 4 | - | - | GC1640B6 | - | GC1640F6 | GC1640M6 | |
| - | 2 | 25A | - | GC2602B6 | GC2602E6 | - | GC2602M6 |
| - | 4 | - | GC2604B6 | GC2604E6 | - | GC2604M6 | |
| 1 | - | - | GC2610B6 | - | - | GC2610M6 | |
| 1 | 1 | - | GC2611B6 | - | GC2611F6 | GC2611M6 | |
| 2 | - | GC2620J6 | GC2620B6 | GC2620E6 | GC2620F6 | GC2620M6 | |
| 2 | 2 | - | GC2622B6 | GC2622E6 | GC2622F6 | GC2622M6 | |
| 3 | - | - | GC2630B6 | - | GC2630F6 | GC2630M6 | |
| 3 | 1 | - | - | - | - | GC2631M6 | |
| 4 | - | GC2640J6 | GC2640B6 | GC2640E6 | GC2640F6 | GC2640M6 | |
| - | 2 | 40A | - | GC4002B6 | - | - | GC4002M6 |
| - | 4 | - | GC4004B6 | - | GC4004F6 | GC4004M6 | |
| 1 | 1 | - | GC4011B6 | - | - | GC4011M6 | |
| 2 | - | - | GC4020B6 | - | GC4020F6 | GC4020M6 | |
| 2 | 2 | - | - | - | - | GC4022M6 | |
| 3 | - | - | GC4030B6 | - | GC4030F6 | GC4030M6 | |
| 4 | - | - | GC4040B6 | GC4040E6 | GC4040F6 | GC4040M6 | |
| - | 2 | 63A | - | - | - | - | GC6302M6 |
| - | 4 | - | GC6304B6 | - | - | GC6304M6 | |
| 1 | 1 | - | - | - | - | GC6311M6 | |
| 2 | - | - | - | - | - | GC6320M6 | |
| 2 | 2 | - | - | - | GC6322F6 | GC6322M6 | |
| 3 | - | - | GC6330B6 | - | GC6330F6 | GC6330M6 | |
| 4 | - | GC6340B6 | GC6340E6 | GC6340F6 | GC6340M6 | ||
| 2 | - | 100A | - | - | - | - | GC10020M6 |
| 4 | - | - | GC10040B6 | - | - | GC10040M6 | |
