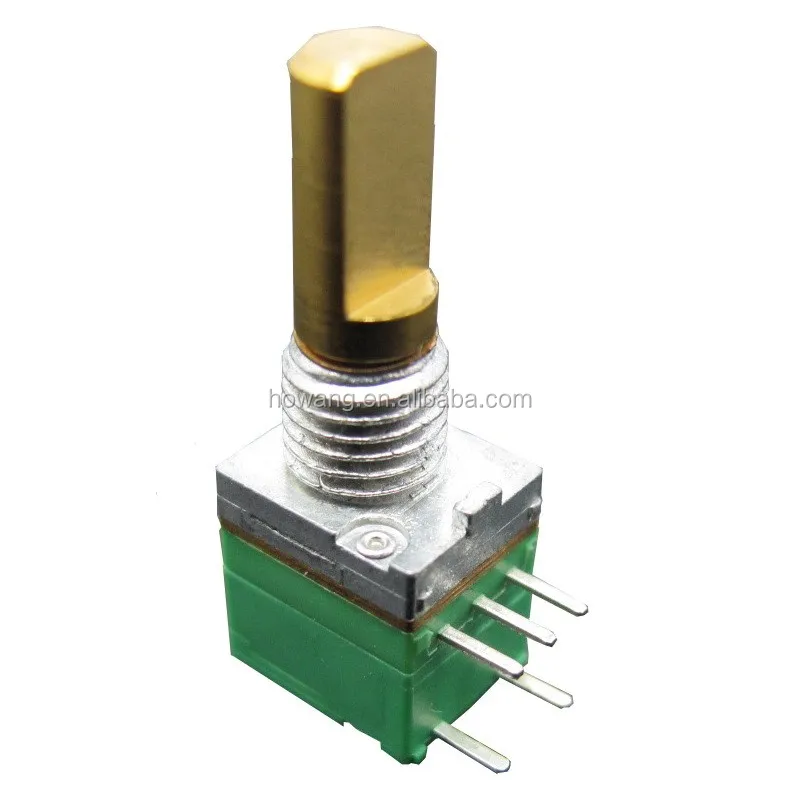

F081 Series 8mm metal shaft Rotary Potentiometer for Audio and walkie talkie applications
- Category: >>>
- Supplier: HUIZHOU HOWANG ELECTRONICS CO. LTD.
Share on (60453516491):
Product Overview
Description
Feature

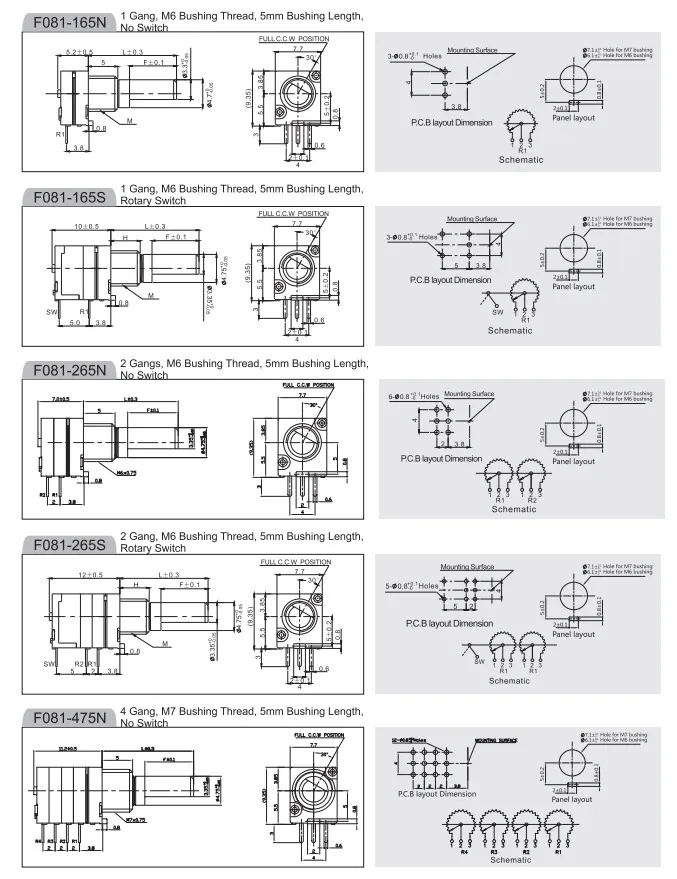

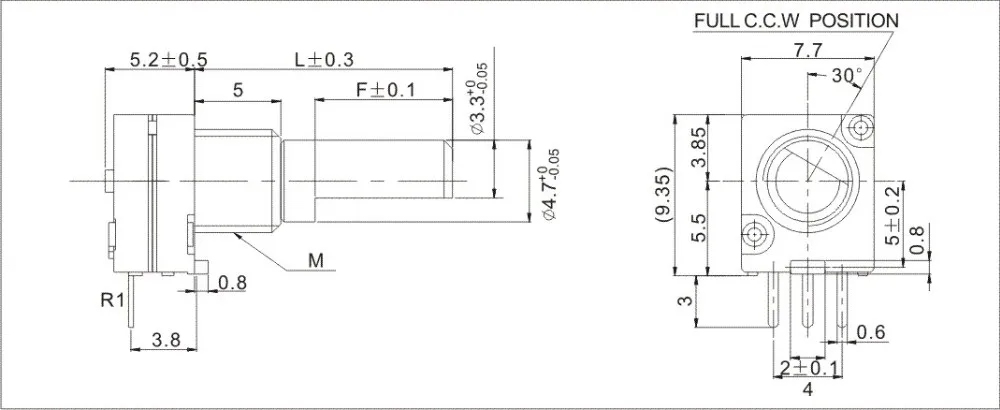

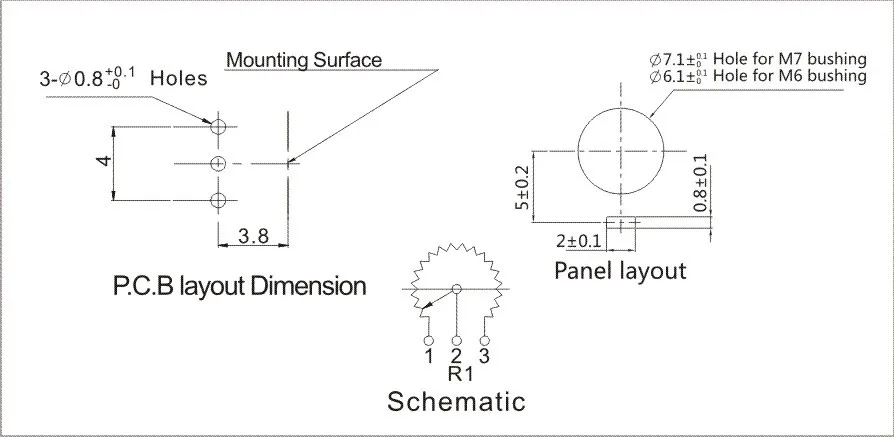

F081 Series
Metal shaft Potentiometer
1. Flux build-up prevention is taken through inserting molding around the resistor with resin.
2. A large variety of products lined up to support various applications.
3. Miniature design for Audio and walkie talkie applications.
4. Long Life Type Available.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Resistance Tolerance | 500Ω<R<1MΩ:±20% R<500Ω or R>1MΩ:±30% |
| Resistance Taper | A, B, C |
| Max. Operating Voltage | AC 50V, DC 10V |
| Rated Power | 0.05W |
| Rotational Noise | 100 mV Max |
| Insulation Resistance | Less than 100MΩ at DC 250V |
| Withstand voltage | 1 minute at AC 300V |
| Residual Resistance | 50Ω Max |
| Gang Error (Dual Unit or Multiunit) | 40db~0db±3db |
| Mechanical characteristics | |
| Detent | 1(Center) detent, 11 detents |
| Total Rotational Angle | 300°±10° |
| Push-Pull Strength | Pull : 10Kgf Max; Push: 10Kgf Max at 10S |
| Rotational Torque | 20~100gf.cm |
| Stopper Strength | 3.0Kgf.cm Min |
| Shaft Wobble | 0.5 mm Max |
| Durability | |
| Rotational Life | Standard life: 30,000 Cycles Min. / Long life: 100,000 Cycles Min. |
| Cold Test | -20±2℃ for 96 hours, TR< ±15% |
| Dry heat | 70±2℃ for 96 hours, TR< ±15% |
| Temperature cycle | -20~+70℃, 5 cycles, TR< ±15% |
| Soldering condition | Wave soldering: 260℃±5℃,5Sec. Max Manual Soldering: 350℃±10℃ 3 Sec Max. |
| Switch characteristics | |
| Rated Power | 3.0 A at DC 16V |
| Contact Resistance | Less than 50mΩ |
| Switch Angle | 30°±10° |
| Switch torque | 50~250gf.cm |
| Switch life | 25,000 cycles without load |

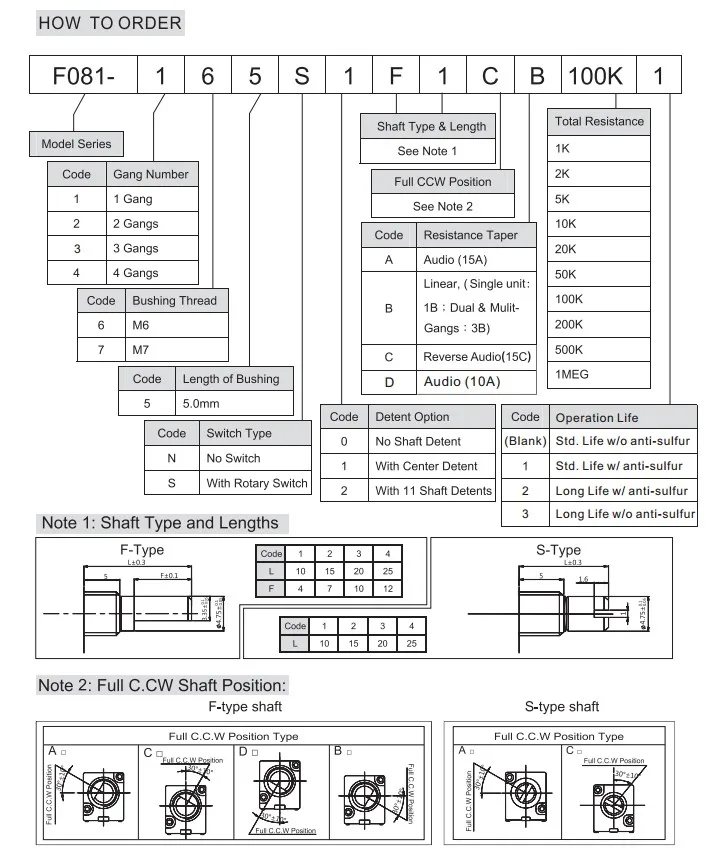

HOW to Oder?
Quality Certificates
| Quality Certificates & Environment Guideline HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC | |
 |  |
 |  |
 |  |
Company Information
Huizhou Howang Electronics CO.,LTD

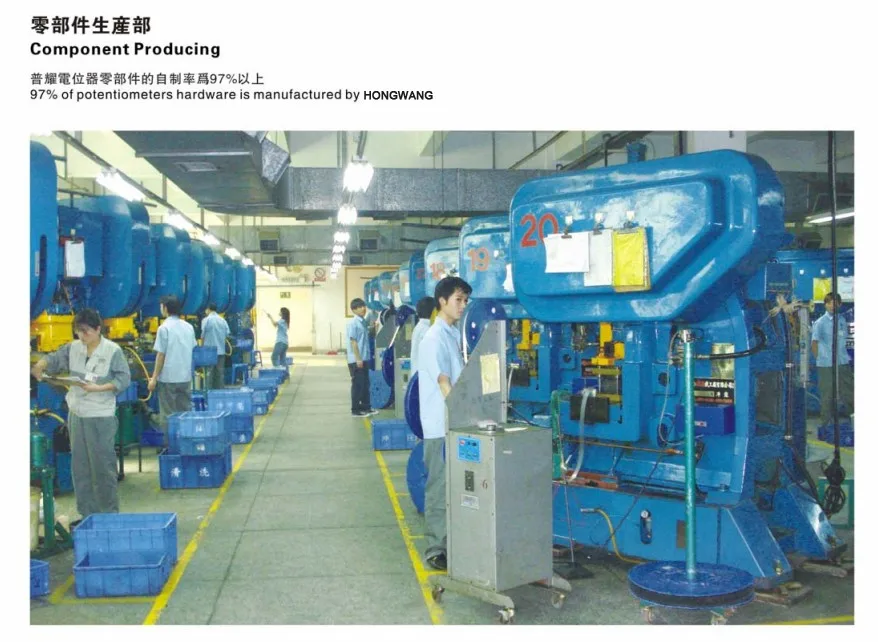

As being one of the leading factory for electronics components, EQ guitar pickups and noise cancelling headphones, we have been in the industry for more than 10years' professional experience. We have served customers from more than 80 countries with our quality products and premium services. OEM and ODM services are welcome for our products.
