In optics, a doublet is a type of lens made up of two simple lenses paired together. Such an arrangement allows more optical surfaces, thicknesses, and formulations, especially as the space between lenses may be considered an "element." With additional degrees of freedom, optical designers have more latitude to correct more optical aberrations more thoroughly.

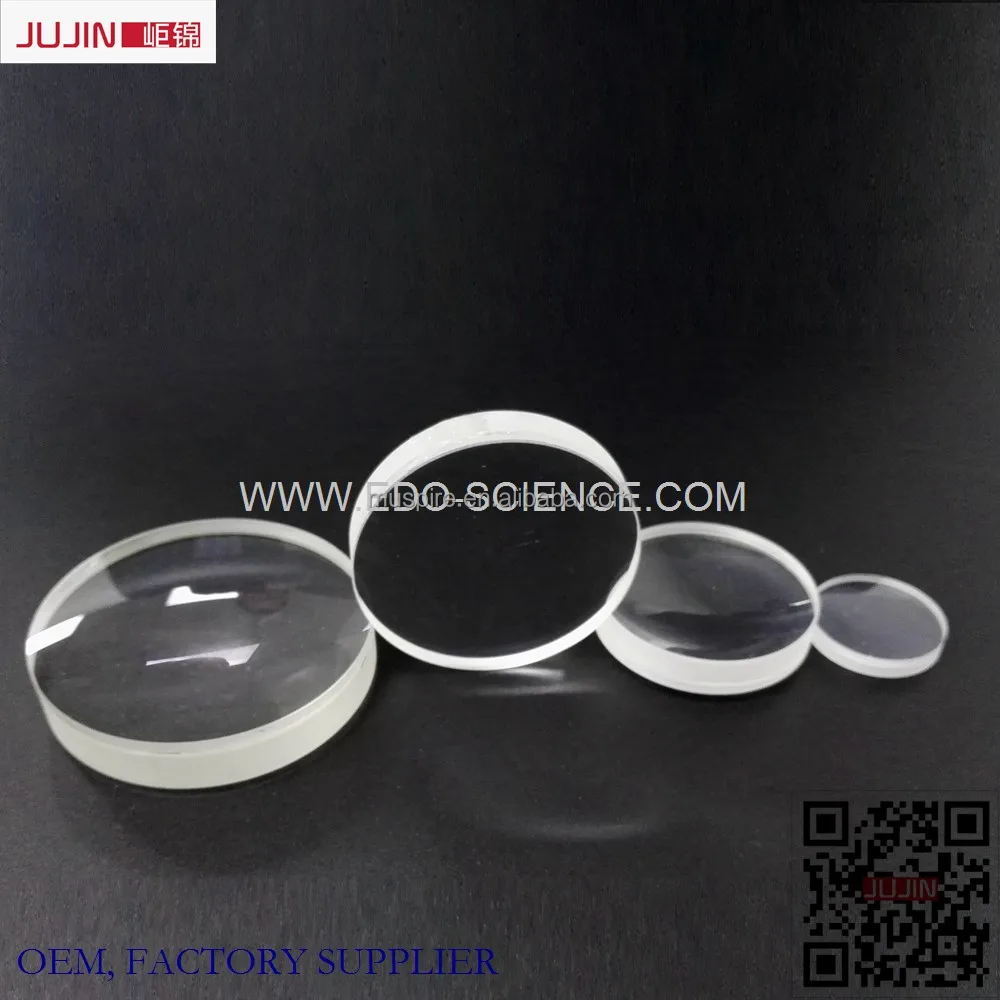

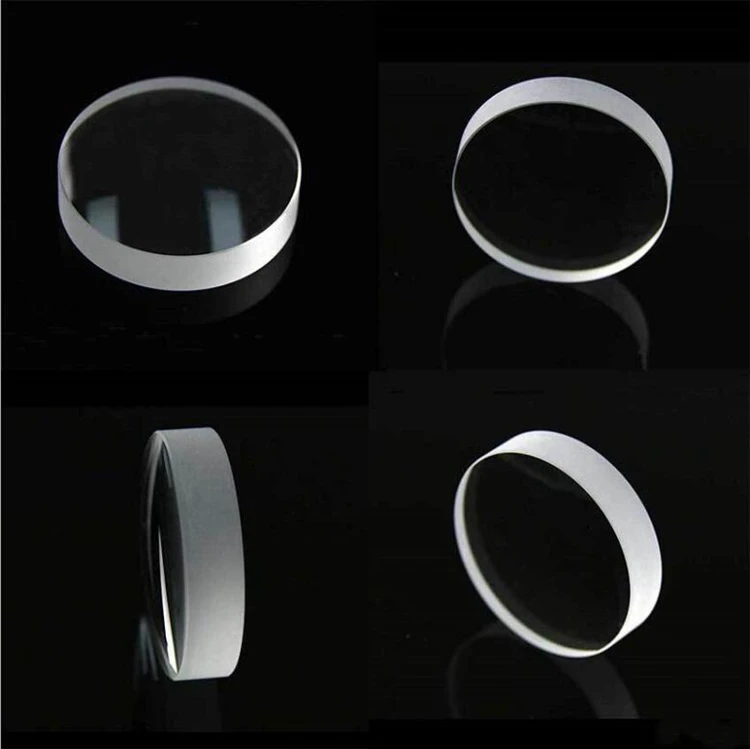

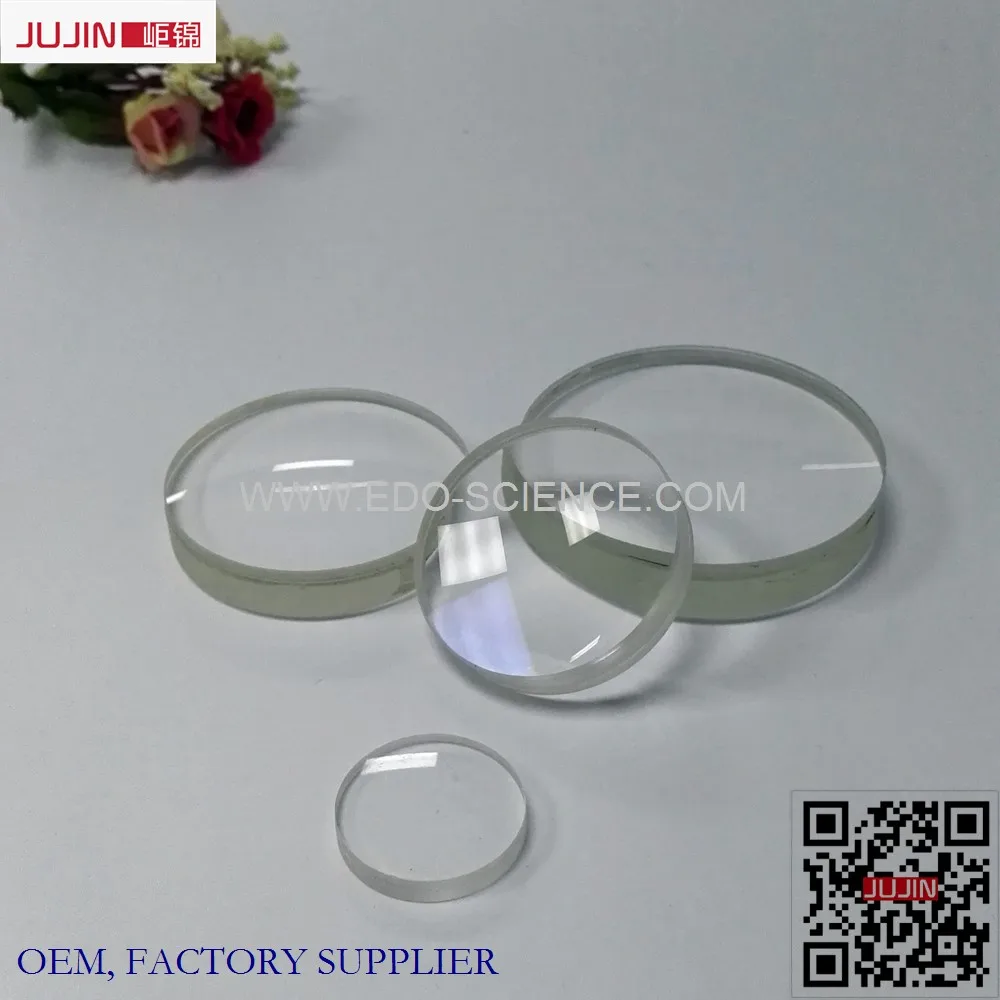

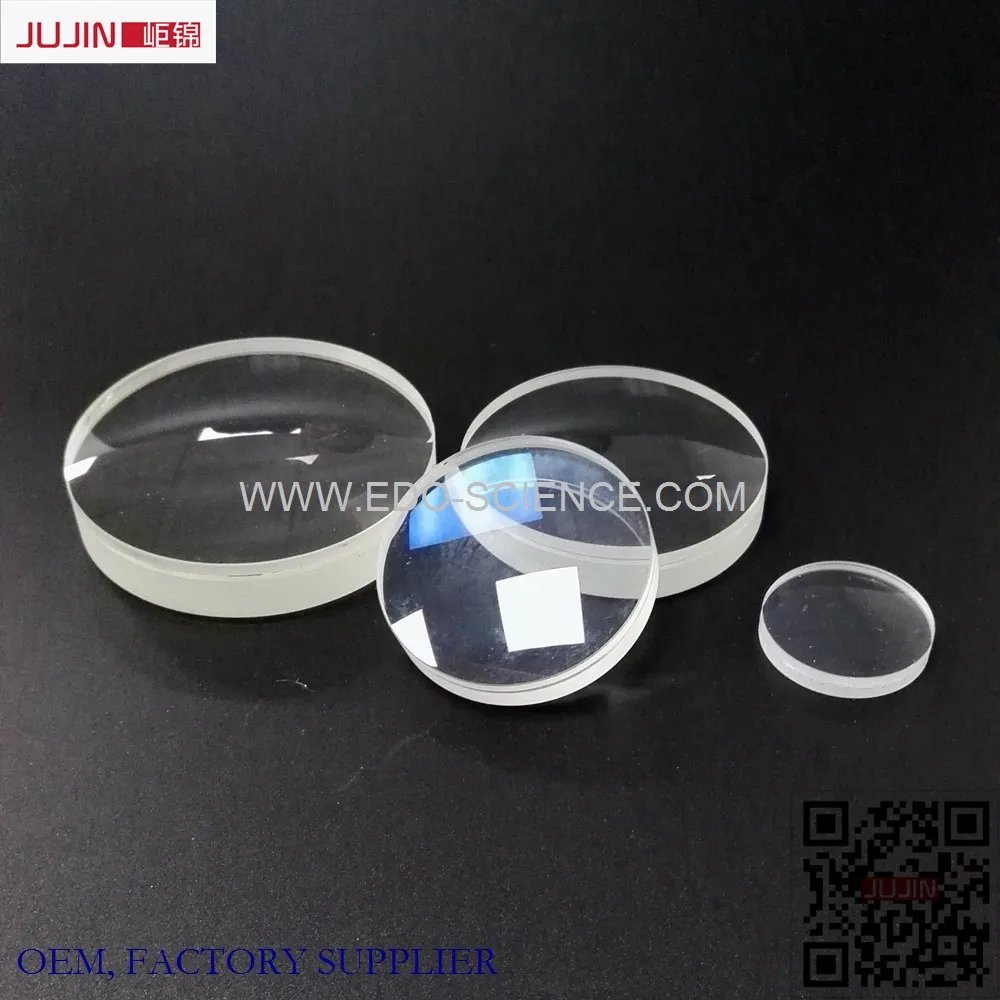

Achromatic Lenses/cemented lenses/glued lenses/doublets are achromatic consists of a positive low-index Crown Glass lens element cemented to a negative high-index Flint Glass lens element. The elements are chosen so as to cancel chromatic aberration at two well-separated wavelengths, usually in the blue and red region of the spectrum. Focal length is constant at those two wavelengths and focal length shifts are virtually eliminated across the visible wavelengths. One frequent use is to achieve diffraction limited focusing of a laser beam. Negative Achromats are typically used when there is a need to eliminate chromatic aberration. In addition to reducing chromatic aberration at the design wavelengths, spherical aberration and coma are greatly reduced.
Shanghai Jujin International Co., Ltd. Supply all kinds of achromatic lens as per your requested.
Specification of our achromatic lens as follow: *Material: BK7 and ZF2(or according to your request) *Dia.: +0/-0.05 *Center thickness tolerance: +/-0.1 *Surface quality: 60-40 Scrath/Dig *Surface figure: 0.5-0.2 *Centration < 3arc min *Chamfer: 0.1-0.25*45 degrees *Design wavelength: 486.1mm, 587.6mm, 656.3mm (the parameter is dimension of normal lens, so specification will be changed according to different dimension and material)
Range of diameter
Dia.0.7mm-Dia.400mm
Range of curve radius
R1.5-R∞ etc.
Tolerance of diameter
+/-0.1, +/-0.01, +/-0.005 etc.
Surface accuracy
λ , 1/2λ , 1/4λ , 1/10λ etc.
Tolerance of Thickness
+/-0.1, +/-0.05, +/-0.01 etc.
Centration
+/-2′,+/-1′ etc.
Aperture N
5, 1 etc.
Irregularity ΔN
2, 1, 0.5, 0.2 etc.
Surface quality
60/40, 40/20, 20/10, 10/5 etc.

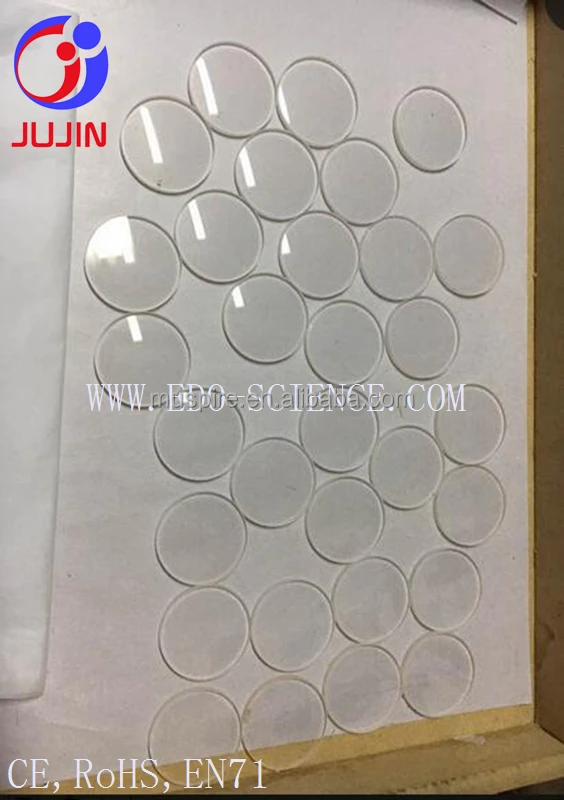

Packaging & Shipping
