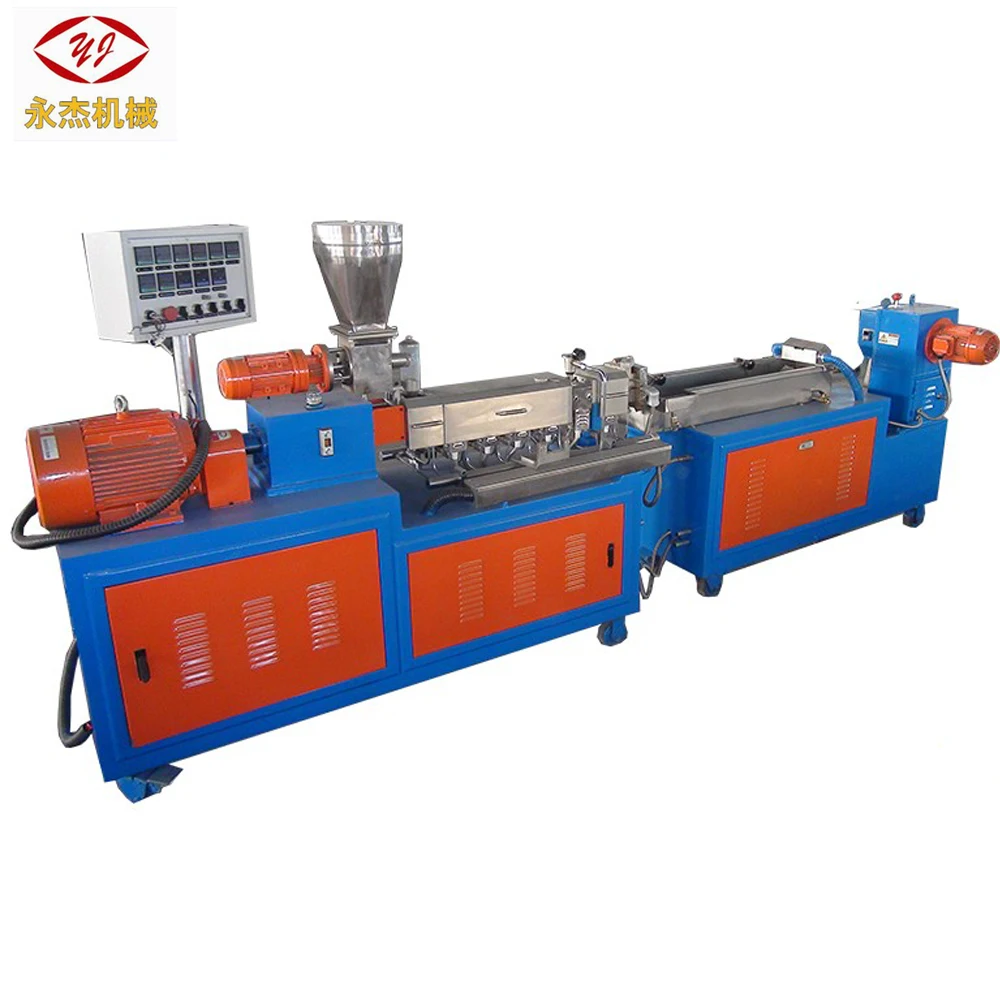

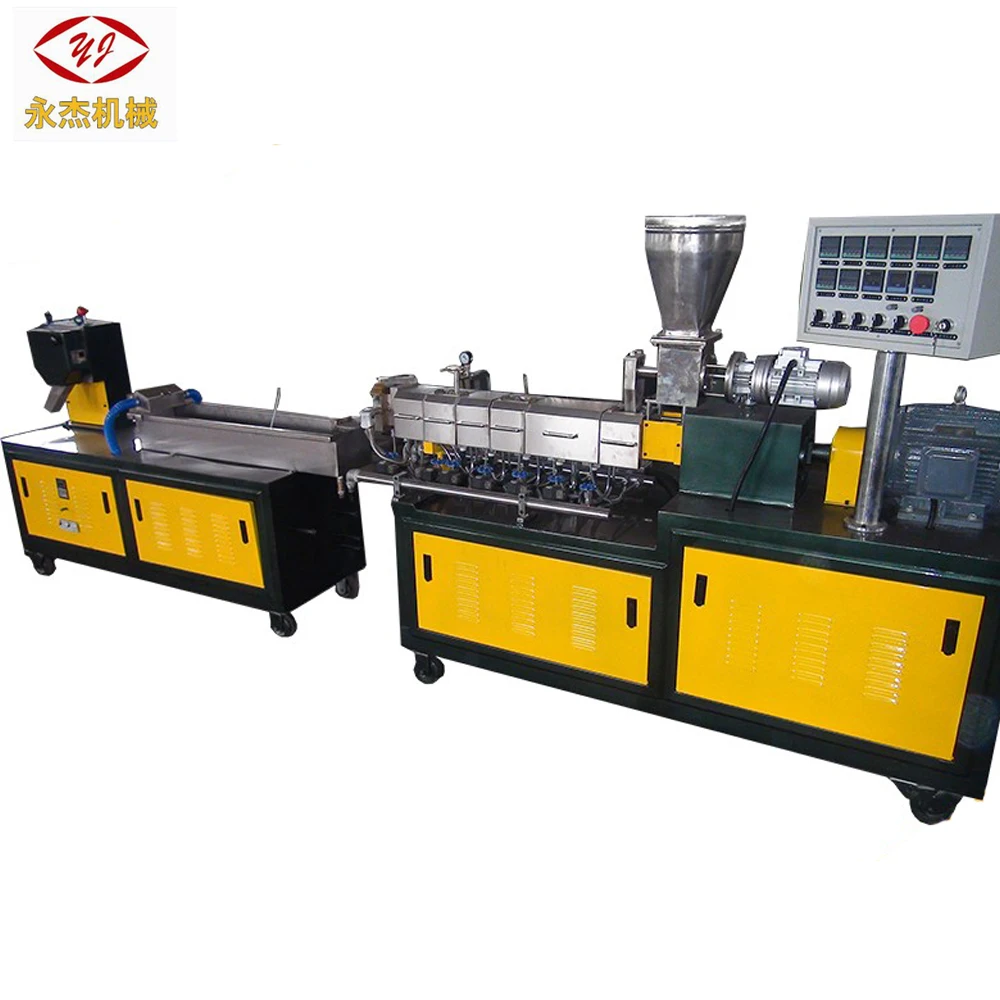

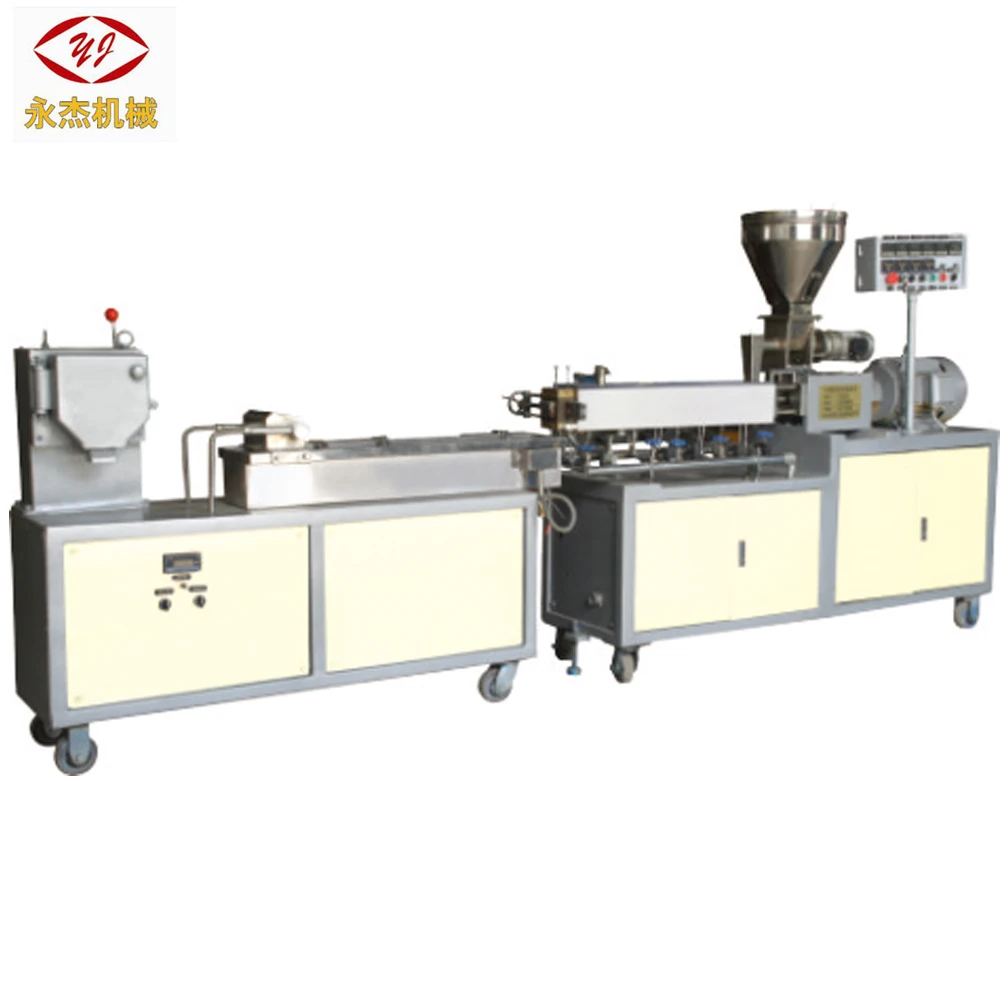

China diy production line lab scale extruder

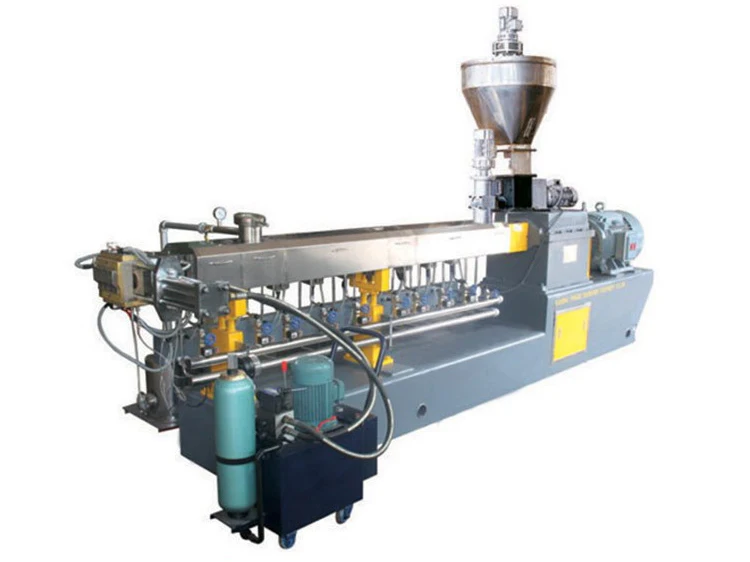

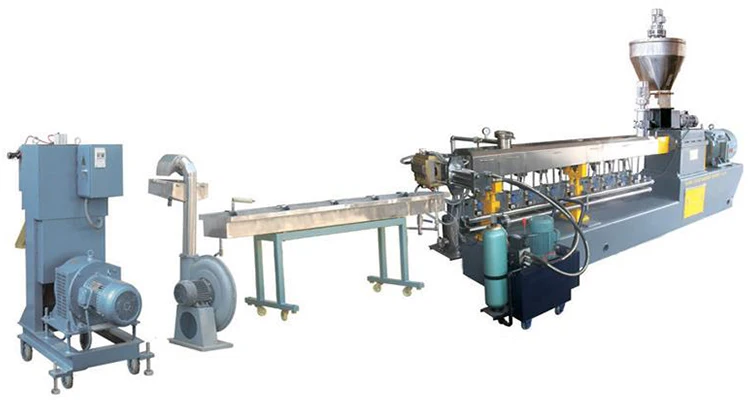

Brief introduction: Water strand pelletizing line is extrusion strand pelletizing, consisting of parallel twin-screw extruder and corresponding auxiliary granulation.
The gearbox is high torque design, implement smooth operation, low noise.
Apply to: Masterbatch and regenerationof PP,PE,PET,PS,ABS,PA,PVC,PC,POM,EVA,PMMA
| Model | Diameter(mm) | L/D | RPM ( r/min) | Power (Kw) | Torque(N.m) | T/N | Capacity (Kg/h) |
| SJSL-20 | 20 | 32-44 | 600 | 5.5 | 30 | 4.8 | 6.5-15 |
| SJSL-36 | 36 | 32-48 | 600 | 15 | 115 | 4.2 | 30-75 |
| SJSL-51A | 51 | 32-52 | 500 | 45 | 405 | 5.1 | 100-200 |
| SJSL-51B | 51 | 32-52 | 600 | 55 | 415 | 5.2 | 150-25 |
| SJSL-63A | 63 | 32-62 | 400 | 55 | 620 | 4.4 | 160-250 |
| 500 | 75 | 675 | 4.8 | 200-300 | |||
SJSL-63B | 63 | 32-64 | 600 | 90 | 675 | 4.8 | 225-375 |
| 800 | 110 | 620 | 4.4 | 300-500 | |||
| SJSL-75A | 72 | 32-64 | 400 | 90 | 1015 | 4.7 | 225-350 |
| 500 | 110 | 1005 | 4.6 | 300-550 | |||
| SJSL-75B | 72 | 32-64 | 600 | 132 | 990 | 4.6 | 400-650 |
| 800 | 160 | 900 | 4.2 | 480-800 | |||
| SJSL-92A | 92 | 32-64 | 400 | 250 | 2815 | 5.9 | 650-1050 |
| 500 | 2250 | 4.7 | 750-1250 | ||||
| SJSL-92B | 92 | 32-64 | 600 | 280 | 2365 | 5.0 | 900-1500 |
| 800 | 2250 | 4.7 | 1200-2000 | ||||
| SJSL-135A | 135 | 32-48 | 400 | 315 | 6190 | 4.6 | 1500-2500 |
| SJSL-135B | 135 | 32-48 | 500 | 400 | 6750 | 5.1 | 200-3500 |
Application for water strand pelletizing:
1. Master batch and color master batch:
PP/PE/ABS+Caco3/Sio2(silicon dioxide)/talc(chalk)/carbon black
2. PP/PA/PA3/PA66/PA10/PA1012/ABS/PBT/PET/POM+glass fiber/carbon Fiber/iron fiber
3. PBT, PET recycling
4. EVA

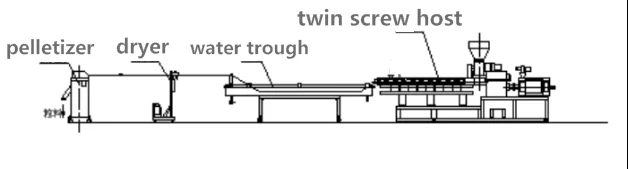

Auxiliary

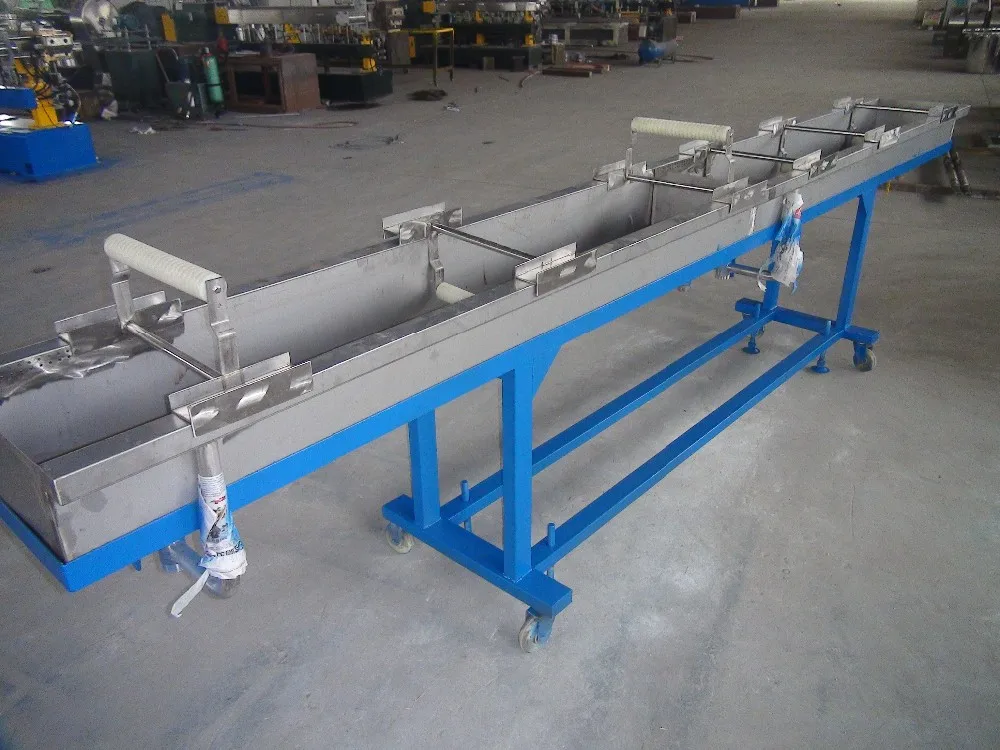

Water trough SJSL20:1-2m SJSL-36/51:3m SJSL-63A/75A:4m SJSL-75B/95:5/6m |
|

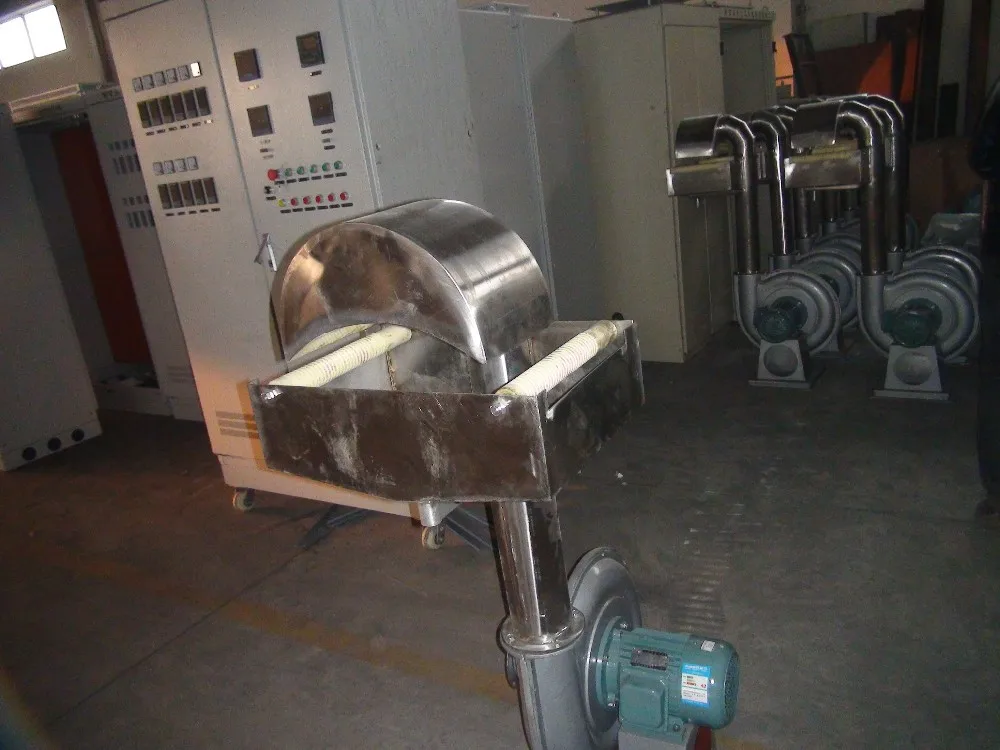

Blowing dryer SJSL-20: 1.5kw SJSL-36/51: 1.5kw SJSL-75A/63A:2.2kw SJSL-75B/95:3kw,4kw
|
|

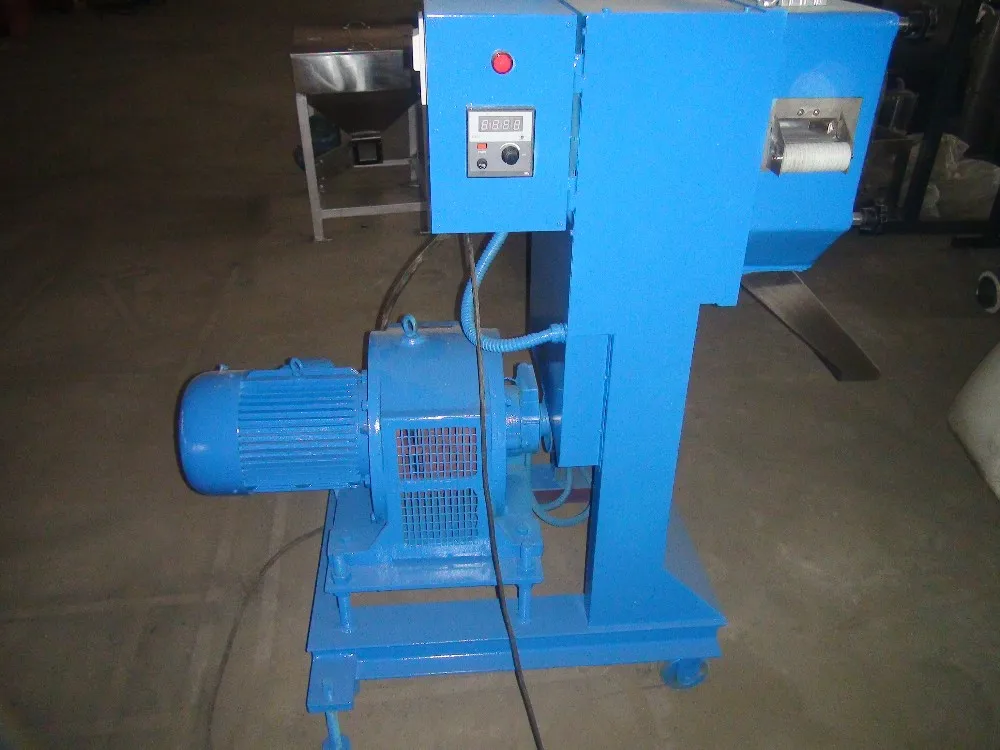

Pelletizer SJSL-20: 50kg/h 0.75kw SJSL-36:100kg/h 2.2kw SJSL-51/63A: 300kg/h 4kw SJSL-63B/75A: 500kg/h 5.5kw SJSL-75B/95:1000kg/h |
|
Other product
Water-ring Hot-face pelletizing line Pelletizing in the water line
Air-cooling hot-face pelletizing line Air-cooling strand pelletizing line
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. how long is the warranty?
We can offer one-year warranty for the whole machine.
