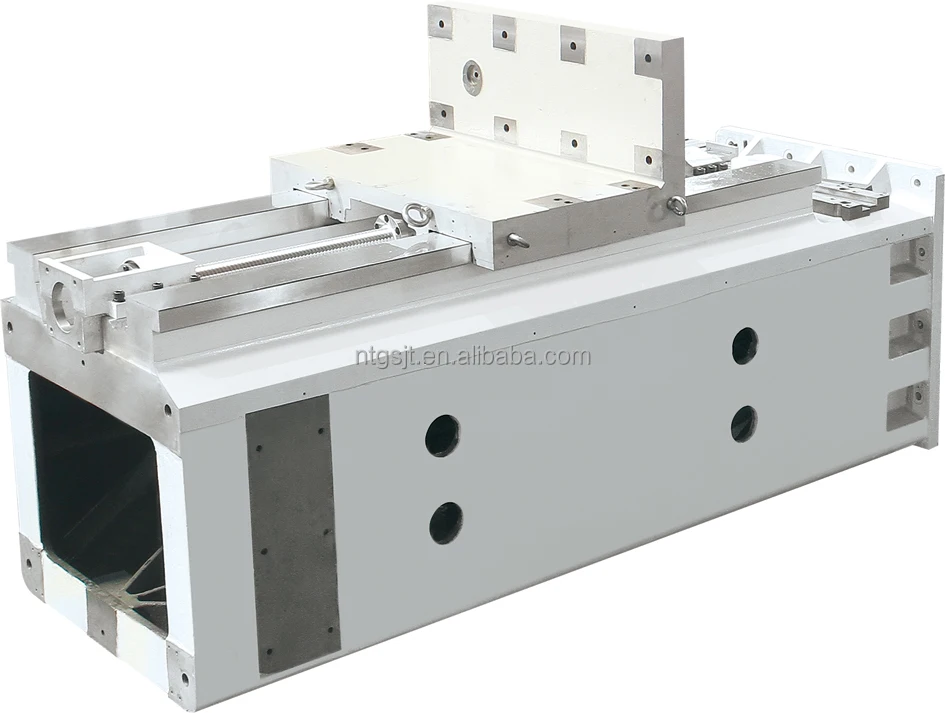

1. Mihana casting, one - piece casting molding, high earthquake resistance.

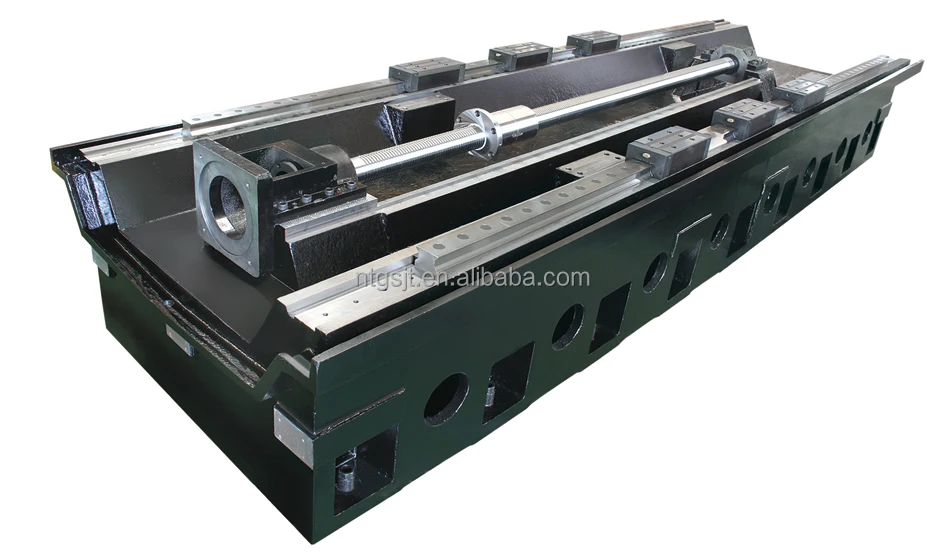

2. High precision C3 class ball screw and heavy load P class roller linear slide rail, to ensure the axial and radial heavy cutting force.

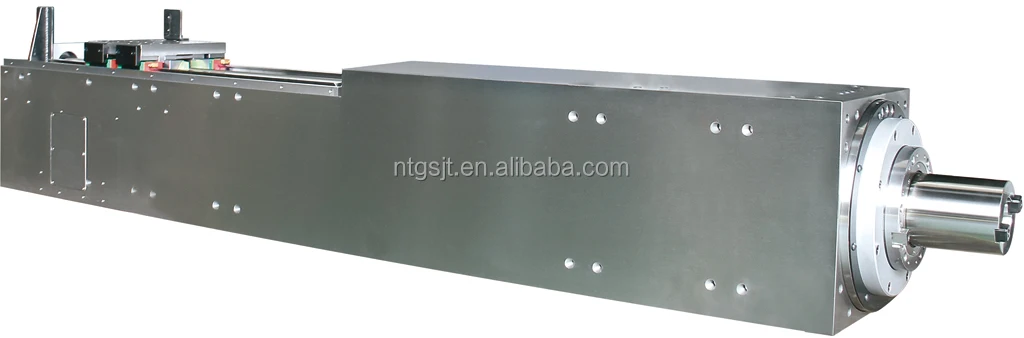

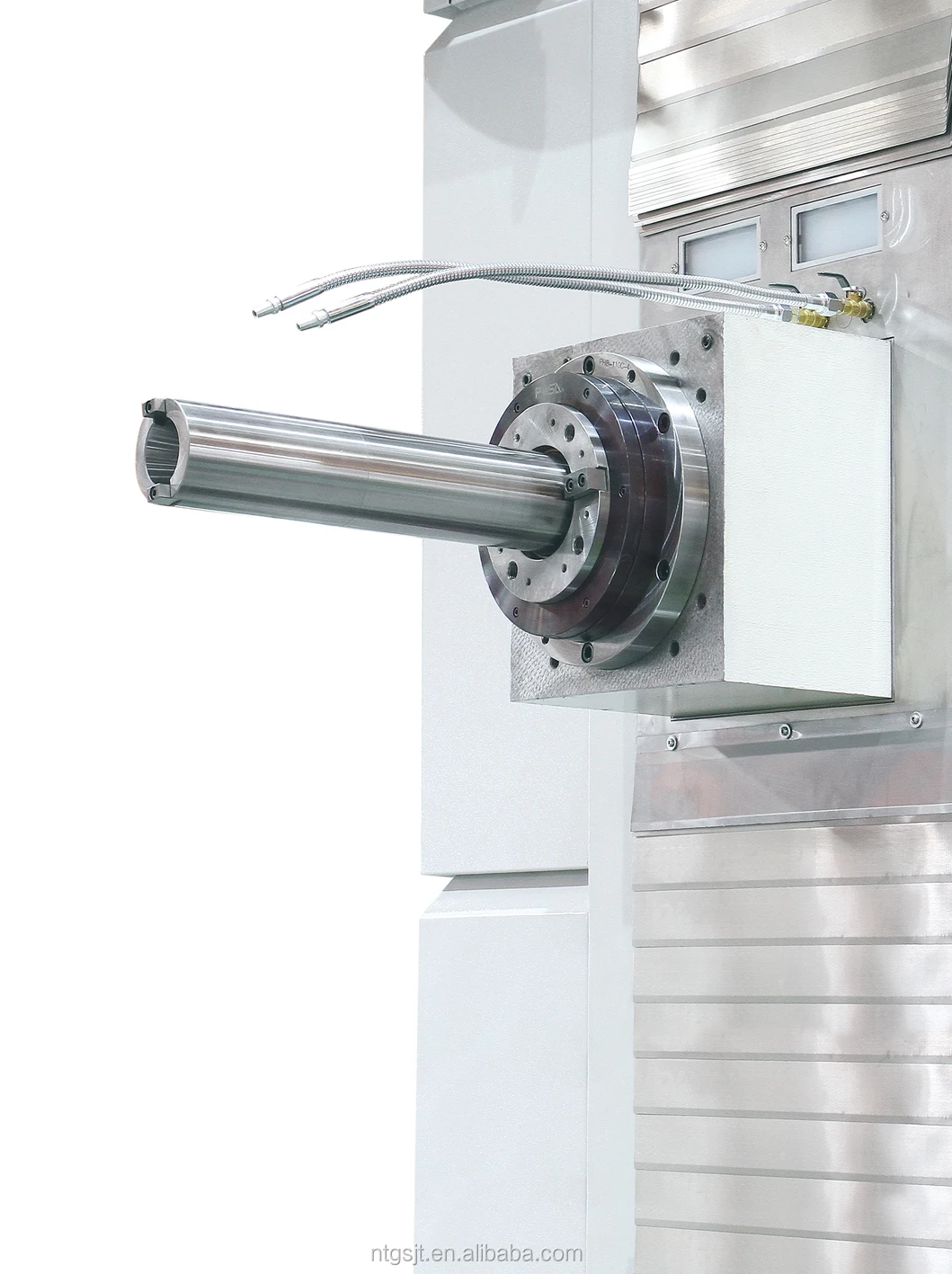

3. The gear spindle head is cast in one piece. The spindle uses cylindrical double row roller bearings with large spacing, high precision and high rigidity NN to ensure stronger rigidity and machinability.

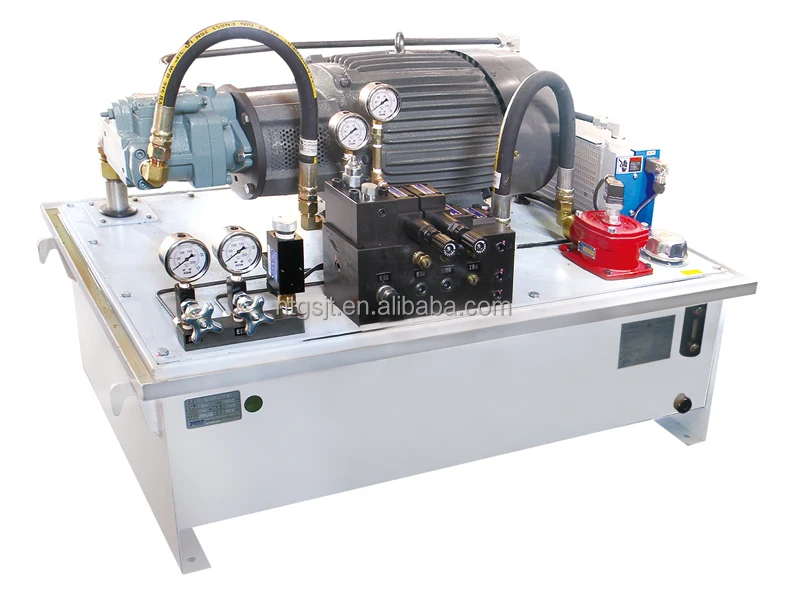

4. Hydraulic station adopts high quality hydraulic components, reliable action, high stability.
Specification
Model
Unit
DBM-110A
Travel
X-axis travel (standard)
mm
2000
Y-axis travel (standard)
mm
1600
Z-axis travel (standard)
mm
1500
W-axis travel (standard)
mm
550
Spindle
Spindle center to worktable surface
mm
205~1805
Spindle nose to worktable center
mm
-125~1925
Spinde diameter
mm
110
Spindle taper
BT50
Rotating spindle speed (standard)
rpm/min
35~2500
Number of steps of rotating speed of spindle
2 Steps
Spindle drive mode
Belt
Spindle motor
kw
Fanuc 22/26
Max.torque of spindle
Nm
1155/1637
Worktable
Table size
mm
1250*1250
Division angle
deg
1°
Reference aperture
mm
Φ75H7
Max. load on worktable
kg
5000
T-shot
mm
22H7*160*7
Precision
Positioning accuracy of rotary table
arc-sec
10″
Repeated Positioning accuracy of rotary table
arc-sec
4″
Positioning accuracy
mm
0.015
Repeated Positioning accuracy
mm
0.01
Drive Mode
XYZ-axis
Direct-drive
W-axis
Belt-drive
Y-axis counterweight
Hyd.type
Feed speed
Cutting speed X/Y/Z/W
m/min
10/10/10/6
Rapid traverse speed X/Y/Z/W
m/min
10/10/10/8
Tool magazine（Optional）
Capacity of tool magazine
40
Max. tool weight
kg
25
Max. tool length
mm
500
Max. tool diameter (no adjacent tool)
mm
Φ125/250
Others
Air pressure
kgf/cm²
6
Voltage
kva
65
Tank Capacity
L
480
Floor area (length*width*height)
mm
6425*5605*4800
Weight
kg
30500

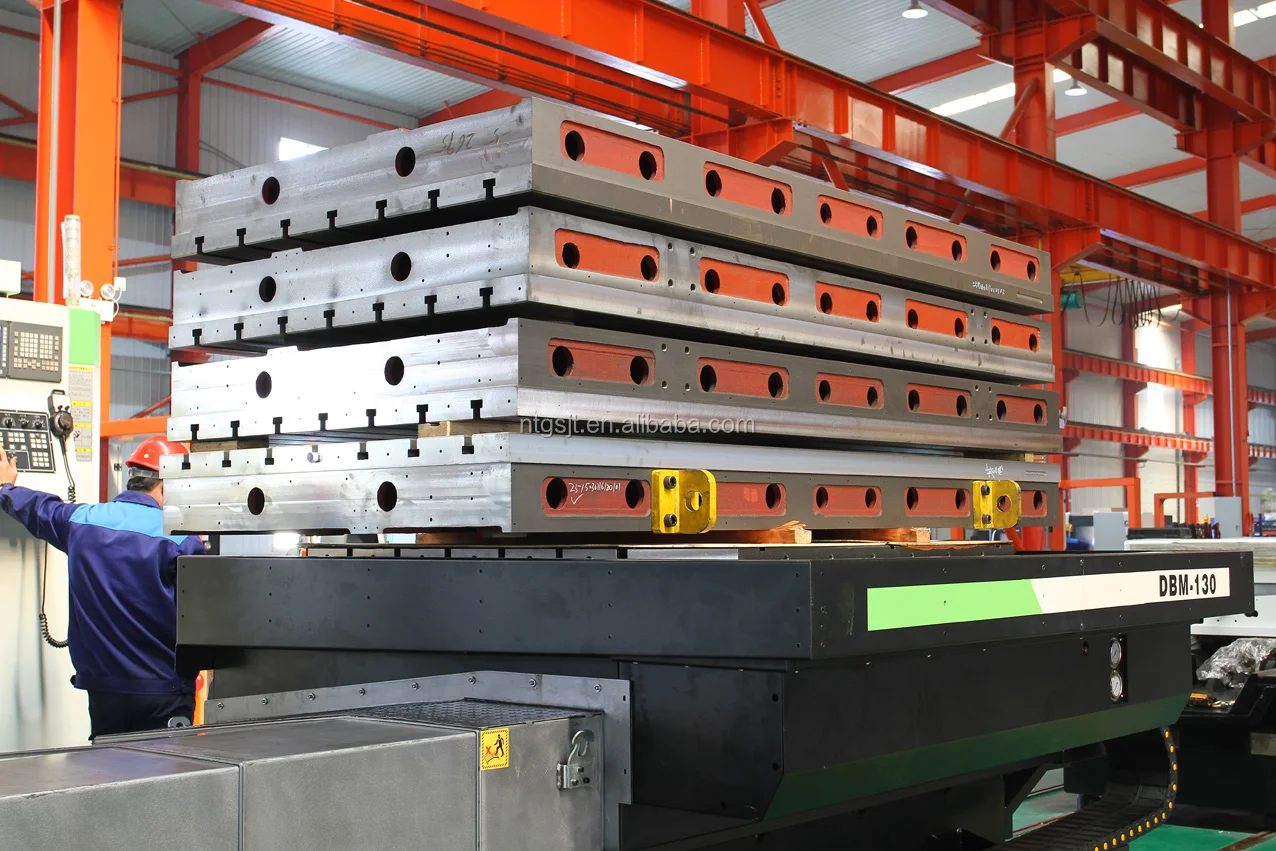

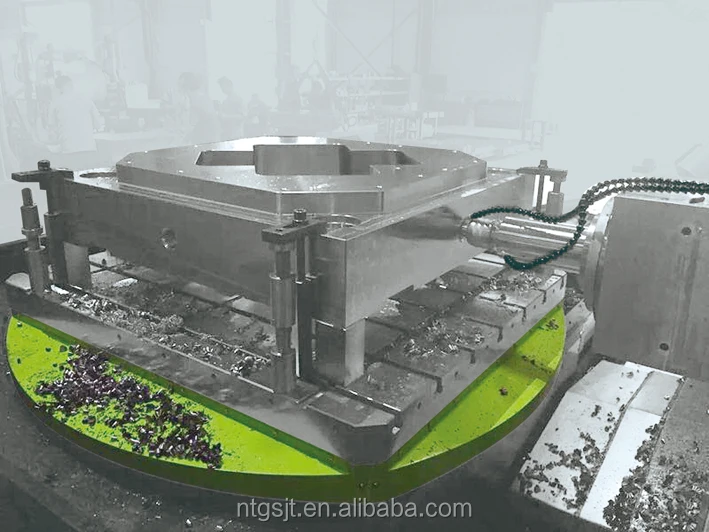

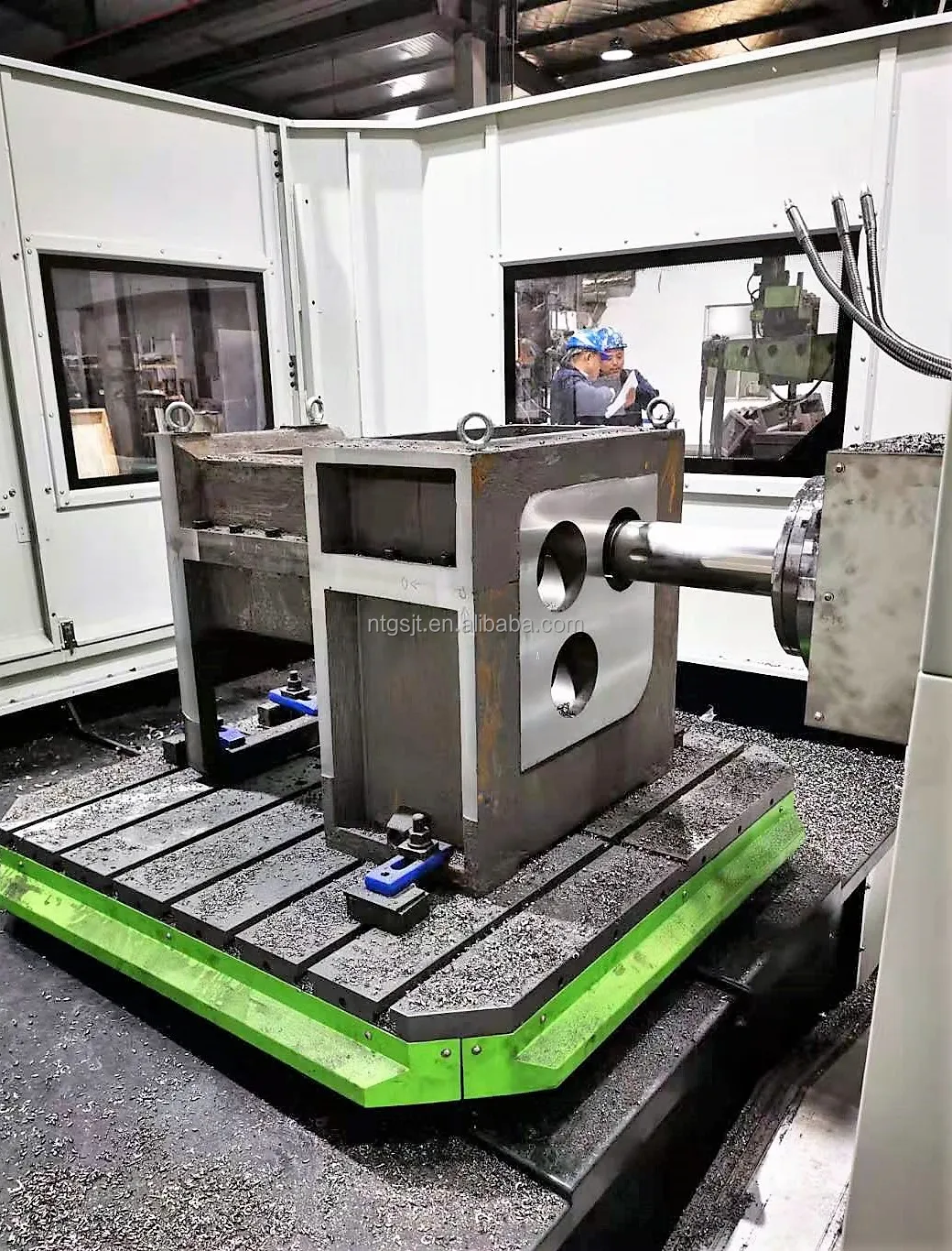

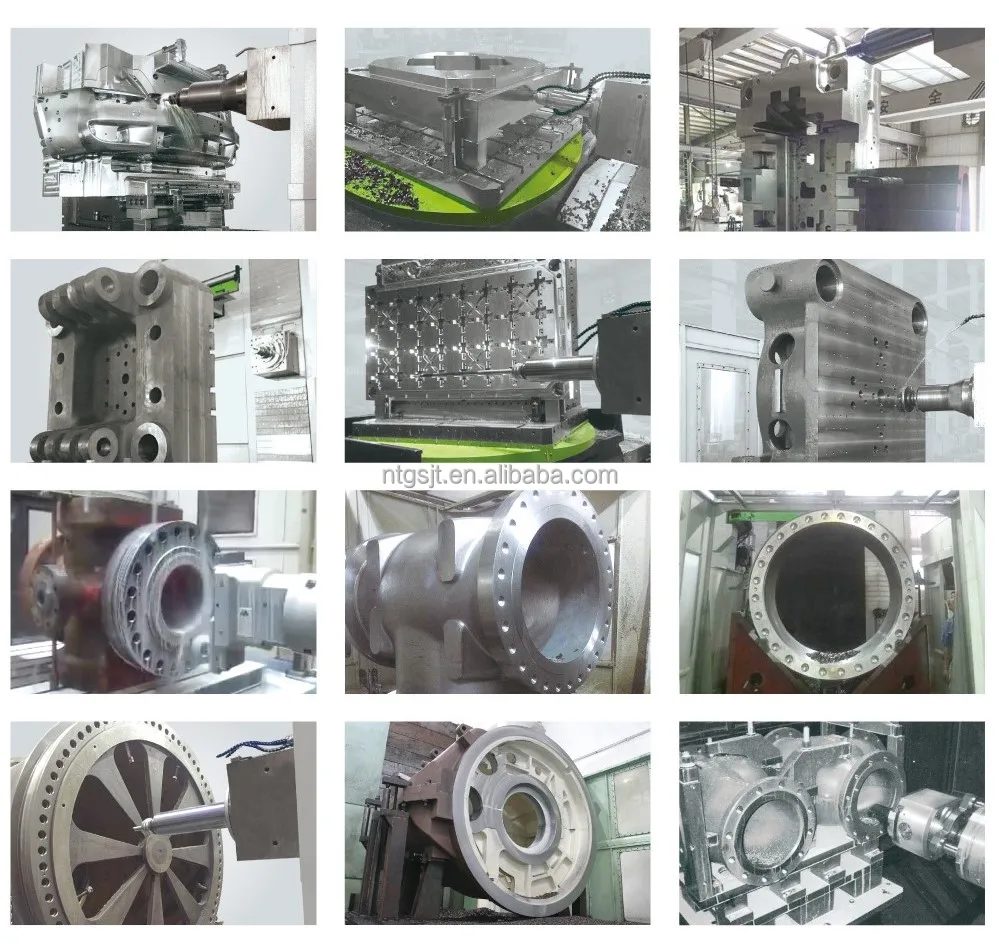

Application area

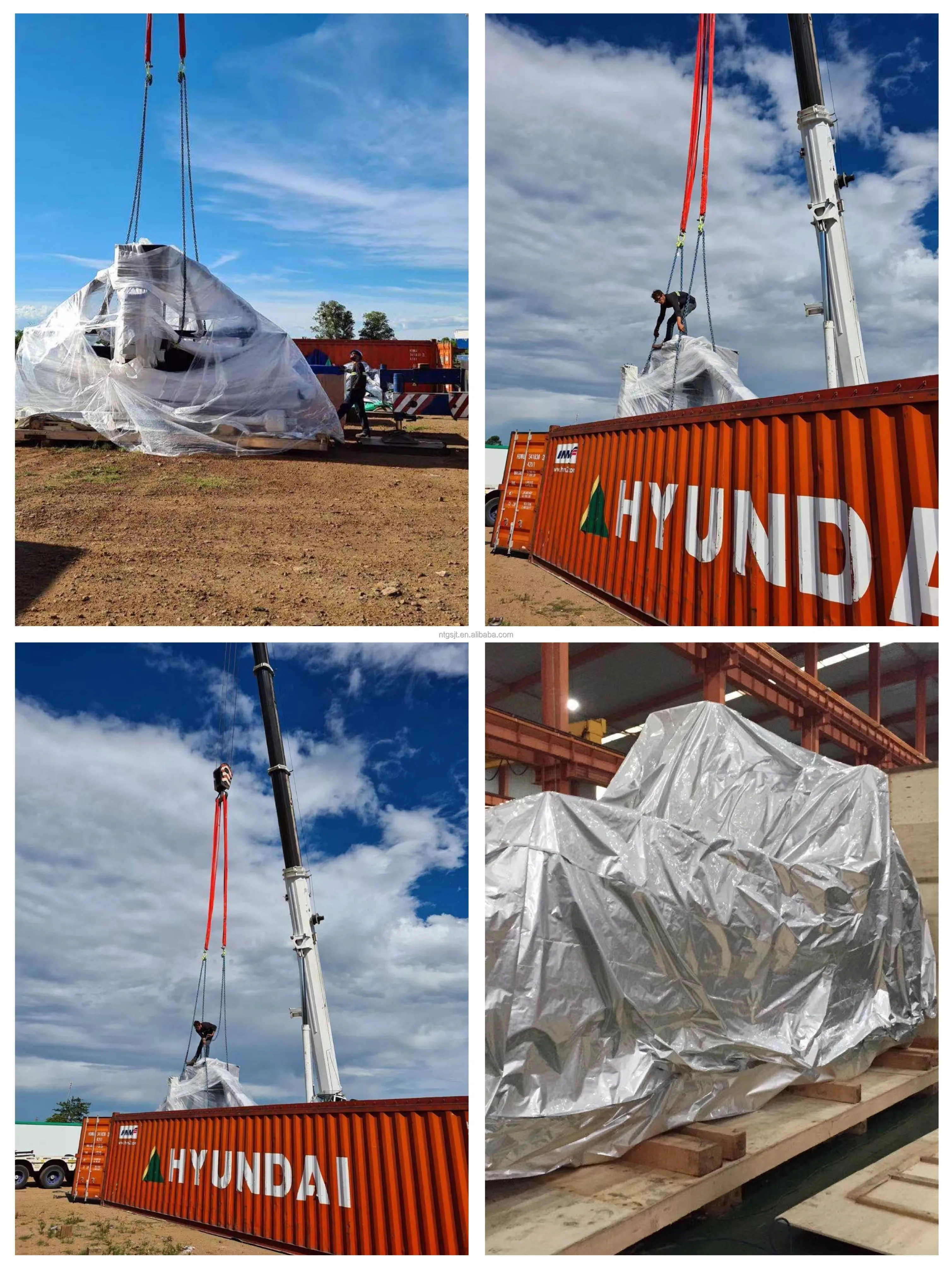

Packing & Delivery

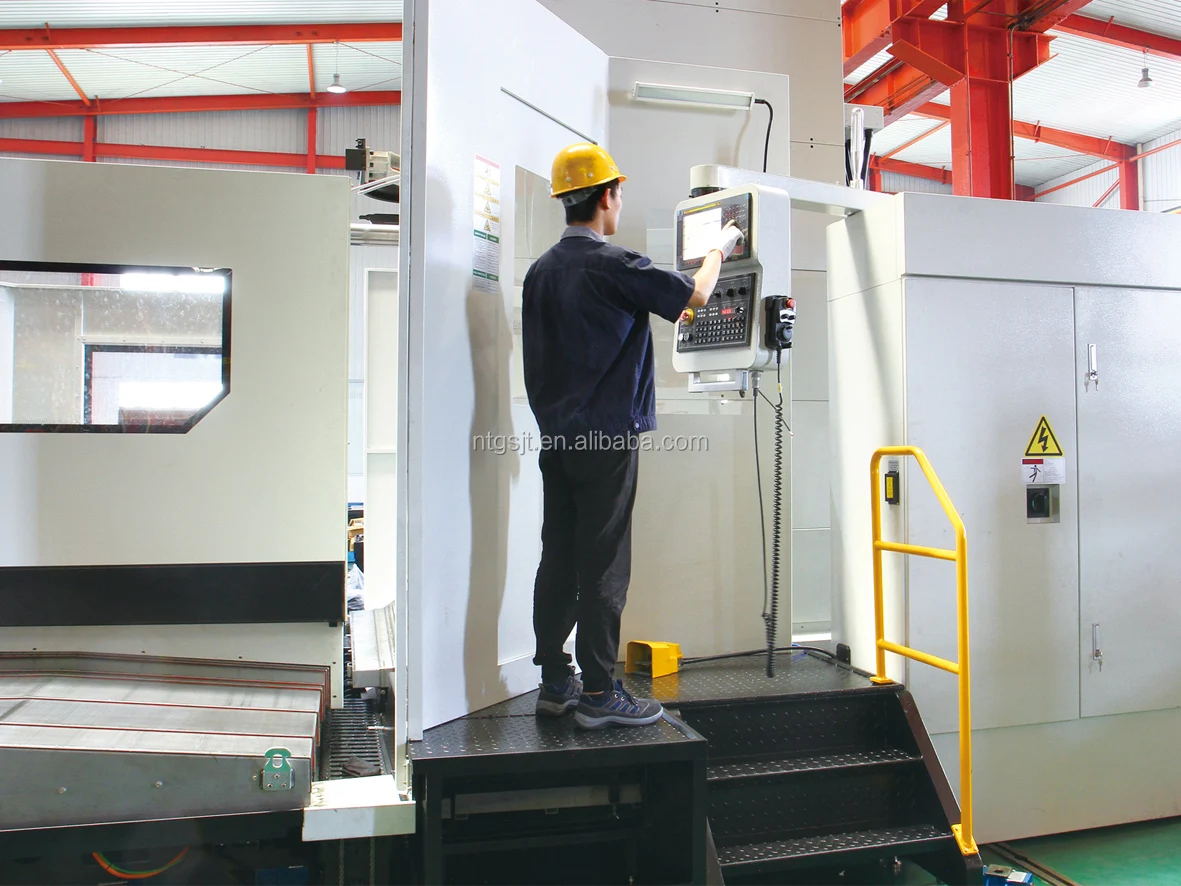

DBM110A High precision digital display horizontal boring milling machine machining center

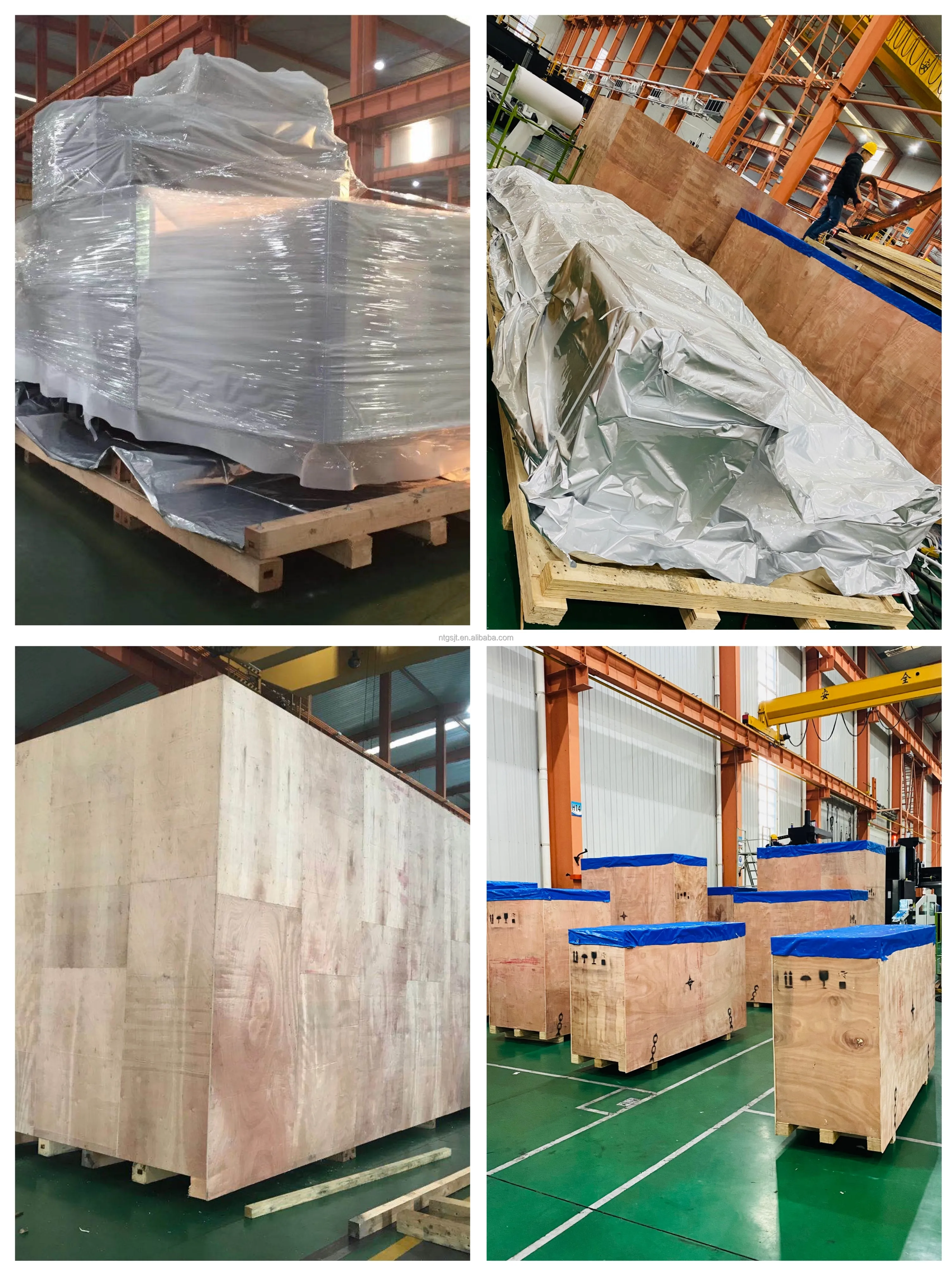

High quality wooden case
As your request
