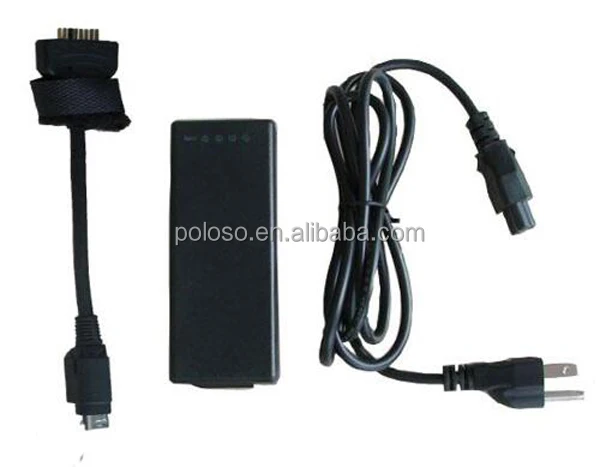

Portable External Universal Battery Charger for Lenovo Thinkpad X60 X61 Tablet PC, 40Y8318

Product Overview

Description

RFNC6 External laptop battery charger

Charge for laptop battery directly without connecting the computer



Charges LENOVO Laptop Batteries with the following part numbers :

40Y8314, 40Y8318, 42T4507, 42T4661, 42T5204, 42T5206, 42T5208, 42T5209, 42T5251 etc.



Charges Batteries for the following LENOVO Laptop Models:

ThinkPad X60 Tablet PC Series:

ThinkPad X60 Tablet PC 6363

ThinkPad X60 Tablet PC 6364

ThinkPad X60 Tablet PC 6365

ThinkPad X60 Tablet PC 6366

ThinkPad X60 Tablet PC 6367

ThinkPad X60 Tablet PC 6368

ThinkPad X61 Tablet PC Series:

ThinkPad X61 Tablet PC 7762

ThinkPad X61 Tablet PC 7764

ThinkPad X61 Tablet PC 7767



Functions:

1. Charge your laptop battery directly ,without connecting the computer

2. Suitable for over 95% of laptop batteries with different connecting wires

3. Read battery information from the battery protective plate and then regulate the output voltage and current

4. With five LEDS, four for charging status and one for power indicating

5. Intelligent protection against over-current, over-voltage, over-charge, over-heat and short circuit

6. Simplify charging process, save your time and keep your laptop in good condition, especially if you own two batteries or more



Specification:

Model	RFNC6
Dimensions	128*51.5*33 mm
Color	black
Weight	200g
Input Voltage	AC 100~240V 3A 50/60HZ
Output voltage	DC 7.2~14.8V   2A
Maximum output power	40W
Standby power consumption	<1W
Maximum output current	2.5A
Warranty	one year
Length of charging time	8 hours MAX
Operation Temperature	0°C~40°C/20%~90% RH
Storage Temperature	-20°C~65°C/10%~95% RH
Safety Standard	CE standard



Charging Instruction:

1. Normal Working Condition:

Four LED lights go on after switching on. The charger gains the battery information from the battery protective plate, and then starts charging.

LED Status	Capacity Percentage
All the four LEDS blink circularly	25%
LED1 is on. The other three LEDS blink circularly	50%
Both LED1 and LED2 are on. Both LED3 and LED4 blink circularly	75%
LED4 blinks. The other three LEDS are on	100%
All the four LEDS are on	100%



2. Activate Charging Condition:

The four LEDS blink synchronously after switching on. It might be the charger is not connected well with the battery. Users should check and confirm the device is connected correctly.

One minute later, if the charger enters into normal working condition, it means the battery has been activated.

One minute later, if the four LEDS still blink synchronously, it means the battery has been damaged andcan not be repaired.



Package: 1*charger 1*power cord 1*connecting wire/set
