industry& atuo used Air Cooled Condenser units

Product Overview

Description

About us



     Fenghua Refworld Refrigeration Industry Co., Ltd. is a company specializing in the R&D, manufacture and sale of refrigeration components and equipment. Through several years of hard work and devotion in the field of refrigeration, high technology manufacturing equipment and advanced management concept, we are making a solid base for our future development. Now we have established a wide sales network all over the world. We are always open for your visit and cooperation and hope that we can establish long-term cooperation with your esteem company and will do what we can for the development of the world refrigeration and air conditioning.





About product

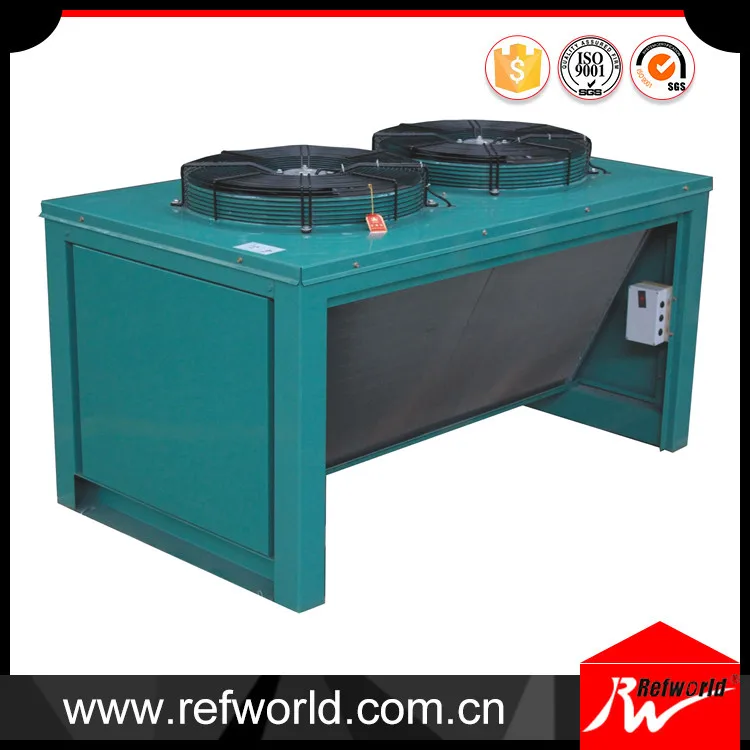

product's name: industry& atuo used Air Cooled Condenser units



Model	Noninal Heat Exchange   Capacity     W	Heat Exchange     Area     M²	Fan Motor					Inlet     Pipe     Dia.     (mm)	Outlet     Pipe     Dia.     (mm)	Overall   Dimension			Installation   Dimension
			Qty     (pcs)	Fan   Dia.     (mm)	Air       Volume     (m³)	Capacity     (W)	Power     Supply     (V)			A	B	C	D	E
A-FNV-2572	24840	72	1	4D550	8487	600	380	22	16	950	900	880	870	700
A-FNV-30/87	30102	87	1	4D600	12500	830	380	25	16	1100	900	880	1020	700
A-FNV-39/110	39050	110	2	4D500	2×6246	2×450	380	25	16	1400	900	880	1320	700
A-FNV-45/130	44850	130	2	4D550	2×8487	2×600	380	28	19	1550	900	880	1470	700
A-FNV-55/155	55025	155	2	4D500	2×8487	2×600	380	28	19	1600	1000	980	1520	800
A-FNV-64/185	63825	185	2	4D600	2×12500	2×780	380	28	22	1700	1000	1080	1620	800
A-FNV-73/210	72660	210	2	4D630	2×13000	2×780	380	32	22	1750	1000	1180	1670	800
A-FNV-83/240	82800	240	2	φ700	2×15000	2×750	380	32	22	1900	1175	1260	1820	975
A-FNV-104/300	103800	300	2	φ750	2×19000	2×1100	380	35	25	2250	1175	1260	2170	975
A-FNV-111/320	111040	320	2	φ750	2×19000	2×1100	380	38	25	2350	1175	1260	2270	975
A-FNV-125/360	124560	360	3	φ650	3×13200	3×550	380	42	28	2650	1175	1260	2570	975
A-FNV-138/400	138400	400	3	φ700	3×15000	3×750	380	42	28	2950	1175	1260	2870	975
A-FNV-166/480	165600	480	3	φ750	3×19000	3×1100	380	54	28	3400	1175	1260	3320	975
Remark: Below 210 M² using 4 pole axial fan motor,   while more than 240M²  using 6 pole axial fan motor
