5,50 мм офсетные аналоговые пластины для флексографской печати для машины для производства пластин

Product Overview

Description

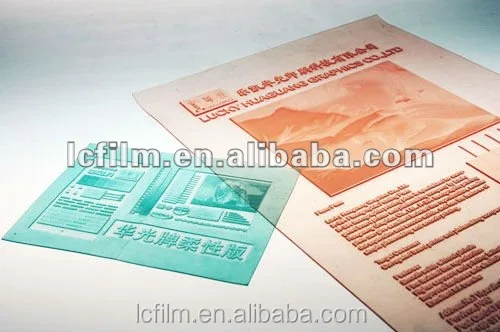

5.50mm Offset Analog Flexo Printing Plates for Platemaking Machine

Features:

1.Green Product suitable for water base ink

2.Samples available
3.Same effect as Dupont
4.High impressions

Technical Parameters:



Type		R550
Thickness(mm)		5.50mm
Rigidity(Shore A)		35-38
Recommend relief depth(mm)		2.0-3.0
Image reproduction		3%~95%
Maximum line line/inch		85
Minimum isolated line		0.3mm (0.0118inch)
Minimum isolated dot		0.50mm (0.0197inch)
Suitable ink		Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25%
Mainly applicable field		Corrugated board, thick board
Storage—raw plates		Unexposed plates should be stored in cool areas (4-32°C)away from heat. The plates must be placed flatly, and protected from contacting UV light. It is recommended to unpacked and handled in yellow light.
Storage—finished Plates		Printing plate should be avoid excessive white light, irradiating from sunlight and exposing in high concentrated ozone environments for a long time either. After being unloaded, the plates should be cleaned thoroughly.
Guarantee Period		Under the recommended storage condition, guarantee period of Flexographic Printing Plate is 24 months.
Packing	457×762   (18×30)	√
	762×1016   (30×40)	√
	900×1200   (35.4×47.2)	√
	1067×1524     (42×60)	√
	1067×2032     (42×80)	√
	1200×2032   (47.2×80)	√
	1270×2032   (50×80)	√
